T162841 Cutting Edge End Bit Fits John Deere 450G-H-J 550G-H-J 650G-H-J
T162841 Cutting Edge End Bit Fits John Deere 450G-H-J 550G-H-J 650G-H-J
Regular price
$257.00 CAD
Regular price
Sale price
$257.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

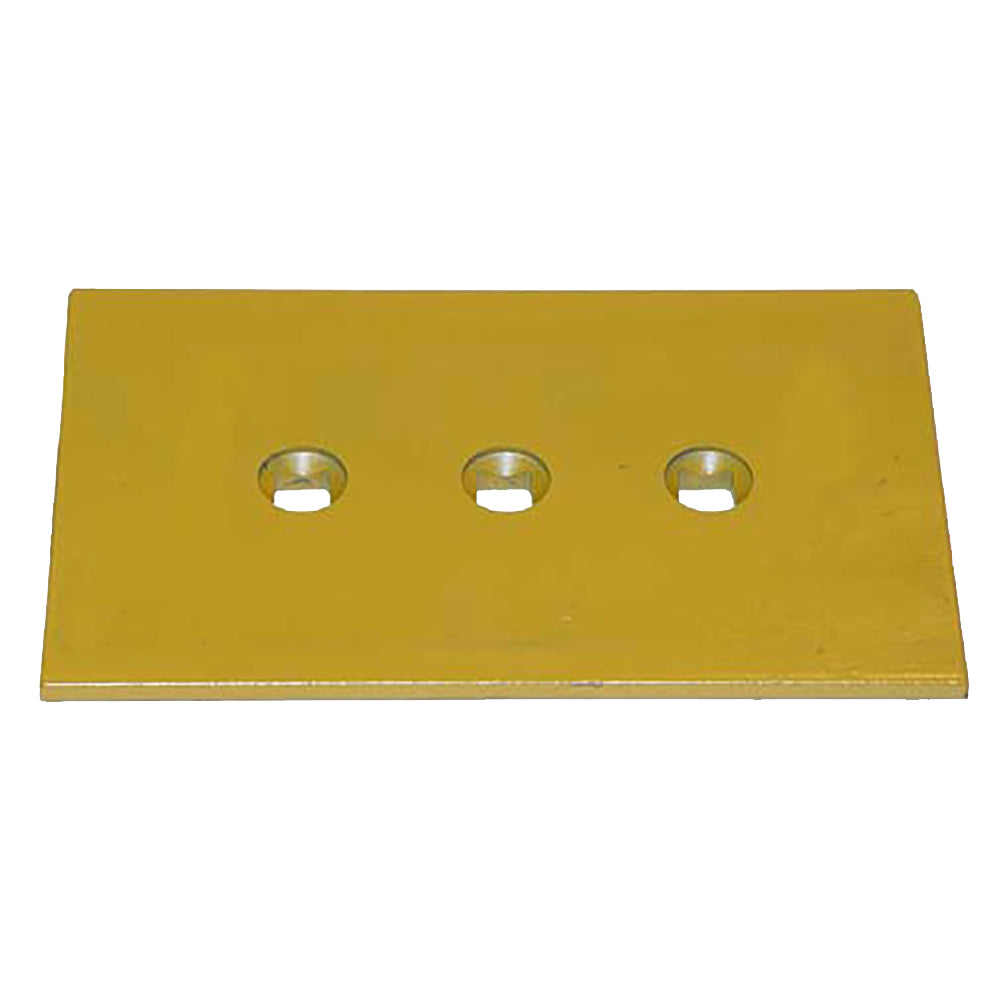

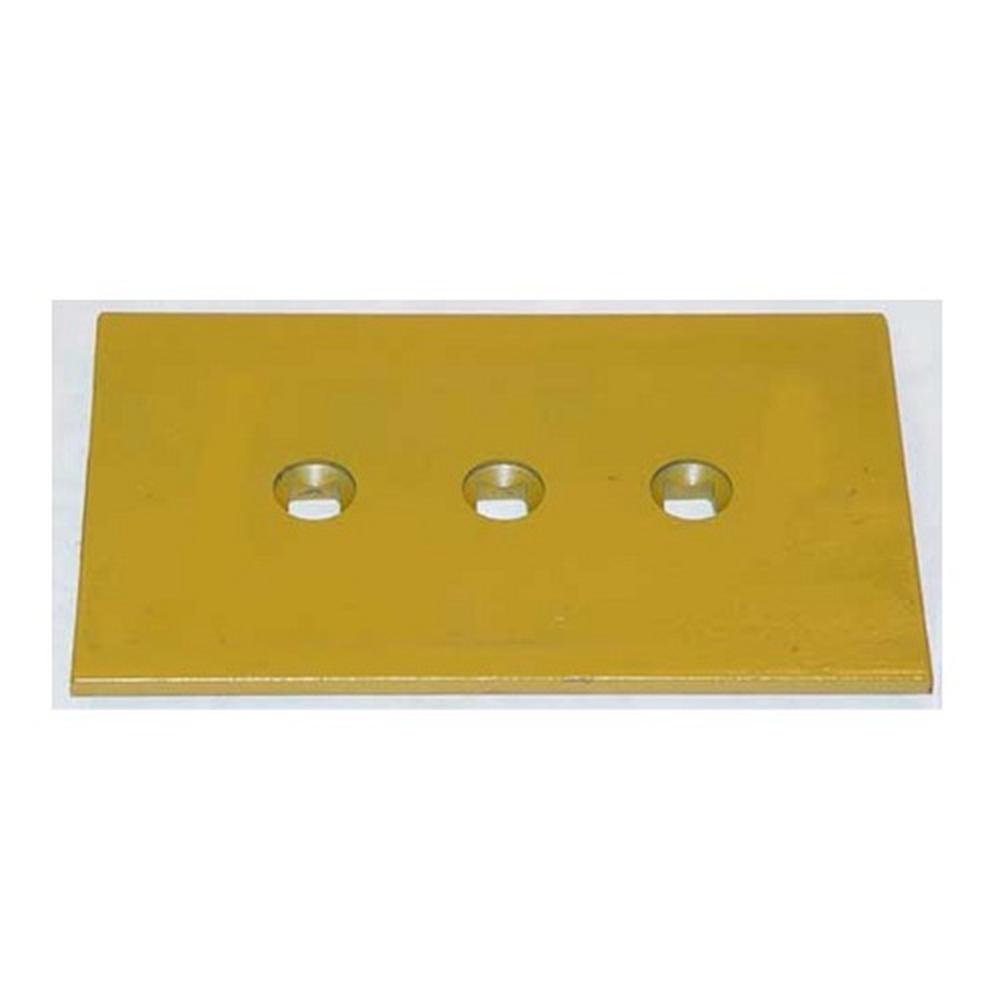

One New Aftermarket Replacement Cutting Edge End Bit Fits John Deere Crawler Dozers
This bolt-on cutting edge end bit mounts to the outer corners of the dozer blade, protecting the blade ends from wear during grading and dozing operations. Fits both the left-hand and right-hand side. Fits John Deere (Fits JD) OEM part number T162841.
Specifications
- Length: 13"
- Height: 8"
- Thickness: 3/4"
- Holes: 3
- Hole Diameter: 3/4"
- Bolt hole spacing: 3" center-to-center; 3.5" from blade edge to center of first hole
- Hardware: Uses (3) 3/4" x 2-1/4" plow bolts and (3) 3/4" hex nuts (not included)
- Fits left or right hand side
Compatible Models
Fits John Deere Crawler Dozers: 450G, 450H, 450J, 450K, 550G, 550H, 550J, 550K, 650G, 650H, 650J, 650K
Fits John Deere 700H: Serial number up to and including 937546 (700H units AFTER serial number 937546 require a different part)
Fits John Deere 700J
Replaces Part Number(s):
T162841, DBD90-0003
Aftermarket Interchange Numbers
T120978
New aftermarket replacement part - not remanufactured, not used.
