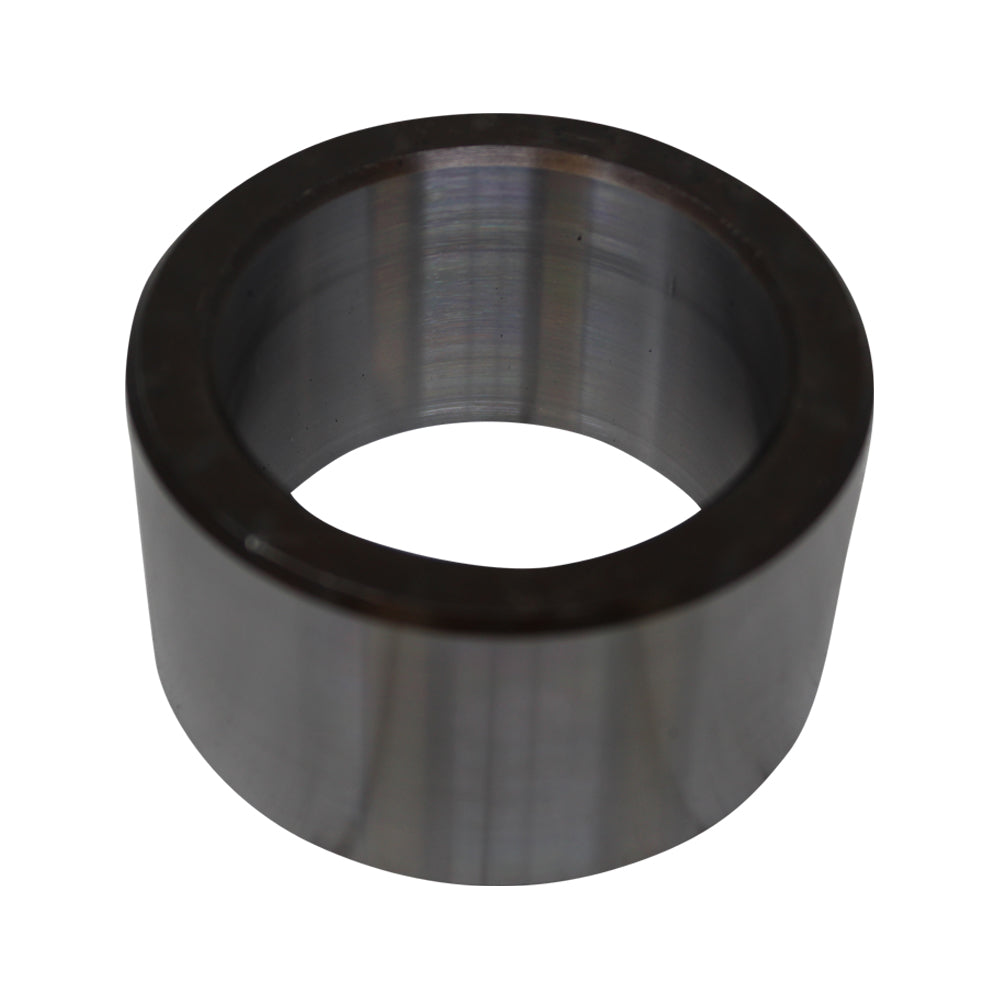

One New Aftermarket Replacement Bushing - Frame to Swing Tower (Upper) Fits Case Backhoe Loaders
This aftermarket replacement bushing fits the upper frame-to-swing-tower pivot point on Fits Case (Fits Case/International Harvester) backhoe loaders. The same part number D90722 serves both the upper and lower frame-at-swing-tower positions on 580D and 580E models, making it a versatile stocking part for swing tower service. It is a precision-fit bushing in the backhoe swing frame assembly, controlling lateral movement and wear at the tower pivot.
Specifications
- Inner Diameter (ID): 57.38mm (approx. 2.26 in.)
- Outer Diameter (OD): 76.2mm (approx. 3.00 in.)
- Length: 43mm (approx. 1.69 in.)
- Position: Upper and/or Lower Frame at Swing Tower
Compatible Models
Fits Case / Fits Case IH Backhoe Loaders: 580B, 580C, 580D, 580E, 580G, 580SD, 580SE
Replaces Part Number(s):
D90722
New aftermarket replacement part - not remanufactured, not used.
