D86344 Spindle, L/H For Steel Axle Fits (PV435 & PV436 will also work on rear ax

D86344 Spindle, L/H For Steel Axle Fits (PV435 & PV436 will also work on rear ax

$672.00 CAD
$672.00 CAD
Sale Sold out
Shipping calculated at checkout.

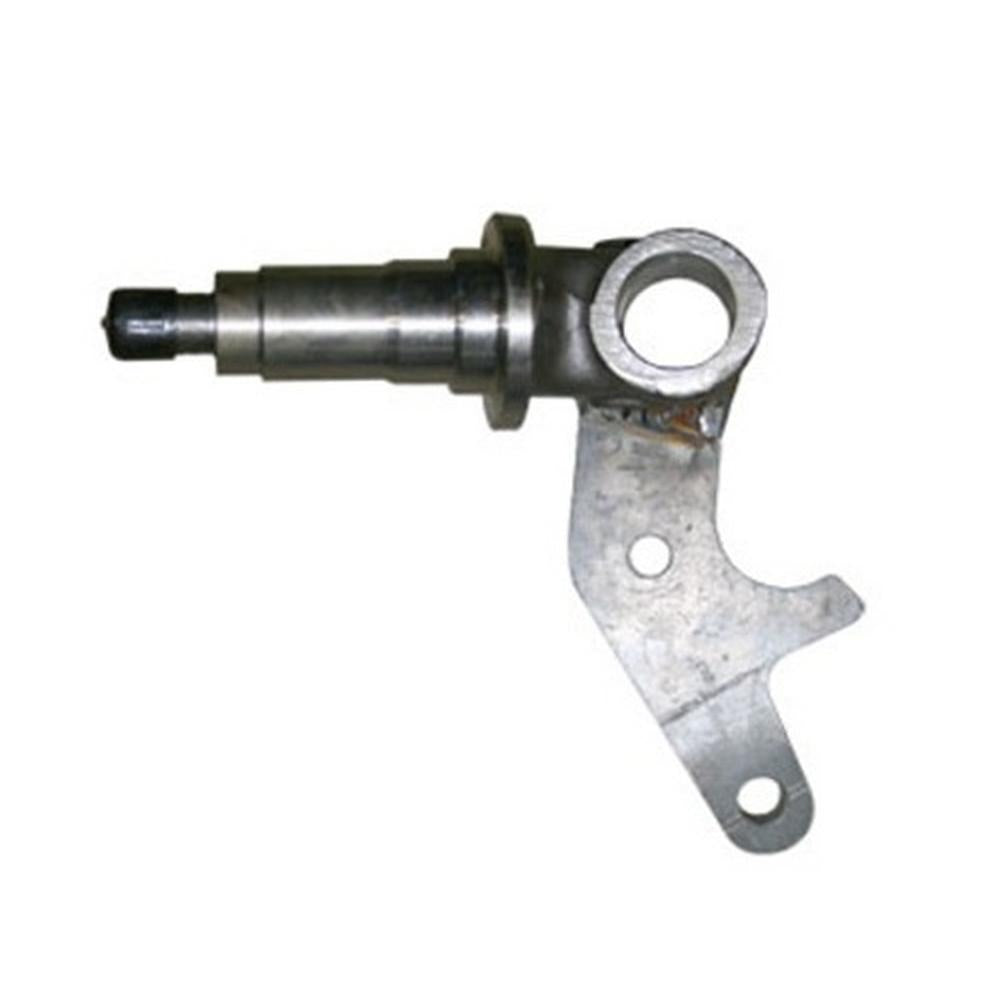

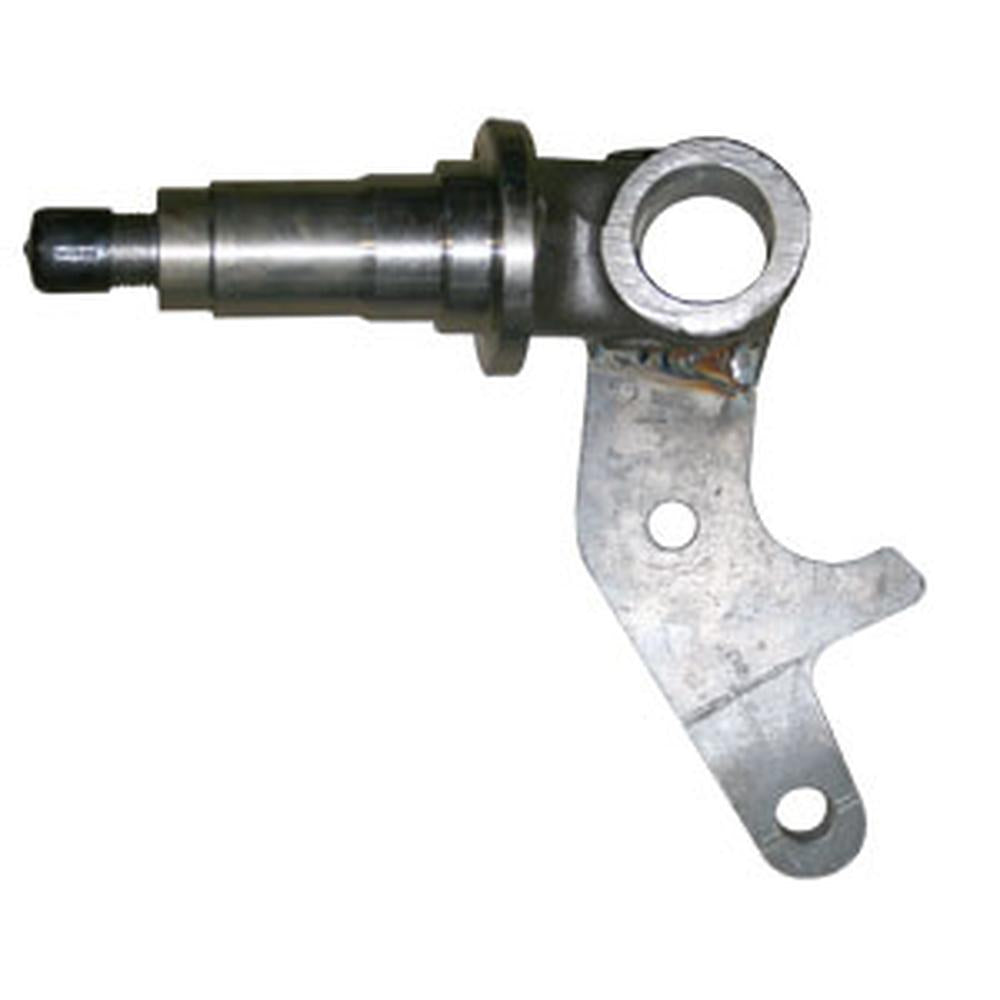

One New Aftermarket Replacement Left Hand (L/H) Spindle Fits Case / Fits Case IH Backhoes and Forklifts

This aftermarket replacement left-hand spindle fits the front steel fabricated axle on Fits Case and Fits International Harvester (IH) backhoe loaders and the rear axle (right-hand position) on Fits Case forklifts. The spindle assembly includes an integrated steering stop. Designed specifically for steel axle machines -- not compatible with cast iron axles. For two-wheel drive (2WD) machines only.

IMPORTANT -- Serial Number Restriction: On the Fits Case 480LL, this spindle fits serial numbers 17003108 and earlier only. Verify serial number before ordering.

Specifications

  • Side: Left Hand (L/H)
  • Axle Type: Steel fabricated front axle (2WD only -- not for cast iron axles)
  • Includes: Integrated steering stop

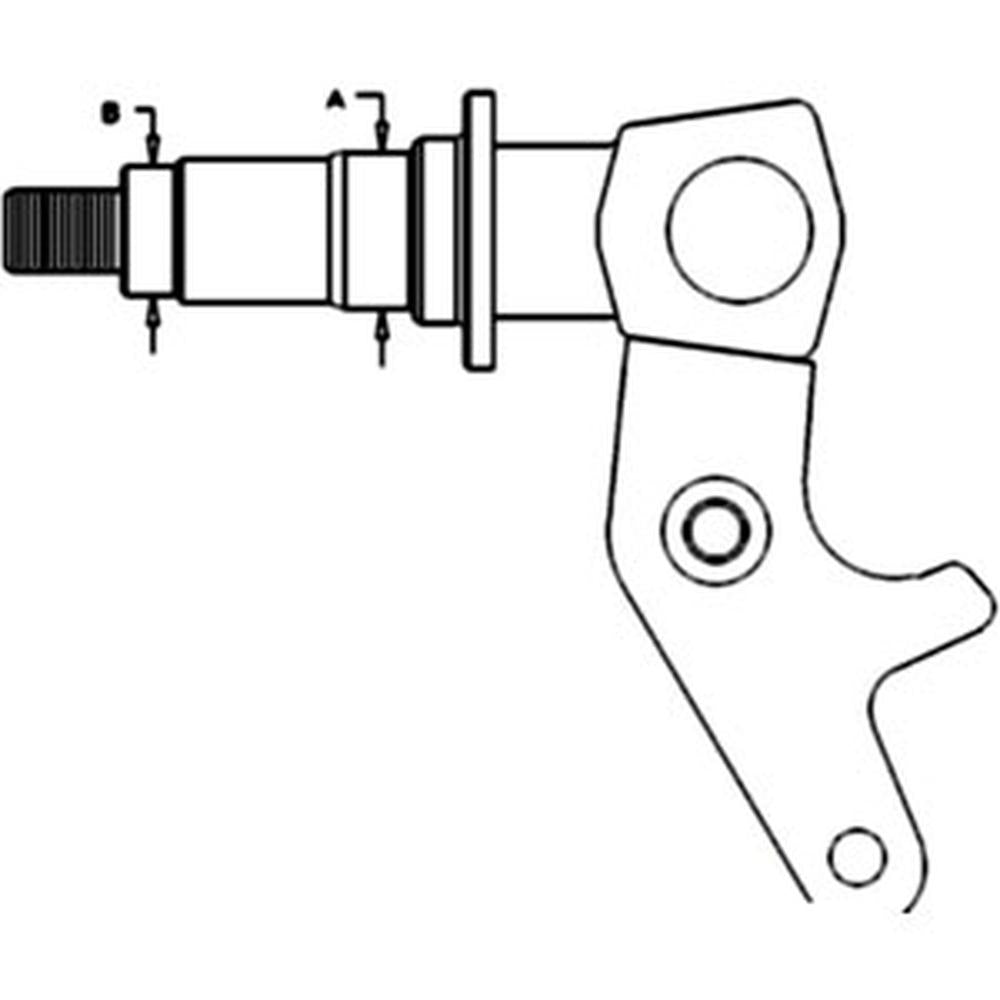

  • Dimension A: 2.164 in.
  • Dimension B: 1.780 in.
  • Weight: Approx. 19 lbs.

Compatible Models

Fits Case / Fits Case IH Backhoe Loaders: 480D, 480E, 480LL (s/n 17003108 and earlier), 580C, 580D, 580E

Fits Case / Fits Case IH Forklifts (rear axle, right-hand position): 584C, 584D, 584E, 585C, 585D, 585E, 586C, 586D, 586E

Replaces Part Number(s):

D86344

Aftermarket Interchange Numbers

UCA00036, A-D86344, 104352

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

480D, 480E, 480LL, 580C, 580D, 580E, 584C, 584D, 584E, 585C, 585D, 585E, 586C, 586D, 586E

Reference Numbers:

D86344
