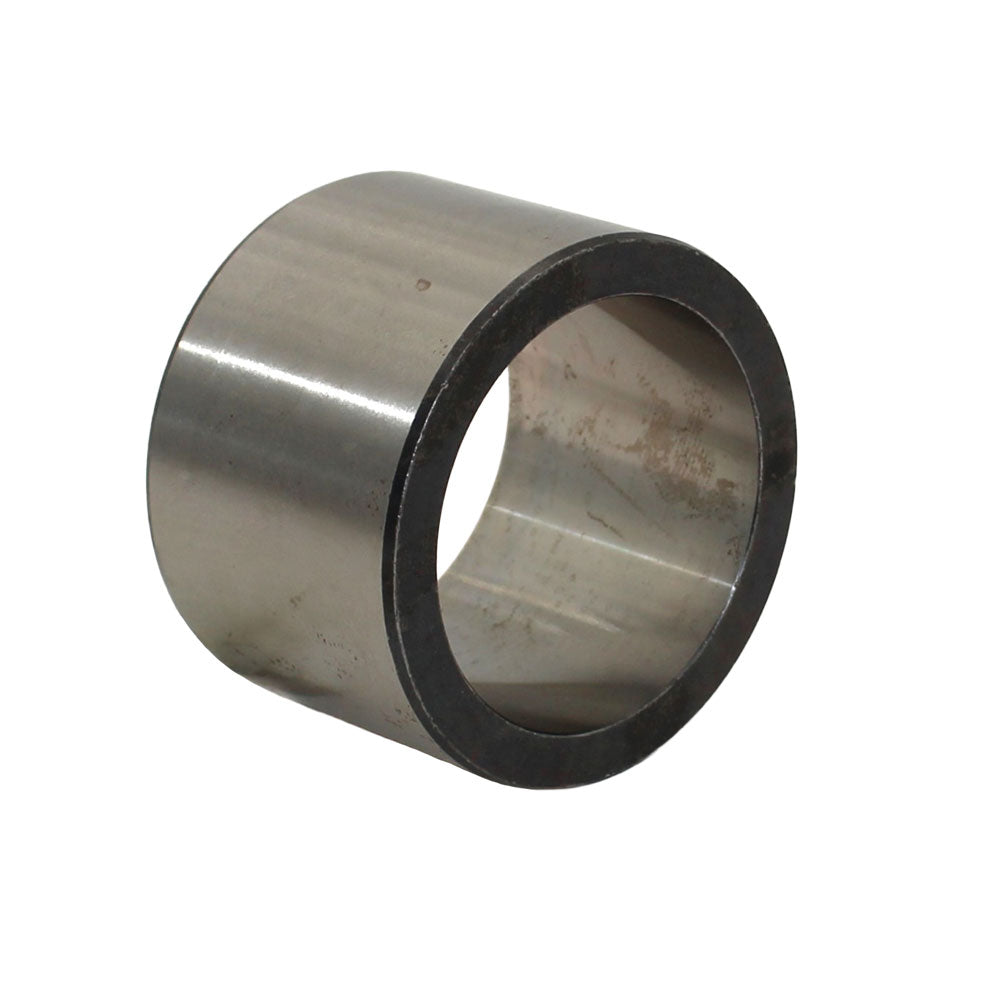

D50146 Bushing Dipper at bucket links Fits Case 580B, 580C, 580D, 580E
D50146 Bushing Dipper at bucket links Fits Case 580B, 580C, 580D, 580E
Couldn't load pickup availability
One New Aftermarket Replacement Bushing for Case Backhoe Loaders, Skid Steers, Forklifts, Crawlers, Trenchers, and Wheel Loaders

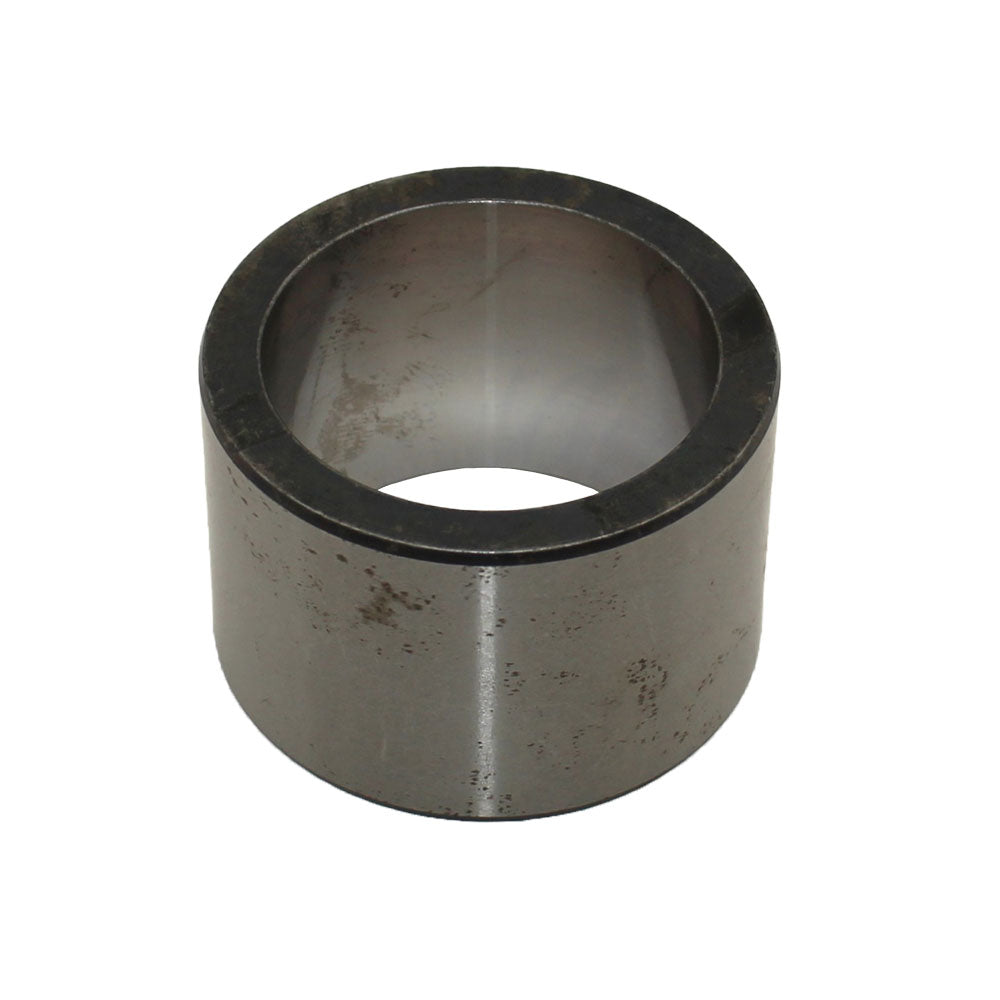

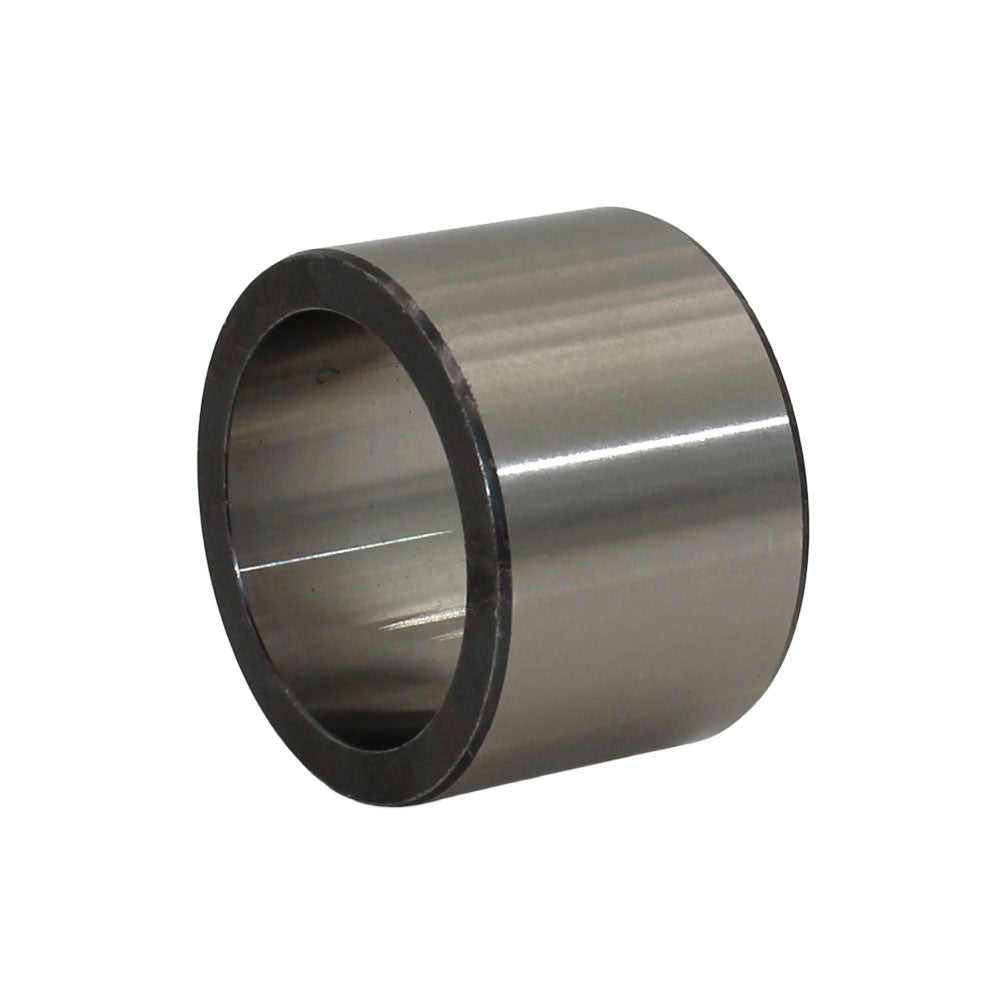

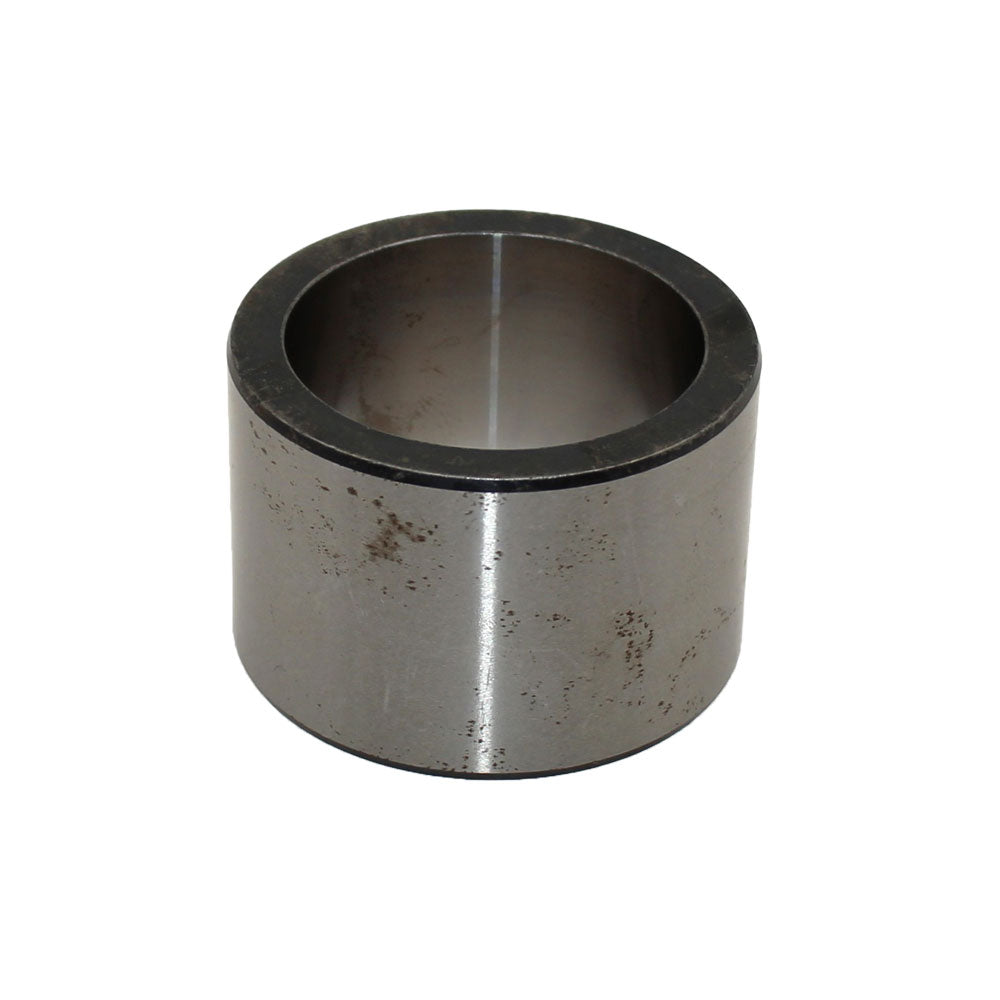

This steel bushing (part number D50146) fits at the dipper-to-bucket linkage connection on Case backhoe loaders, and also serves in stabilizer leg, suspension guide, and 3-point hitch frame applications across a wide range of Case (Case IH) construction and industrial equipment. It provides a precision wear surface between the pin and boom linkage components, reducing friction and extending the service life of the surrounding assembly.
Specifications
- Inner Diameter (ID): 1.760 in. (44.68 mm)
- Outer Diameter (OD): 2.250 in. (57.15 mm)
- Width/Length: 1.500 in. (38.10 mm)
- Material: Steel
Compatible Models
Case Backhoe Loaders: 480C, 480D, 480E, 480F, 480FLL, 480LL, 570LXT, 570LXT Series 2, 570MXT, 580B, 580C, 580D, 580E, 580F, 580G, 580K, 580L, 580M, 580SD, 580SE, 580SK, 580SL, 580 Super L, 580 Super M, 590, 590 Super L
Case Forklifts: 584, 585, 586
Case Skid Steer Loaders: 480ELL, 570LXT
Case Trenchers: 760, 860
Case Wheel Loaders: 480LL
Case Crawlers: 1450
Case Mini Excavators / Construction & Industrial: 26, 33, 33S, 35, 35WL
Note: On the 590 Super L, this bushing is used at the stabilizer leg and 3-point hitch frame. On the 1450 Crawler, it is used at the suspension guide lever.
Replaces Part Number(s):
D50146, R27172
New aftermarket replacement part - not remanufactured, not used.
