D28648 Pin Fits Case 580N 580SN

D28648 Pin Fits Case 580N 580SN

$50.00 CAD
$50.00 CAD
Sale Sold out
Shipping calculated at checkout.

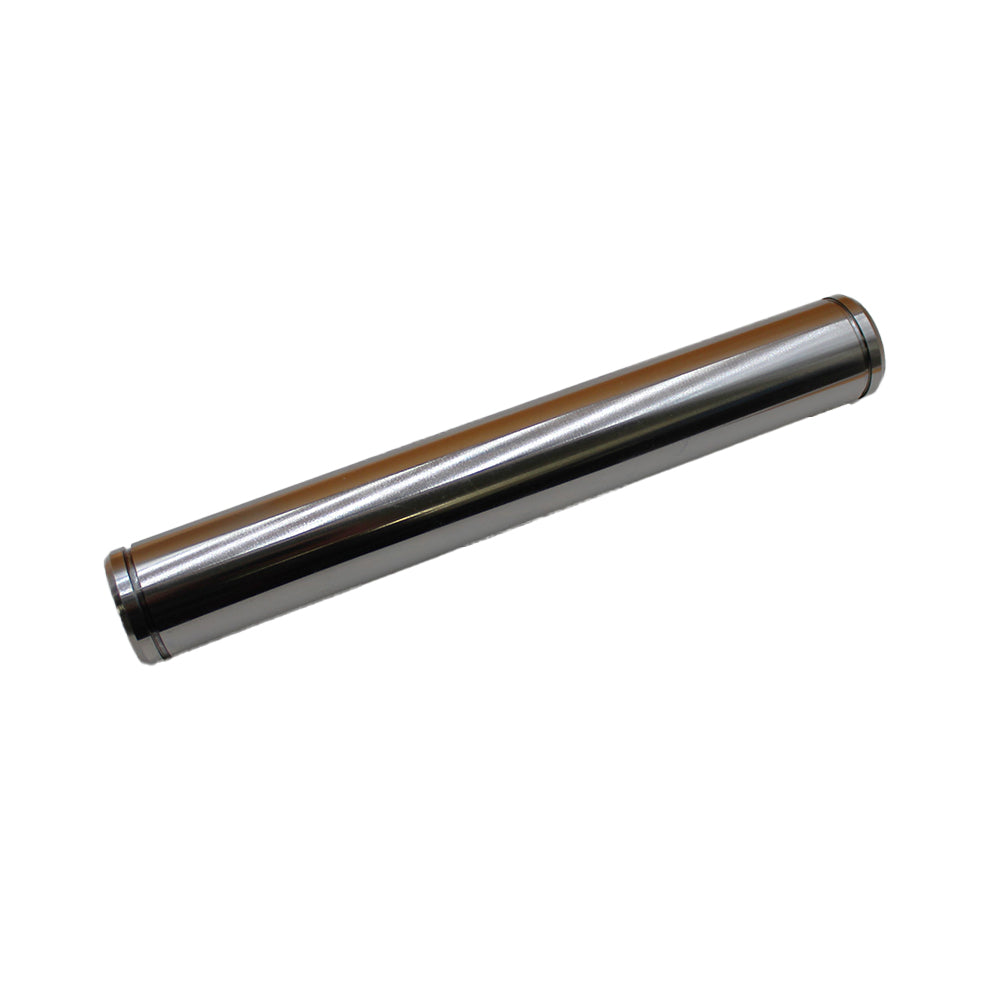

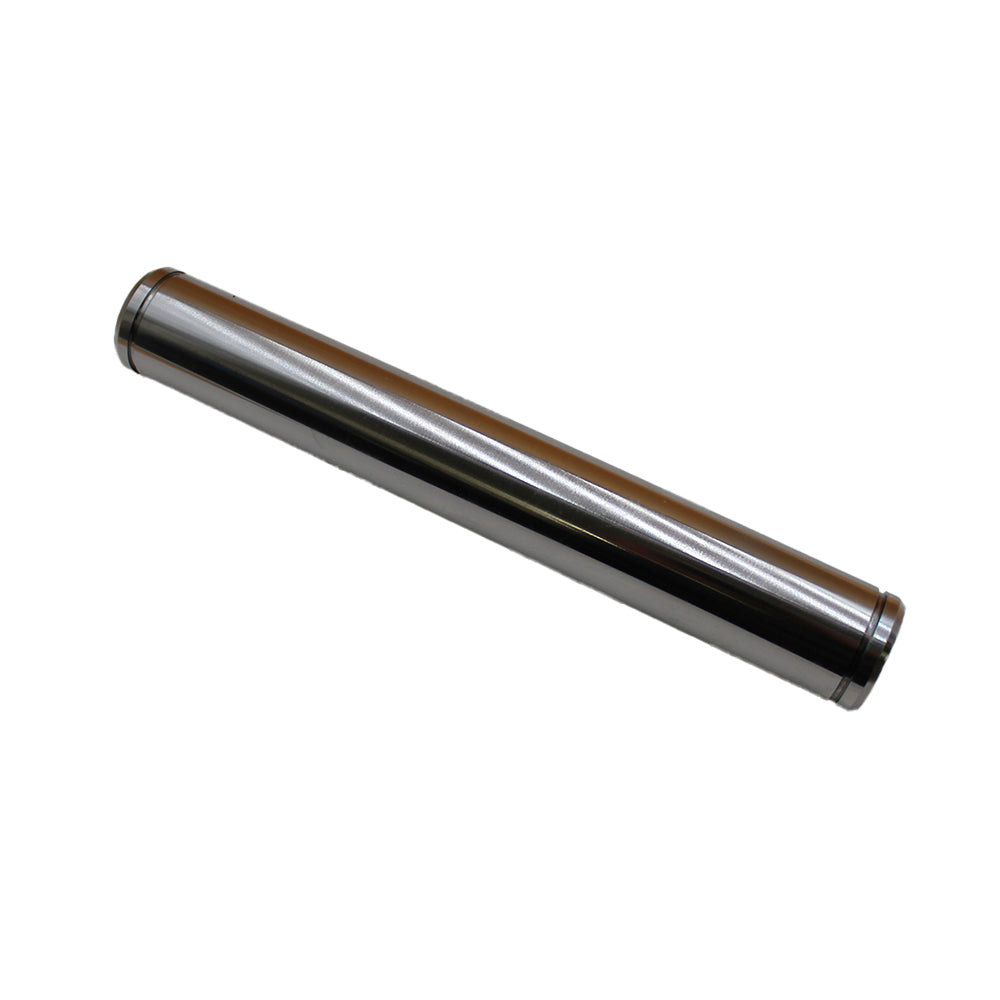

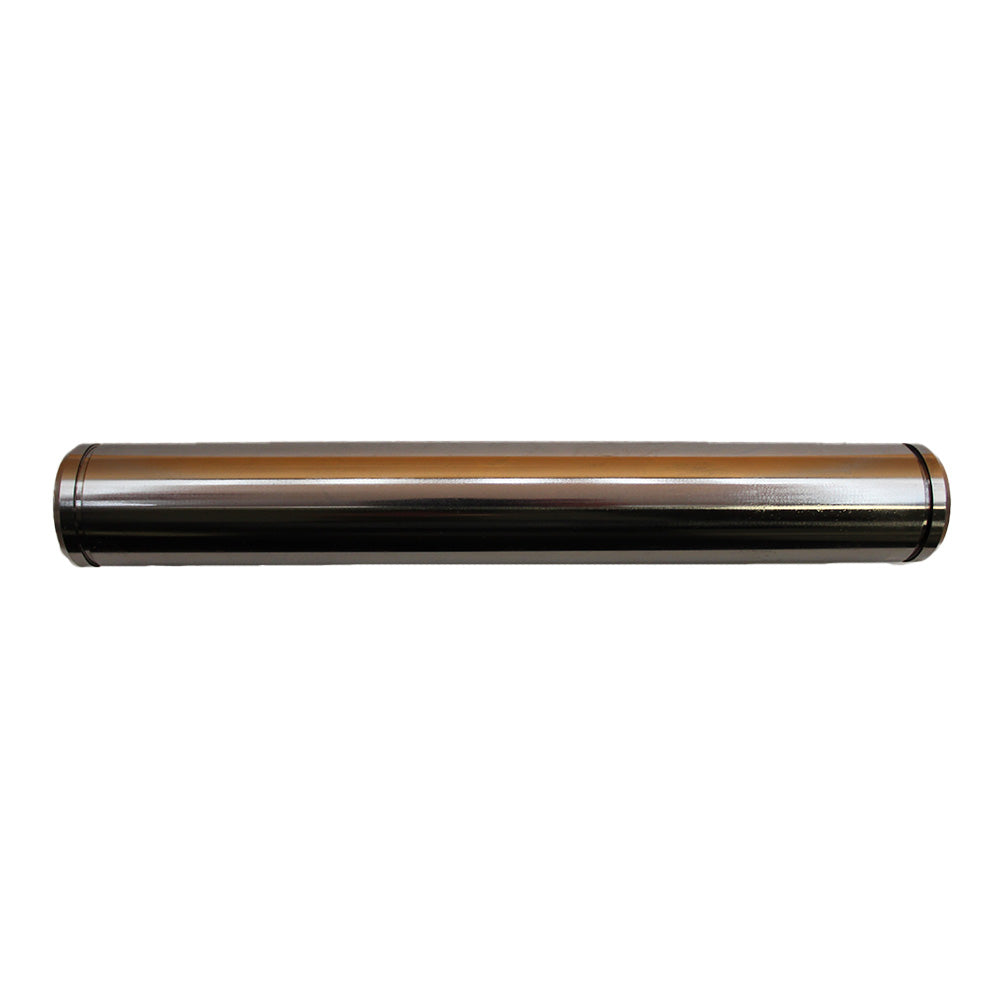

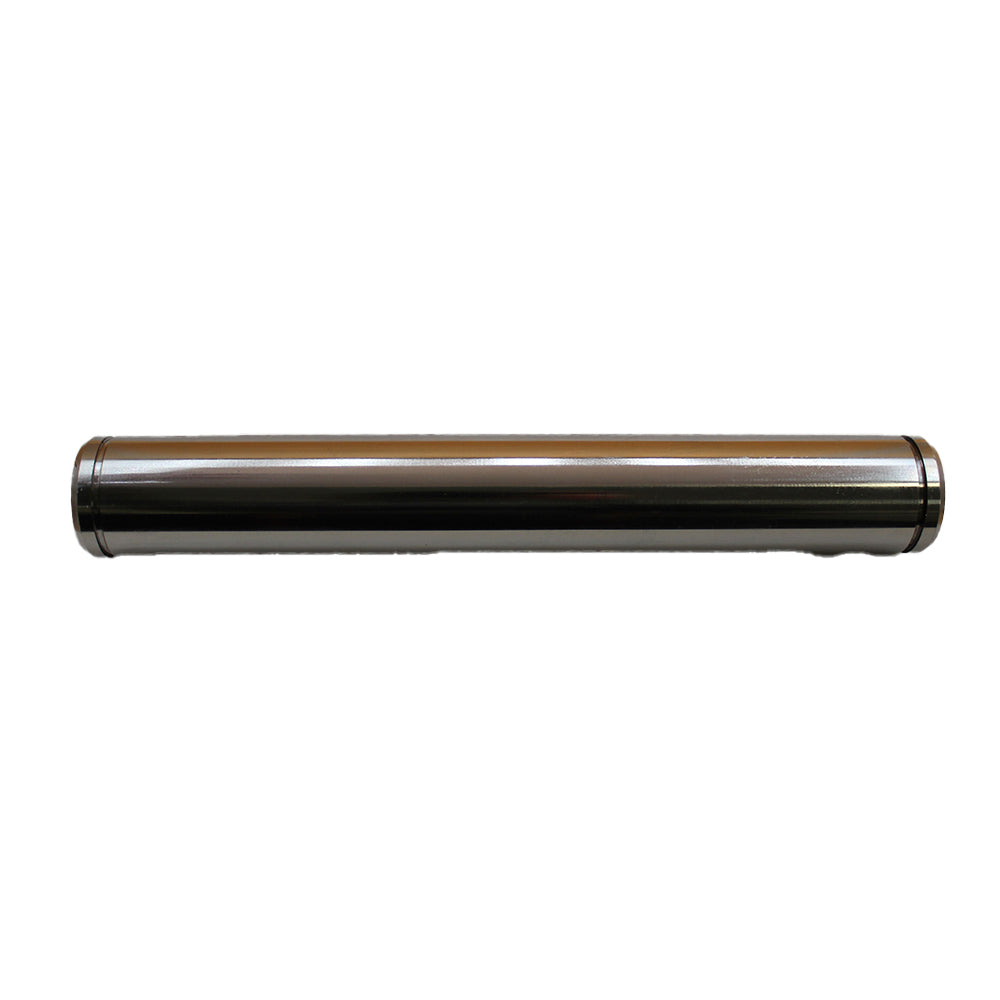

One New Aftermarket Replacement D28648 Stabilizer Plate-to-Leg Pin (Cleat) Fits Case Backhoe Loaders

This aftermarket replacement pin secures the metal cleat-style stabilizer plate to the stabilizer leg on Fits Case (Fits Case IH) backhoe loaders. Each machine requires two (2) pins. This pin is specifically for machines equipped with metal cleat-style dirt pads -- not for rubber pad or flip-over stabilizer configurations. Uses (2) D25279 snap rings (sold separately).

Specifications

  • Diameter: 1-1/2"
  • Length between snap ring grooves: 9-1/4"
  • Total length: 10-7/16"
  • Required quantity per machine: 2

Compatible Models

Fits Case / Fits Case IH 580 Series Backhoe Loaders (metal cleat stabilizer pad models only): 580B, 580C, 580D, 580E, 580K, 580SK (580 Super K), 580L, 580SL (580 Super L), 580M, 580SM (580 Super M), 580N, 580 Super E, 580 Super N

Fits Case 590 Series Backhoe Loaders: 590, 590 Super L, 590 Super M, 590 Turbo

Note: This pin fits stabilizer assemblies with metal cleat-style pads (dirt pads with no rubber). For rubber pad stabilizers, see D39256. For flip-over stabilizer plates, see D149033.

Replaces Part Number(s):

D28648

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

590 Super L, 310C, 580C, 580D, 580B, 580E, 580 Super L, 580N, 590, 320, 580M, 580K, 580L, 570LXT, 580 Super M, 580SK

Additional Information:

Length: 9-1/4" between snap ring grooves, with a total length of 10-7/16" Diameter: 1-1/2"

Reference Numbers:

D28648
