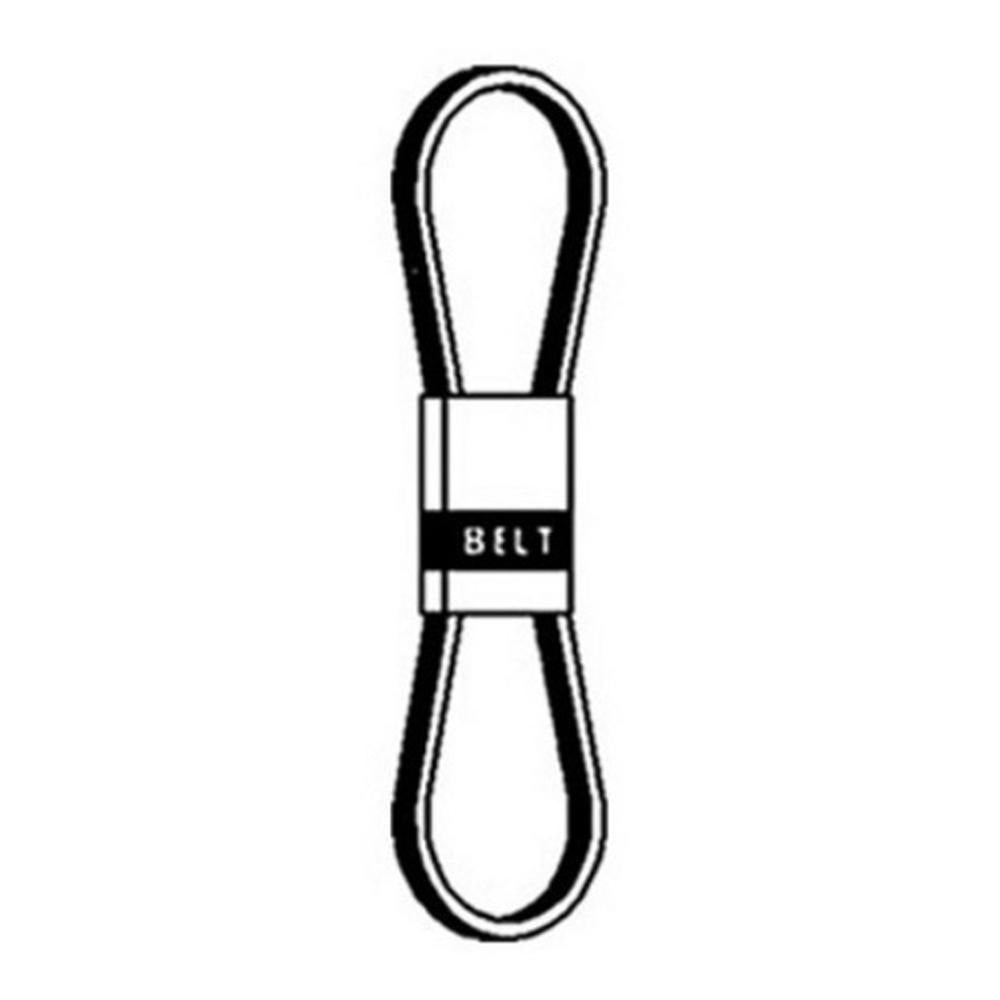

D280 1-1/4" x 285" Classical V-Belt (with 3/4" Depth & 1-1/4" Top Width)
D280 1-1/4" x 285" Classical V-Belt (with 3/4" Depth & 1-1/4" Top Width)
Couldn't load pickup availability
One New Aftermarket Replacement D280 Classical V-Belt - D Section, 1-1/4" x 285" Outside Circumference
This D280 Classical V-Belt is a standardized D-section power transmission belt used across a wide range of agricultural, industrial, and lawn and garden machinery. The D-section profile wedges into sheave grooves to maximize friction and torque transfer, making it well-suited for high-load drives including combines, tractors, HVAC systems, conveyor systems, air compressors, and centrifugal pumps. Multiple D280 belts can be run as a matched set for higher-horsepower applications.
Specifications
- Belt Section: D (Classical)
- Top Width: 1-1/4 in (32 mm)
- Depth / Height: 3/4 in (19 mm)
- Inside Length: 280 in
- Outside Length: 285 in
- Construction: Rubber with polyester tensile cord reinforcement, woven fabric outer wrap
- Recommended Minimum Pulley Diameter: 13-15/16 in (355 mm)
Compatible Applications
Fits agricultural machinery, industrial power transmission drives, HVAC equipment, conveyor systems, air compressors, and other equipment requiring a D-section classical V-belt. Compatible with any machine or application calling for a D280 / D-280 belt designation.
Replaces Part Number(s):
D280
Aftermarket Interchange Numbers
D280, D-280, D 280, A-D280, DP280, BTQ-D280
New aftermarket replacement part - not remanufactured, not used.
