D25279 Snap ring 1 1/2" Fits MISC. HARDWARE
D25279 Snap ring 1 1/2" Fits MISC. HARDWARE
Couldn't load pickup availability

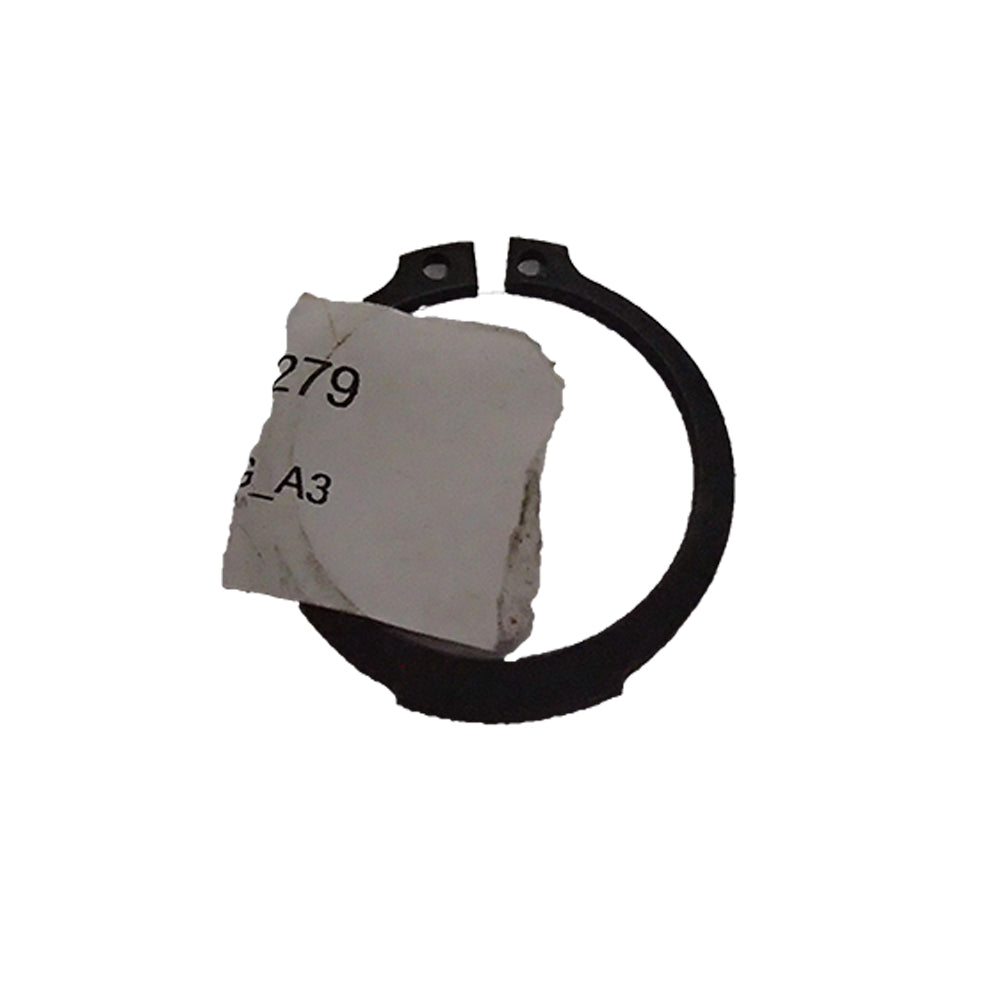

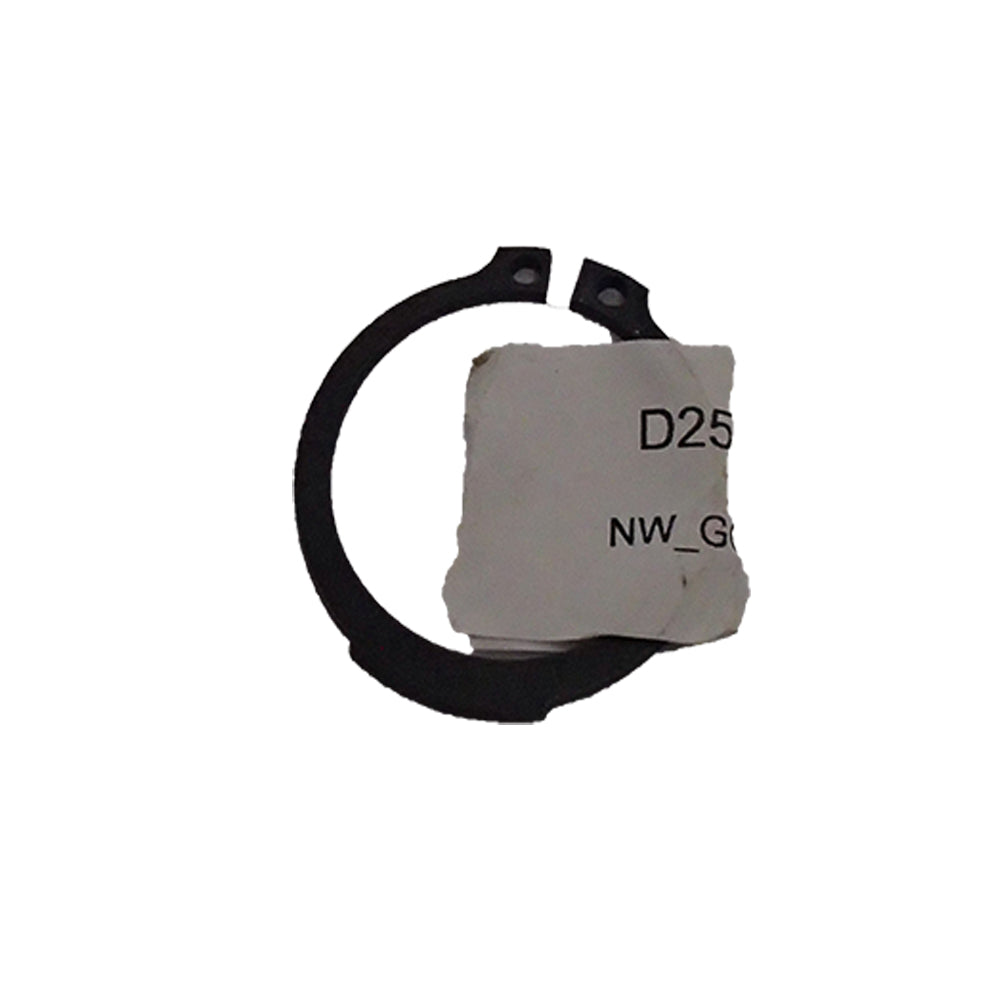

One New Aftermarket Replacement Snap Ring (Circlip) 1-1/2" Fits Case / Fits Case IH Backhoes, Crawlers, and Loaders
This snap ring (also known as a circlip) is a mechanical fastener used to retain components securely on a shaft or within a bore. It seats into a machined groove and expands to grip, preventing axial movement of pins, bearings, and related hardware on Fits Case and Fits Case IH equipment. Commonly used in backhoe linkage, crawler undercarriage, and loader pivot pin applications.
Specifications
- Inside Diameter: 1.38" (35.23 mm)
- Thickness: 0.09" (2.36 mm)
- Nominal Pin Size: 1-1/2"
- Weight: 0.05 lbs.
Compatible Models
Fits Case / Fits Case IH Backhoes: 580B, 580C, 580D, 580E, 580K, 580L, 580M, 580N, 580SE, 580SK, 580 Super E, 580 Super K, 580 Super L, 580 Super M, 590 Super L, 590 Turbo, 590 Super M
Fits Case / Fits Case IH Crawler Loaders: 450, 450B, 450C, 550, 550E, 550G
Fits Case IH Crawlers: 1150B, 1150C, 1150D, 1150E, 1155D, 1155E, 1450, 1450B, 1455B
Replaces Part Number(s):
D25279
New aftermarket replacement part - not remanufactured, not used.
