Cutter Blade Bolt Kit fits Bush Hog RZ60 SQ36 SQ42 SQ420 SQ48 SQ480 104 204 H

Name: Cutter Blade Bolt Kit fits Bush Hog RZ60 SQ36 SQ42 SQ420 SQ48 SQ480 104 204 H
SKU: MOQ20-0053_2
Price: 52.0 USD
Availability: InStock

Cutter Blade Bolt Kit fits Bush Hog RZ60 SQ36 SQ42 SQ420 SQ48 SQ480 104 204 H

$52.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

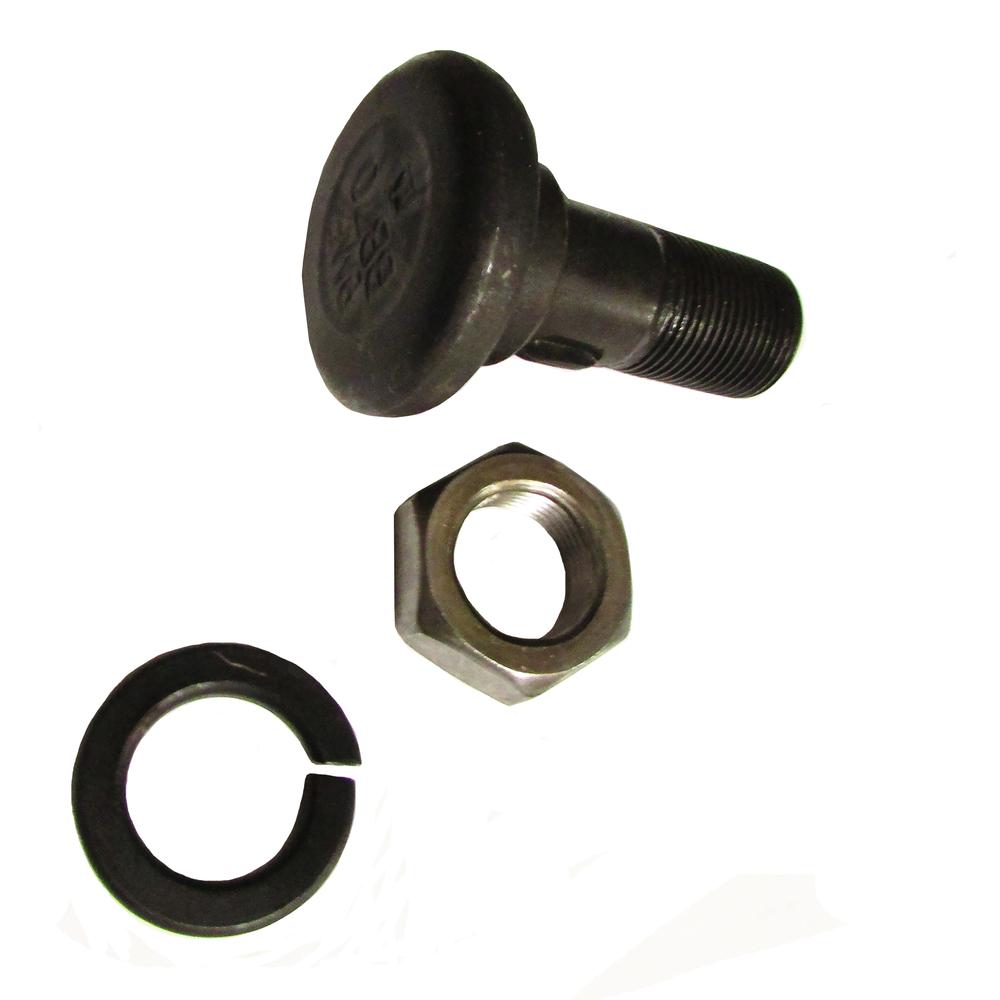

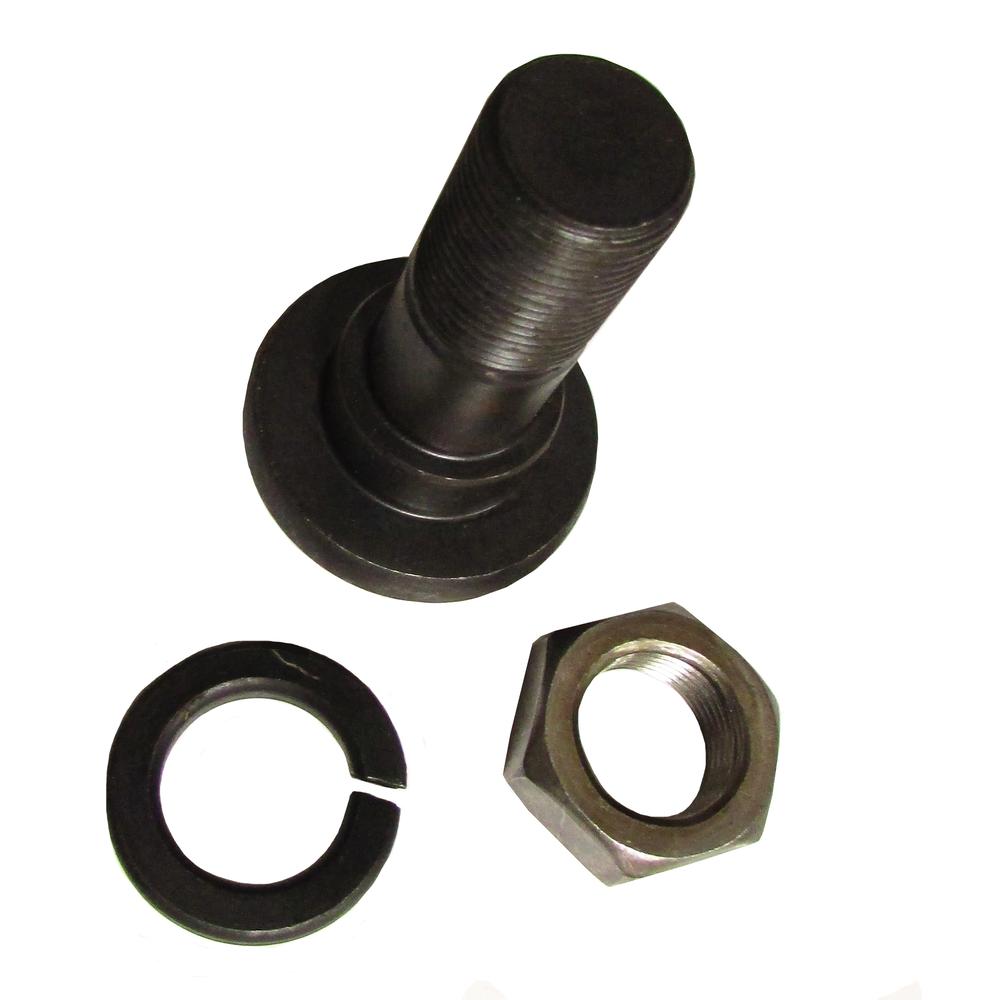

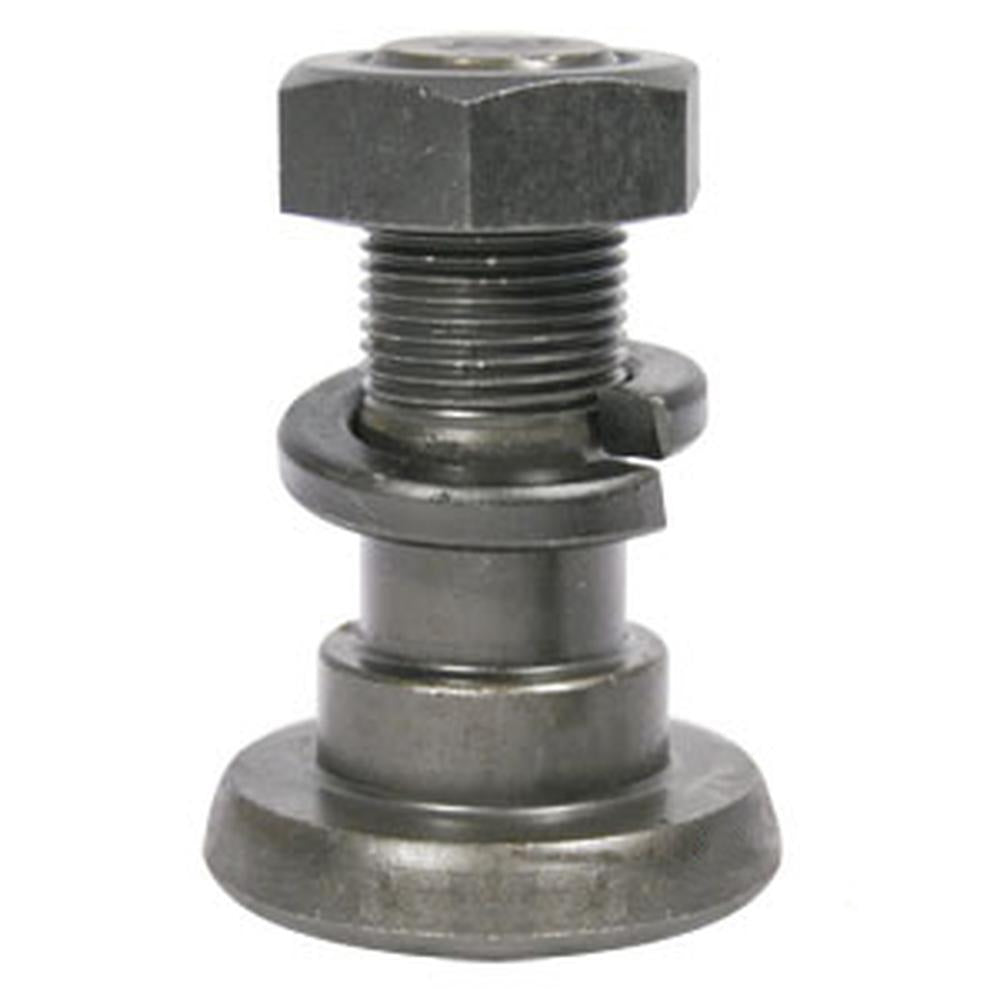

One New Aftermarket Cutter Blade Bolt Kit

Fits Bush Hog Models: RZ60, SQ36, SQ42, SQ420, SQ48, SQ480, 104, 204 H

Kit Contains:
1 Bolt
1 Nut &
1 Lock Washer

Specifications:
Blade Mount Depth ( E ) 1/2 Inch
Blade Mount Diameter ( H ) 1-1/2 Inches
Bolt Shank Diameter ( I ) 1-1/8 Inches
Head Diameter ( G ) 2-1/2 Inches
Head Thickness ( F ) 1/2 Inch
Overall Length ( B ) 4-1/8 Inches
Shank Length thru Carrier ( D ) 7/8 Inch
Thread Length ( C ) 2 Inches
Thread Size ( A ) 1 Inch - 14 Thread

Models This Part Fits:

205, 1226, 307, 600, 1207R, 3168, 1126, 2620, 3610, 1050R, 166, 3126, 1109, 109 OFFSET, 2010, 3209, 226, 6, 105, 1600, 1209, 2610, 1310, 3615, 12, 2315, 1115S, 160, 305, 306, 109, 206, 2615, 310, 315, 1206R, 1315, 2715, 2415, 502, 286, 268, 3368, 3210, 307R, 3008, 126, 2512

Additional Information:

Includes: (1) Bolt (7919BH) (1) Nut (252BH) (1) Lock Washer (253BH) Blade Mount Depth: 1/2" Blade Mount Diameter: 1-1/2" Bolt Shank Diameter: 1-1/8" Head Diameter: 2-1/2" Head Thickness: 1/2" Overall Length: 4-1/8 " Shank Length thru Carrier: 7/8" Thread Length: 2 " Thread Size: 1" - 14 Thread
