51630297 Radiator Fits Case SV250 and Fits New Holland Skid Steer

Name: 51630297 Radiator Fits Case SV250 and Fits New Holland Skid Steer
SKU: CSO90-0217
Price: 1759.0 USD
Availability: InStock

51630297 Radiator Fits Case SV250 and Fits New Holland Skid Steer

$1,759.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

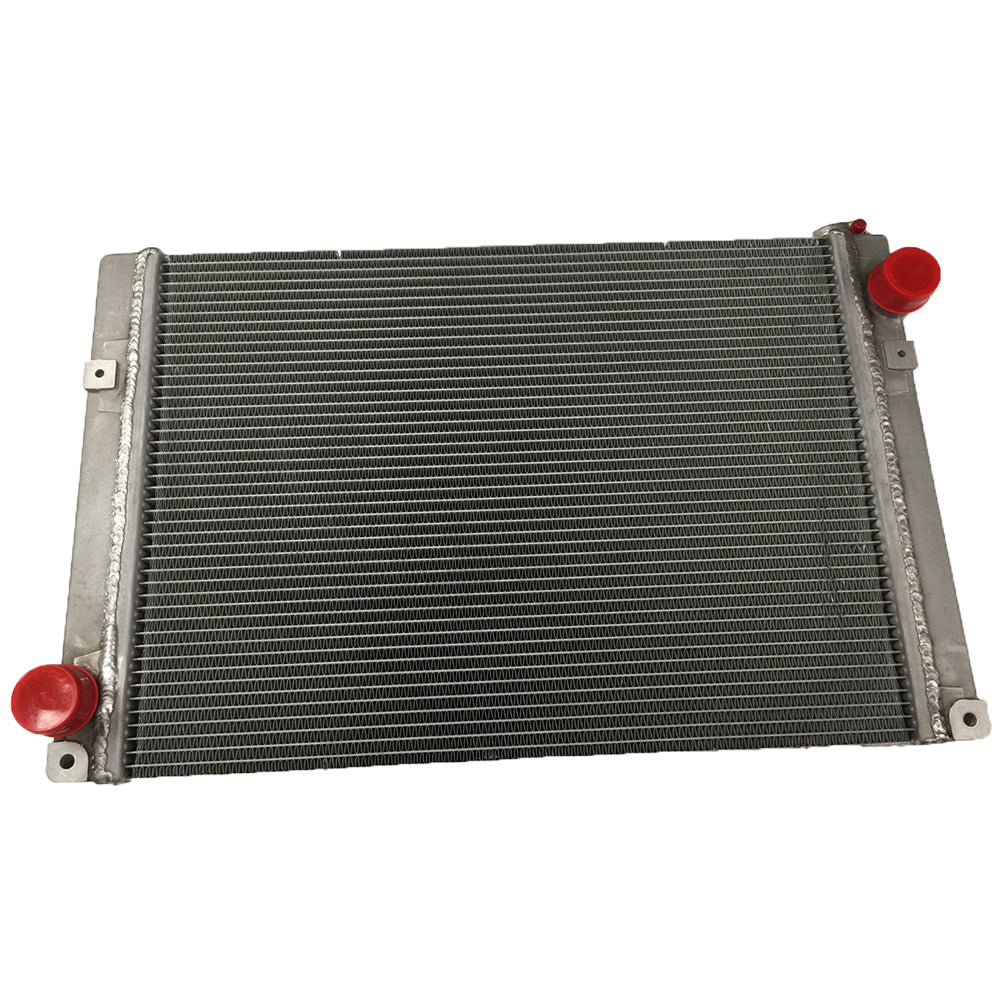

This is a new aftermarket radiator for the skid steer and compact track loader, a 4 row core built for the tight engine bay of these machines, supplied as one radiator with no oil cooler section.

Specifications

Rows: 4
Core: 23-1/2 in by 4-1/8 in by 17-5/8 in
Fins per inch: 10, serpentine
Inlet / outlet: 1-3/4 in each

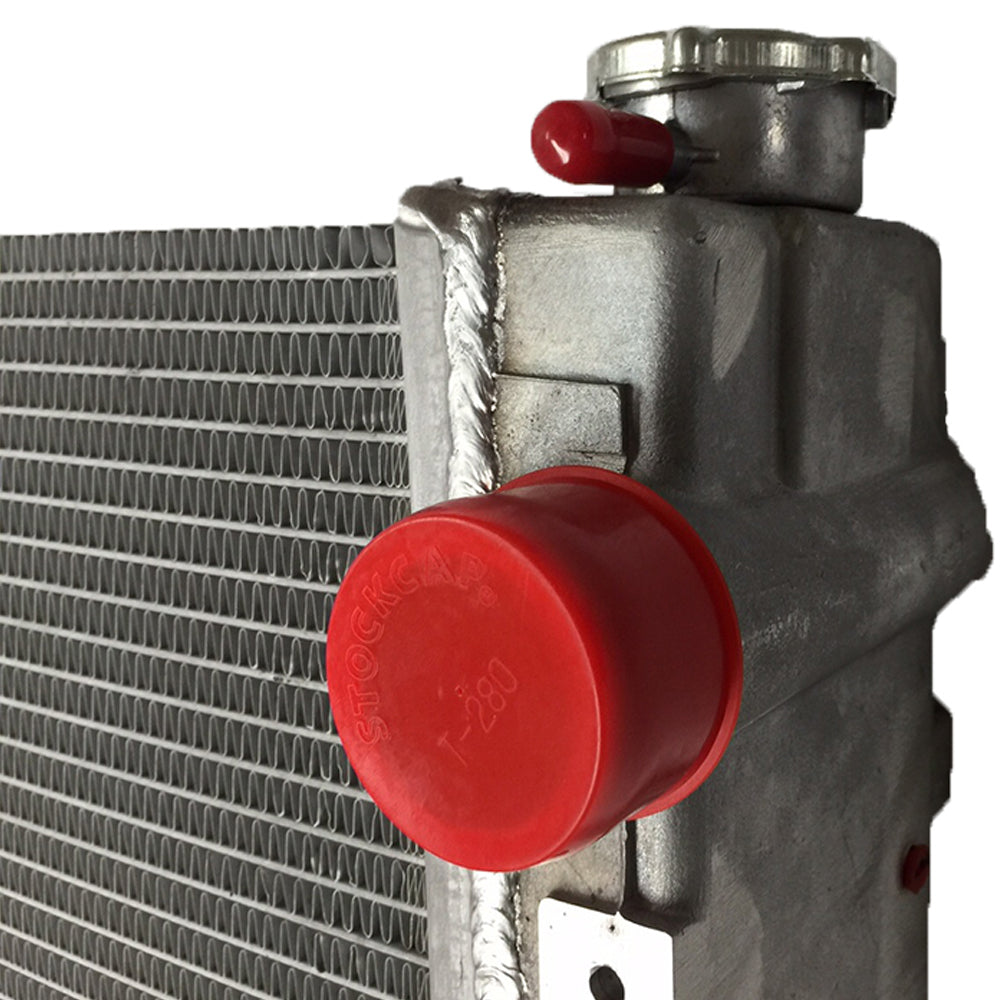

Fill neck: 1-5/8 in ID by 3/4 in deep
Oil cooler: none
Overall: 29-1/4 in by 6-3/8 in by 17-3/4 in, less filler neck
Fitment: Fits Case SR, SV, TR, TV skid steers and Fits New Holland C232, C238, L228, L230

Cross reference

51630297
84379154

Large frame core

This is the large frame core with no oil cooler. A smaller frame skid steer radiator looks similar, so match the number and the core size to your machine before ordering.

Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.

Models This Part Fits:

TR320, C337, C332, C237, SV300, L225, SV250, C238, SR250, TV370B, L328, SR220, C232, SV280, TV380, TV370, L230, SV280B, L228, SR240B, L223, SR240

Additional Information:

Core Height: 23-1/2" Core Width: 17-5/8" Depth: 4-1/8" Fill Neck: 1-5/8" I.D x 3/4" Deep Fins Per Inch: 10 Serpentine Inlet: 1-3/4" Oil Cooler: No Outlet: 1-3/4" Overall Dimensions: 27-7/8" (28-7/8" Including Connections) x 18 Rows: 4
