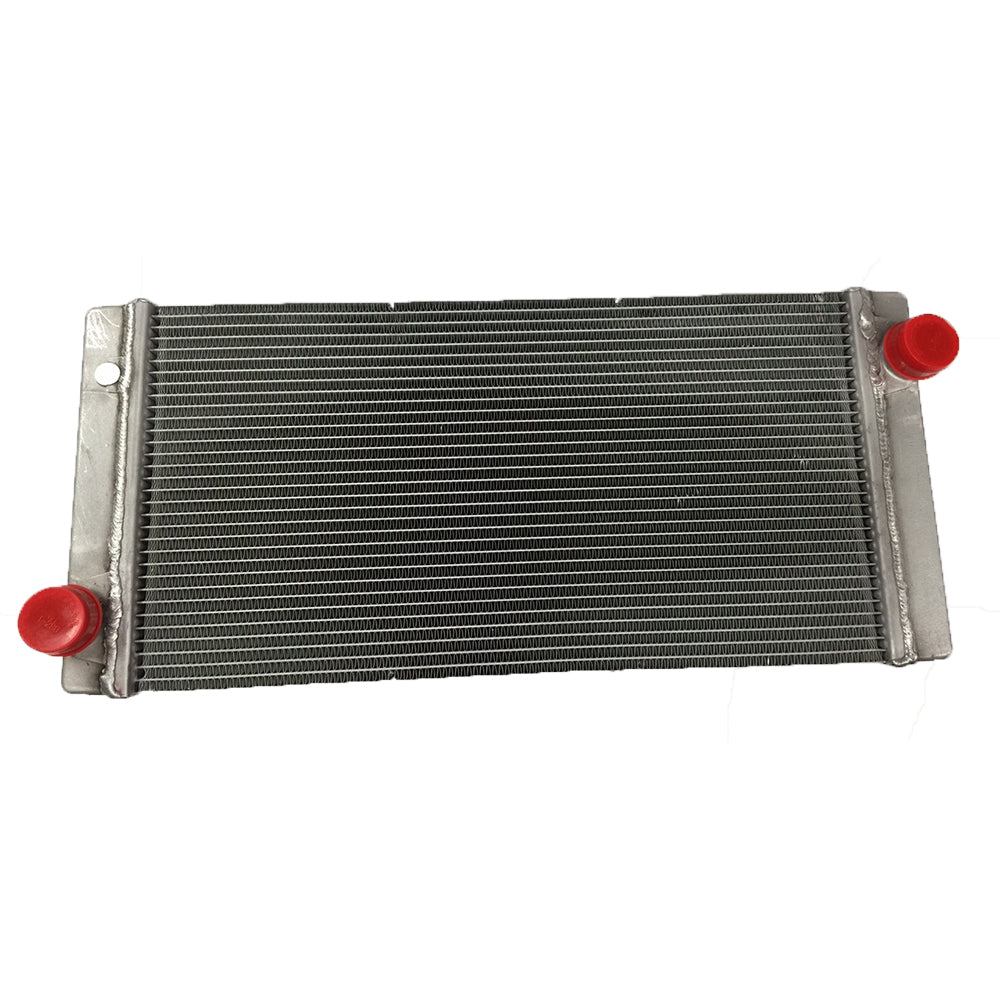

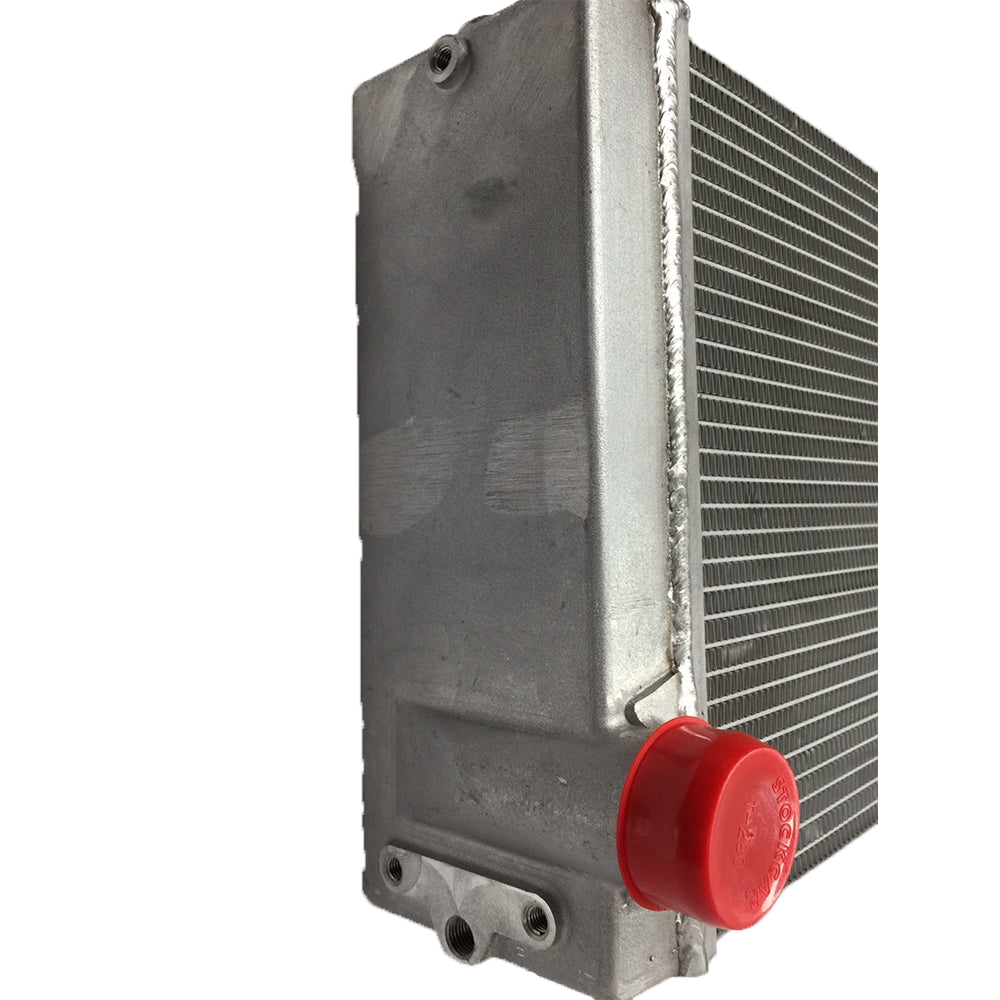

84499505 Radiator Fits Case IH Skid Steer Loader SR175 SR250 SV185 TR320

Name: 84499505 Radiator Fits Case IH Skid Steer Loader SR175 SR250 SV185 TR320
SKU: CSO90-0213
Price: 1222.0 USD
Availability: InStock

84499505 Radiator Fits Case IH Skid Steer Loader SR175 SR250 SV185 TR320

$1,222.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Medium / Large Frame Radiator Fits the following Fits Case - IH Skid Steer Loader models:

Medium Frame ISM Tier 4: SR175, SV185
Large Frame 67kW Tier 4A: SR250, SV300, TR320, TV380

HEAVY DUTY ALUMINUM BRAZED CORE WITH HEAVY TANK CONSTRUCTION.

HEAVY WALL TUBES WITH ENHANCED FINS ON AIR SIDE FOR SUPERIOR COOLING.

Core Dimensions (heat exchange area): 12-1/2" x 23-1/2" x 4" Deep

Replaces Part Numbers: CSO90-0213, 84499505

Models This Part Fits:

L230, C238, SR250, SR175, SV300, SV185, L218, TR320, L220, SV250, TV380, C232, SR220, L225

Additional Information:

Construction: All Aluminum Core Height: 23 5/8 Core Width: 12 3/8 Depth: 4 1/8 Fins Per Inch: 10 Inlet: 1 3/4 Oil Cooler: No Outlet: 1 3/4 Overall Dimensions: 29 x 12 3/4 Rows: 4
