CRANKSHAFT20 Crankshaft Fits JD 3.152 3.164 3.179 Fits John Deere Tractors 820+

CRANKSHAFT20 Crankshaft Fits JD 3.152 3.164 3.179 Fits John Deere Tractors 820+

$852.00 CAD
$852.00 CAD
Sale Sold out
Shipping calculated at checkout.

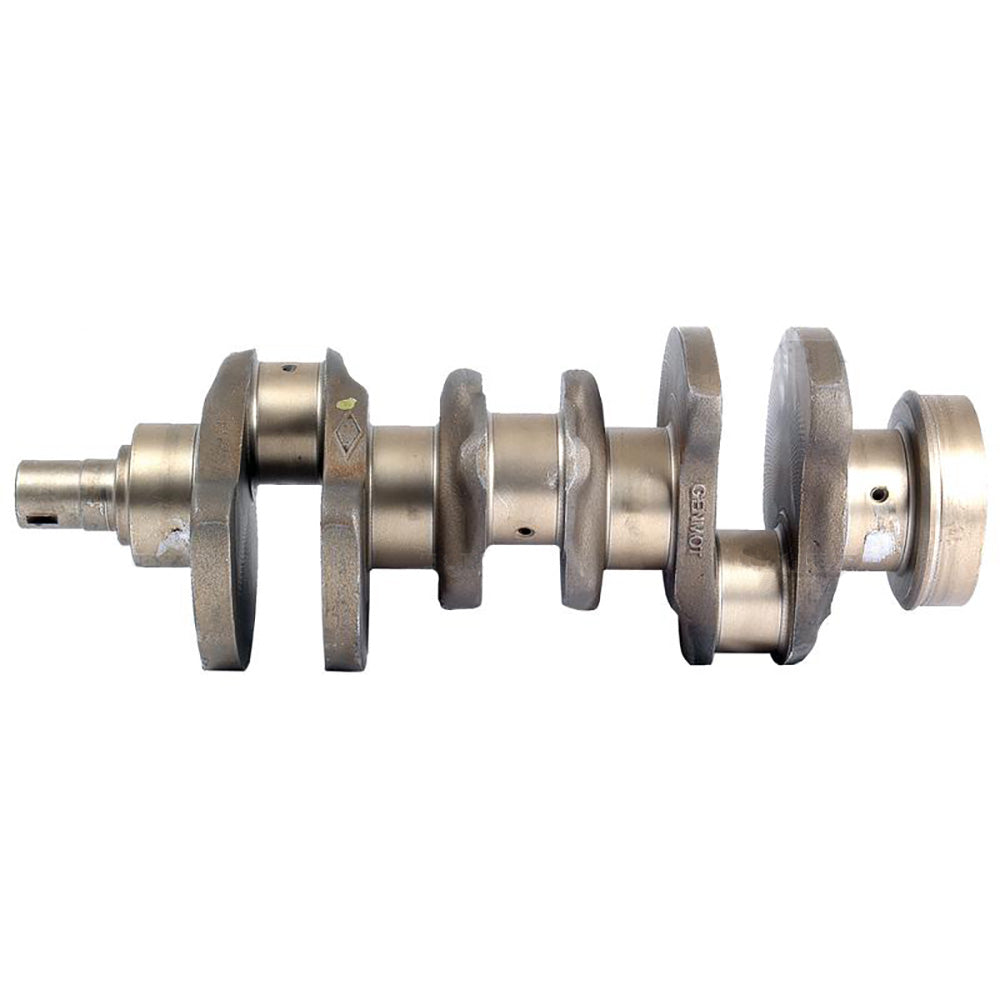

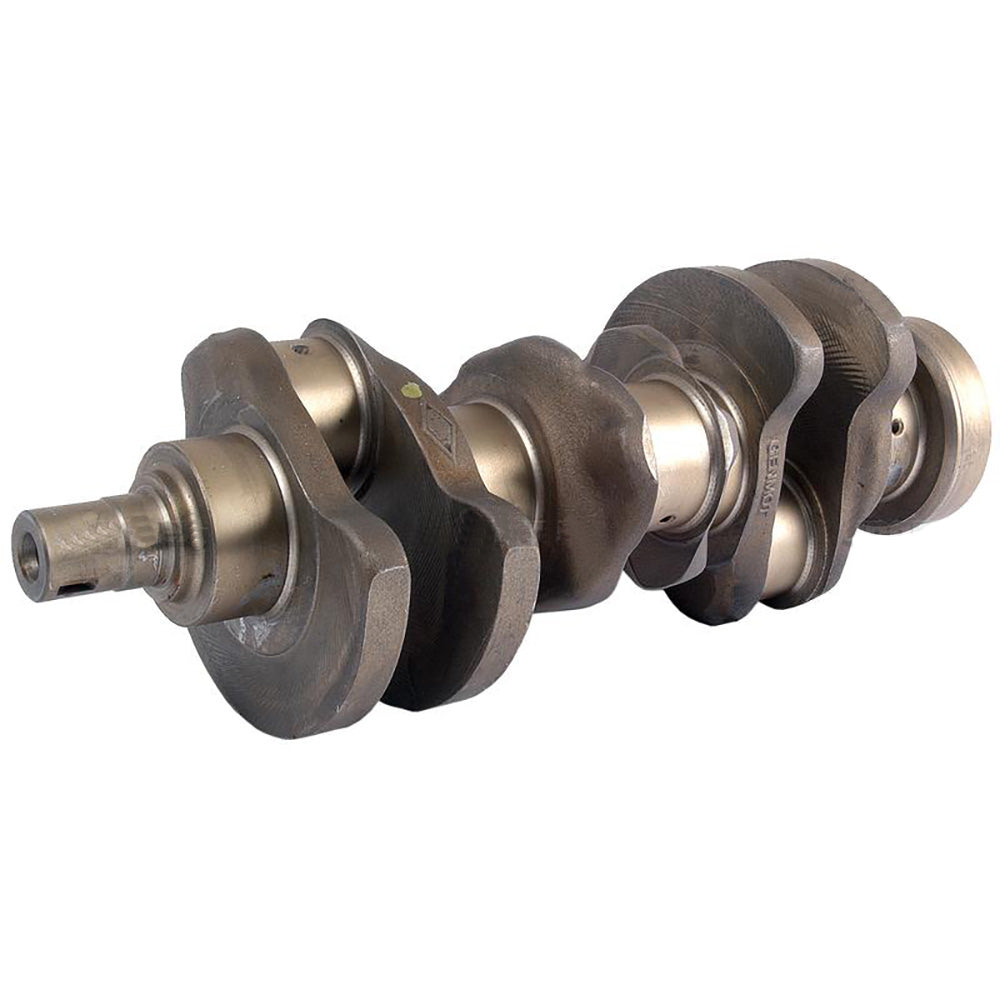

One New Aftermarket Replacement Crankshaft for John Deere 3-Cylinder Diesel Engines (3.152, 3.164, 3.179)

This aftermarket replacement crankshaft fits John Deere (JD) tractors, industrial-utility machines, crawlers, backhoes, and combines powered by the 3-cylinder 3.152D, 3.164D, and 3.179D diesel engines. It features a standard short snout (1.370" / 35 mm nose, 1 bolt hole and 1 keyway) and a 4-bolt-hole, 1-dowel flange. Sold without gear or bearings -- verify fitment by matching the casting number T23516 and snout length on your existing crankshaft before ordering, as two snout lengths were used and they are NOT interchangeable.

IMPORTANT -- Serial Number Restrictions Apply: 830 (Serial # 154766 and above, 3.152D Eng.); 1520 (Serial # 179601 and below, 3.164D Eng.); 2040 (3.179D Eng., OR Serial # 179602 and above with 3.164D Eng.); 300B Industrial (Serial # 154766 and above, 3.152 Eng.); 350C (Serial # 179602 and above, 3.164D Eng.); 1550 (up to Serial # 751243); 1750 (up to Serial # 751248); 1850 (up to Serial # 743472); 2155 (up to Serial # 743474). Verify serial number before ordering.

Specifications

  • Engine: 3-Cylinder (3.152D, 3.164D, 3.179D diesel)
  • Stroke: 4.328"
  • Bore: (3.152) 3.8581" - 3.8595" | (3.164) 3.875" | (3.179) 4.192"
  • Rod Journal: 2.748" - 2.749"
  • Main Journal: 3.123" - 3.124"
  • Snout: Short, 1.370" (35 mm) -- 1 bolt hole, 1 keyway
  • Flange: 4 bolt holes, 1 dowel
  • Gear and bearings NOT included

Compatible Models

John Deere Tractors: 820 (3-cyl.), 830 (3-cyl.), 840, 920, 925, 930, 932, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1350, 1520, 1530, 1550, 1630, 1750, 1750V, 1850, 1850F, 1850N, 1850V, 1950, 2040, 2150, 2155, 2240, 2255, 2345F, 2355N, 2355NCS, 2355NTSS, 5200, 5300, 5400, 5500

John Deere Swather/Platform: 300A

John Deere Industrial Tractors: 300, 300A, 300B, 301, 301A, 302, 302A

John Deere Backhoe-Loaders: 300B, 310, 1550

John Deere Crawlers/Dozers: 350, 350A, 350B, 350C, 350D, 355D

John Deere Forklift: 380

John Deere Skid Steer: 24

John Deere Engines: 3.152 (152), 3.164 (164), 3.179 (179) -- all 3-cylinder diesel

Replaces Part Number(s):

AT18031, AT18031-A, RE46896, RE47637, RE521349, T23516

Aftermarket Interchange / Casting Numbers

R100142, R1001420, T23516, T23516T, T23517T, T20031, T20031T

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

350B, 1850F, 2330, 5400N, 1140, 1850V, 2355NCS, 350C, 3.164, 300, 301A, 1750V, 2040, 1550, 3.152, 930, 1850, 1420, 302A, 1750, 2155, 1120, 1350, 1630, 1520, 350A, 350D, 840, 2345F, 2355NTSS, 1530, 5500, 940, 300B, 1030, 830, 1020, 1950, 2150, 3.179, 300A, 355D, 380, 920, 925, 820, 1850N, 1040, 2240, 1130, 2355N, 932, 302, 310

Additional Information:

3-Cylinder Less Bearings and Gear Standard Short Snout (1.370")

Reference Numbers:

T23516, RE521349, RE47637, AT18031, RE46896, RE521349, RE47637, AT18031, RE46896, T23516, AT18031, RE46896, T23516, RE521349, RE47637, RE47637, AT18031, RE46896, T23516, RE521349, RE46896, T23516, RE521349, RE47637, AT18031
