CR19993 seal Fits TCM
CR19993 seal Fits TCM
Regular price
$80.00 CAD
Regular price
Sale price
$80.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

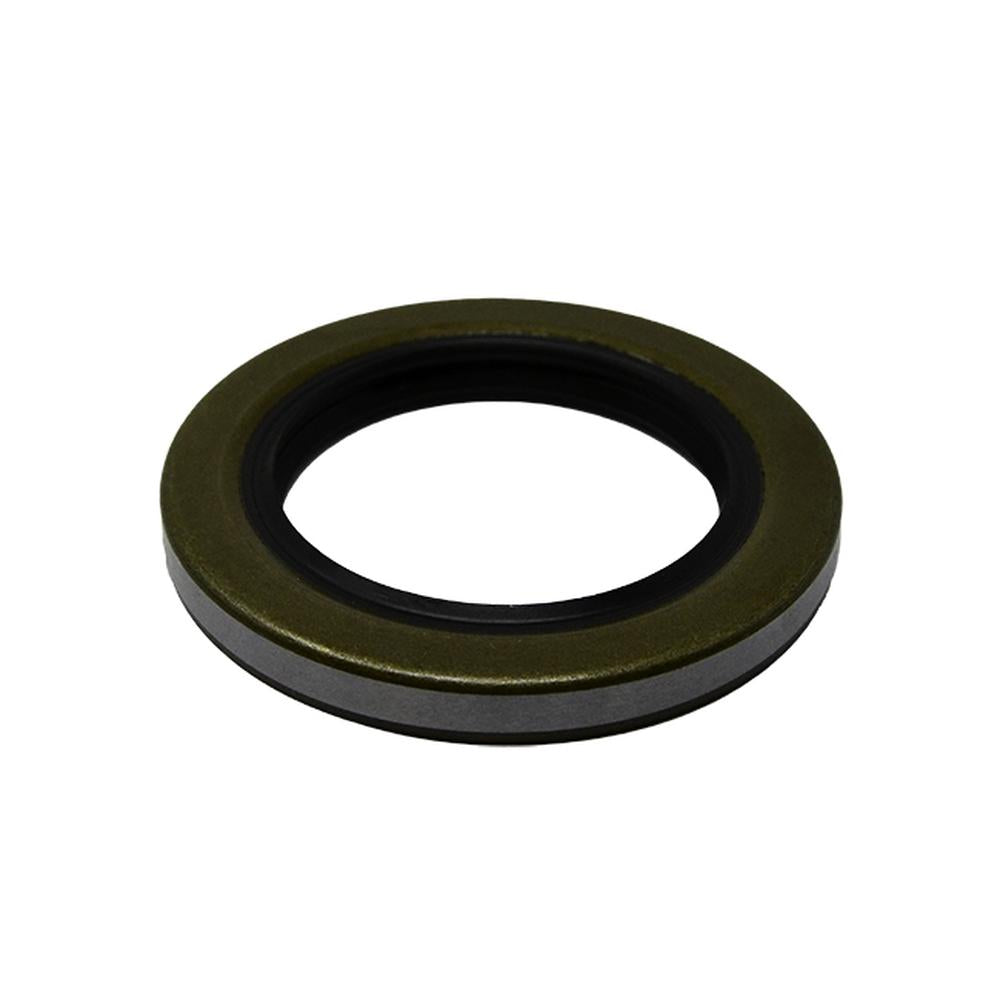

One New Aftermarket Replacement CR19993 Rotary Shaft Oil Seal by TCM (Chicago Rawhide / SKF Equivalent)
This is a TCM (Dichtomatik / Freudenberg) double-lip rotary shaft seal that directly replaces the Chicago Rawhide (CR) / SKF part number 19993. The CRWA1-design double-lip construction with a garter spring provides reliable sealing for rotating shafts in gearboxes, transmissions, pumps, wheel ends, and other industrial and construction equipment applications. The metal-cased outer diameter includes an acrylic sealant coating for secure housing bore fit.
Specifications
- Shaft Diameter (ID): 2.000 in (50.8 mm)
- Outside Diameter (OD): 3.000 in (76.2 mm)
- Width: 0.313 in (7.95 mm)
- Design Profile: CRWA1 / WBS
- Number of Lips: 2 (Double Lip with Auxiliary Lip)
- Lip Material: Nitrile Rubber (NBR) - 70 Nitrile N701R
- Spring Type: Garter Spring - Carbon Steel
- Fits Case: Metal-cased with acrylic sealant coating on OD
- Maximum Pressure: 10 psi
- Maximum Rotational Speed: 3,000 RPM
- Operating Temperature Range: -40 to 212 degrees F (-40 to 100 degrees C)
- Compatible Fluid Types: Mineral oils, greases, diesel, gasoline, animal and vegetable oils
Replaces Part Number(s):
CR19993, 19993, CR-19993, 20303TB (TCM Legacy Number), 75008542 (Freudenberg/Dichtomatik)
New aftermarket replacement part - not remanufactured, not used.
