AXE35349 AXE22776 New Draper Belt Fits John Deere Fits JD Combine Model 640FD
AXE35349 AXE22776 New Draper Belt Fits John Deere Fits JD Combine Model 640FD
Couldn't load pickup availability

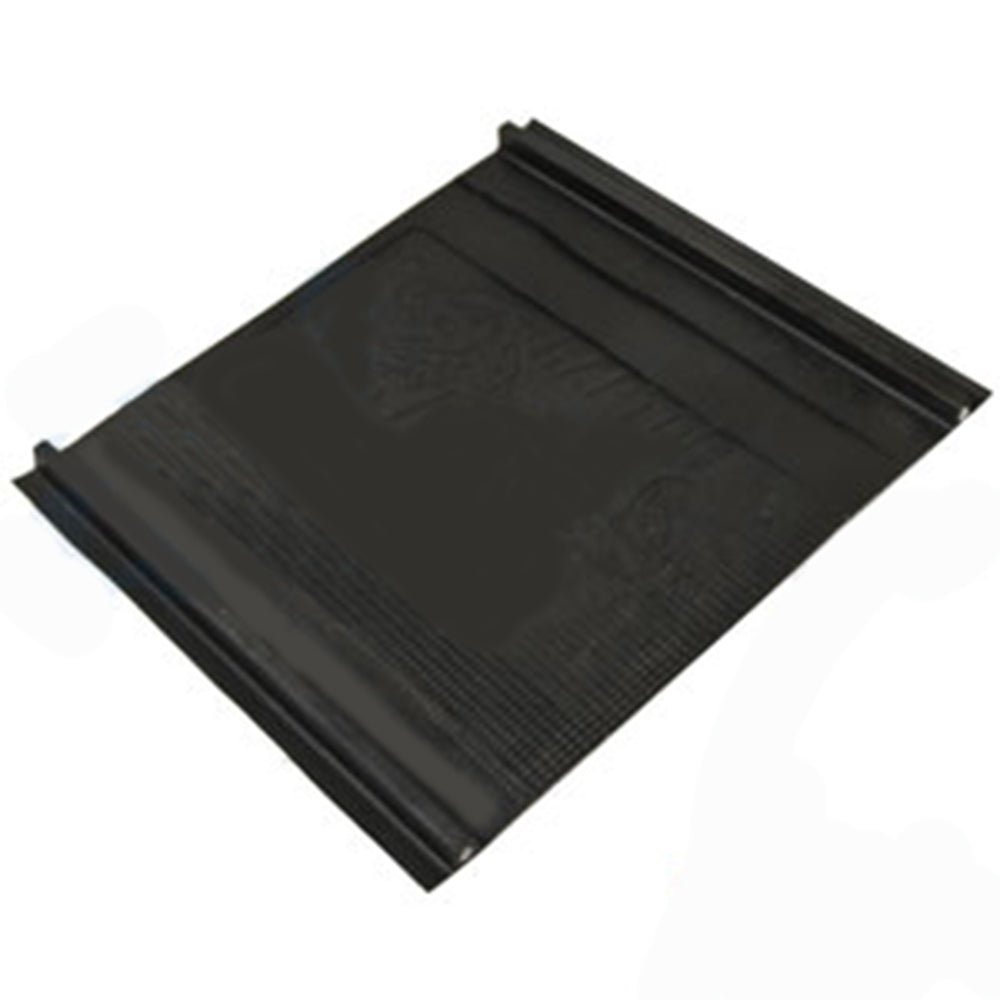

One New Aftermarket Replacement Endless Side Draper Belt Fits John Deere 640FD Grain Head Platform
This endless side draper belt is a direct aftermarket replacement for the Fits John Deere (Fits JD) 640FD 40-foot flex draper grain head platform. Used on both the left-hand (LH) and right-hand (RH) inner side positions, two belts are required per platform. The belt features a side V-guide for proper tracking and is constructed as a one-piece endless design with no joiner required. It is compatible with the FLEX Raptor-style draper system.
Specifications
- Width: 39.93"
- Length: 245.4"
- Construction: Endless (no joiner), 1-Ply Flex Raptor
- Guide Style: Side V-Guide
- Quantity Required Per Platform: 2 (LH and RH inner positions)
Compatible Models
Fits John Deere (Fits JD) Flex Draper Grain Head Platforms: 640FD (Serial Number 784999 and earlier, 40-foot cut)
Note: This belt Fits John Deere 640FD platforms with Serial Number 784999 and earlier. Verify serial number before ordering.
Replaces Part Number(s):
AXE22776, AXE35349, COB40-0940
Aftermarket Interchange Numbers
SH235349, 1011083
New aftermarket replacement part - not remanufactured, not used.
