Clutch Kit Fits John Deere Tractors 5200 5210 5300 5310 5400 5410 5415 5500 5510

Name: Clutch Kit Fits John Deere Tractors 5200 5210 5300 5310 5400 5410 5415 5500 5510
SKU: RE66695-R64042-KIT
Price: 1967.0 USD
Availability: InStock

Clutch Kit Fits John Deere Tractors 5200 5210 5300 5310 5400 5410 5415 5500 5510

$1,967.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Clutch Kit

Fits: Fits John Deere Tractor(s): 5200, 5210, 5300, 5310, 5400, 5410, 5415, 5500, 5510, 5600, 5615, 5700, 5715, 5310N, 5400N, 5500N, 5510N

Tech Specs:

Release Bearing Dim: I.D. 1.773", O.D. 2.950", Width 0.628"
Release Bearing Dim: I.D. 2.560", O.D. 3.935", Width 0.791"

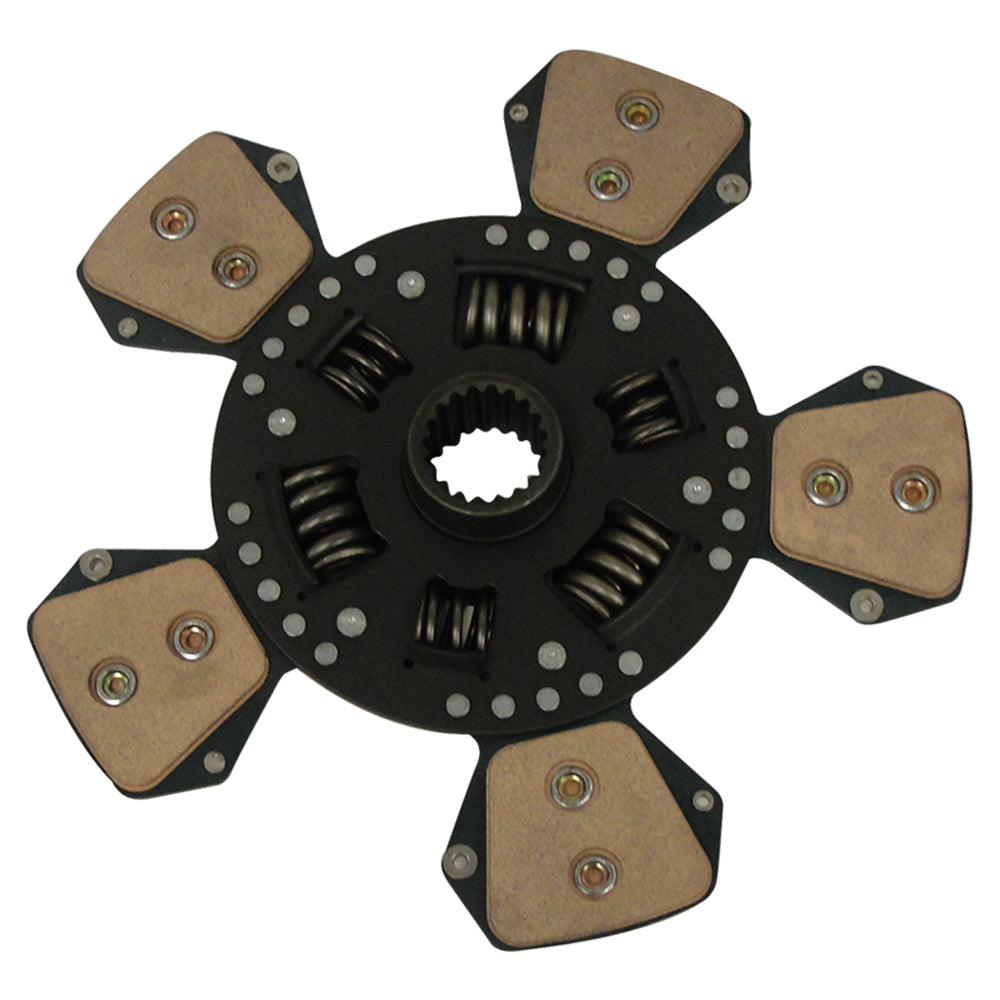

11" Trans Disc 5-button, spring loaded. Spline Count: 19 Spline Diameter: 1.375"

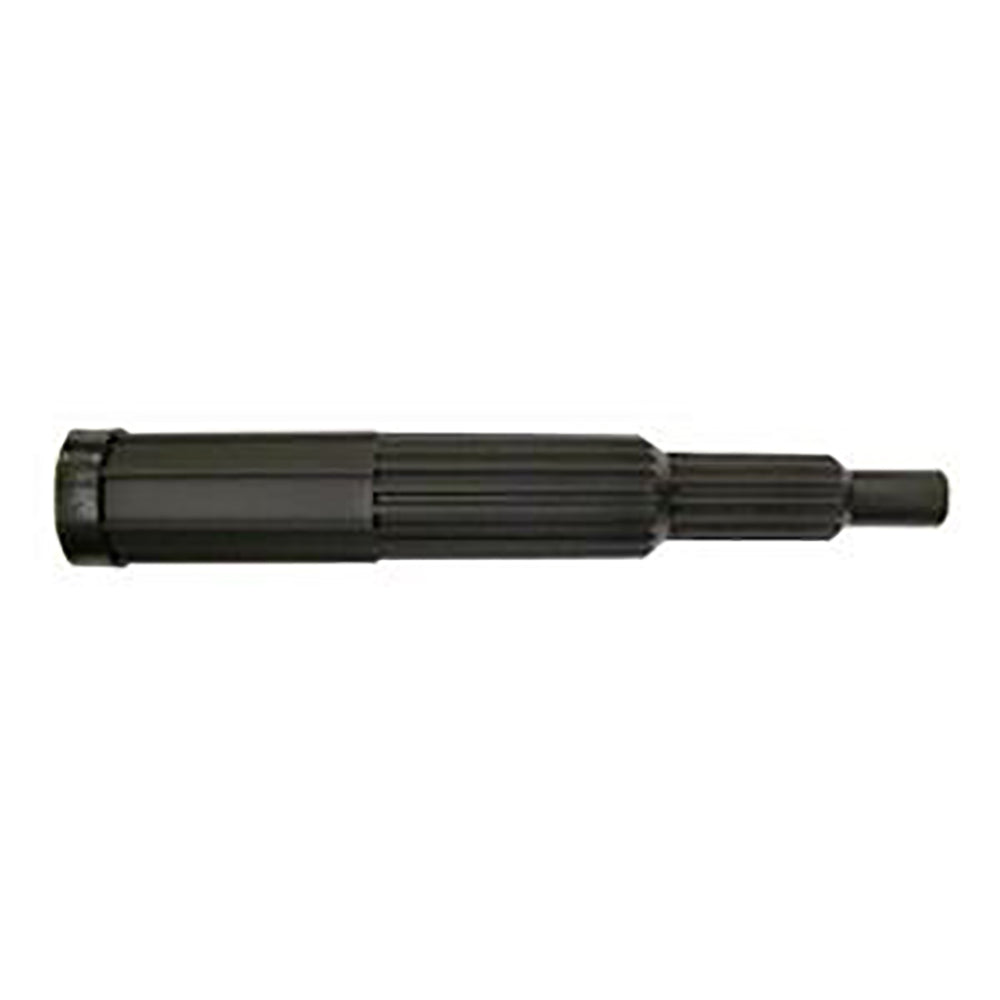

Clutch Alignment Tool Large Spline: 1-3/8" - 19 Small Spline: 1" - 13 Pilot Diameter: 0.669"

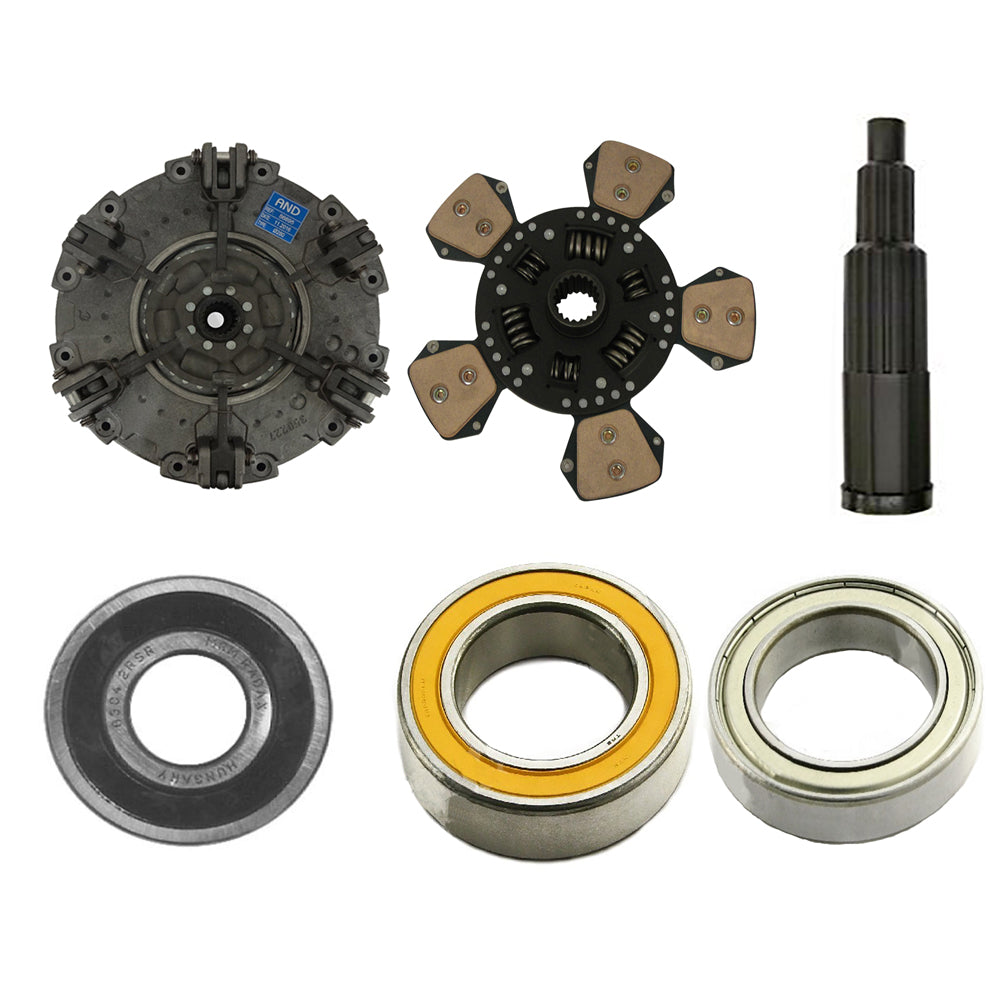

Includes:

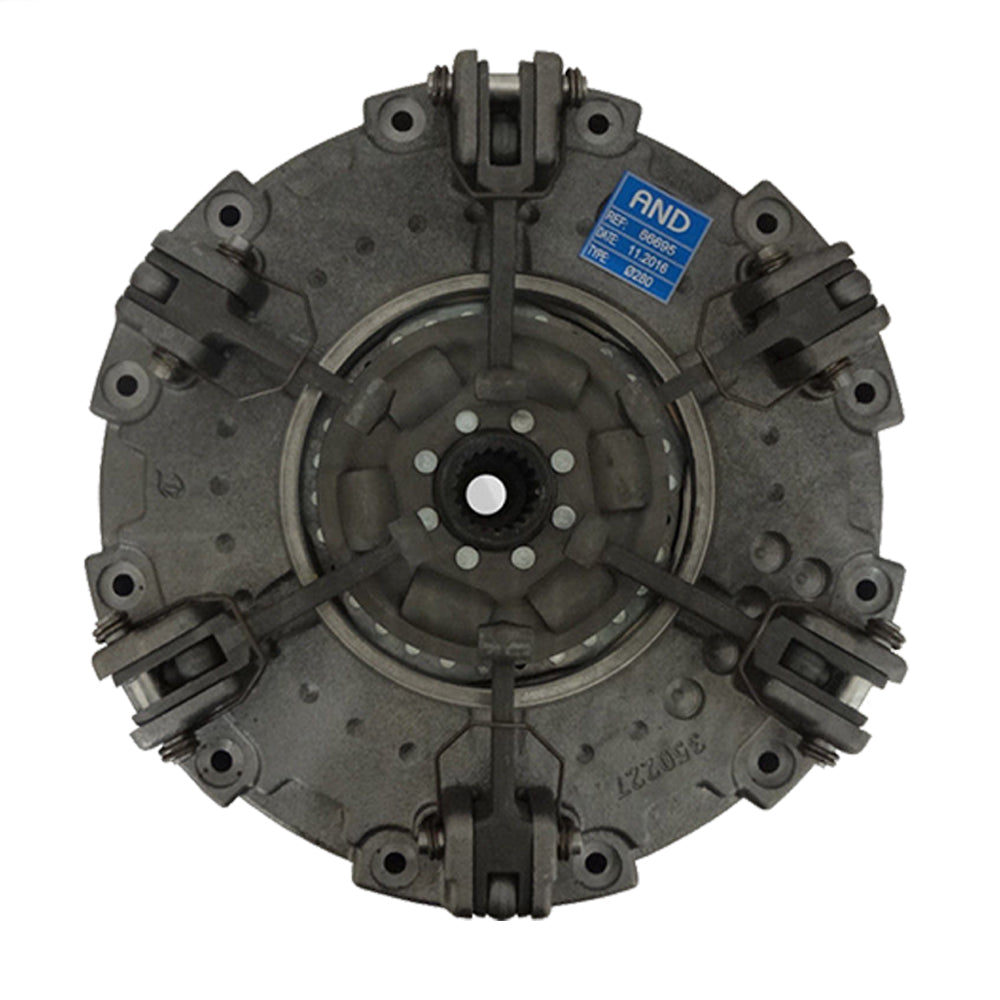

(1) Clutch Assembly (RE66695)
(1) 11” Trans Disc (R64042)

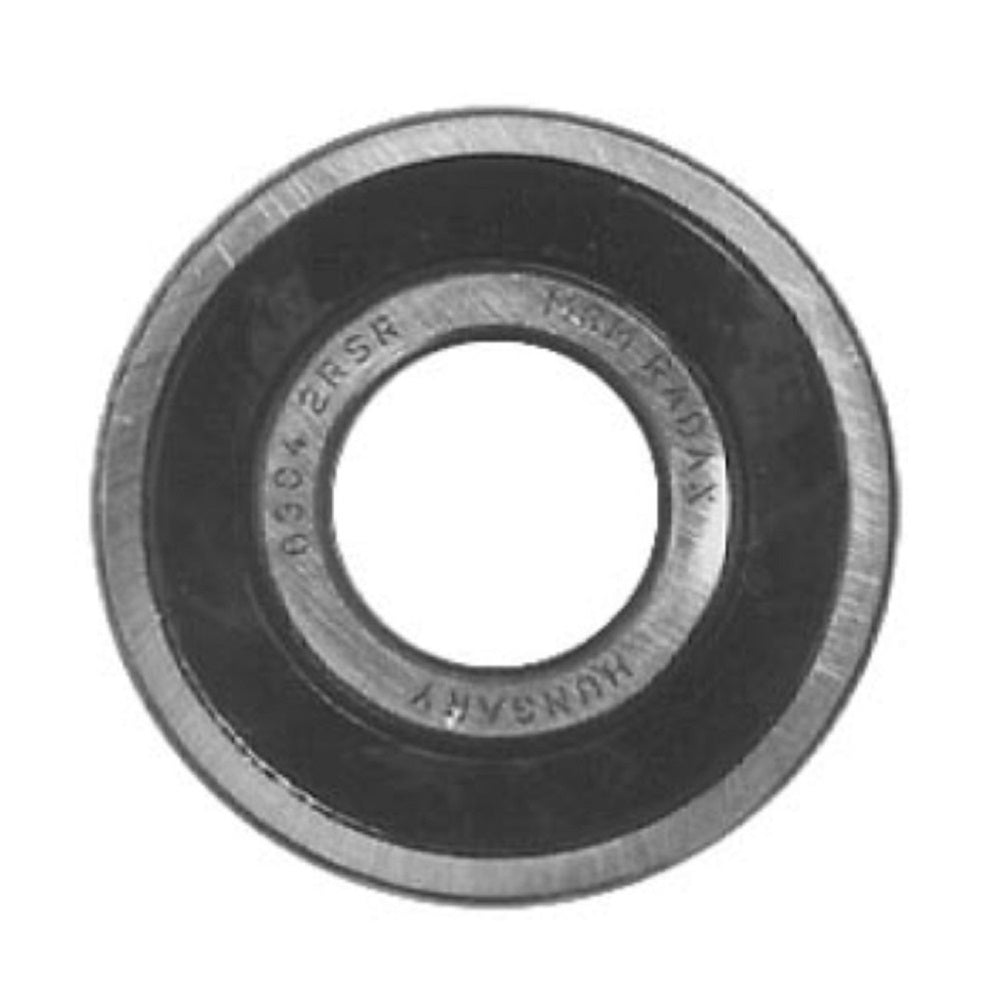

(1) Pilot Bearing (836203)

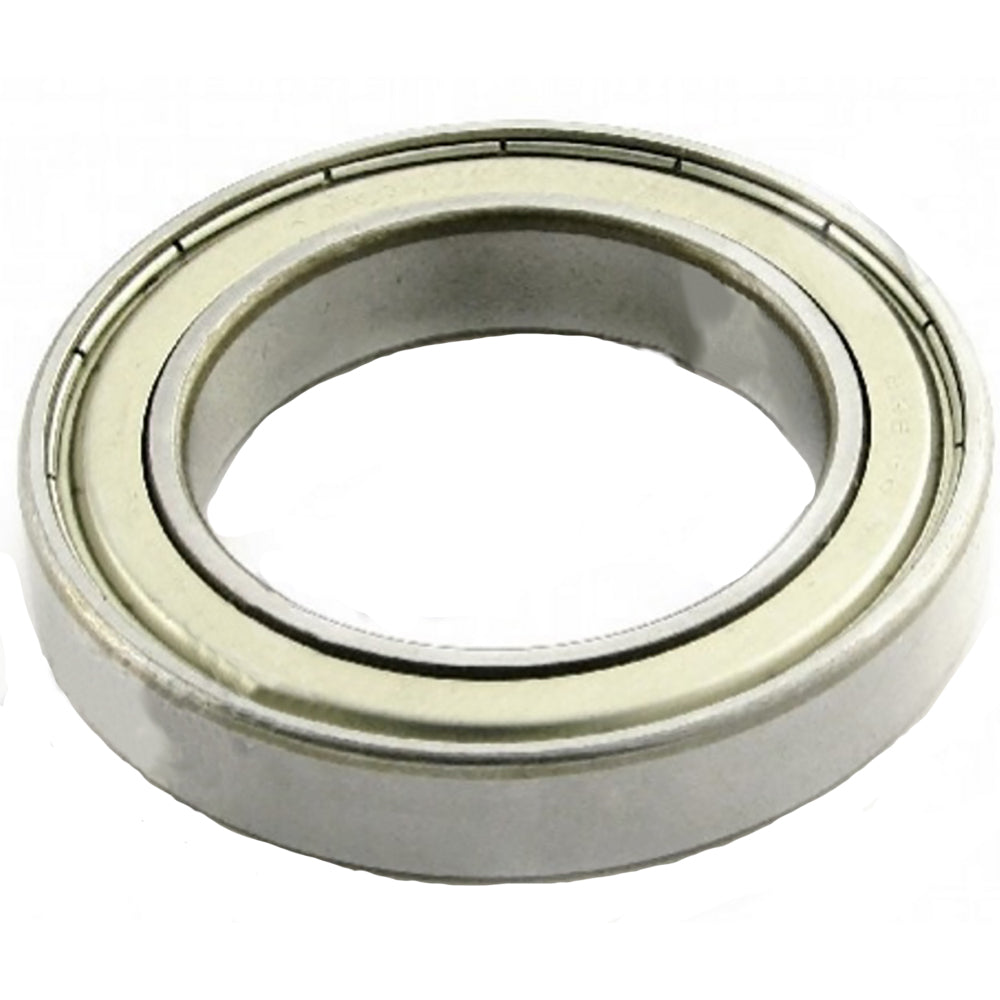

(1) Trans Release Bearing (832009)

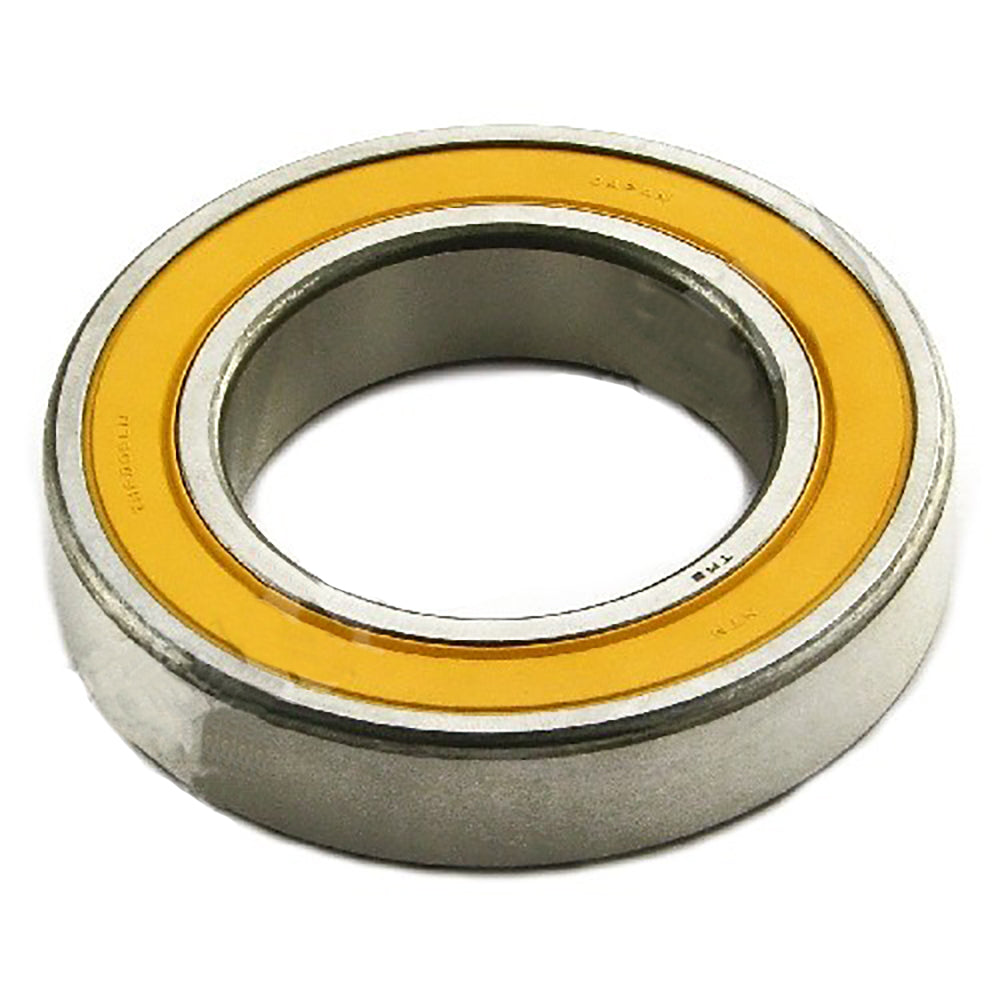

(1) PTO Release Bearing (830166)
(1) Pilot Tool (83AT021)

Replaces Part Numbers: RE66695, RE42515, R64042, RE66695-R64042-KIT

Models This Part Fits:

5203, 5520N, 5320N, 5600, 5420, 5520, 3020, 5410, 2510, 5200, 5715, 3010, 5315, 2520, 5500N, 5210, 5220, 5055, 5215, 5510N, 5515, 5500, 5400N, 5310N, 5300, 5303, 5103, 5400, 5515HC, 5625, 5310, 5510, 5420N, 5045, 5705, 5415, 7520, 5715HC, 5065, 5415N, 5075, 5415H, 5700, 5320, 5403, 5615, 500, 5605

Additional Information:

Clutch Assembly Complete Assembly Includes Both Discs Fits Tractors with Top Shaft Synchronized, Collar Shift Transmission Tech-Tip: JD-6 Kit Contains: (1) Clutch Assembly # RE66695 (1) 11” Trans Disc # R64042 (1) Pilot Bearing # 836203 (1) Trans Release Bearingv832009 (1) PTO Release Bearing # 830166 (1) Pilot Tool # 83AT021 (1) 11" Trans Disc 5-button, spring loaded. Spline Count: 19 Spline Diameter : 1.375" Replaces Part Number: R64042, TPRE64042GV, RE45661, RE64042-R5B (1) Pilot Bearing Has rubber seals on both sides of bearing, ID: 21/32", Height: 15/32", OD: 1-9/16" Replaces Part Numbers: C5NN7600A, 210040, B7600A3, 81805417, 87302841, 87554550 (1) Pilot Bearing Tech Info: Bearing Sides 2 Contact Seals Bore 1.772" (45.008mm) Outside Diameter 2.953" (75.006mm) Width .630" (16.002mm) Replaces Part Numbers: 832009,CH18562-RELEASE,CLB10-0047 (1) Release Bearing Tech Info: Dim: I.D. 2.560", O.D. 3.935", Width 0.791" Replaces Part Numbers: H830166, AR26845-0.791"THICK, 830166 (1) Clutch Alignment Tool Tech Info: Large Spline: 1-3/8" - 19 Small Spline: 1" - 13 Pilot Diameter: 0.669" Replaces Part Number: 83AT021
