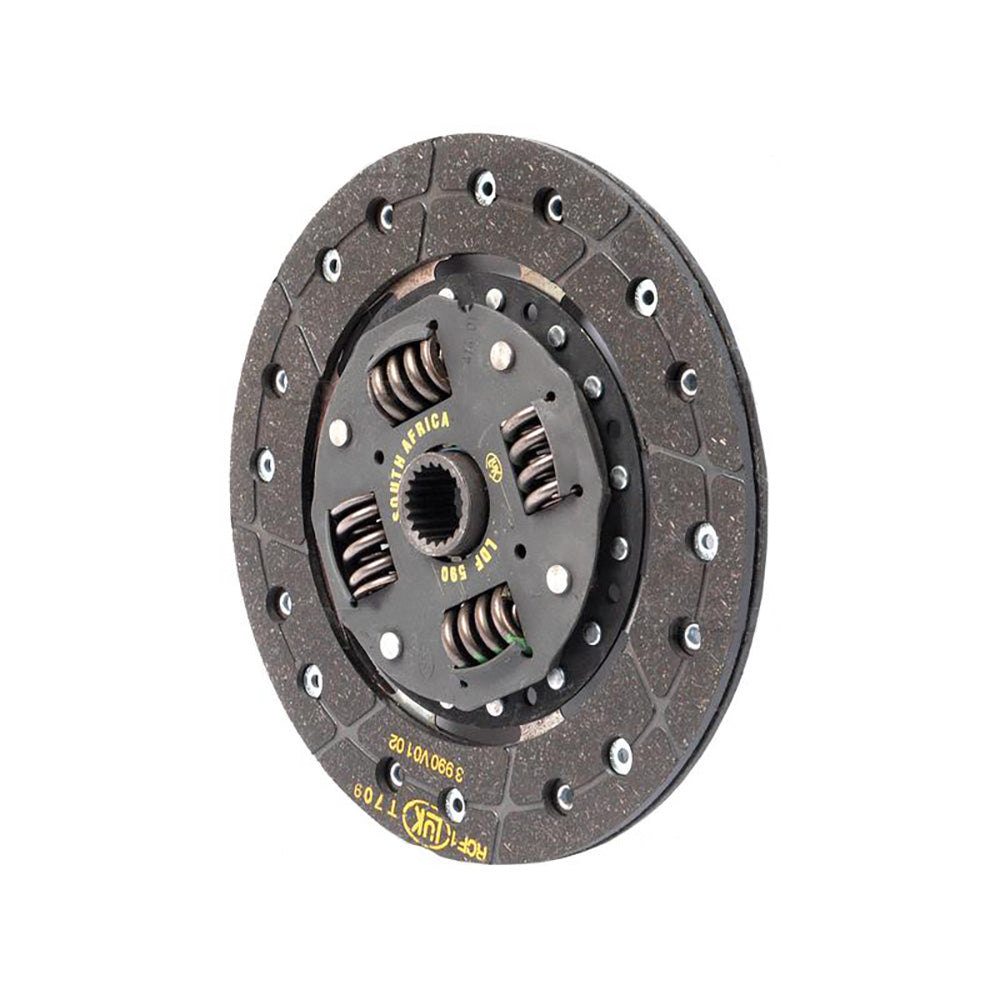

CLUTCH DISC fits YANMAR 195, 220, 250,1500,1600, 1700, 1810, 1900,2000,2301,MORE

CLUTCH DISC fits YANMAR 195, 220, 250,1500,1600, 1700, 1810, 1900,2000,2301,MORE

$82.00 CAD
$82.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Clutch Disc for Yanmar and John Deere (JD) Compact Tractors

This aftermarket replacement clutch disc fits a wide range of Yanmar and John Deere compact tractors that share the same Yanmar-sourced drivetrain. The disc is a fiber/organic spring-damper type that installs in the main clutch assembly, transmitting engine power to the transmission. Specifications are 7-7/8" diameter, 7/8" x 20-spline hub. Note: fits models equipped with a single clutch only. Verify single vs. dual clutch configuration before ordering.

Specifications

  • Diameter: 7-7/8"
  • Hub: 7/8" center diameter
  • Splines: 20
  • Type: Fiber / Organic, Spring Damper

Compatible Models

John Deere Compact Tractors (single clutch): 650, 670, 750, 770, 2010, 2210, 2210B, 2310

Yanmar Compact Tractors: 195, 220, 226, 240, 250, 276, 650, 750, 1500, 1600, 1700, 1810, 1900, 2000, 2001, 2301, 2310

Replaces Part Number(s):

LVU801674, CH14762, CH14760, S70529, S-M805461, TPLVU801674, M805461, TP-LVU801674, TP-M805461, 194361-21400, 19411521400, 794150-21400

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1810, 1500, 195, 2210, 2010, 1600, 2210B, 1900, 2000, 250, 2001, 226, 1700, 220, 240, 2301, 2310, 276, 750, 650

Reference Numbers:

194361-21400, 19411521400, 794150-21400, LVU801674, CH14762, CH14760, S70529, S-M805461, TPLVU801674, M805461, TP-LVU801674, TP-M805461
