Clutch 532319M91 Fits Massey Ferguson 135 150 20 20C 235 245
Clutch 532319M91 Fits Massey Ferguson 135 150 20 20C 235 245
Couldn't load pickup availability

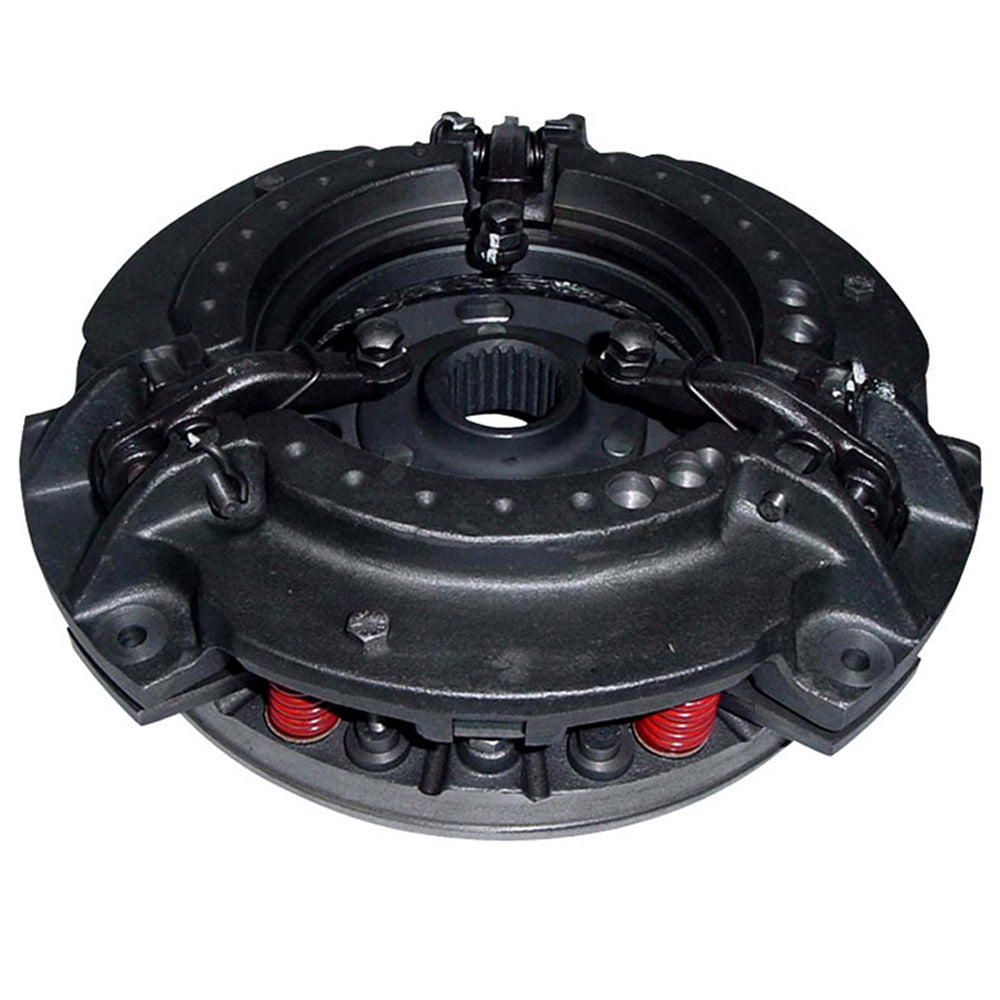

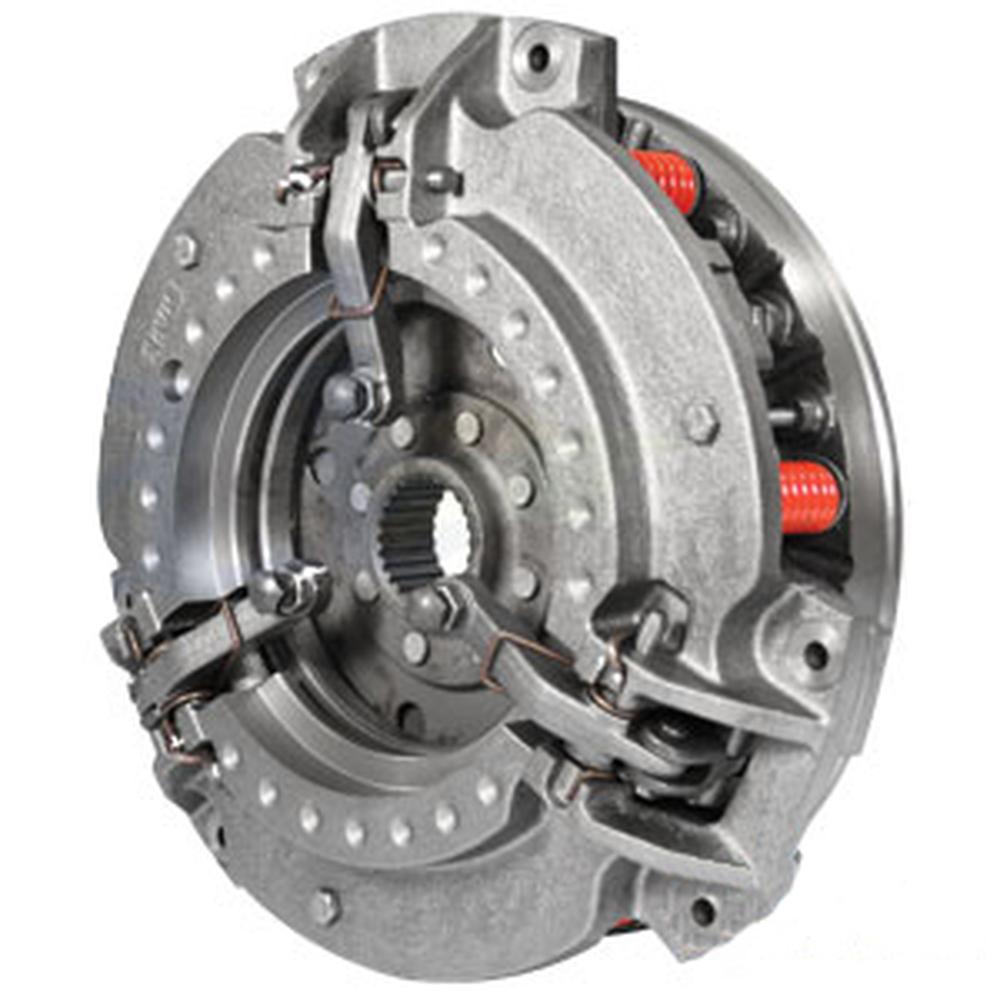

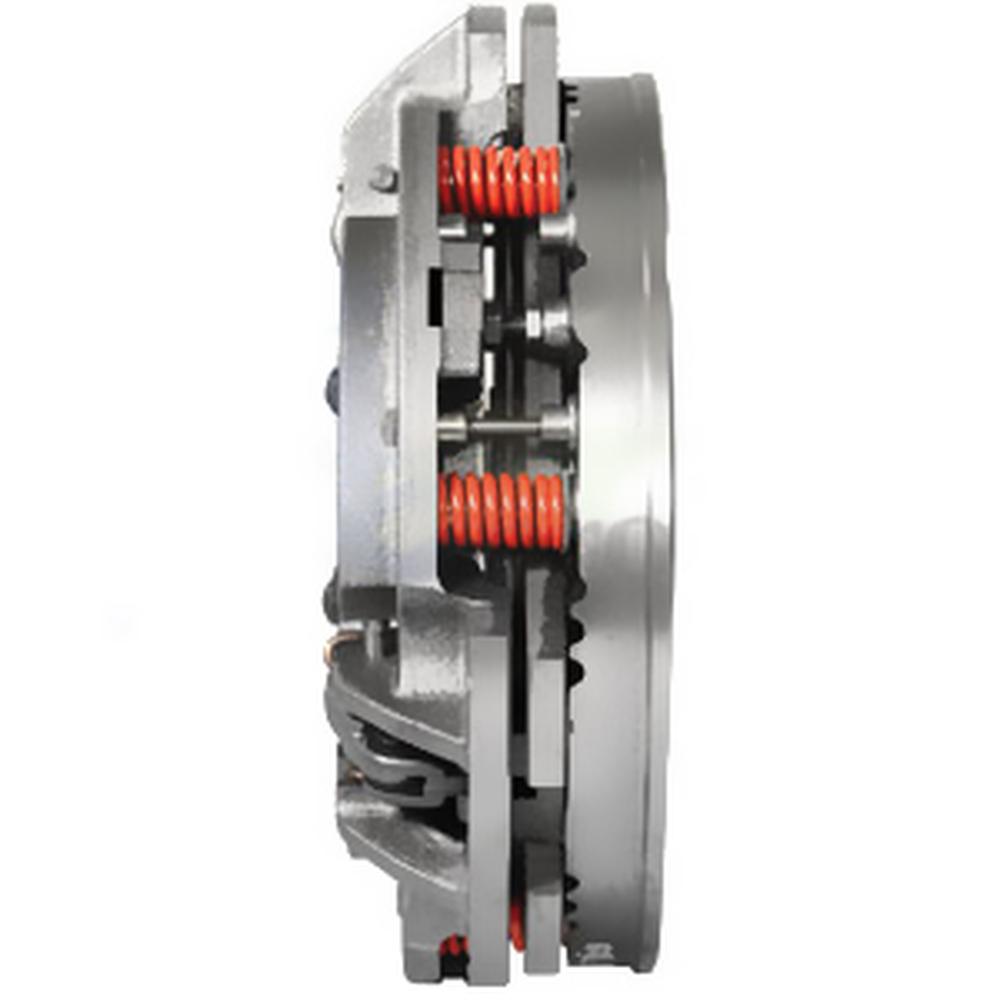

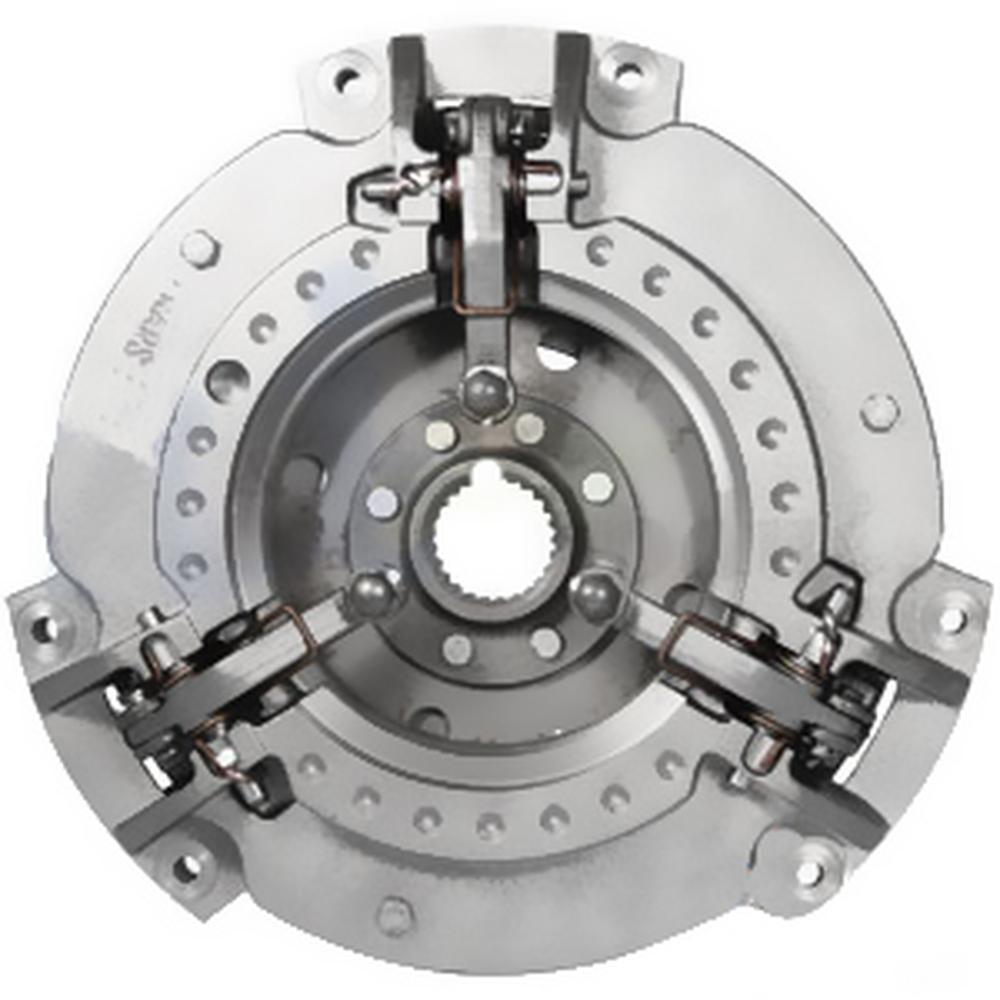

One New Aftermarket Replacement Double Clutch Pressure Plate Assembly Fits Massey Ferguson Tractors and Industrial/Construction Equipment
This double clutch pressure plate assembly (532319M91) is a direct replacement for the dual-stage clutch system found on Fits Massey Ferguson compact tractors and industrial/construction equipment. The dual-stage design uses light (standard) springs and includes a captive 25-spline PTO disc, providing both main drive and live PTO engagement in a single assembly. Note: drive disc not included.
Important Fitment Note
Fits Massey Ferguson 20 (Industrial/Construction): Fits transmission serial number DC2061 and later.
Fits Massey Ferguson 150: Fits units equipped with captive 25-spline PTO disc.
Verify your serial number and PTO disc configuration before ordering.
Specifications
- Type: Double (Dual Stage)
- Outside Diameter: 11"
- Hub Inside Diameter: 1-5/8"
- Spline Count: 25
- Number of Fingers/Levers: 3
- Springs: Light (Standard)
- Weight: Approx. 49.84 lbs
- Includes: PTO disc - drive plate not included
Compatible Models
Fits Massey Ferguson Tractors: 135, 150 (w/ captive 25-spline PTO disc), 230, 235, 245
Fits Massey Ferguson Industrial/Construction: 20 (Trans S/N DC2061 and later), 20C
Replaces Part Number(s):
532319M91, 532319V91
Aftermarket Interchange Numbers
M532319N, 1212-1501, X-A-532319M91, X-M532319N, X-M532319R, X-S.60814, X-S.61397
New aftermarket replacement part - not remanufactured, not used.
