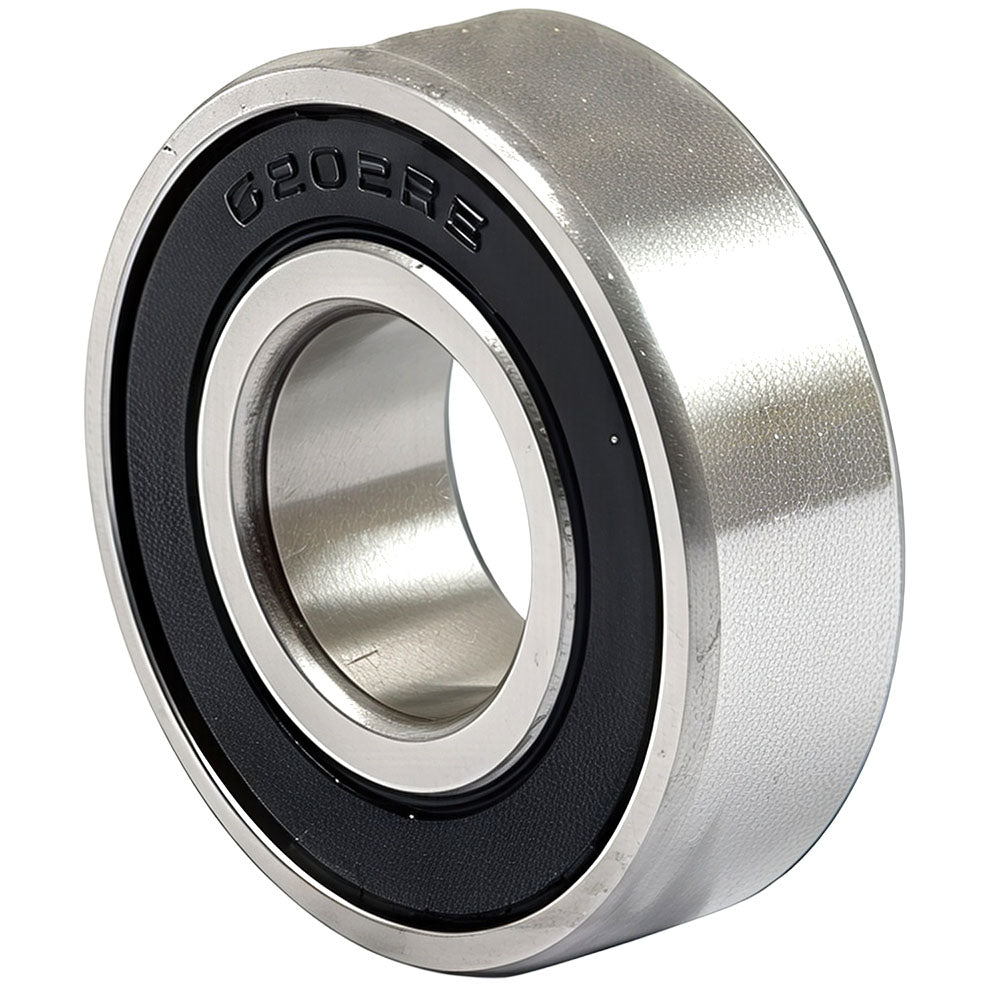

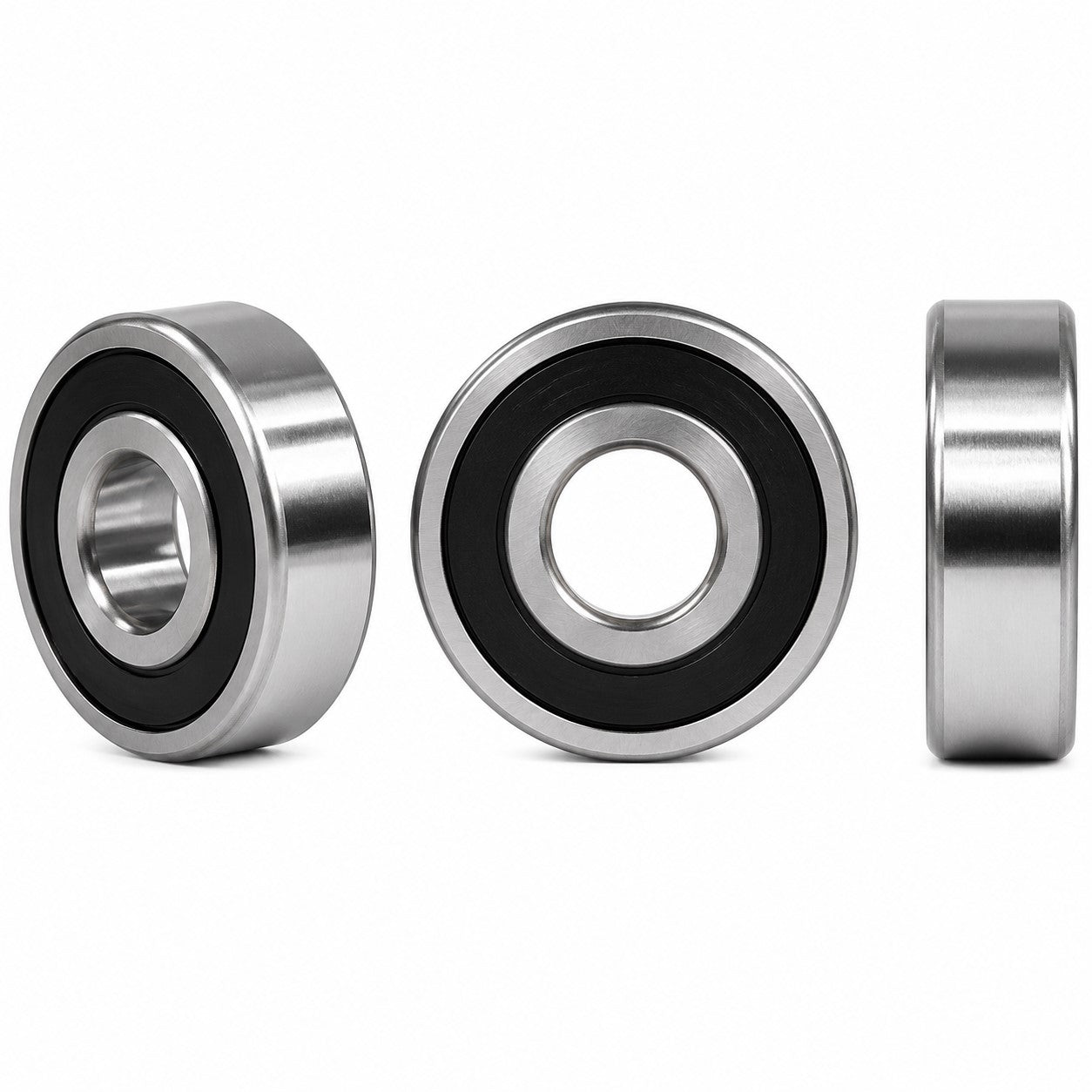

CH19289 JD10107 CLUTCH PILOT BEARING Fits John Deere 820 920 1030 1140 1530

Models This Part Fits:

2855, 2450F, 920, 1550, 2850, 3050, 1, 1630, 3640, 3040, 3640S, 3255, 2040, 2855N, 4; pro gear drive pistol grip series 1, 3140, 2450, 2250, 2255, 1120, 2350, 2355, 2550, 2755, 1140, 2650N, 1950, 1020, 2940, 1030, 2155, 2650, 3130, 1850V, 1040, 1350, 2030, 2240, 830, pro gear drive loop handle series 0, 3350, 840, Variable speed units, 1950N, 2130, 2150, 820, 2, 3120, 1750V, 1520, 940, 2650F, 1530, 1640, 1850, 2840, 2950, 3650, 4; 36" V and 48" pro deck attachment series 0, 3055, 3155, 2020, 2750, Crew King, 2955, 3150, 4 for disc drive, 1750, 2555, 1130

Additional Information:

Bore: .590" (15mm) Outside Diameter: 1.378" (35.001mm) Width: .433" (10.998mm) Bearing Sides: 2 Contact Seals Height: 7/16" (11.113mm) Inside Diameter: .590" (15mm)

Reference Numbers:

121120-21690, 202FF, 48224, 103300A, 1087946M1, 13851X, 175047M1, 1890635M1, 339932X1, CH19289, JD10107, 6202, 62022RS, 6202-2RS-I, 1-4514, 7014514, 7014514YP, 7-7324, V40101502Z, 38046N, PL0678, 552234, 410002400, 6202-2RS

Product Sub Group:

Bearings, Bushings, Seals
