CA550 New Conveyor Roller Chains (10 Ft) with 1.630" Pitch & 3/4" Width
CA550 New Conveyor Roller Chains (10 Ft) with 1.630" Pitch & 3/4" Width
Couldn't load pickup availability

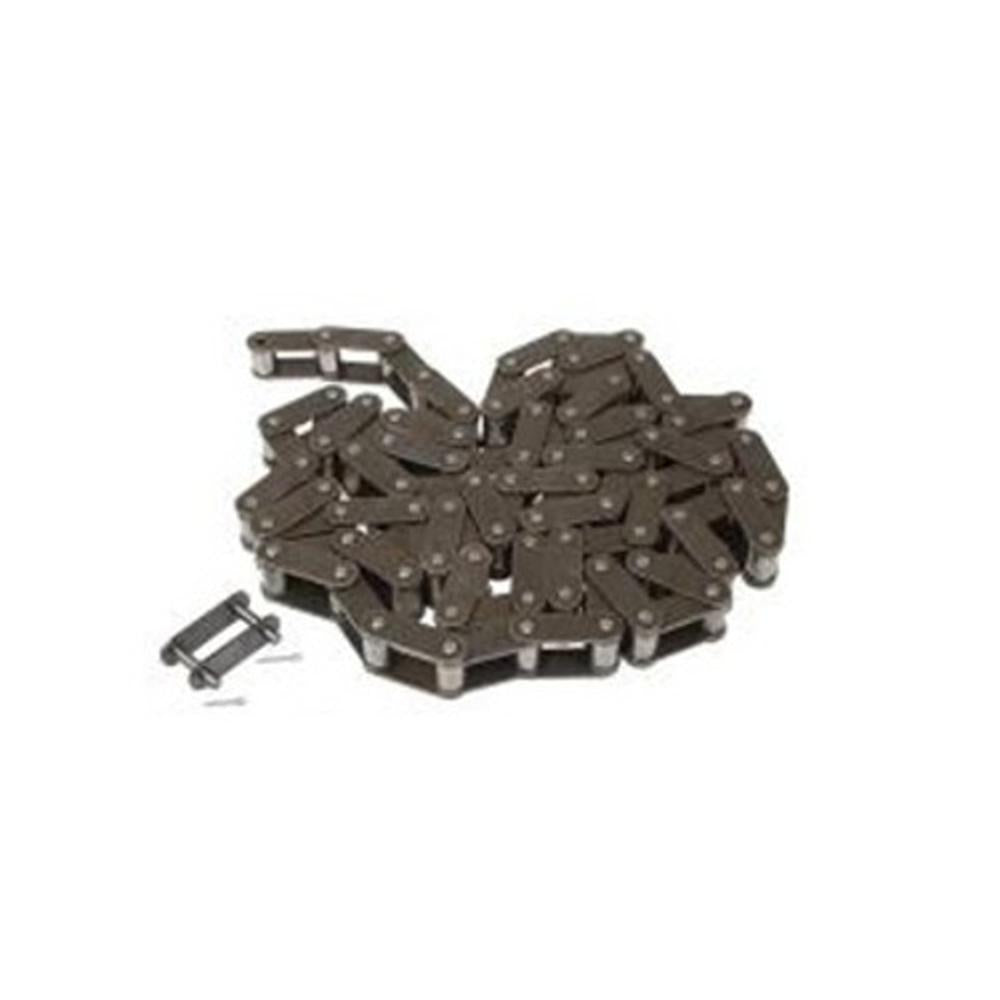

One New Aftermarket Replacement CA550 Agricultural Conveyor Roller Chain - 10 Foot Roll
This CA550 agricultural conveyor roller chain is a standard hardened steel extended-pitch roller chain sold in a 10-foot roll. The "C" designation indicates straight side bars, and the chain is compatible with standard CA550 sprockets. It is widely used across agricultural equipment for conveying, elevating, and driving applications.

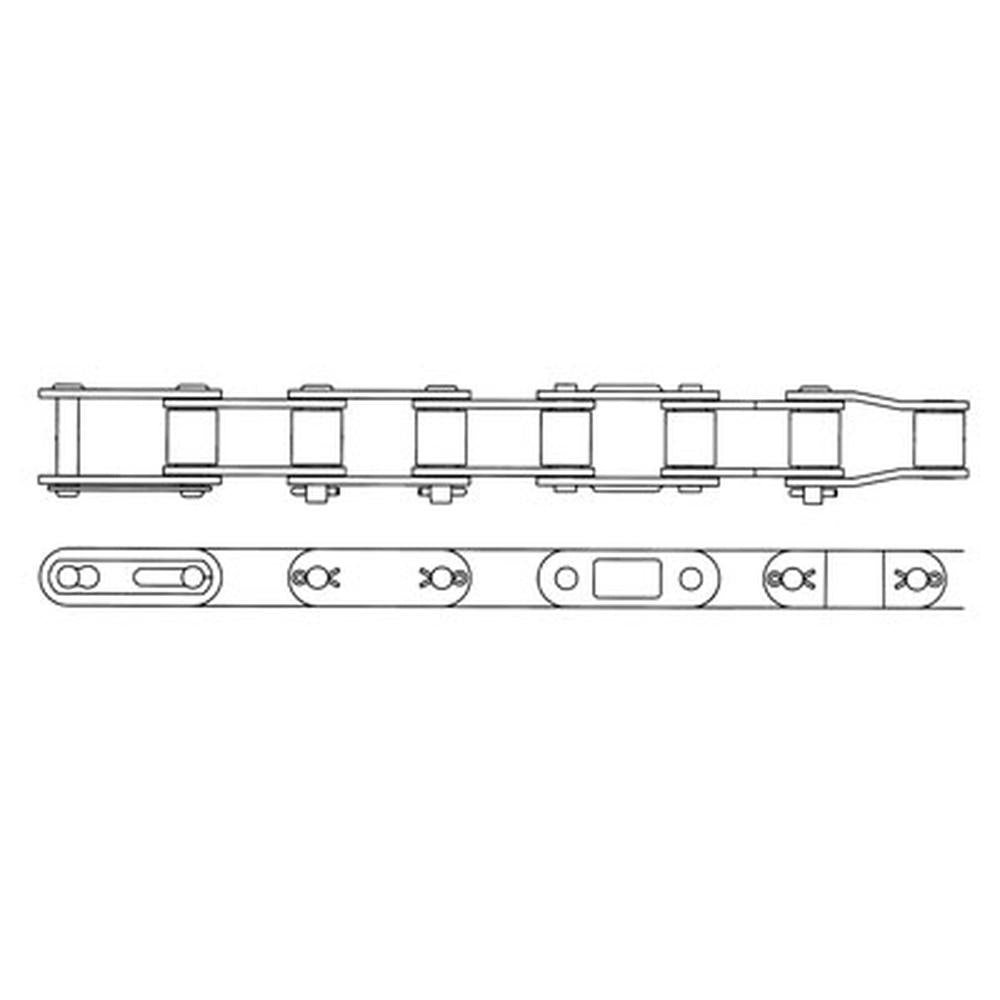

Specifications
- Chain Number: CA550
- Pitch (P): 1.630"
- Roller Diameter (D): 0.656"
- Roller Width (W): 0.797"
- Link Plate Height (H): 0.750"
- Link Plate Thickness (T): 0.105"
- Pin Diameter: 0.281"
- Overall Width - Riveted: 1.420"
- Overall Width - Cottered: 1.563"
- Ultimate Tensile Strength: 11,250 lbs
- Straight side bars (C-type designation)
- Quantity: 10 feet per roll
Common Applications
CA550 agricultural roller chain is used across a wide range of equipment and operations, including: combines, forage harvesters, corn gathering heads, elevator feed stations, feeder house conveyors, grain handling systems, manure spreaders, baggers, and general agricultural conveyor drives.
Replaces Part Number(s):
CA550, 3016-CA550, 3016-CA550-A
New aftermarket replacement part - not remanufactured, not used.
