Bucket Tilt Hydraulic Cylinder Fits Bobcat S300 S220 S250 T250 T320 S330 T300
Bucket Tilt Hydraulic Cylinder Fits Bobcat S300 S220 S250 T250 T320 S330 T300
Couldn't load pickup availability

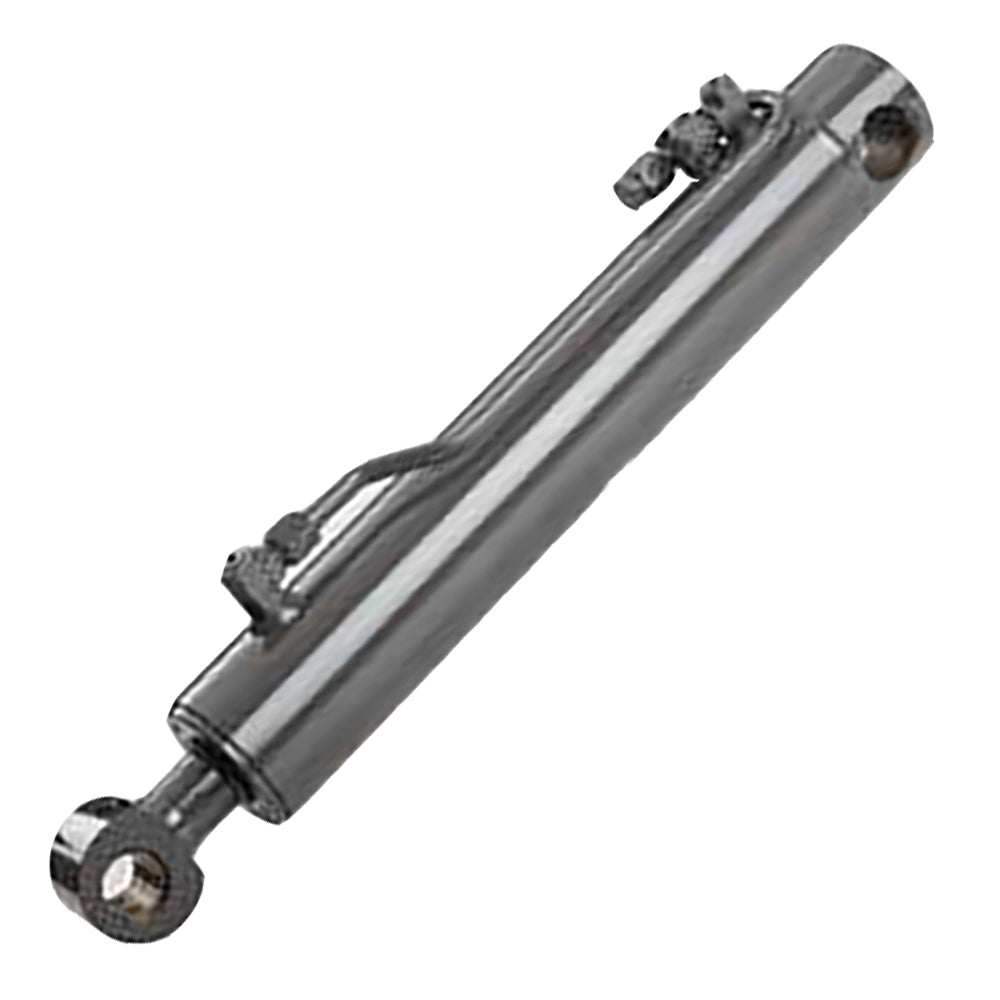

One New Aftermarket Replacement Bucket Tilt Hydraulic Cylinder for Bobcat Skid Steer and Compact Track Loaders
This aftermarket replacement bucket tilt hydraulic cylinder controls the tilt and dump function of the bucket or attachment on Bobcat skid steer loaders and compact track loaders. It replaces Bobcat OEM part number 7208419 (previously superseded from 6810233) and is engineered to meet or exceed original equipment specifications. Features a hardened chrome-plated rod, cast iron piston, and cast iron gland with buttress threads -- an upgrade over the aluminum OEM gland that reduces the risk of galled or damaged threads. Seals are rated for 250 degrees F and up to 7,250 psi for extended seal life. SAE and JIC flared ports and grease ports on both pin eyes are included for easy servicing.
Specifications
- Rod Diameter: 1.5 in.
- Bore: 3.0 in.
- Stroke: 15.0 in.
- Closed Length (Pin to Pin): 24 in.
- Pressure Rating: 3,000-3,500 psi operating; seals rated to 7,250 psi
- Seal Temperature Rating: 250 degrees F
- Ports: SAE and JIC flared ports
- Grease ports on both pin eyes
- Piston: Cast iron
- Gland: Cast iron with buttress threads
- Rod: Hardened chrome-plated
Compatible Models
Bobcat Skid Steer Loaders: S220, S250, S300, S330, A300
Bobcat Compact Track Loaders: T250, T300, T320
Replaces Part Number(s):
7208419
Supersedes
Supersedes OEM part number 6810233 (previous Bobcat part number -- 7208419 is the current OEM replacement).
New aftermarket replacement part - not remanufactured, not used.
