Bucket Pins + Bushings Kit Fits Caterpillar 246C 252B3 256C 262B 262C 262C2

Bucket Pins + Bushings Kit Fits Caterpillar 246C 252B3 256C 262B 262C 262C2

$227.00 CAD
$227.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Bucket Pins & Bushings Kit Fits CAT

Fits Caterpillar Skid Steer Loader Model(s):
236, 236B, 236B2, 236B3, 236D, 242D, 246, 246B, 246C, 246D, 248, 248B, 252, 252B, 252B2, 256C, 262, 262B, 262C, 262C2, 262D, 268B, 272C, 272D, 272D

Fits Caterpillar Compact Track Loader Model(s):
257D, 267B, 277, 277B, 277C, 277C2, 277D, 279C, 279C2, 279D, 287, 287B, 287C, 287C2, 287D, 289C, 289C2, 289D, 297C, 297D, 297D2, 299D, 299D2

Tech Info:

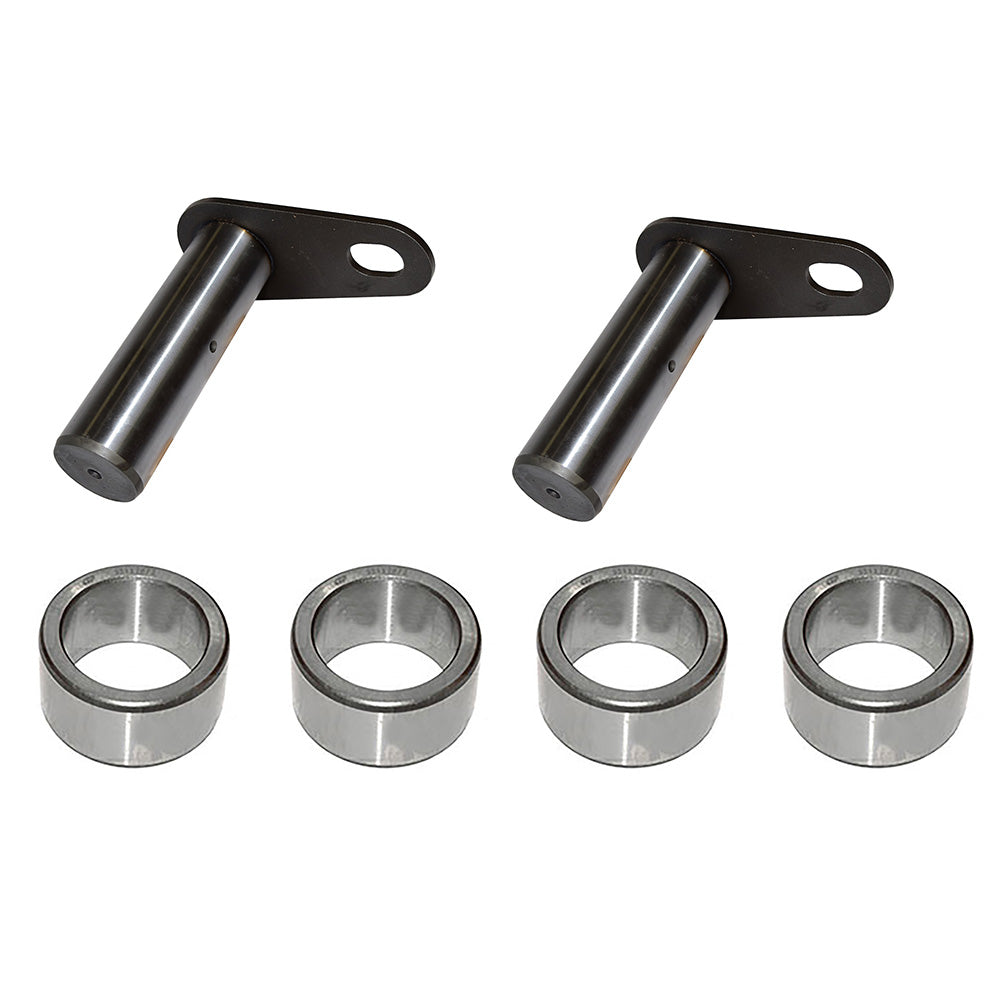

(2) Lift Arm Pins - 1429091 & (4) Bushings - 6K4148 Included

Additional Information
Flag Pin - Single Bolt
Flag Pin To End Length : 125MM
Pin Diameter : 38MM
Flag Plate Thickness : 4MM

Replaces Part Numbers: 1429091, 6K4148, 142-9091, 6K-4148

Models This Part Fits:

277C2, 257D, 299D XHP, 236, 268B, 287, 239D, 299C, C3.4, 252B, 232D, 246C, 262, 267, 306, 272D2, 256C, 279C2, 246B, 226D, 272D, 289C2, 297D, 3044C, 272D3, 239D3, 246D, 236D, 297D XHP, 279D, 262D3, 257D3, 252, 299D, 289D3, 262B, 287B, 272C, 279D3, 304.5E2, 297D2, 289C, 262D, 249D3, 267B, 289D, 297C, 236B, 297D2 XHP, 272D XHP, 248B, 252B3, 287C, 287D, 249D, 246, 246D3, 226D3, 242D, 272D2 XHP, 299D2 XHP, 242D3, 236D3, 262C, 277D, 299D2, 277, 277C, 248, 277B, 232D3, 259D, 299D3 XE, 279C, 262C2, 272D3 XE, 3034, 287C2, 259D3, 920, 236B3, 299D3

Additional Information:

(4) Bushing Tech Info: Inside Diameter: 38.20 mm Outside Diameter: 50.85 mm Overall Length: 27.70 mm Replaces Part Number: 6K4148, 6K-4148 (2) Bucket Linkage Pin Tech Info: 1.5" diameter 4.92" long Removal Aid / Feature: No Puller Hole Grease Passage: Greased through pin Replaces Part Numbers: 1429091

Reference Numbers:

1429091, 6K4148, 6K-4148
