Brake Lining Kit Fits Case 480C 480C 470 580D 530 480D 570 580C 480B 430 580B 58
Brake Lining Kit Fits Case 480C 480C 470 580D 530 480D 570 580C 480B 430 580B 58
1 review
Regular price
$52.00 CAD
Regular price
Sale price
$52.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

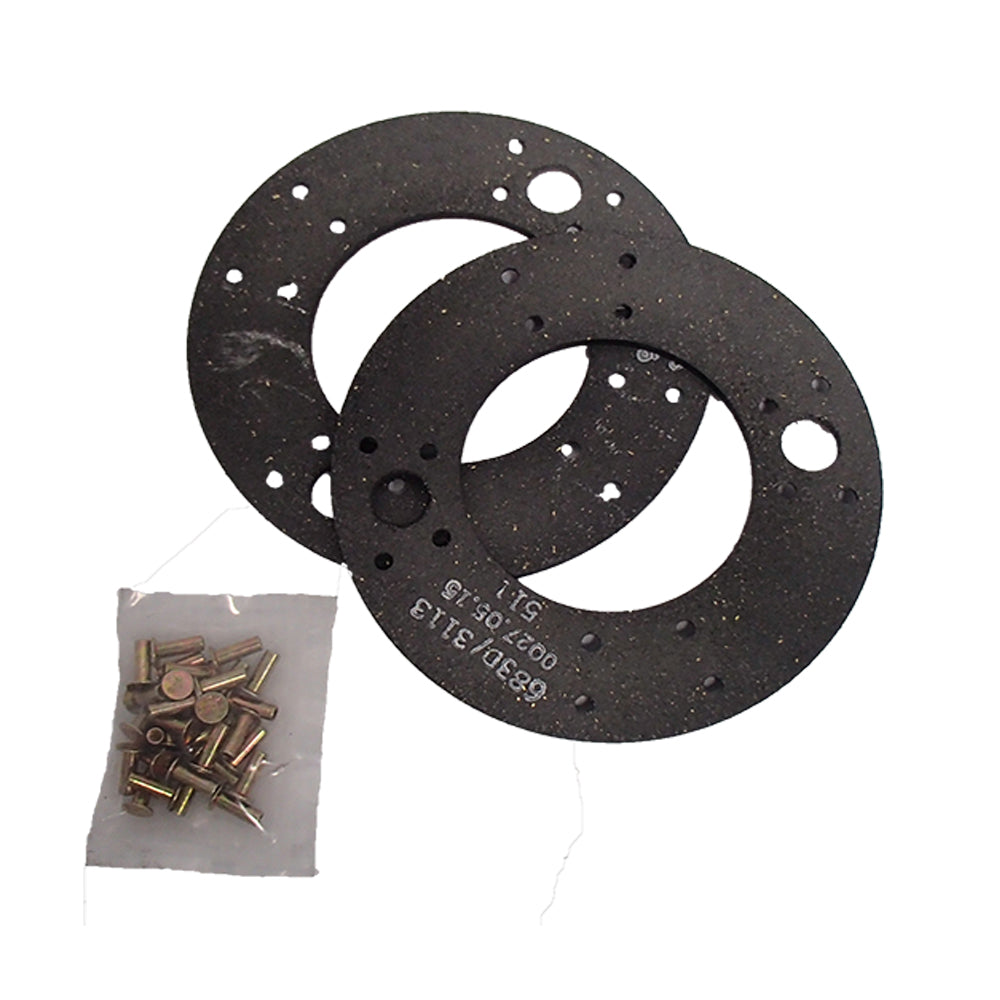

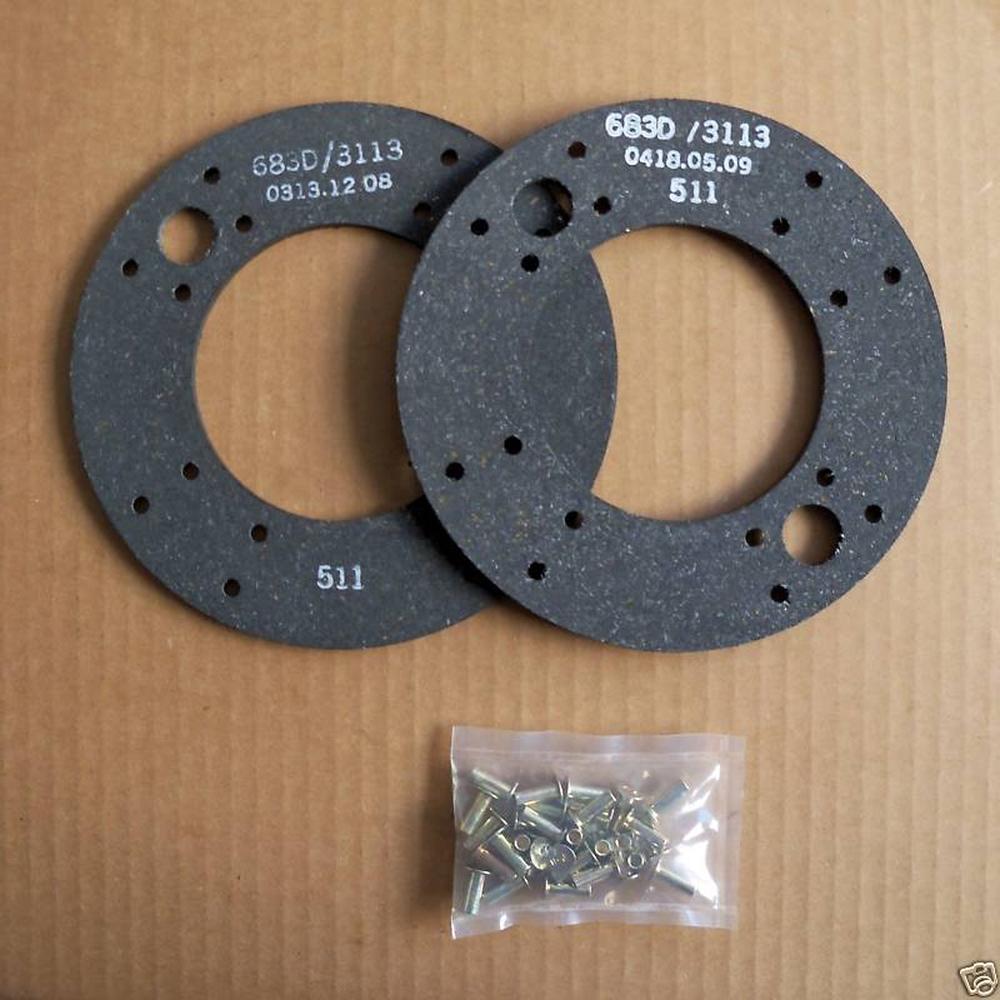

One New Aftermarket Replacement Brake Lining Kit Assembly Fits Case Backhoe models: 430, 470, 480, (480D 2WD), 480B, 480C, 530, 570, 580B, 580C, 580CK, (580D 2WD).
Enough to do One side of the machine.

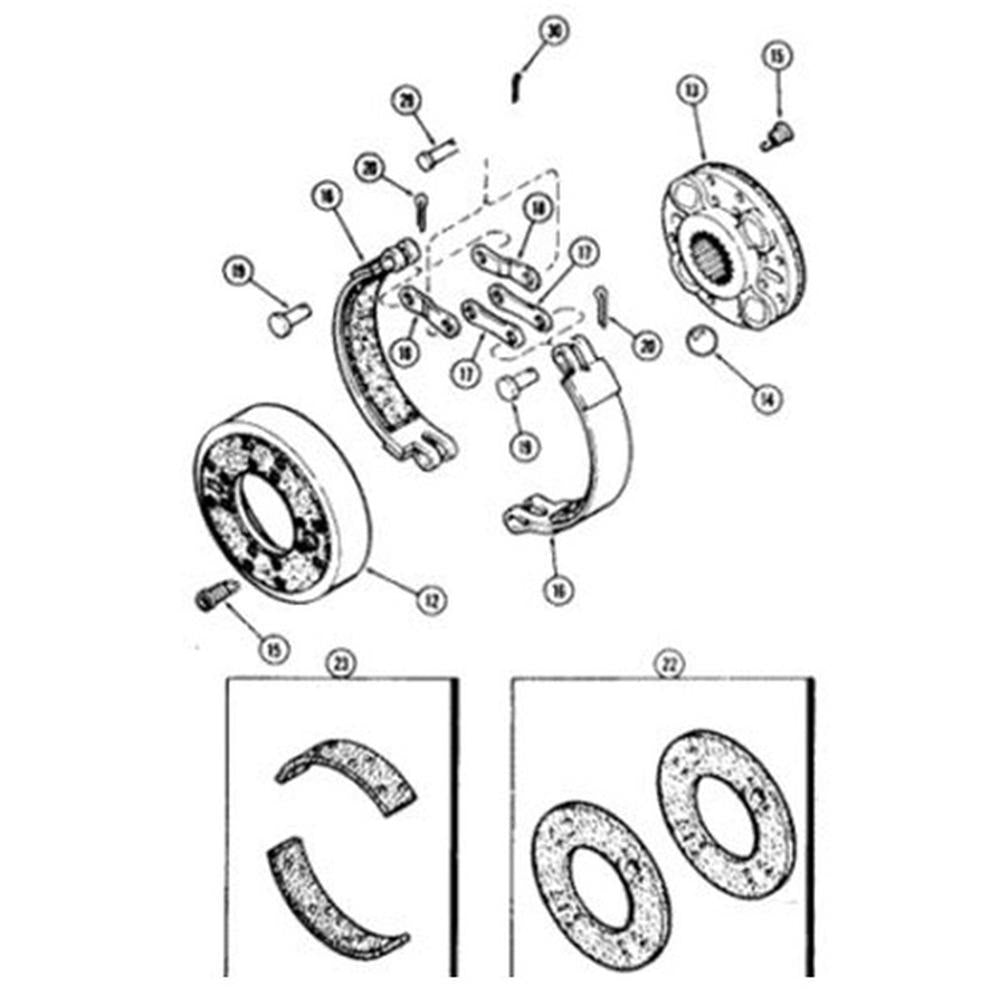

This is Number #22 in the picture. These Discs are 6-1/2" in Diameter.
Part Numbers: 135575A1, 249019A1, A44720, 1995295C1
Enough to do One side of the machine.
This is Number #22 in the picture. These Discs are 6-1/2" in Diameter.
Part Numbers: 135575A1, 249019A1, A44720, 1995295C1
Models This Part Fits:
632, 584, 530, 480CK, 480LL, 585D, 430, 540, 634, 580CK, W3, 584C, 584D, 586, 580C, 586C, 630, 580, 430CK, 480D, 480B, 535, 642, 541, 585, 480, 530CK, 531, 545, 641, 570, 580D, 585C, 580B, 470, 441, 644, 631, 431, 640, 586D, 435, 445, 480C, W5Additional Information:
(2) Brake Linings & (32) Rivets Included Holes: 3.500" Outside Diameter: 6.500" Thickness: .187"Reference Numbers:
A41552, 135575A1, 1995295C1, 249019A1, A44718, A44720, 249019A3Product Category:
ConstructionView More: Construction Replacement Parts

R
Ronnie Lirette (Thibodaux, US) Brakes are good waiting for other parts to come in to put everything together.Thanks ,
