Brake Band:B1SB486 for Universal Several

One New Aftermarket Replacement 4" Brake Band with Pin for Vintage Go Karts and Mini Bikes

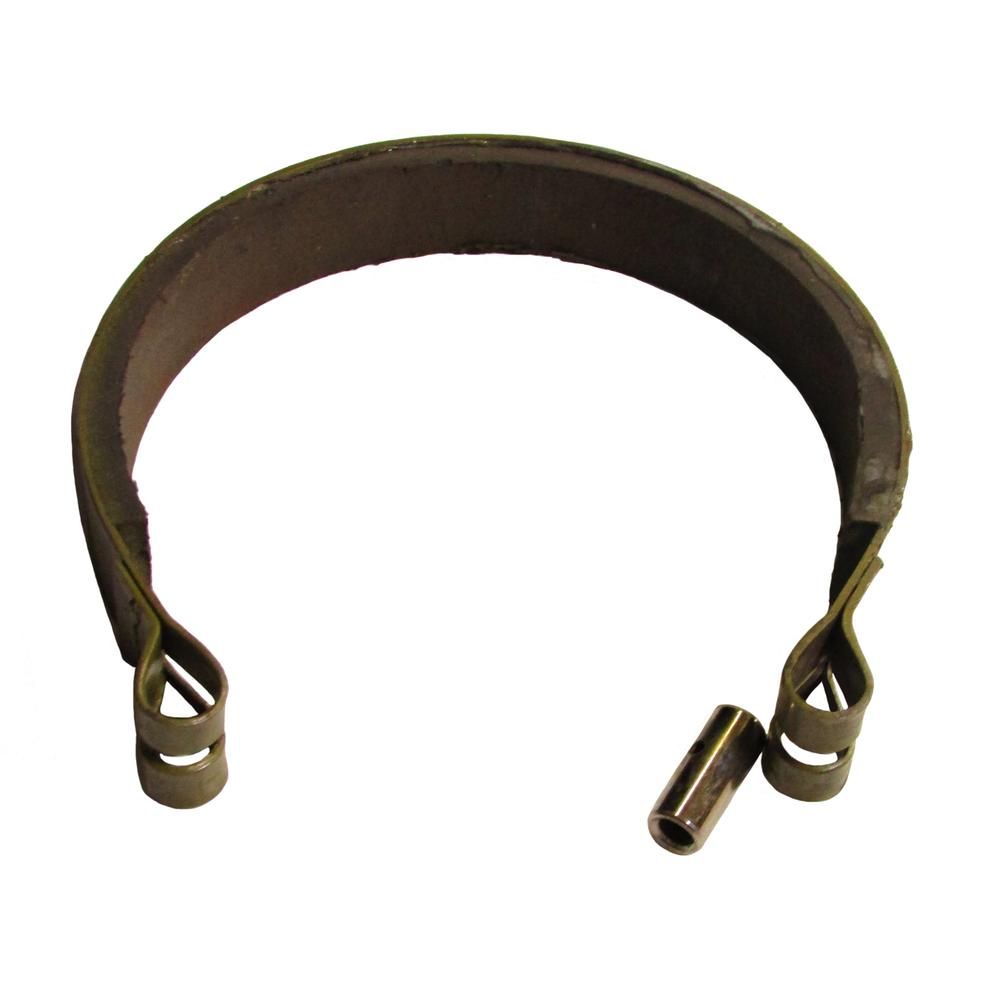

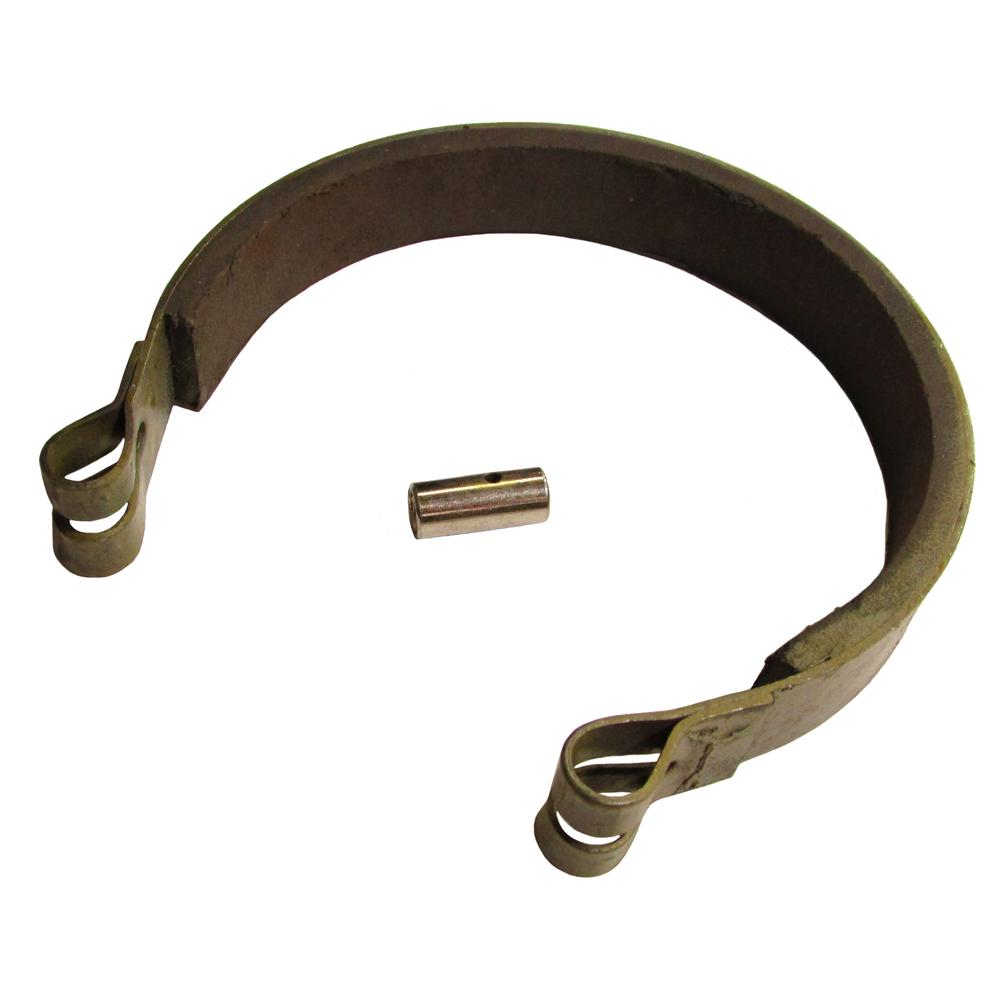

This 4" brake band (also called a 4-3/16" brake band) is a direct-fit replacement for the drum brake system found on many vintage and classic go karts, mini bikes, drift trikes, and ATVs. Constructed of a steel band with bonded brake lining as a single piece, it includes a steel brake pin with cable hole for easy cable attachment.

Specifications

• Outside Diameter: approximately 5"
• Band Width: 7/8"
• Brake Pin Diameter: 5/16"
• Construction: Steel band with bonded brake lining (one piece)
• Includes steel brake pin with cable hole
• Fits 4" (4-3/16") brake drums
• Without lock tab

Compatible Equipment

Vintage and Classic Go Karts and Mini Bikes: Fits many vintage mini bikes and go karts including Yerf Dog, Kartco, ThunderKarts, and Ken-Bar go karts, as well as Manco and Azusa-equipped machines, drift trikes, and ATVs using 4" brake drums. Confirm your drum diameter before ordering.

Replaces Part Number(s):

1036, 2251, 2251-B, BRR90-0038, B1SB486

Aftermarket Interchange Numbers

Stens 260-133, Manco 1492, Manco 4316, Rotary 484, 486, 1725-B, JBMBRBAND004

New aftermarket replacement part - not remanufactured, not used.
