BP13931 Kit - Bolt Fits John Deere 224T 224WS 327 328 336 337 338
BP13931 Kit - Bolt Fits John Deere 224T 224WS 327 328 336 337 338
Couldn't load pickup availability
Ten New Aftermarket Replacement Baler Flywheel Shear Bolt and Nut Kit for John Deere Square Balers

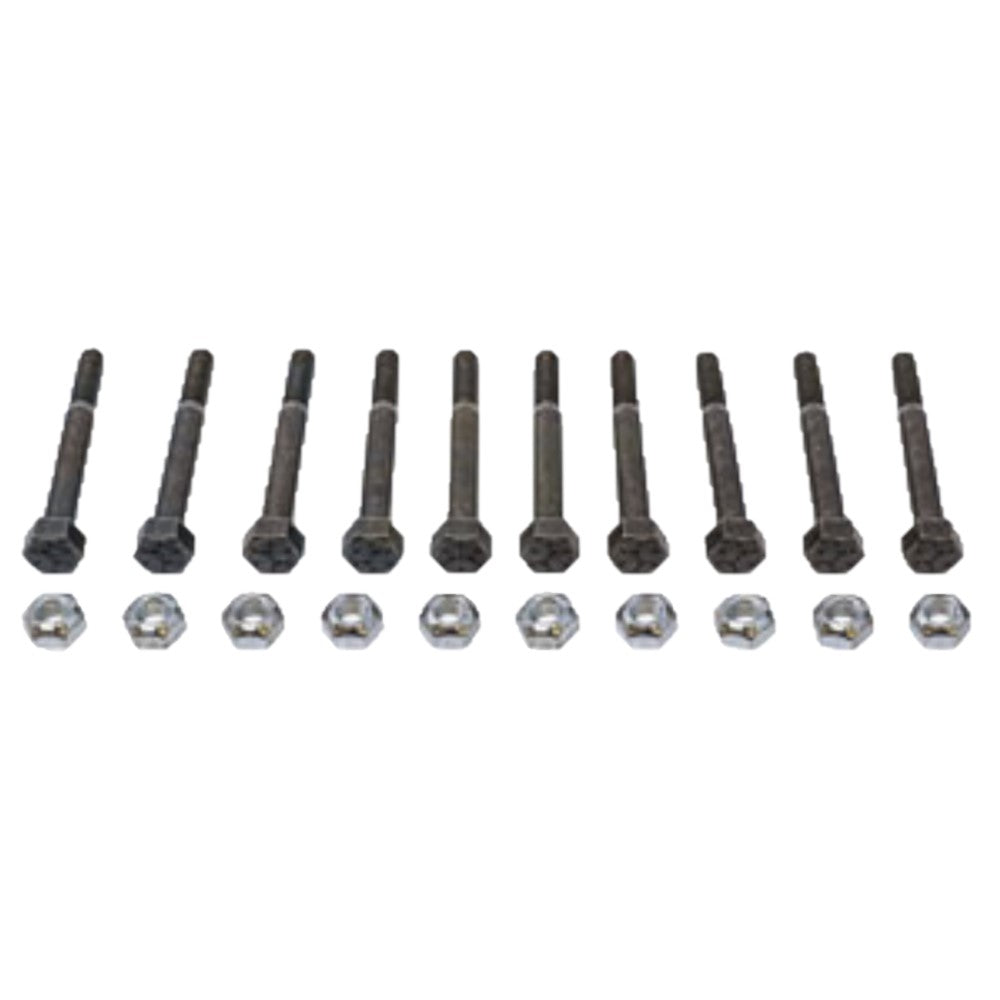

This pack of ten (10) Grade 5 shear bolts with lock nuts fits John Deere flywheel-driven square balers. Shear bolts are a critical consumable component engineered to break at a precise load, protecting the baler flywheel and drivetrain from damage caused by plugging or obstructions. Note: On John Deere 14T (s/n 32868 and up) and 214 balers, this bolt is for power take-off (PTO) driven models only -- engine-driven models require a different part number. Do not substitute a higher-strength bolt, as machine damage can result.
Specifications
- Quantity: 10 bolts with lock nuts per pack
- Diameter: 0.280"
- Overall Length: 2.500" (1/4"-20 x 2-1/4")
- Thread Size: 1/4"-20 RH UNC
- Thread Length: 0.560"
- Useable Length: 1.580"
- Grade: 5
- Head Type: Hex head
- Nut: 1/4"-20 steel hex locknut, zinc plated
Compatible Models
John Deere Flywheel Square Balers: 10, 14T (s/n 32868 and up -- PTO driven only), 24, 214 (PTO driven only), 216, 224, 224T, 224WS, 323W, 327, 328, 336 (also PTO), 337, 338, 348, 349
Replaces Part Number(s):
BP13931, AE14495, ABP13931, JD10, SBKJD10, SBK-JD10, BSBJD10, 144-JD10, 714410
New aftermarket replacement part - not remanufactured, not used.
