New Aftermarket Replacement Shear Bolt and Nut for John Deere Hay Balers

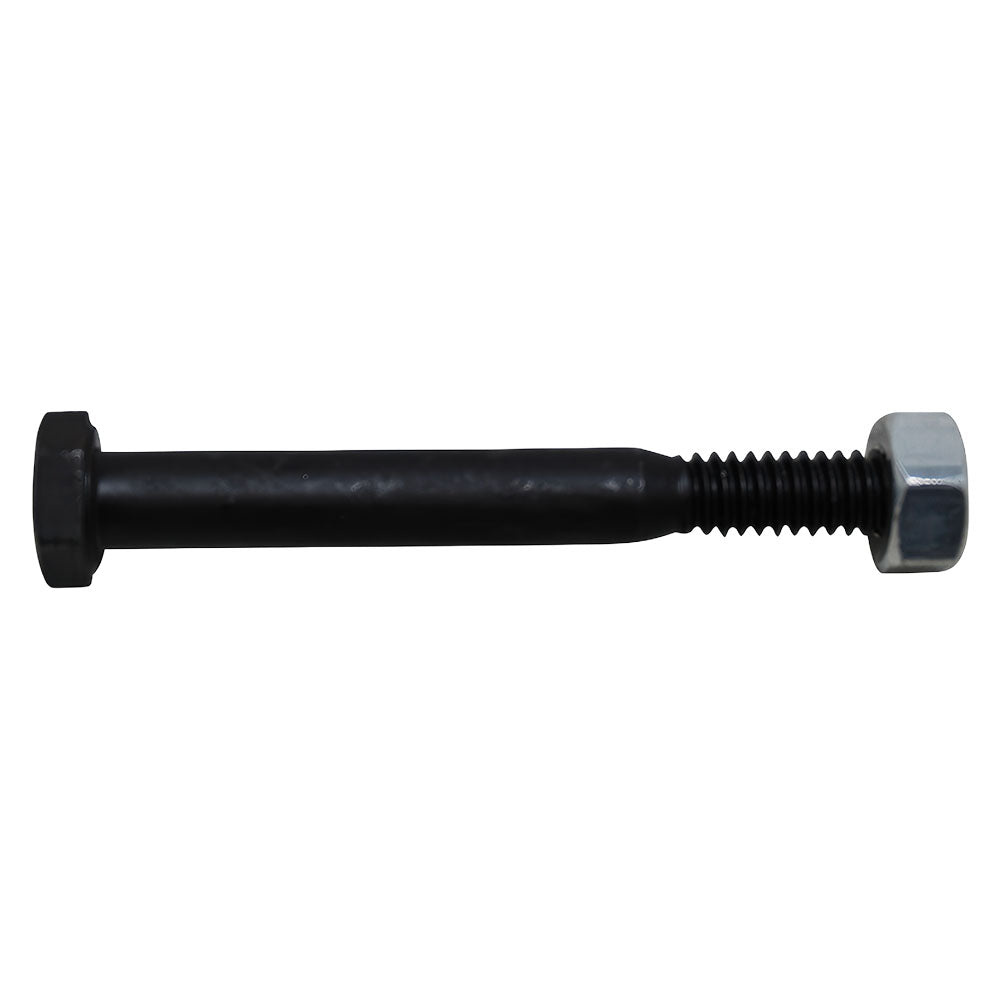

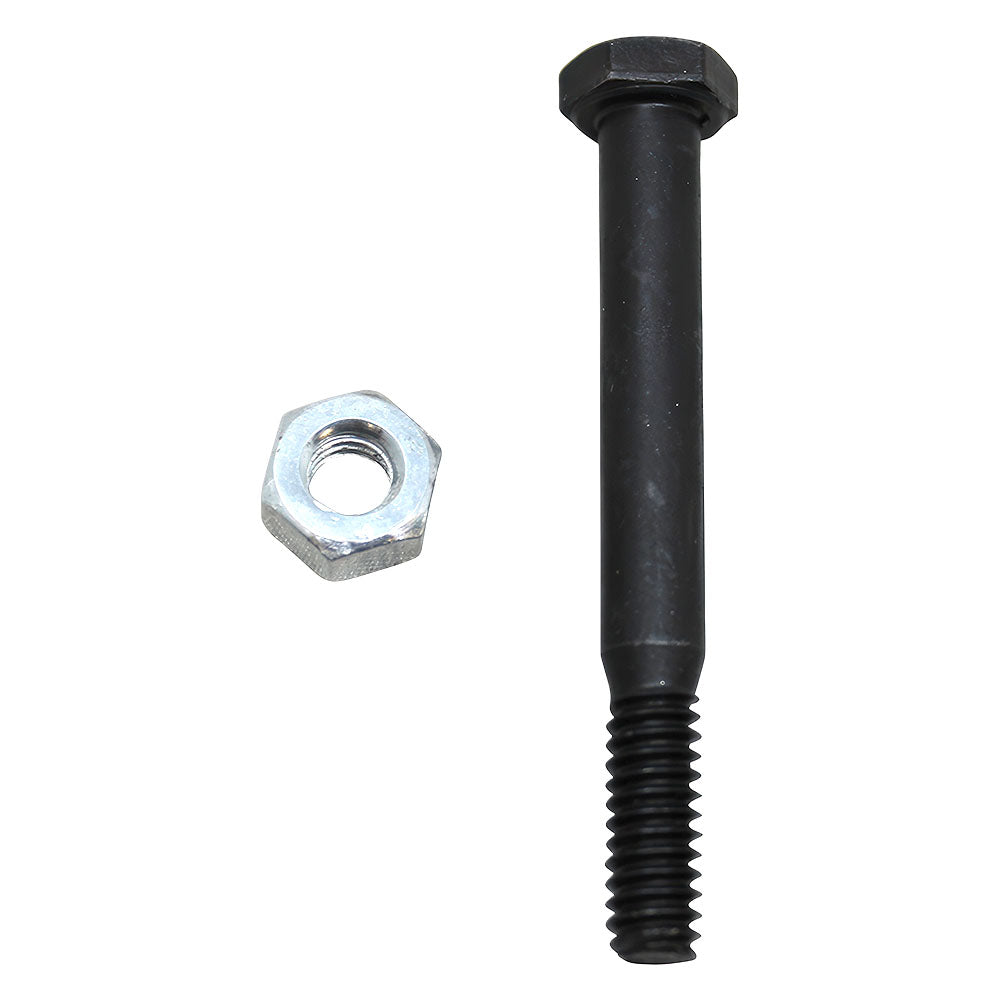

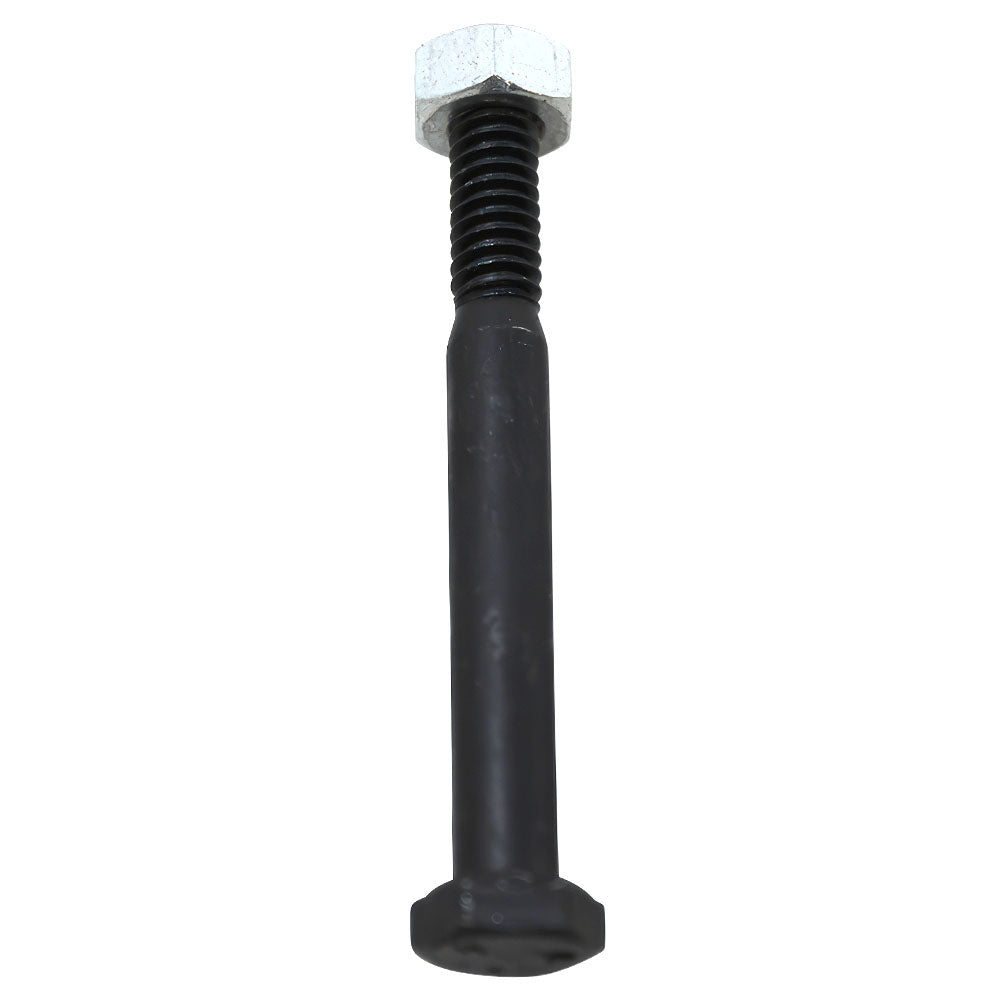

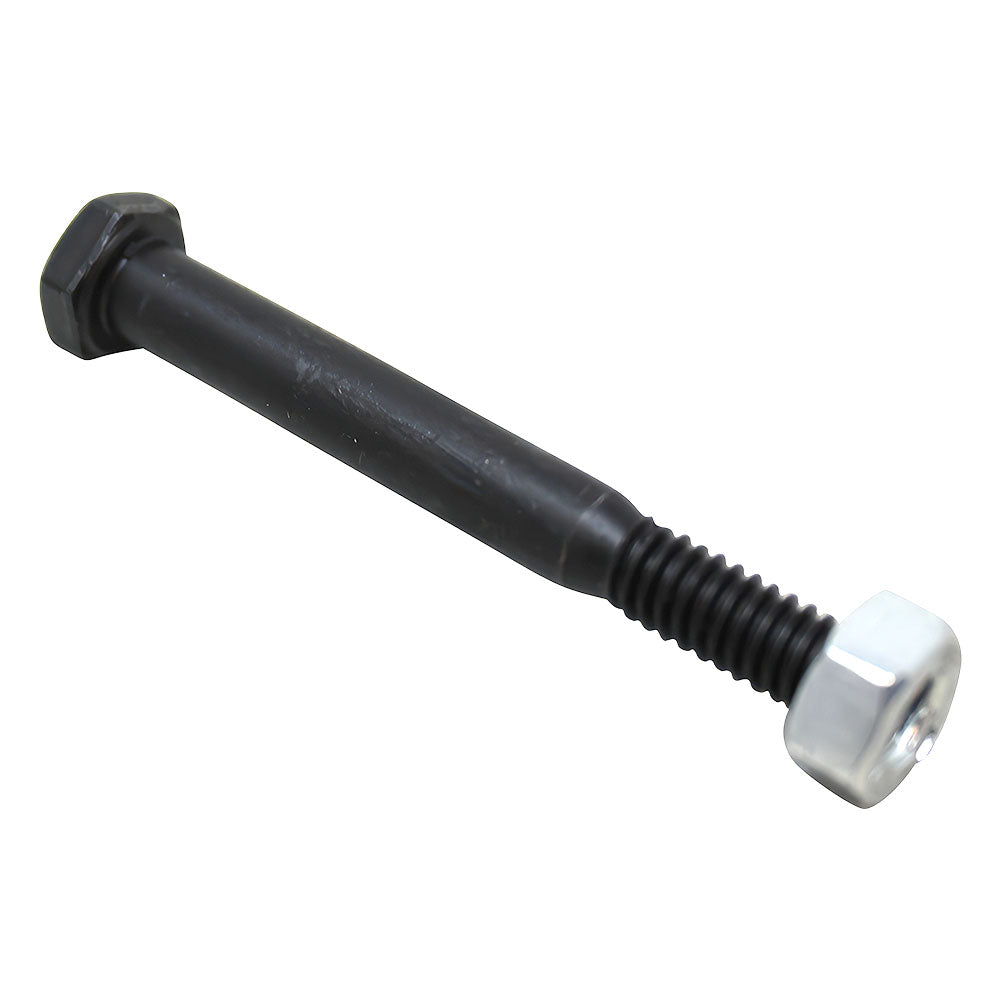

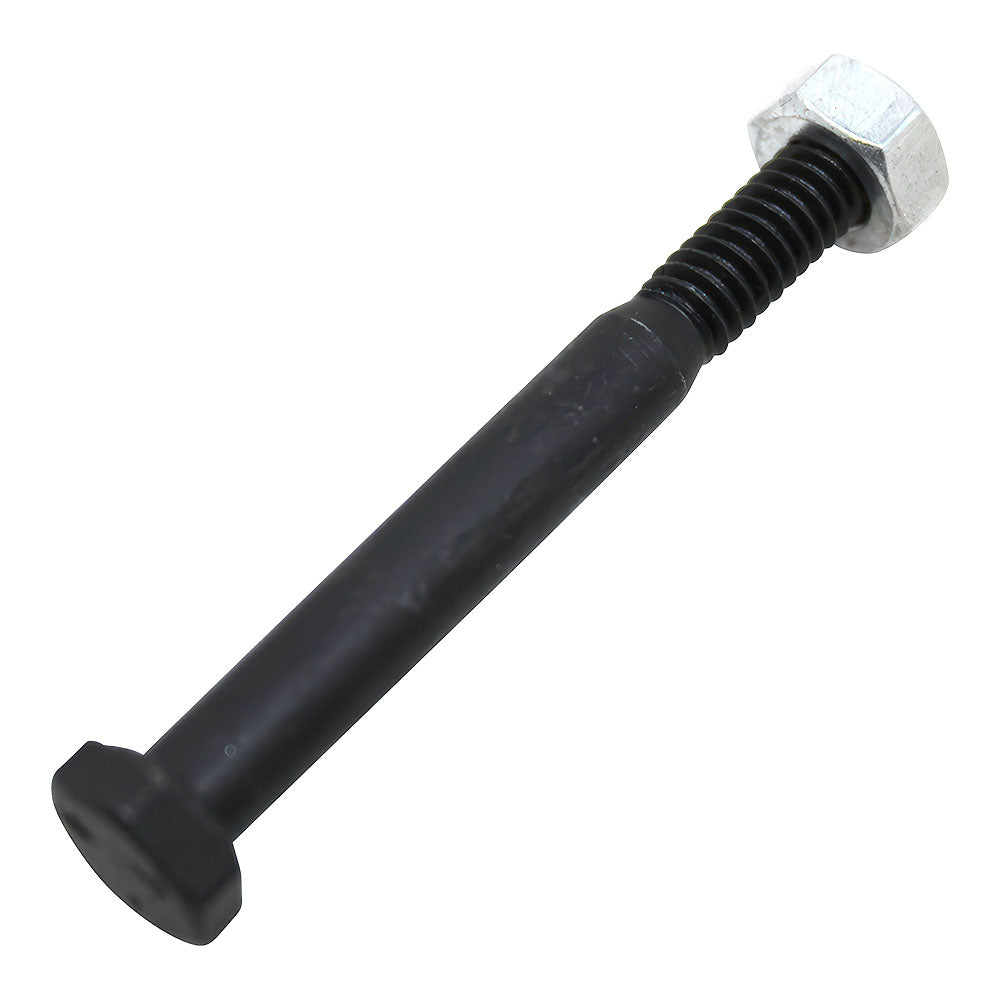

This includes flywheel shear bolt with lock nut designed for use on John Deere hay balers. These Grade 5, 1/4"-20 x 2-1/4" shear bolts are engineered to protect the baler drivetrain by shearing before damage occurs to the flywheel and gearbox. Note: Models 14T and 214 fitment is for power take-off (PTO) driven units only; engine-driven models use a different part number.
Specifications
- Diameter: 0.280"
- Grade: 5
- Overall Length: 2.500"
- Thread Length: 0.560"
- Thread Size: 1/4"-20 RH UNC
- Usable Length: 1.580"
Compatible Models
John Deere Hay Balers: 10, 14T (s/n 32868 and up, PTO-driven only), 24, 214 (PTO-driven only), 216, 224, 224T, 224WS, 323W, 327, 328, 336 (also PTO), 337, 338, 348
Replaces Part Number(s):
BP13931, AE14495, ABP13931, JD10, SBKJD10, SBK-JD10, BSBJD10, 144-JD10, 714410
Aftermarket Interchange Numbers
TP-BP13931, BHL20-0041
New aftermarket replacement part - not remanufactured, not used.
