Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer

Name: Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer
SKU: AGER1864743-DUP
Price: 84.0 USD
Availability: InStock

Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer

$84.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

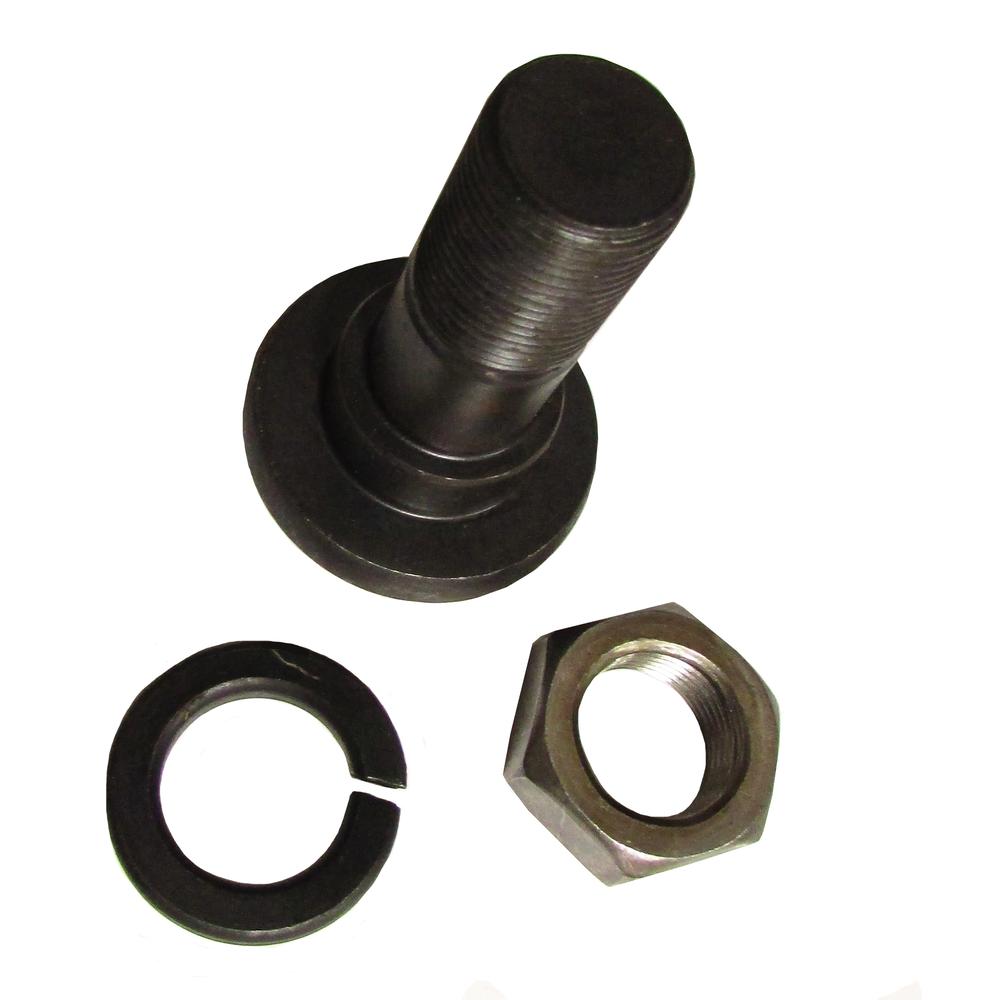

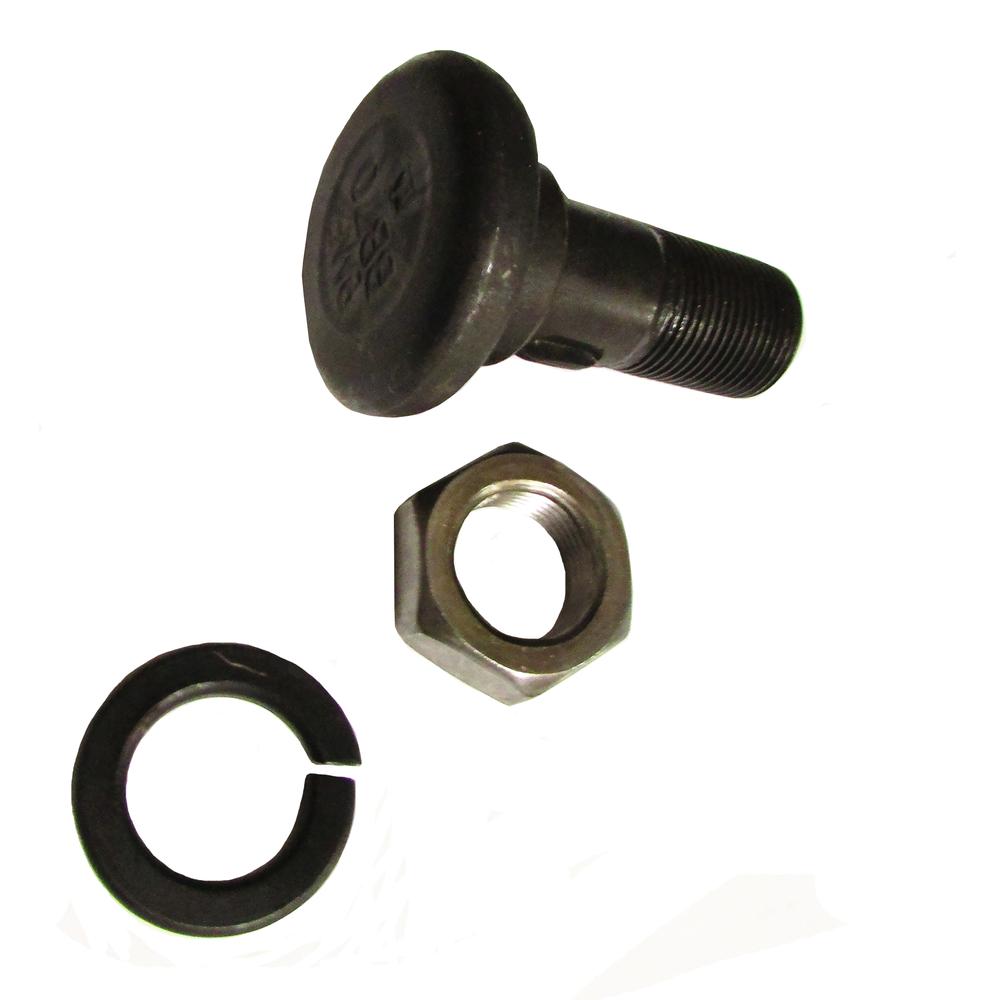

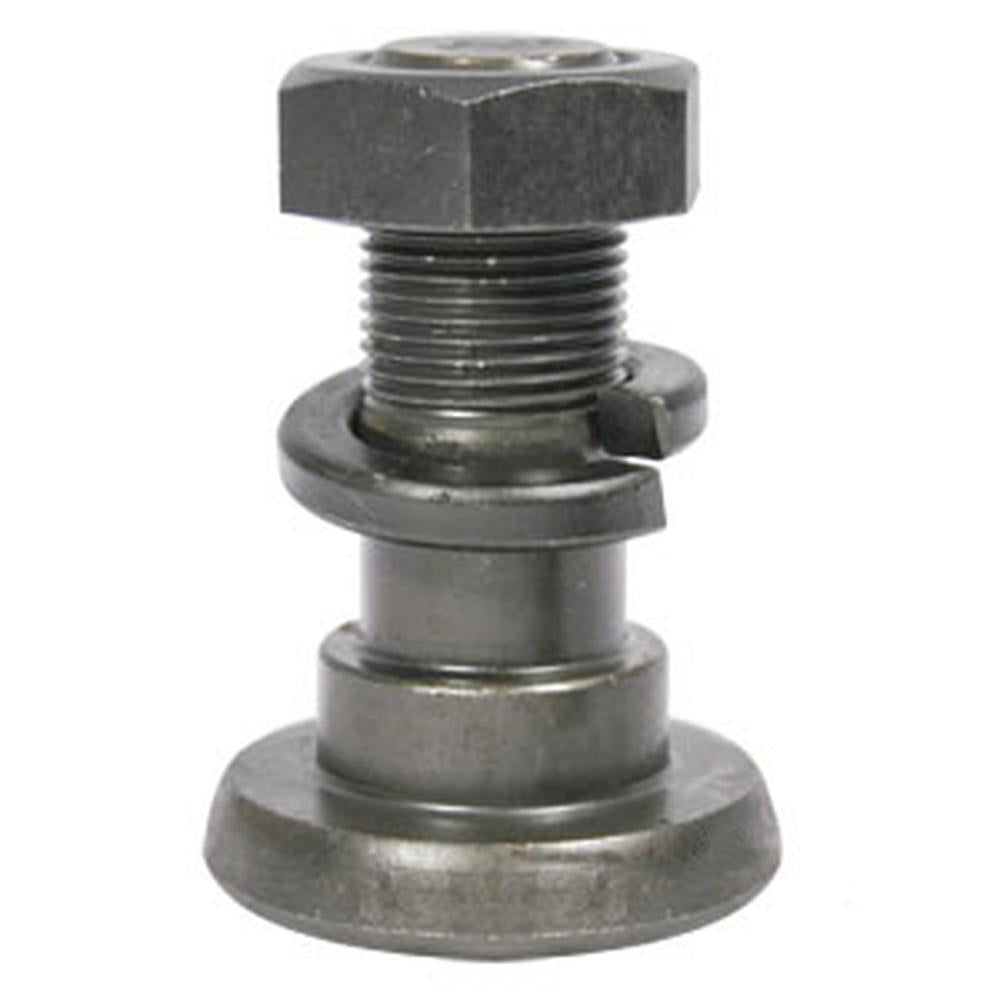

Rotary Cutter Blade Bolt Kit

Fits: BUSH HOG, Land Pride, Shulte, Universal
Models: 104, 105, 1050, 109, 1109, 1126, 1206, 1207, 1209, 204 H, RZ60, SQ36, SQ42, SQ420, SQ48, SQ480

Contains 2 Each 7A4997 Bolts, Nuts & Lock Washers

Blade Mount Depth ( E ) 1/2 Inch
Blade Mount Diameter ( H ) 1-1/2 Inches
Bolt Shank Diameter ( I ) 1-1/8 Inches
Head Diameter ( G ) 2-1/2 Inches
Head Thickness ( F ) 1/2 Inch
Overall Length ( B ) 4-1/8 Inches
Shank Length thru Carrier ( D ) 7/8 Inch
Thread Length ( C ) 2 Inches
Thread Size ( A ) 1 Inch - 14 Thread

Replaces Part Number(s)3013-8109, 3013-8109-A, 404-165300P, 404-165300P-A, 63607, 63607GV, BH2500, BH2500-A, BH2500GV, RE7919

Models This Part Fits:

206, 3008, 2010, 2615, 12, 1207R, 305, 1050R, 3610, 226, 310, 3126, 1115S, 3168, 1209, 1226, 2315, 286, 2715, 307R, 1126, 105, 3615, 3209, 205, 1206R, 306, 2620, 502, 3368, 600, 2415, 1315, 126, 3210, 6, 166, 2512, 109 OFFSET, 315, 1600, 160, 109, 2610, 1109, 1310, 268, 307

Additional Information:

Includes: (1) Bolt (7919BH) (1) Nut (252BH) (1) Lock Washer (253BH) Blade Mount Depth: 1/2" Blade Mount Diameter: 1-1/2" Bolt Shank Diameter: 1-1/8" Head Diameter: 2-1/2" Head Thickness: 1/2" Overall Length: 4-1/8 " Shank Length thru Carrier: 7/8" Thread Length: 2 " Thread Size: 1" - 14 Thread
