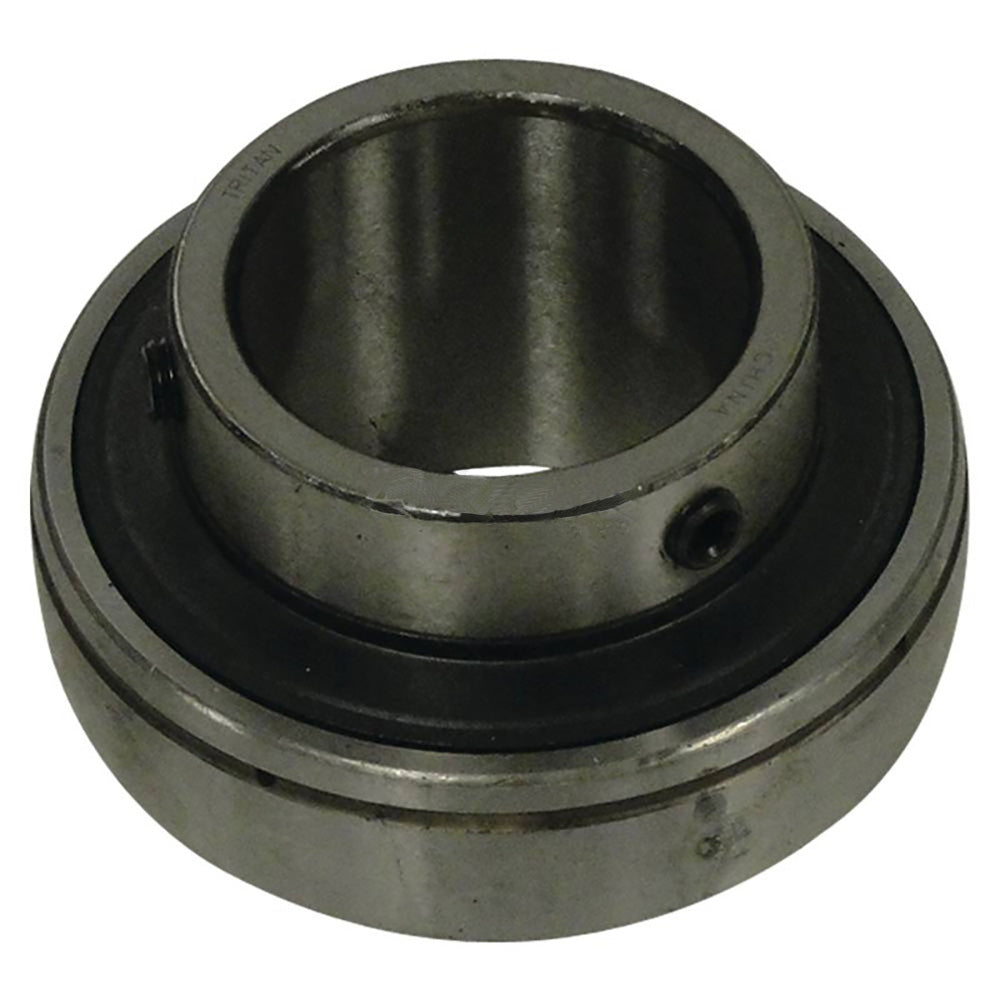

One New Aftermarket Replacement UC209-28 Radial Insert Ball Bearing - UC200 Series, 1-3/4" Bore
This UC209-28 is a UC200 series radial insert ball bearing with a 1-3/4" bore, designed for use in pillow blocks, 2-bolt flanges, 3-bolt flanges, 4-bolt flanges, take-up units, and other mounted bearing housings. The extended inner ring is secured to the shaft via two set screws. The bearing features a spherical outer diameter for self-alignment, pre-lubricated grease fill, and a lubricating groove for re-greasing in the field. Widely used across agricultural machinery, construction equipment, conveyor systems, forestry, and general industrial shaft-support applications.
Specifications
- Bore Diameter: 1-3/4 in (44.45 mm)
- Outside Diameter: 85 mm (3.3465 in)
- Outer Ring Width: 0.8660 in (22 mm)
- Inner Ring Width: 1.9370 in (49.20 mm spherical OD)
- Locking Device: Set Screw (2 screws)
- Bearing Material: AISI 52100 Chrome Steel
- Seal Type: Contact with slinger
- Radial Dynamic Load Capacity: 7,420 lbf
- Radial Static Load Capacity: 4,610 lbf
- Series: UC200
- Pre-lubricated with grease; relubricable
Compatible Applications
This is a standard industry bearing used across a wide range of equipment makes and models. Compatible with any pillow block, 2-bolt flange, 3-bolt flange, 4-bolt flange, or take-up unit housing designed to accept a UC209-28 insert bearing with a 1-3/4" bore. Common applications include agricultural machinery (planters, combines, augers, spreaders), construction equipment, conveyors, forestry equipment, and general industrial machinery.
Replaces Part Number(s):
UC209-28
Aftermarket Interchange Numbers
VS-228, INS-SC-112, GY1112KRRB, YW250-1-3/4, UG228NL, UC209-112D1, YAR209-112, UC209.28
New aftermarket replacement part - not remanufactured, not used.
