Backhoe Pin fits Komatsu PC300
Backhoe Pin fits Komatsu PC300
Couldn't load pickup availability

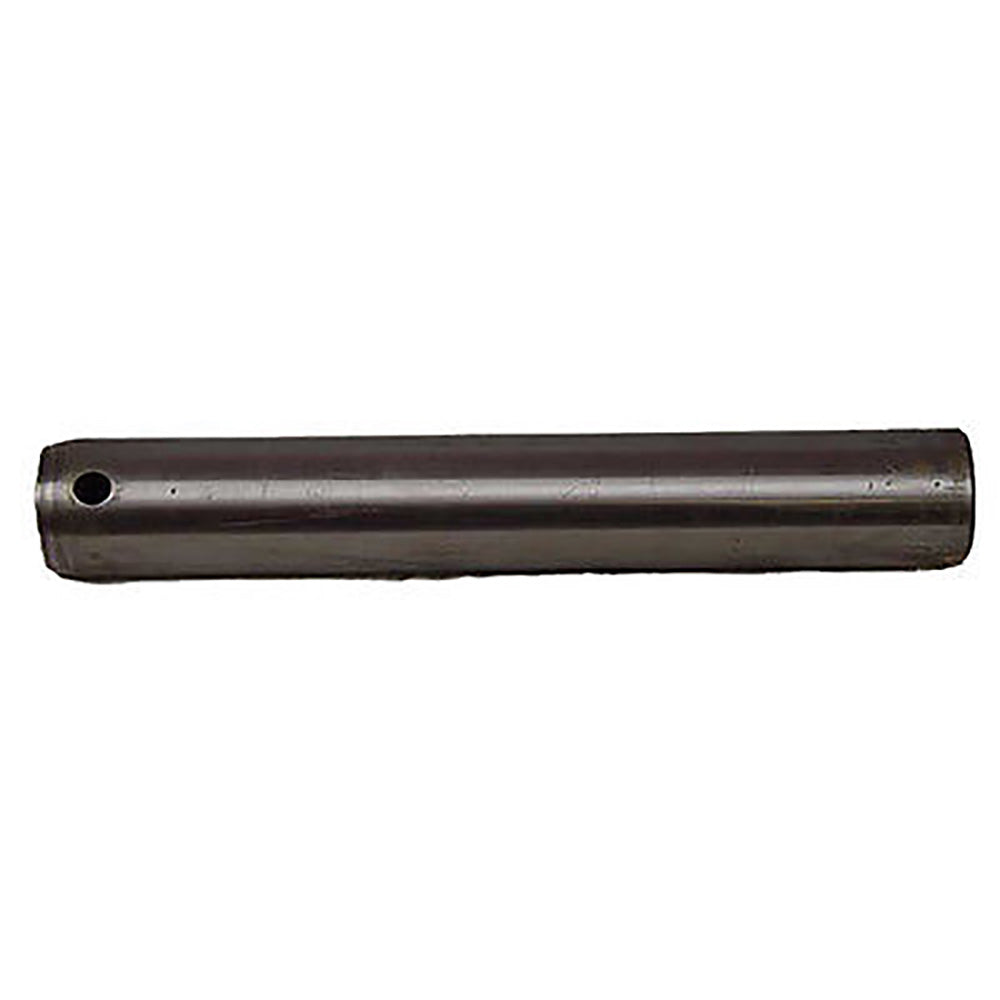

One New Aftermarket Replacement Pin for Komatsu PC300 Series Excavators
This is a bucket-to-dipper arm and H-link pin for Komatsu PC300 series hydraulic excavators. The pin connects the bucket to the dipper arm and H-link assembly and is a critical wear component in the attachment linkage system.
Specifications
- Diameter: 90 mm (3.54 in)
- Length: 583 mm (23 in)
- Flange Diameter: 110 mm
- Flange Thickness: 10 mm
- Bolt Holes: 2
Compatible Models
Komatsu PC300 / PC340 / PC350 / PC360 / PC380 Series: PC300-6, PC300-6Z, PC300-8, PC300-8M0, PC300HD-6LC, PC300HD-6LE, PC300HD-6MH, PC300LC-6, PC300LC-6LC, PC300LC-6LE, PC300LC-6Z, PC300LC-8, PC300LC-8M0, PC340LC-6K-J, PC340NLC-6, PC340NLC-7K, PC350-6, PC350-6Z, PC350-8, PC350-8M0, PC350LC-6, PC350LC-6Z, PC350LC-8, PC350LC-8M0, PC360-8M0, PC360LC-10, PC380LC-6K-J
Komatsu HB Series (Hybrid): HB335-1, HB335LC-1, HB365-1, HB365LC-1
Replaces Part Number(s):
207-70-61230, BAN90-0175
New aftermarket replacement part - not remanufactured, not used.
