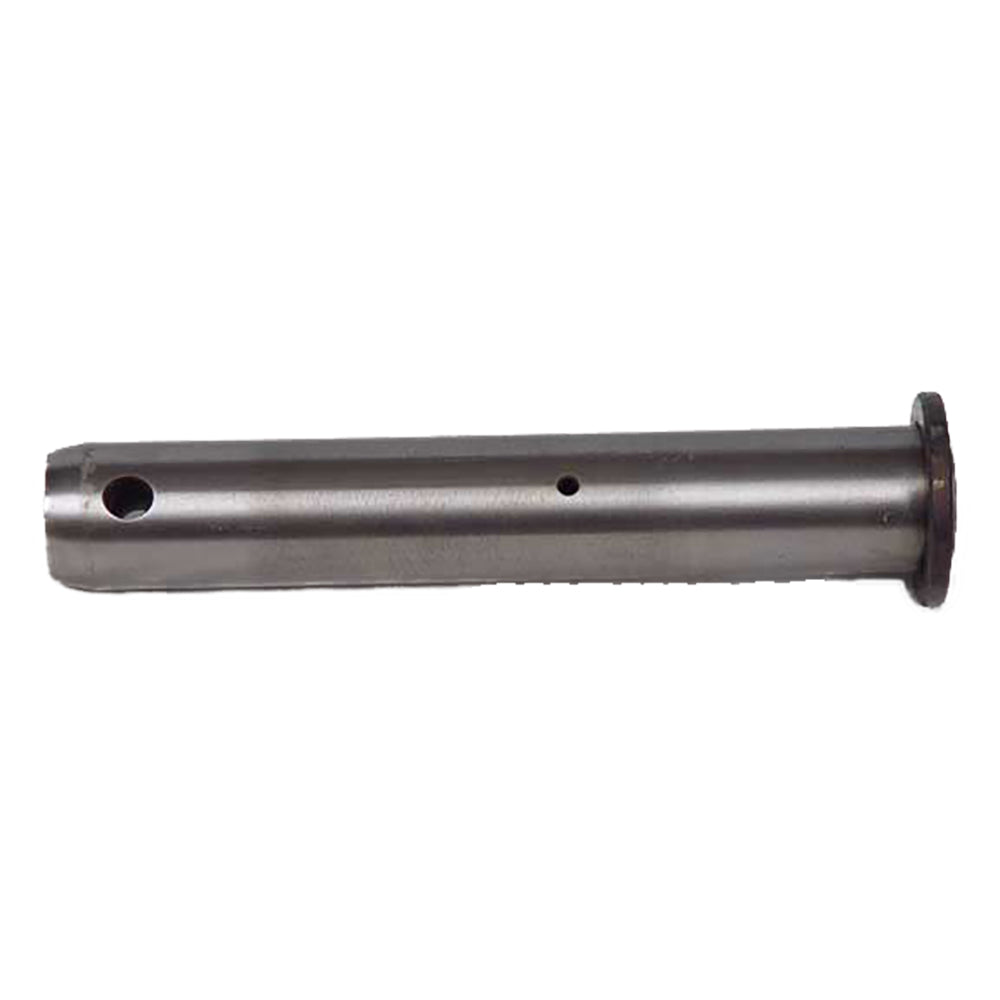

202-70-64151 Pin for Komatsu Excavator PC100 PC120-6
202-70-64151 Pin for Komatsu Excavator PC100 PC120-6
Regular price
$217.00 CAD
Regular price
Sale price
$217.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Bucket Link Pin for Komatsu Excavators
This aftermarket replacement pin connects the bucket link (dipper) assembly on Komatsu PC100 and PC120-6 series excavators. Precision-machined from high-strength steel, it is a direct replacement for the OEM bucket linkage pin used in the boom and stick assembly.
Specifications
- Diameter: 60 mm (2.36 in)
- Length: 364 mm (approx.)
- Flange Diameter: 85 mm
- Flange Thickness: 9 mm
- 2 Bolt Holes, 2 Grease Holes
- Weight: approx. 17-20 lbs
Compatible Models
Komatsu Excavators: PC100, PC120-6 (S/N 45001-UP), PC120-6Z (S/N 45001-UP), PC120-6E0 (S/N 70001-UP), PC120LC-6 (S/N 45001-UP), PC120LC-6E0 (S/N 70001-UP), PC128US-1 (S/N 1001-UP), PC128US-2 (S/N 5001-9500), PC128US-2-A (S/N 9501-UP), PC128UU-1 (S/N 1001-UP), PC128UU-2 (S/N 5001-UP)
Replaces Part Number(s):
202-70-64151, 202-70-64161, 202-70-64161-A, BAL10-0094
New aftermarket replacement part - not remanufactured, not used.
