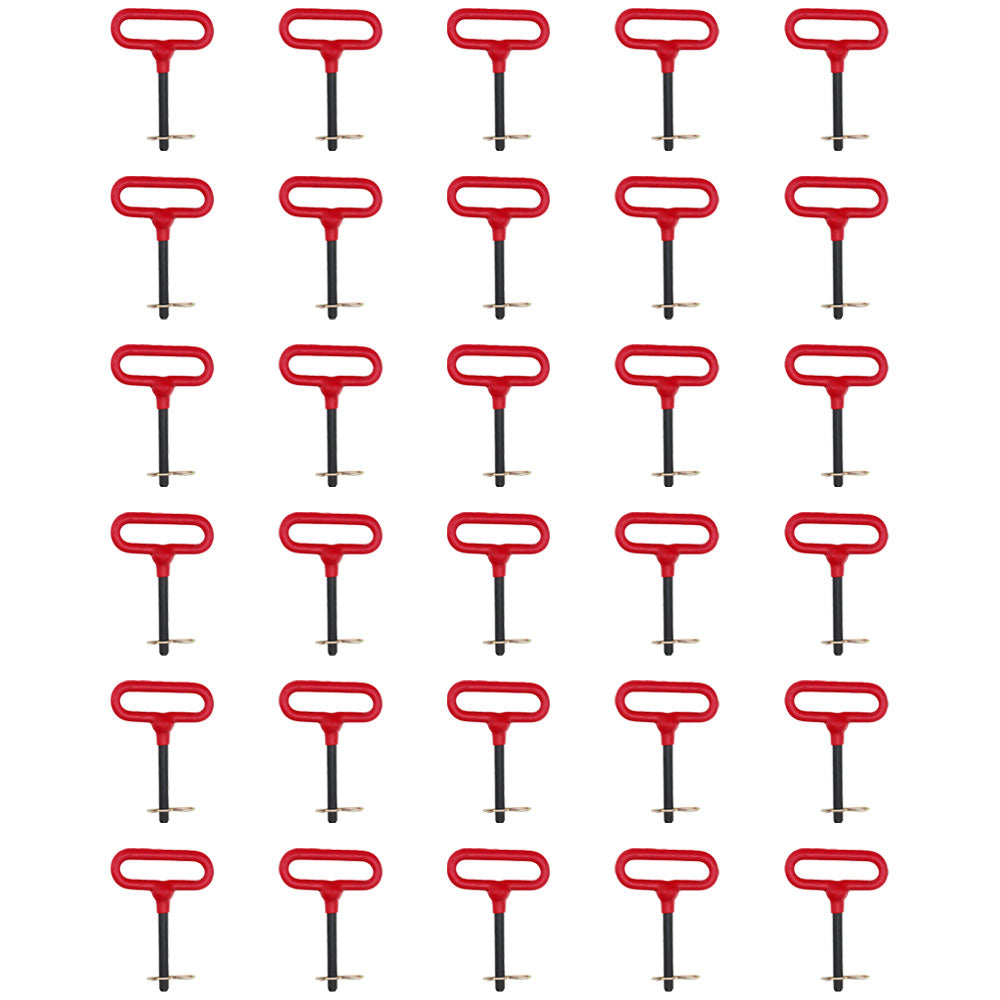

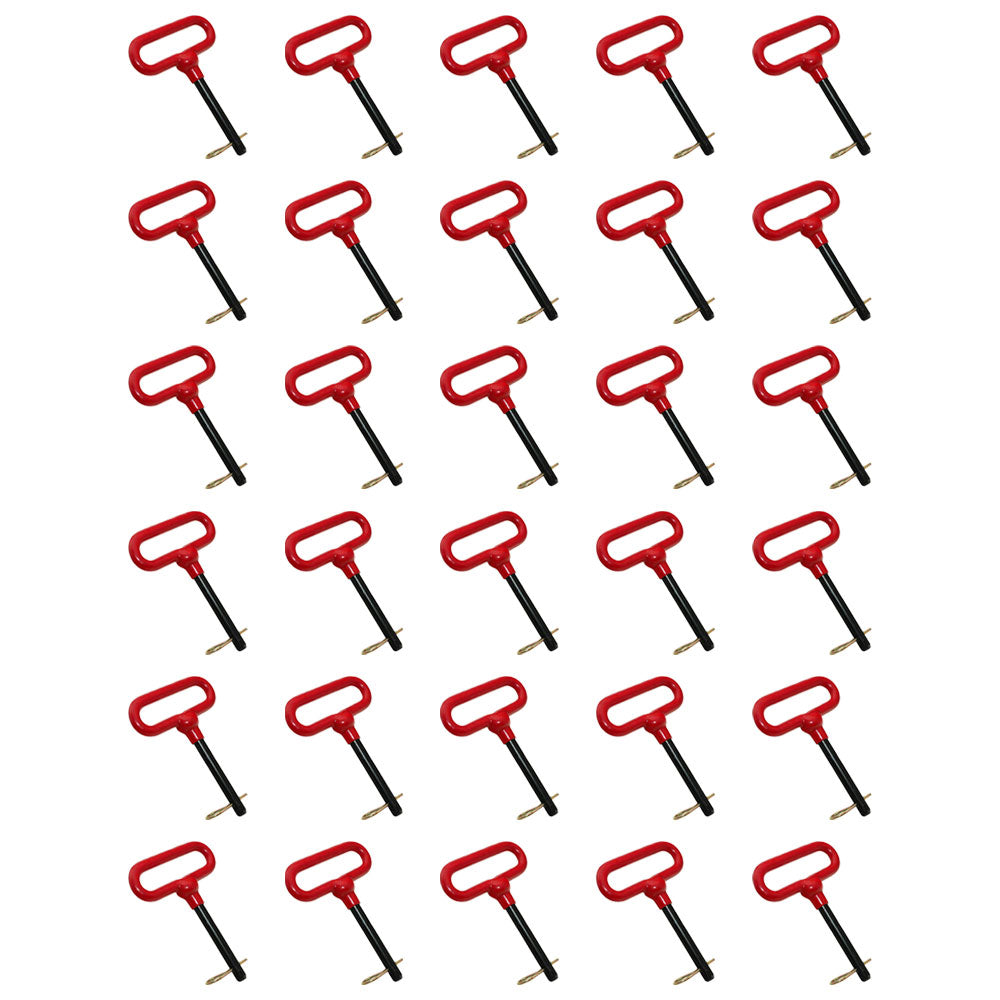

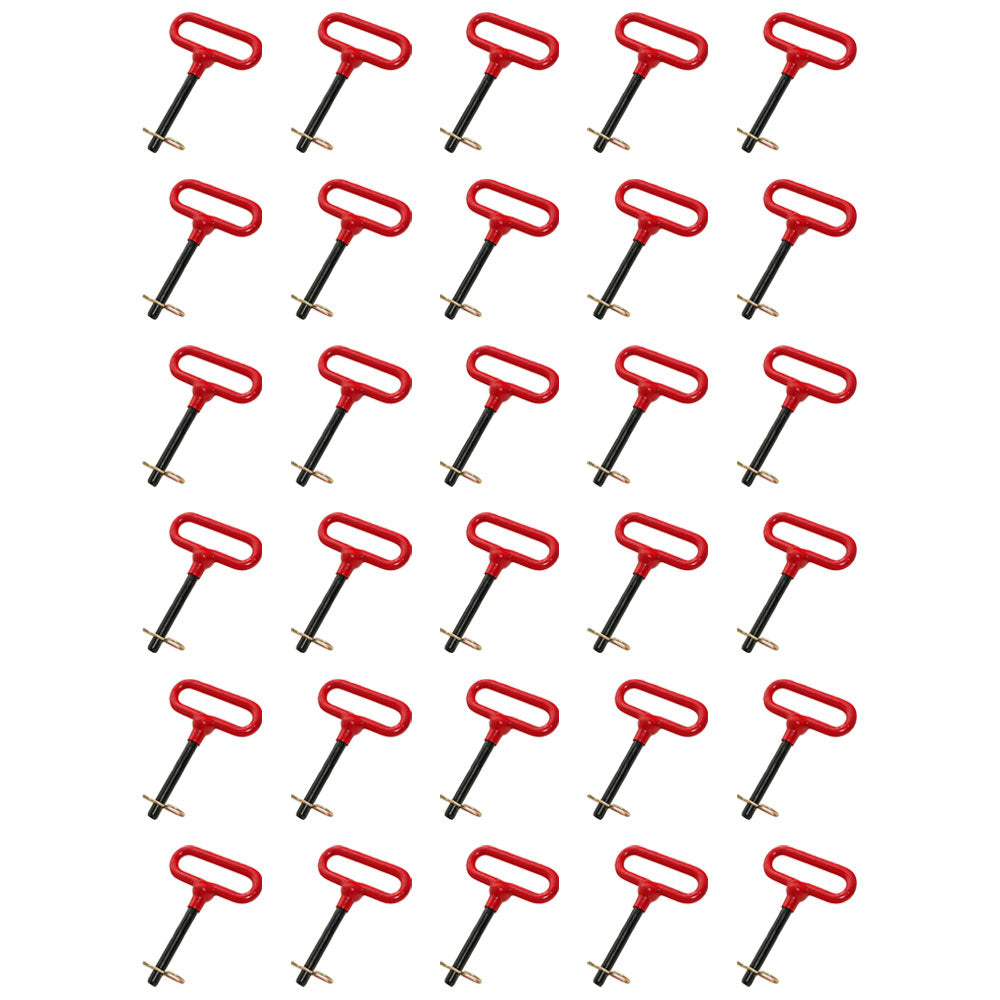

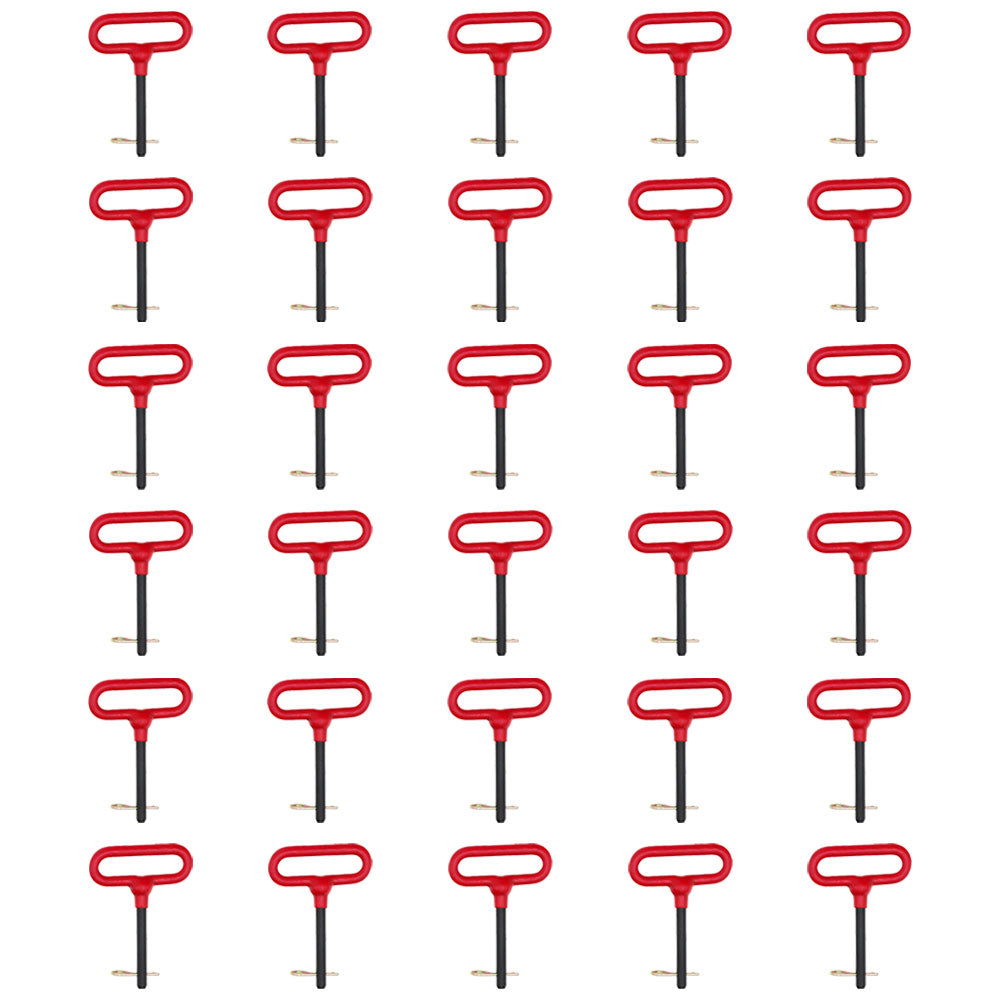

Thirty New Aftermarket Replacement Red Head Hitch Pins - 1/2" Dia. x 3-5/8" Usable Length, Grade 5 (Box of 30)
This box of 30 red head hitch pins secures tractor three-point hitch implements, trailer ball mounts, and drawbar attachments across a wide range of agricultural, lawn and garden, and towing applications. Each pin is forged from C1045 high-tensile steel, heat treated to Grade 5 hardness, and features a red vinyl-coated head and handle for easy grip and quick identification. A zinc-plated R-clip is included with each pin to lock it in place.
Specifications
- Quantity: 30 pins per box
- Pin Diameter: 1/2" (12.7mm)
- Usable Length: 3-5/8" (92mm)
- Overall Length: approx. 6-5/8"
- Grade: 5 (heat treated high-tensile steel)
- Material: C1045 forged steel, black painted pin body
- Handle: Red vinyl/plastic coated
- Clip: Zinc-plated R-clip included
Compatible Applications
Universal Fit: Fits tractors, trailers, lawn and garden equipment, and implements requiring a 1/2" hitch pin. Common applications include three-point hitch linkage, drawbar connections, trailer ball mount receivers, and implement attachment points on brands including Fits Case IH, Fits John Deere, Speeco, and others using this pin size.
Replaces Part Number(s):
70000-73959, 3013-1330, 87299350, B504050, P700511
Aftermarket Interchange Numbers
S70051100, 7811, 7811T, 8811PIN, 01500, 1500, 00113, 18RHH001, 243001500, 45-01, 7000073959, H12, HP01, P7511, P7862, 705HPR, 4011213, 3185-30593, PM01500, A-HP101, 71500
New aftermarket replacement part - not remanufactured, not used.
