B1XT0411 PTO CLUTCH
B1XT0411 PTO CLUTCH
Couldn't load pickup availability

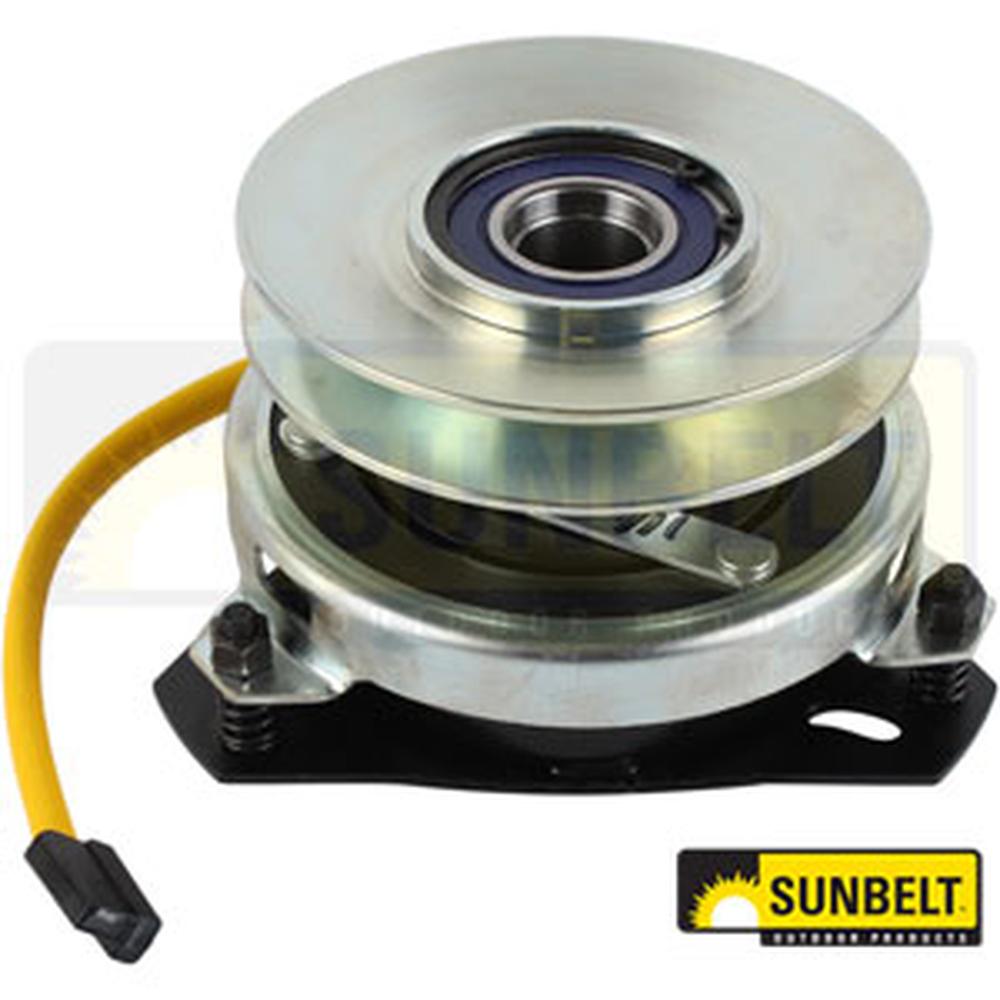

One New Aftermarket Replacement Electric PTO Clutch Fits John Deere Garden Tractors
This electromagnetic electric PTO (Power Take-Off) clutch mounts on the crankshaft and engages or disengages the mower deck and attached implements via an electrically activated friction disc. It is the direct aftermarket replacement Fits John Deere OEM part AM131779 (which supersedes AM126102) and the Ogura MA-GT-JD23BF clutch used on the 325, 335, 345, GX335, GX345, and GX355 garden tractor series.
Important Serial Number Fitment Restrictions - Verify Before Ordering:
Fits John Deere 335: Serial No. 070001 and above
Fits John Deere 345: Serial No. 070001 and above
Fits John Deere GX335: Serial No. 120000 and lower
Fits John Deere GX345: Serial No. 120000 and lower
Fits John Deere GX355: Serial No. 111001 and higher
Fits John Deere 325: All serial numbers (verify fitment)
Specifications
- Crankshaft Bore (I.D.): 1-1/8 inch
- Pulley Outer Diameter: 5.315 - 5.35 inch
- Rotation: Counter-Clockwise (CCW)
- Torque: 120 ft-lb
- Belt Width: 1/2 inch or 5/8 inch (A/B Belt)
- Max Operating Speed: 3,600 RPM
Compatible Models
Fits John Deere Garden Tractors: 325, 335 (SN 070001+), 345 (SN 070001+), GX335 (SN -120000), GX345 (SN -120000), GX355 (SN 111001+)
Replaces Part Number(s):
AM131779, AM126102, AM127806, MA-GT-JD23BF, MA-GT-JD23, MA-GT-JD238F, MAGTJD23BF, X0411, B1XT0411, 15779
Aftermarket Interchange Numbers
Fits Stens: 255-831X, 255-269X | Rotary: 15779 | Ogura: MA-GT-JD23BF, MAGTJD23BF | Xtreme: X0411
New aftermarket replacement part - not remanufactured, not used.
