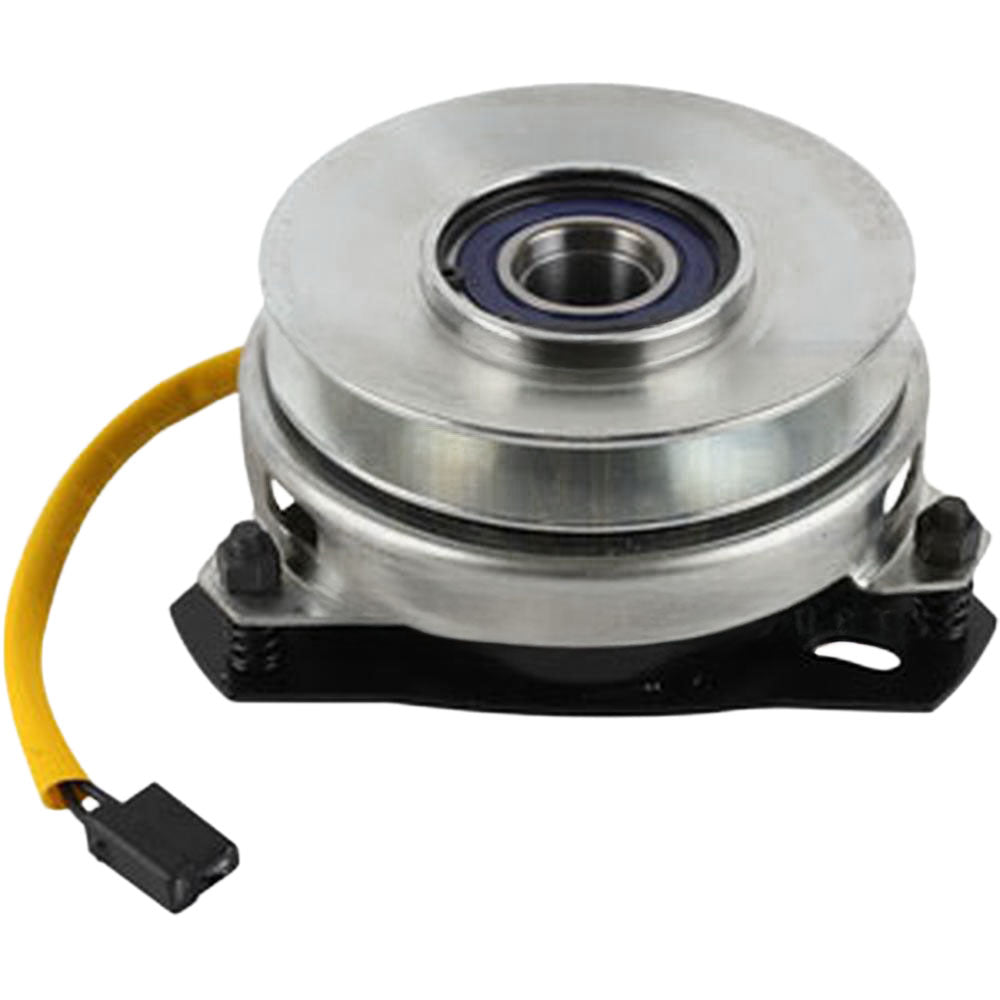

B1XT0409 PTO CLUTCH
B1XT0409 PTO CLUTCH
Couldn't load pickup availability
One New Aftermarket Replacement Electric PTO Clutch Fits John Deere Lawn Tractors and Commercial Walk-Behinds
This electric PTO clutch (Xtreme X0409 / B1XT0409) engages and disengages the mower deck on Fits John Deere (Fits JD) lawn tractors and commercial walk-behind mowers. It mounts to a 1-1/8" crankshaft and uses a counter-clockwise rotating pulley to drive the deck belt. Verify the part number against your existing clutch before ordering, as not all applications within these model families are compatible.
Specifications
- Crankshaft I.D.: 1-1/8" (1.125")
- Pulley Diameter: 5-1/4" (5.25")
- Rotation Direction: Counter Clockwise (CCW)
- Belt Width: 1/2" or 5/8"
- Torque Rating: 105 ft. lbs.
Compatible Models
Fits John Deere Lawn Tractors: 180, 185, LX172, LX173, LX176, LX178, LX186, LX188
Fits John Deere Commercial Walk-Behind Mowers: GS15, GS25, GS30, GS45, GS75, HD45 Hydro, HD75 Hydro, 38" Walk-Behind, 48" Walk-Behind, 54" Walk-Behind
Replaces Part Number(s):
Fits John Deere AM115091, AM123123 | Warner 5215-9, 52159 | Ogura MAGTJD19, MA-GT-JD19 | Xtreme X0409
Aftermarket Interchange Numbers
A-B1XT0409-AI, B1XT0409, XT0409, X0409
New aftermarket replacement part - not remanufactured, not used.
