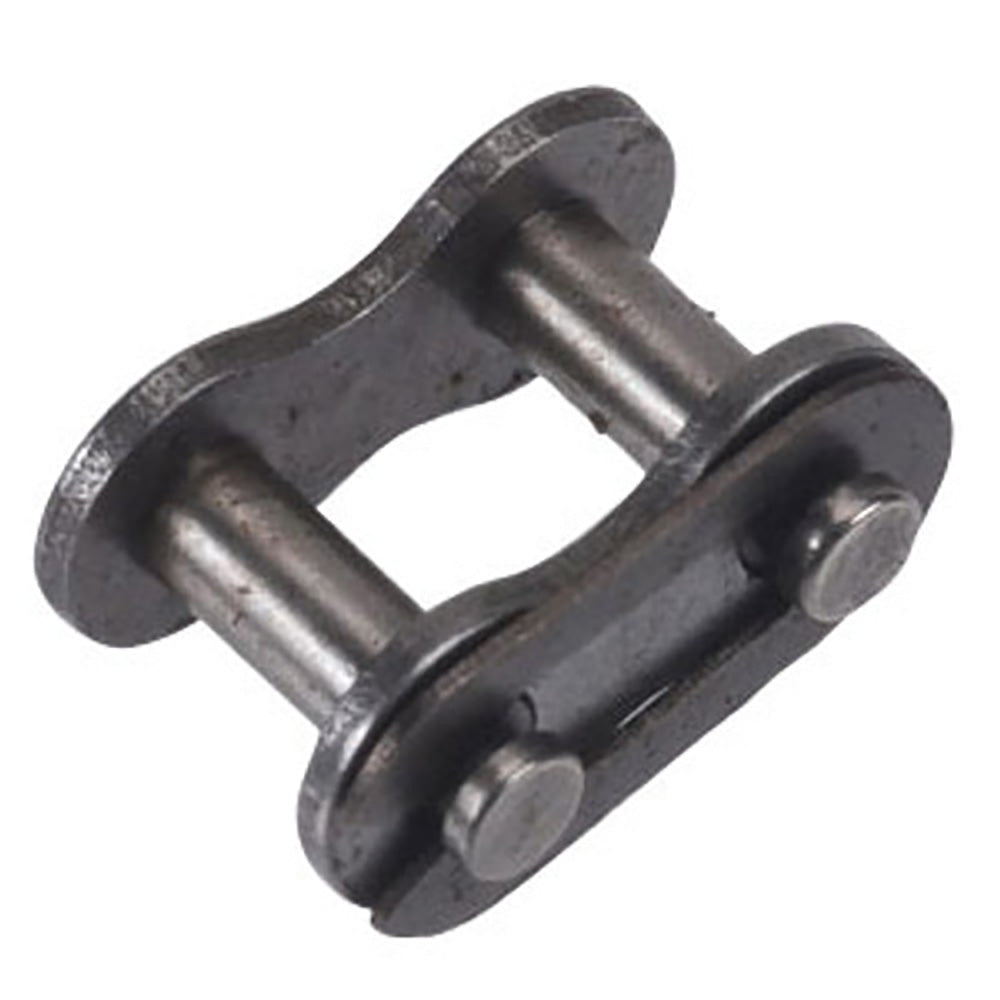

Chain Connecting Link #35 Fits Universal Replaces B1SB400
Chain Connecting Link #35 Fits Universal Replaces B1SB400
Regular price
$12.00 CAD
Regular price
Sale price
$12.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Chain Connecting Link #35Tech Info:
-One Chain Connecting Link #35
-
-Item Specs:
-#35
-Pitch (P): 0.375 inch (9.525 mm)
-Roller Diameter (d1 max): 0.2 inch (5.08 mm)
-Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
-Pin Diameter (d2 max): 0.141 inch (3.58 mm)
-Pin Length (L max): 0.488 inch (12.40 mm)
-Pin Length (Lc max): 0.518 inch (13.17 mm)
-Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
-Plate Thickness (T max): 0.051 inch (1.30 mm)
-Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
-Average Tensile Strength Qo): 10.8 kN
-Weight (q): 0.221749 lb/ft (0.33 kg/m)Fits Universal:
Models: 35
Replaces Part Number(s): B1SB400
View full details
-One Chain Connecting Link #35
-
-Item Specs:
-#35
-Pitch (P): 0.375 inch (9.525 mm)
-Roller Diameter (d1 max): 0.2 inch (5.08 mm)
-Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
-Pin Diameter (d2 max): 0.141 inch (3.58 mm)
-Pin Length (L max): 0.488 inch (12.40 mm)
-Pin Length (Lc max): 0.518 inch (13.17 mm)
-Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
-Plate Thickness (T max): 0.051 inch (1.30 mm)
-Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
-Average Tensile Strength Qo): 10.8 kN
-Weight (q): 0.221749 lb/ft (0.33 kg/m)Fits Universal:
Models: 35
Replaces Part Number(s): B1SB400
