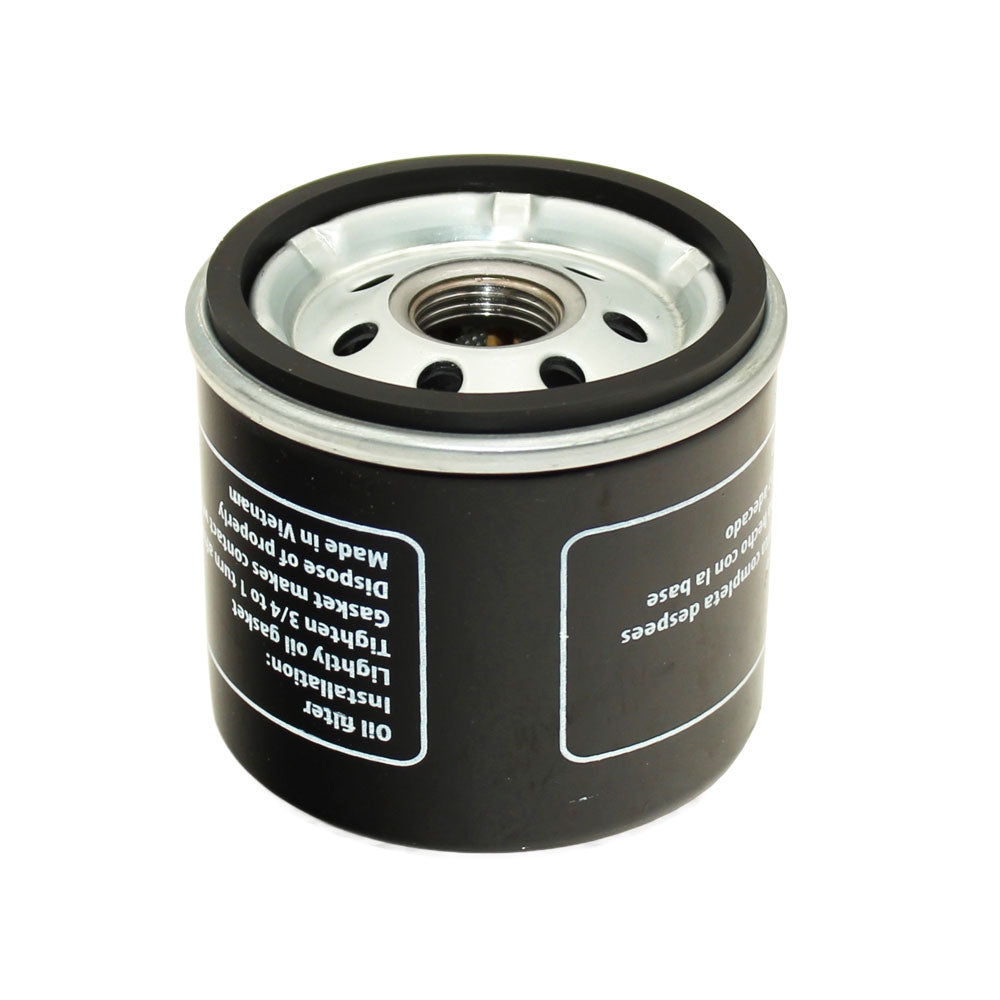

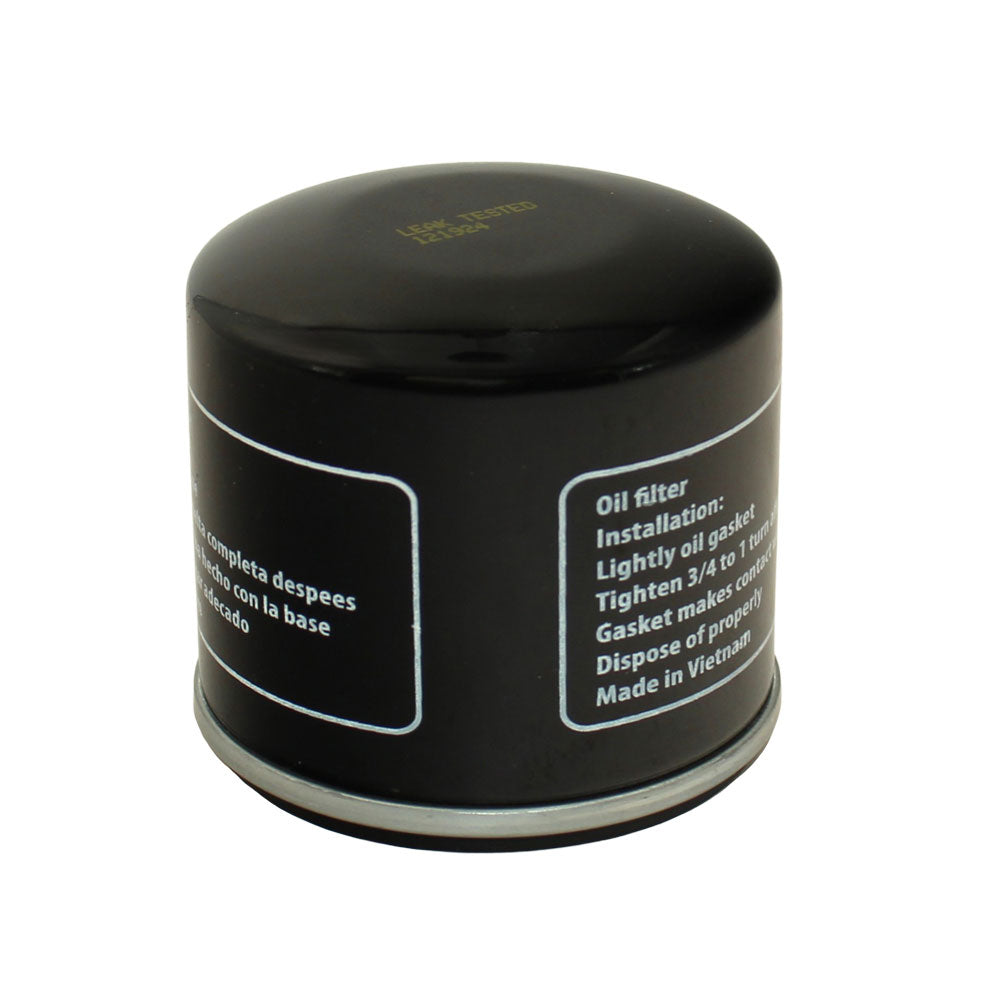

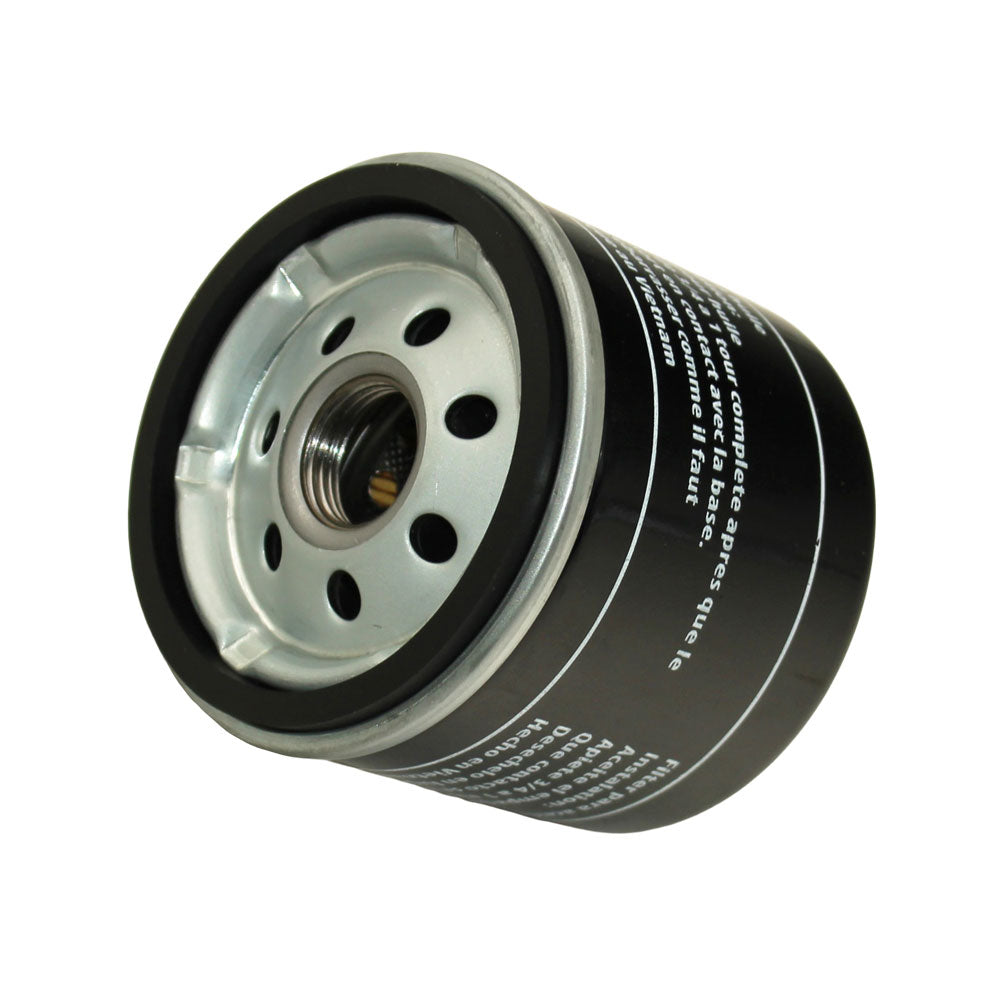

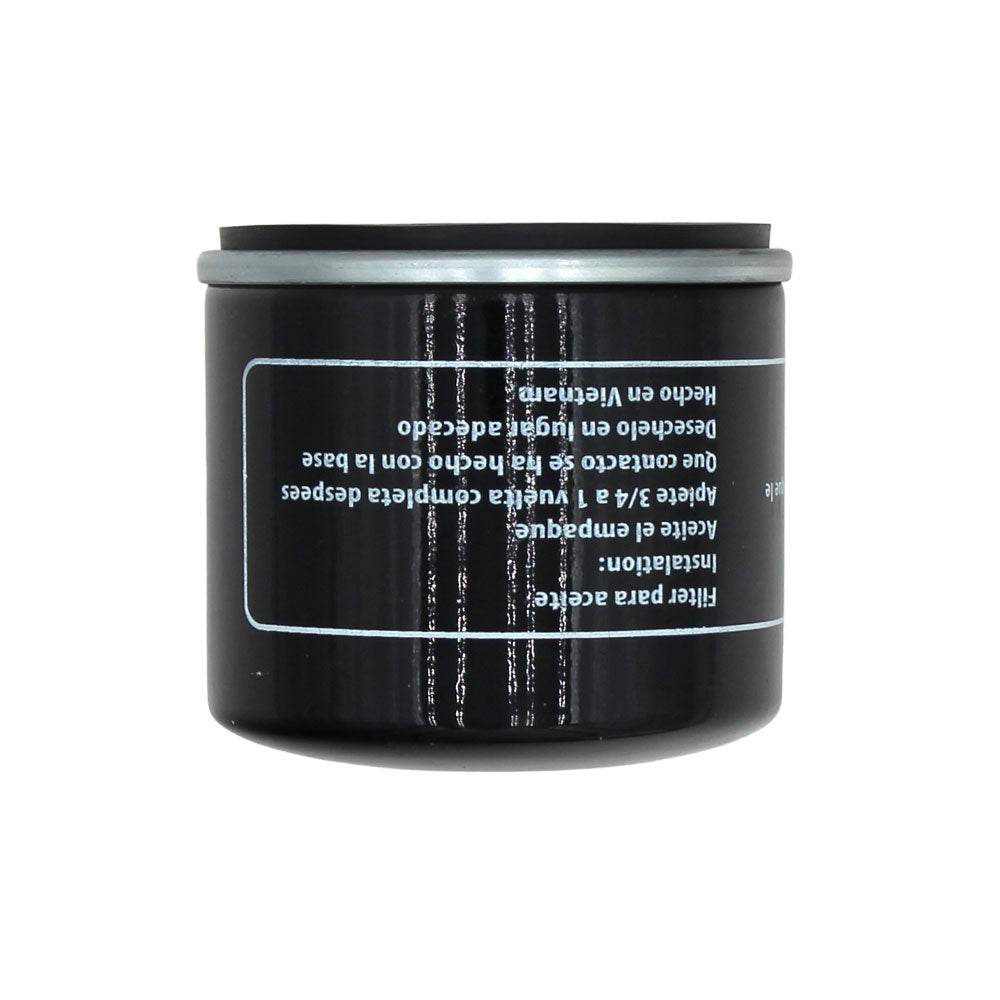

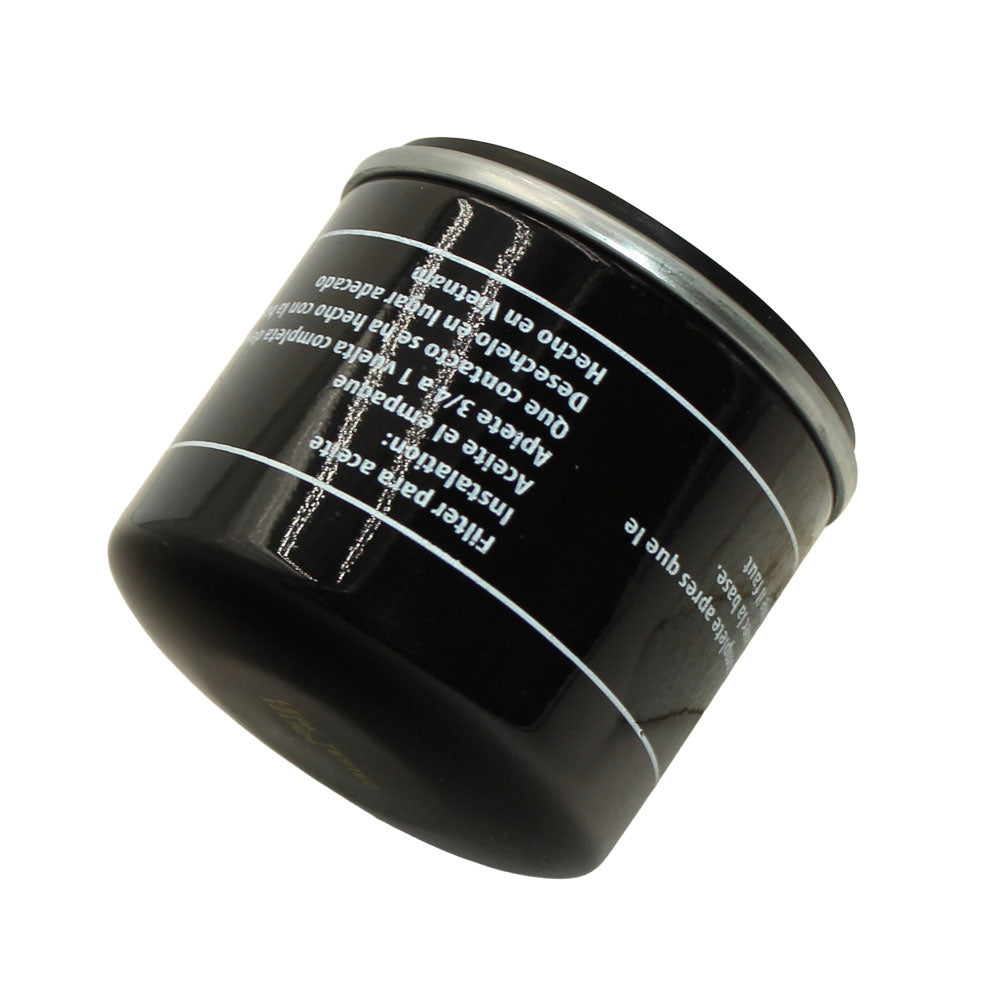

B1OF286 OIL FILTER KOHLER 120500

B1OF286 OIL FILTER KOHLER 120500

$18.00 CAD
$18.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Engine Oil Filter for Kohler, Fits John Deere, Fits Kawasaki, Fits Briggs & Fits Stratton, and More

This B1OF286 is a short-style, full-flow spin-on engine oil filter designed to replace Kohler OEM part number 12 050 01 (also sold as 120500). It fits Kohler Command (CH), Courage (CV), Aegis, and Triad/OHC twin-cylinder engines ranging from approximately 11 HP to 27 HP, and crosses over to a wide range of lawn and garden equipment powered by Kohler, Fits Kawasaki, Fits Briggs & Fits Stratton, and Onan engines. The filter includes an anti-drain valve to prevent dry starts and a pressure relief valve to protect the engine during cold-start conditions.

Specifications

  • Thread Size: 3/4"-16
  • Outside Diameter: 3"
  • Height: 2-3/4"
  • Filtration: 32 Micron
  • Pressure Relief: 8-11 PSI
  • Anti-Drain Valve: Yes
  • Filter Style: Short, Full-Flow Spin-On

Compatible Engine Families

Kohler: CH11-CH16, CH18-CH25, CH410-CH450, CV13-CV16, CV18-CV25, CV430-CV493, SV470-SV620, SV730, SV810, SV820, SV830

Fits Kawasaki: FB460V, FC420V, FC540V, FD501D, FD590V, FR651V, FR691V, FR730V, FS651V-DS05R, FX651V, FX691V, FX730V, K582

Fits Briggs & Fits Stratton: 260700, 261700, 290700

Compatible Equipment Models

Fits John Deere: 100 Series (D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E140, S100, S110, S120, S140, S220, S240), L Series (L100, L105, L107, L108, L110, L111, L118, L120, L130), LA Series (LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175), LT Series (LT133, LT150, LT155, LT160, LT166, LT170), LX Series (LX172, LX173, LX176, LX178, LX186, LX188, LX255, LX266, LX288), LTR155, LTR166, X Series (X105, X107, X110, X115R, X116R, X117R, X120, X125, X127, X130R, X135R, X140, X145, X146R, X147R, X155R, X165, X166, X166R, X167R, X300, X300R, X304, X305R, X310, X320, X324, X330, X350, X350R, X354, X360, X370, X380, X384, X390, X394, X500, X530, X534, X570, X580, X584), Z Series ZTRAK (Z255, Z330M, Z330R, Z335E, Z335M, Z345M, Z345R, Z355E, Z355R, Z375R, Z425, Z435, Z445, Z465, Z510A, Z515E, Z520A, Z525E, Z530M, Z530R, Z535M, Z535R, Z540M, Z540R, Z545R, Z625, Z645, Z655, Z665, Z710A, Z720A, Z720E, Z730M, Z740R, Z915B, Z915E, Z920A, Z920M, Z920R, Z925A, Z925M, Z930M, Z945M EFI, Z955M EFI, Z955R EFI), STX30, STX38, STX46, GT225, GT235, GT235E, SST15, SST16, SST18, F610, F620, F680, F687, F910, F911, F912, F915, G15, G100, G110, 318, 316, 317, 420, 162, 165, 142, 145, 115, 125, 135, 152, Fits Gator 550, 7G18

Fits Cub Cadet: 1332G, 1336G, 1500 Series, 1642HS, 1646HS, 1742GS, 1742HS, 1842GV, 1842HV, 1846HMS, 1846HV, 1948GV, 1948HV, 2046HV, 2148HV, 2254HV, 2354HV, 2554HV, 3005, 3032E, 3033R, 3038E, 3038R, 3039R, 3045R, 3046R, 3120, 3320, 3720, 4005, 4044M, 4049M, 4052M, 4066M, 4105, 4115, 4200, 4210, 4300, 4410, 4510, 4600, 4610, S1642, S1742, S2046, S2048, S2348, S2546, S2554, 107H, 107S, 107-17HS, 108-17HS, LT-950 H, LT-1700, LT-2000, LT-2200, LT-4600 H, LT-5000, LT-942 G, LT-946 G, GT-954 H, SLT-5400

Fits Husqvarna: 17.542HS, GS25, GS30, GS45, GS75, 560, 560E, 560E S4, 550 S4, 560 S4, Stand-On Aerators (554930, 554930A, 554930ACA, 554930CA)

Fits Ferris: IS2000Z, IS3000Z, IS3100Z, 1000Z

Fits Exmark: Lazer Z series including X-One, Radius, Rogue, Maverick HD

Bad Boy: Enforcer 44, Enforcer 48

Dixie Chopper: 1742GS (see models list)

Hustler: Super Bronco XP, FMZ 50

Fits Bobcat: ZT (see models list)

Gravely: 660, 661R, 661R Quik-Trak, 648R, 648R Quik-Trak, 648M Quik-Trak, 652B Quik-Trak, 652E Quik-Trak, 652M Quik-Trak, 652R, 652R Quik-Trak, 657A, 657A Quik-Trak, 667A, M653, M655, M665, Pro-Turn Z

Fits Toro: Zero-Turn and riding mower models with Kohler or Fits Kawasaki engines (see models field)

MTD / Troy-Bilt / Yard-Man / Yard Machines: Various models with Kohler engines (13AP, 13AX, 13AX series)

Fits Woods / Simplicity / Snapper / White / Huskee: Various models (see models field)

Fits Kubota: 27D, 35C, 35G, 50D, 50G

Also fits: Generators, Log Splitters, Chippers, Shredders, and other small engines equipped with compatible Kohler, Fits Kawasaki, Fits Briggs & Fits Stratton, or Onan engines.

Replaces Part Number(s):

AM-101207, AM101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, TCA10018, LG4153, LG491056, LG492932S, M139118, 1205008, 12-050-08, 52-05025, 52-05025S, 5205025, 5205025S, 87415600, WS-8172, 2720396, 842502, 2188179, 1-513211, 1513211, 109-4180, 1094180, 1205001, 1205001S, 5021144X1, 5021144X1SM, 12 050 01, 12 050 01 S, 12 050 01 S1, 12 050 01-S, 12 050 01-S1, 12 050 01S, 12 050 01BP, 12 050 08, 12 050 08-S, 12-050-01, 12-050-01-S, 12-050-01-S, 12-050-01S, E7188-32110, KH-52-050-02-S, KH1205001, KH1205001S, KH-12 050 01, KH-12 050 01-S, KH-12 050 08, KH-12-050-01, KH-12-050-01-S, KH-12-050-08, 52-050-02-S, 5205002S, C26191, 122-0645, 1220645, 114-3494, 1143494, 491056, 492932, 98020, NN10147, 60105, 68140, 063-5400-00, 063540000, 063-2010-00, 063201000, 53-130-73-93, 531 30 73-92, 531 30 73-93, 531-30-73-93, 5313073-93, 531307392, 531307393, 08200204, 21397200, 8200204, 20715100, 70939, 70820, CMXGZAM201009, 24604, 032009, 32009, 50669, 747303

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

942833K, X105, 642227, 942241C, 3039R, Z540M ZTRAK, 942241A, 2046HV, 942511J, 942546M, 935308G, SV730, 942515K, 942545M, D160, Z925M ZTRAK, 942507J, 642218E, 942244E, 942533, X127, Z525E ZTRAK, 642248F, 642244D, 4005, 1332G, F687, Z335M ZTRAK, X140, 942516J, Log Splitters, 942233A, STX38, 942212, 942517J, STX30, 3033R, X580, 13AX771S004, 642237A, Utility Vehicles, LX186, 647A Quik-Trak, 942225, 942510G, 142, 642233A, 942227A, X135R, 942206, X300R, 107H, LT-4600 H, 661R, FC540V, L108, S2546, W36M, 942521K, LT-2000, WG36A, Q 816 K, 934332CA, X116R, 1846HV, X384, 942536K, 260700, 942209, Q 626 P, Commercial and Professional-Grade Mowers with Hydrostatic Transmissions, 318, 642214D, 942547M, WH61A, 642237E, FX691V, 13AX775H231, 933305CA, 942514K, LA115, W48M, 942515J, Riding Lawn Mowers, 942207, 50G, CV13-CV16, X330, 942220A, 1642HS, Z920R ZTRAK, 942502G, 942534J, 942540K, 935309J, 942243D, 554930CA, 942240C, X390, 942532K, S1742, Z735E ZTRAK, Rogue, 942231, 942519L, 3005, SV820, Z355R ZTRAK, 3038E, 930324A, 930307, 942204, F680, 934306G, X394, GT-954 H, 3038R, 1948GV, Z425 EZTRAK, 17.542HS, V 61 6G, 942505G, 930306, 942509J, 642213, 942532, 942502J, 642233E, 162, LX176, 935308J, G15, 652M Quik-Trak, 942215, 2354HV, 9997002, 942506G, 942224A, FR651V, 942203, 942543M, 942509G, 942545L, 942514G, 13AX775H730, 942237D, 942243E, 942519G, X304, 934332G, S140, 935330, 942242E, 942520K, 3046R, W52R, 942214E, 942230A, D130, X500, 942221A, 642223, 942512G, S2348, 560E, 942103, GS25, 942253F, 13AP605H755, Z710A ZTRAK, LA130, Rebel, 942227, 942255F, 942504G, 152, 942251F, 942252F, 2048HV, 942246F, 942537K, LT-2200, 935309H, 642244F, LA155, X-One, SLT-5400, Fits Gator: 550, 13AX615H731, 942533K, 642247F, 642223A, 942241E, 942237F, 942249F, D105, 942250F, 642241B, X145, X305R, 942520H, 642228, Pony, 636M Quik-Trak, 942542M, 942409J, 942244F, WHP36A, 942519K, 652R Quik-Trak, 935302, 942214A, 642204, Lawn Tractors, SST16, 930328, Z445 EZTRAK, IS2000Z, 642240B, 4210, 642221D, 942519J, SST18, 9997003, Z955M EFI ZTRAK, 642226, X110, X584, 942707J, F620, X155R, 942542L, Z465 EZTRAK, 642242F, Z375R ZTRAK, 942220, X120, Fits Briggs and Stratton Engines, 942238A, FMZ 50, 942224, Z920M ZTRAK, 13AX795T004, 642245E, 942516K, 13AX795G031, 942213, 936600, 942535L, 190C, Generators, 936601, 9996002, LA165, 642225, 942218E, 942233D, Z665 EZTRAK, With Fits Kohler Engines, GS30, 642201, 642247E, F910, LX266, LT155, 942529K, 942517G, S1642, 642238A, 934306J, 4044M, 942242A, 933305J, LX188, 934332J, 930322, M653, FX730V, 930310, 935333G, 942257F, 657A Quik-Trak, WG48A, 13AX791T031, 642228A, 942832L, 942219E, 942537J, 316, 942230, 642212A, 936602J, LT-942 G, 934306, 642249E, 935301, 942508G, 930323A, 13AP925P004, 942522J, 4052M, Q 816 H, 4105, 942704J, 942519M, 642220E, 942513G, 942223A, Z720E ZTRAK, L2048, 4200, 261700, 642230A, 7G18, 942105, 942222A, 942241D, X147R, 642218F, 3032E, 648R, WHP48A, 13AP625K730, 4049M, IS3100Z, 942242F, LT150, 930323, X354, 930325A, 642239A, 942511G, Z920A ZTRAK, 942212A, 942221, Big Country 431 Camo, 3320, WH36A, 942102, 642241D, CH11-CH16, 50D, 934307J, LT170, 935308, 942221E, D100, 550 S4, X165, 942518G, L107, X350R, X166, 942201, 942221D, Z540R ZTRAK, 942104, 942521J, Z535M ZTRAK, 642211A, D150, 942237A, 642240E, Z645 EZTRAK, 3720, IS3000Z, 560E S4, F911, X107, 936602, LT-5000, 642221A, 942208, Z720A ZTRAK, 642213A, V 606 G, 930328A, 642221, L118, 942228A, 652R, CV430-CV493, S2554, 420, Z345M ZTRAK, 642241F, 942254F, P 616 H, 935309G, 642214A, 930322A, FR730V, W36R, 942222, 942220D, 930302, 942509K, X350, 942526J, 942501J, 642240D, 934307H, 942248F, 942245F, 942220E, Z330M ZTRAK, L2548, 13AX775H031, 934301, 1948HV, W61R, LT-946 G, LA120, LT-1700, 942706J, X310, 642245F, 942510K, Z910A ZTRAK, 1742HS, 642219E, 1336G, 642207, LA105, L120, 661R Quik-Trak, 1842GV, 642230, 642215, 3120, LTR155, P 61 GG, 3045R, 2000 Series, Enforcer 44, 4600, 942535K, GS75, 642220A, 942529, 4510, X370, 942522H, X146R, D125, 935309, LT133, 942536J, 942245E, 942408H, LA125, 642248E, 942541K, Z515E ZTRAK, 107-17HS, 942533CA, 934302, Z320M ZTRAK, FD590V, LA140, 942523H, F915, LA175, Z355E ZTRAK, Enforcer 48, Z625 EZTRAK, 642231A, 942532CA, WHP52A, 942241F, S120, X570, 35G, 1000Z, Shredders, Z545R ZTRAK, 933304J, 930300, 667A, Chippers, 115, 1742GS, 560 S4, LA150, 642221B, 942507G, 2554HV, W48R, S2046, 935333, 930309, 642105, 560, 4300, 642233, 642233F, 1846HMS, Z530R ZTRAK, 942249E, 942242D, 642233B, 942233F, 942240E, 657A, S2048, 642206, 27D, D155, 642220, GT235E, 942256F, Z435 EZTRAK, 942535J, SV470-SV620, Front Mount Mowers, 13AX605H730, 942240D, CV18-CV25, Z535R ZTRAK, 942219F, Z320R ZTRACK, X530, Walk-Behind Mowers, 942245D, 942500G, 942244D, 642242D, 4410, 107S, 13AX615H730, 942218F, D120, 108-17HS, Horse, Fits Kohler Engines, F912, 942501G, 554930A, 930304, X167R, 942525J, 942717J, 642214E, L105, FB460V, 942242C, 942223, 942240A, 642203, 9996001, X534, FS651V-DS05R, D140, 642227A, 942504J, SST15, X130R, Z510A ZTRAK, Z655 EZTRAK, Stand-On Aerators: 554930, 1646HS, 942539K, FX651V, X117R, 942534K, M665, 942538K, LTR166, 652E Quik-Trak, D110, 934330, SV830, L100, 930324, Early Heavy Duty Models, 942258F, 942246E, 942506J, 930303, LA110, Compact Tractors, 934332, 930301, K582, Z335E ZTRAK, 642249F, S240, 942214D, Z925A ZTRAK, 942239A, 942211, 942532L, LT-950 H, X300, 642219F, L110, 942543L, WG32A, 942514J, LT160, 135, Z915E ZTRAK, SV810, 165, 934306H, WHP61A, Z345R ZTRAK, Z915B ZTRAK, 942226, 942521H, E100, X380, 642246E, 942248E, LT166, Z520A ZTRAK, Z955R EFI ZTRAK, X360, Z930M ZTRAK, P 61 GH, LX173, X115R, 4115, Z740R ZTRAK, 933331J, E110, 554930ACA, 648R Quik-Trak, D170, X166R, 290700, 642244E, 942521L, 936600J, 145, 642221E, 35C, X324, LA135, 1842HV, 942236D, Lawn & Garden Tractors, 942221F, 942515G, or Fits Onan Engines, 642222A, L111, G110, Z730M ZTRAK, S100, Z945M EFI ZTRAK, 642104, STX46, Z330R ZTRAK, M655, 942516G, GT225, LX288, Z530M ZTRAK, 942842L, 642243E, S110, WH52A, S220, LX178, WH48A, 9996006, Skid-Steer Loaders, 642231, Super Bronco XP, GS45, Maverick HD, Stand-On Aerators, 942520J, 317, 642241E, X320, 642246F, With Fits Onan Engines, 942231A, 942228, 942832K, Z255 EZTRAK, 934307, Small Engines, 4066M, 935308H, X125, LX255, G100, FR691V, 13AX795S004, 60, Q 62 GP, 942259F, FC420V, 942508J, 642237F, LX172, FD501D, 648M Quik-Trak, 155C, 642222, LA145, 642211, P 616 G, 642221F, 652B Quik-Trak, CH18-CH25, V 60 GG, 934307G, E140, L130, 936601J, 13AX605G755, 942523J, 125, 942247F, 2148HV, 942211A, Zero-Turn Lawn Mowers, 642242E, Zero-Turn Mowers, 942233E, 942237E, 4610, 642233D, CH410-CH450, 1500 Series, 942511K, 2254HV, 934306CA, GT235

Additional Information:

Thread Size: 3/4"-16 Height: 2-3/4" Outside Diameter: 3" Anti-Drain: Yes

Reference Numbers:

M139118, GY20577, AM125424, AM119567, LG4153, LG491056, LG492932S, WS-8172, 12-050-08, 1205008, 52-05025, 5205025, 492932, E7188-32110, 122-0645, 1220645, 70939, 70820, 12 050 01, 12 050 01 S, 12 050 01 S1, 12 050 01-S, 12 050 01S, 12 050 08, 12 050 08-S, 12-050-01, 12-050-01-S, 12-050-01S, 1205001, 1205001S, 1205008, 52-050-02-S, 52-05025S, 5205002S, 5205025S, 12 050 01BP, 12 050 01-S1, KH-12 050 01, KH-12 050 01-S, KH-12 050 08, KH-12-050-01, KH-12-050-01-S, KH-12-050-08, KH-52-050-02-S, KH1205001, KH1205001S, AM119567, AM125424, AM125424C, AM-101207, AM101207, AM254424, GY20577, KH1205008, SA26566, TCA10018, LG4153, LG491056, LG492932S, M139118, 87415600, 842502, 2188179, 2720396, LG4153, LG491056, LG492932S, TCA10018, AM101207, AM-101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, M139118, 492932, AM-101207, AM101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, TCA10018, LG4153, LG491056, LG492932S, M139118, AM125424, TCA10018, AM101207, AM-101207, GY20577, AM119567, AM125424C, AM254424, KH1205008, SA26566, LG4153, LG491056, LG492932S, M139118, 747303, 1205008, 12-050-08, 52-05025, 5205025, AM119567, TCA10018, AM101207, AM-101207, GY20577, AM125424, AM125424C, AM254424, KH1205008, SA26566, LG4153, LG491056, LG492932S, M139118, GY20577, AM119567, AM125424, KH1205008, LG4153, LG491056, LG492932S, M139118, 12 050 01, 12 050 01 S, 12 050 01 S1, 12 050 01-S, 12 050 01S, 12 050 08, 12 050 08-S, 12-050-01, 12-050-01-S, 063-5400-00, 063540000, 063-2010-00, 063201000, AM101207, AM-101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, LG4153, LG491056, LG492932S, M139118, TCA10018, CMXGZAM201009, 24604, 5021144X1, 5021144X1SM, LG492932S, LG4153, LG491056, 492932, C26191, 122-0645, 1220645, 114-3494, 1143494, 12 050 01-S, 1205001S, 491056, 52-050-02-S, 5205002S, 98020, NN10147, 12 050 01-S, KH-52-050-02-S, KH1205001, KH1205001S, 12 050 01, 12 050 01 S, 12 050 01 S1, 12 050 01S, 12 050 08, 12 050 08-S, 12-050-01, 12-050-01-S, 12-050-01S, 1205001, 1205001S, 1205008, 52-050-02-S, 52-05025S, 5205002S, 5205025S, 12 050 01BP, 12 050 01-S1, KH-12 050 01, KH-12 050 01-S, KH-12 050 08, KH-12-050-01, KH-12-050-01-S, KH-12-050-08, GY20577, AM125424, LG4153, LG491056, LG492932S, TCA10018, AM101207, AM-101207, AM119567, AM125424C, AM254424, KH1205008, SA26566, M139118, 53-130-73-93, 531 30 73-92, 531 30 73-93, 531-30-73-93, 5313073-93, 531307392, 531307393, 12 050 01, AM-101207, AM101207, AM125424C, AM254424, GY20577, KH1205008, SA26566, TCA10018, AM119567, AM125424, LG4153, LG491056, LG492932S, M139118, 5021144X1SM, 1-513211, 109-4180, 1094180, 1205001, 1513211, 1205008, 52-05025, 5205025, 12-050-08, 5205025, 52-05025, 12-050-08, 1205008, KH-52-050-02-S, KH1205001, KH1205001S, 12 050 01, 12 050 01 S, 12 050 01 S1, 12 050 01-S, 12 050 01S, 12 050 08, 12 050 08-S, 12-050-01, 12-050-01-S, 12-050-01S, 1205001, 1205001S, 1205008, 52-050-02-S, 52-05025, 52-05025S, 5205002S, 5205025, 5205025S, 12 050 01BP, 12 050 01-S1, KH-12 050 01, KH-12 050 01-S, KH-12 050 08, KH-12-050-01, KH-12-050-01-S, 12-050-08, KH-12-050-08, C26191, 122-0645, 1220645, 032009, 32009, 50669, 12-050-08, 1205008, 52-05025, 5205025, TCA10018, AM101207, AM-101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, LG4153, LG491056, LG492932S, M139118, 60105, 68140, 08200204, 21397200, 8200204, 20715100, AM101207, AM-101207, GY20577, AM119567, AM125424, AM125424C, AM254424, KH1205008, SA26566, TCA10018, LG4153, LG491056, LG492932S, M139118, 52-05025, 5205025, 12-050-08, 1205008, 2720396, 842502, 2188179
