AT33636 Spindle Fits John Deere 300B, 301A, 302, 302A, 401B, 401C, 310 s/n -237
AT33636 Spindle Fits John Deere 300B, 301A, 302, 302A, 401B, 401C, 310 s/n -237
Couldn't load pickup availability
One New Aftermarket Replacement Spindle Fits John Deere (Fits JD) Tractors, Backhoe-Loaders, and Forklifts
This aftermarket replacement front axle spindle (AT33636) fits both left-hand and right-hand sides and is a key front-end steering and suspension component. The spindle sits at the hub of the front axle assembly, bearing wheel loads and enabling steering articulation. It features a 4-spline design and fits a straight non-adjustable axle configuration across a wide range of Fits John Deere industrial, agricultural, and forklift models.
Specifications
- Fits Left Hand or Right Hand (universal/interchangeable)
- 4-Spline design

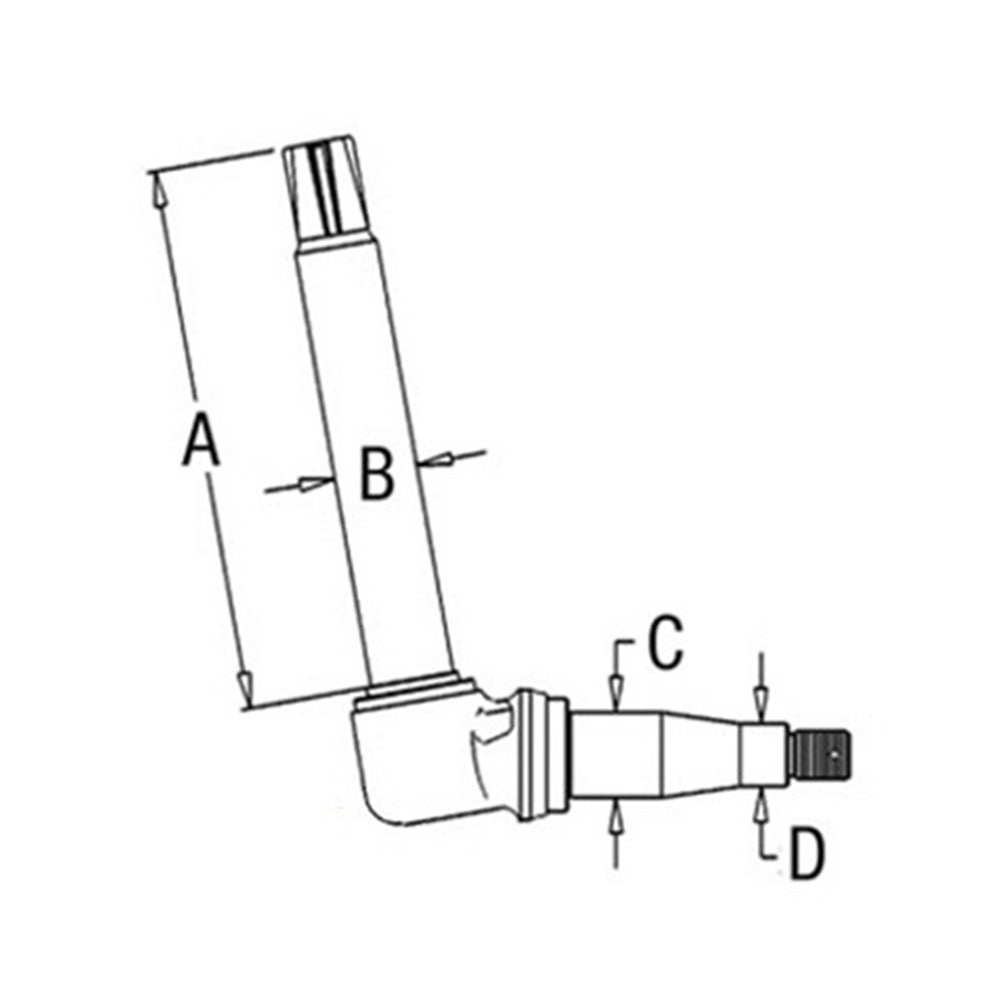

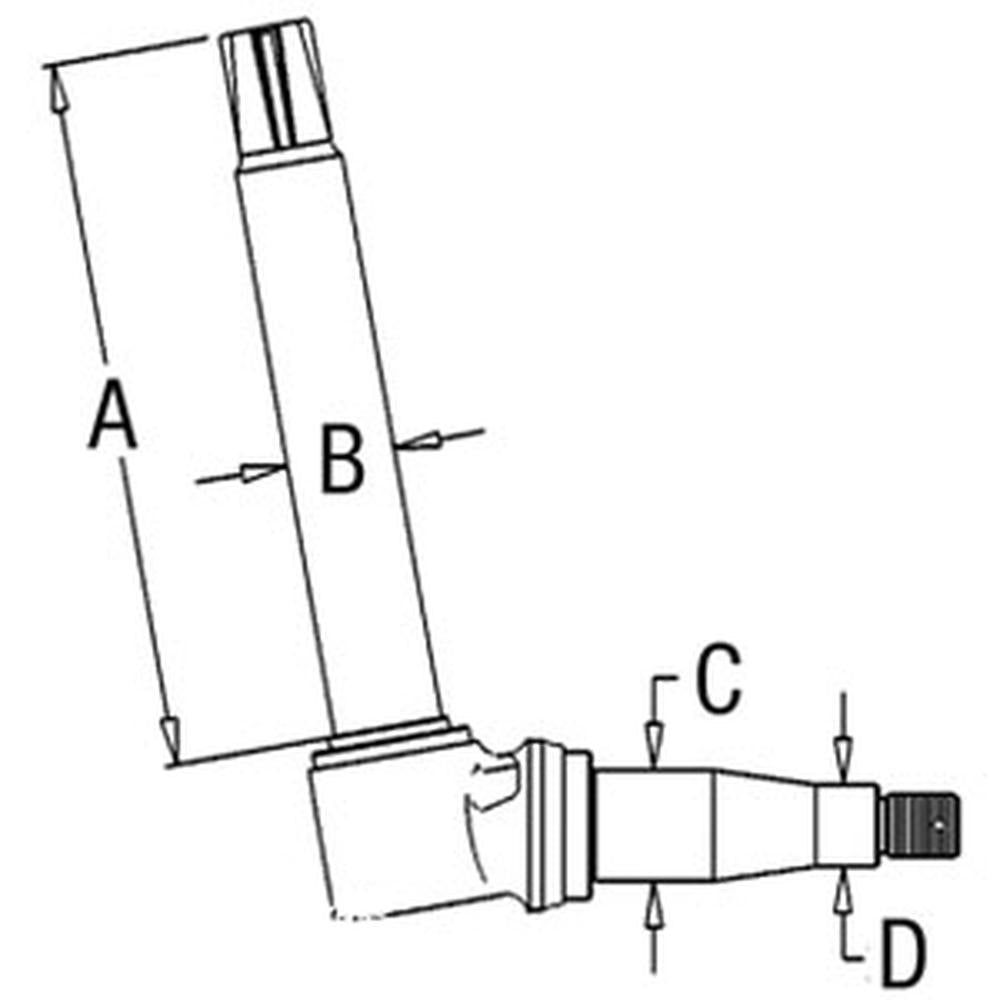

- Dimension A: 10.125 in.
- Dimension B: 1.75 in.
- Dimension C: 1.795 in.
- Dimension D: 1.312 in.
Compatible Models
Fits John Deere Tractors (Straight Non-Adjustable Axle): 2640 (ASN 341000)
Fits John Deere Construction and Industrial: 300 (ASN 136912), 300B, 301A, 302, 302A, 310 (Before Serial Number 237997), 400 (ASN 136912), 401, 401B, 401C
Fits John Deere Forklifts: 480 (ASN 136912), 480A, 480B
Serial Number Restriction - 310: Fits John Deere 310 BEFORE Serial Number 237997 only. Does not fit 310 s/n 237997 and above.
Replaces Part Number(s):
AT33636, AT33636-A
Aftermarket Interchange Numbers
A-AT33636, AMAT33636
New aftermarket replacement part - not remanufactured, not used.
