AT201693 Pin Bucket to H-link Fits John Deere 992ELC, 400LC, 450LC
AT201693 Pin Bucket to H-link Fits John Deere 992ELC, 400LC, 450LC
Regular price
$1,361.00 CAD
Regular price
Sale price
$1,361.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

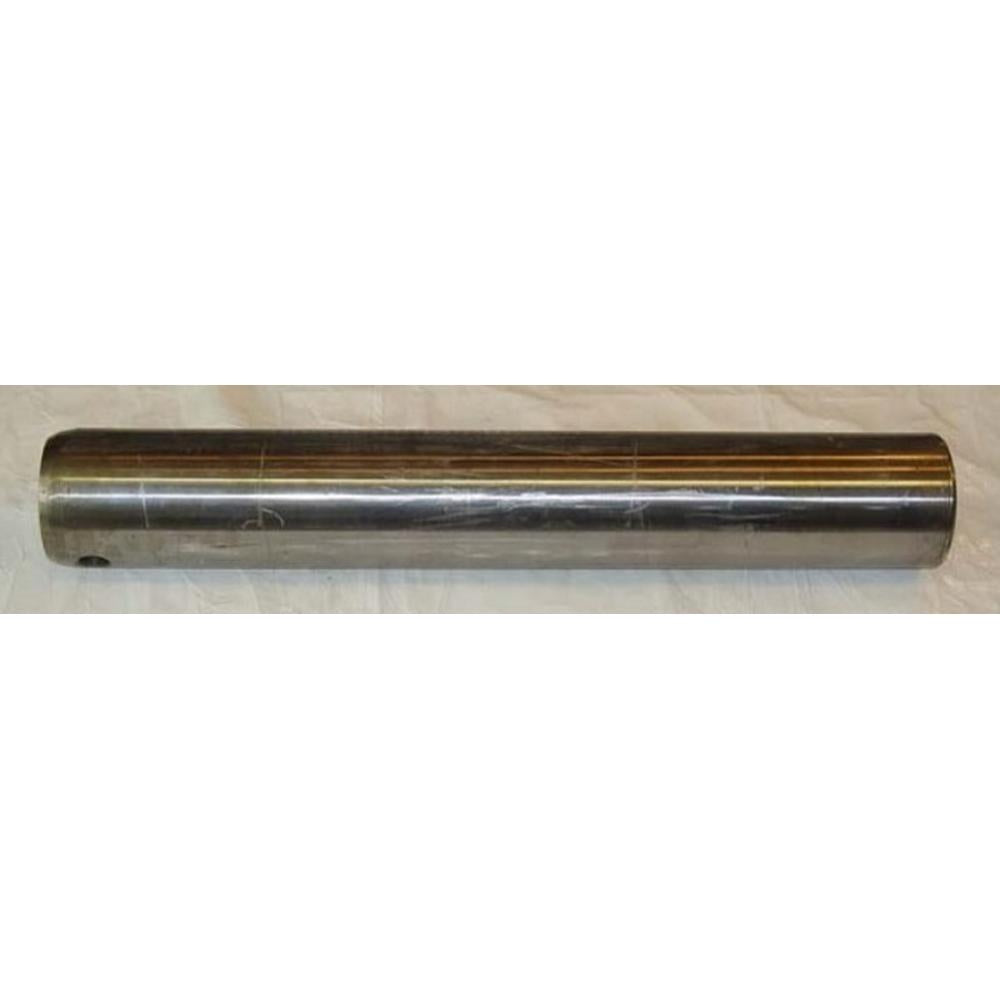

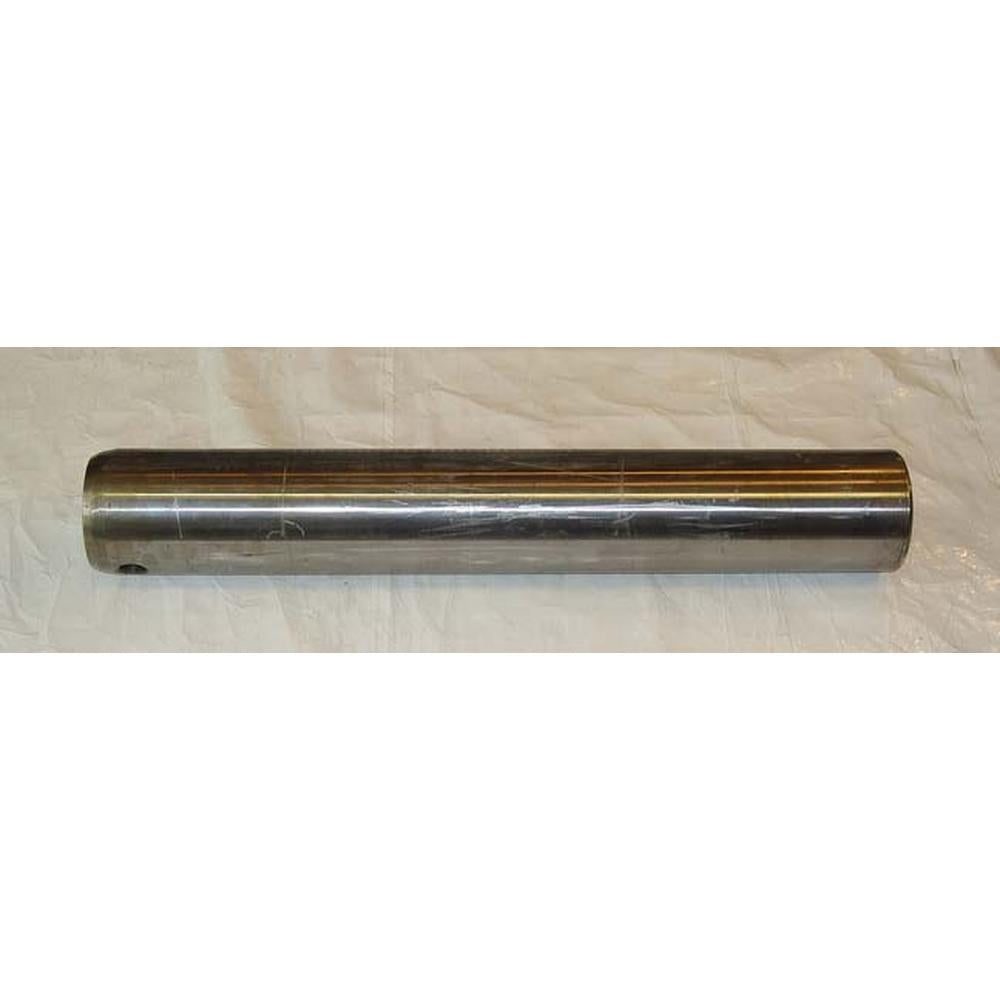

One New Aftermarket Replacement Pin Bucket to H-Link Fits John Deere (Fits JD) Excavators

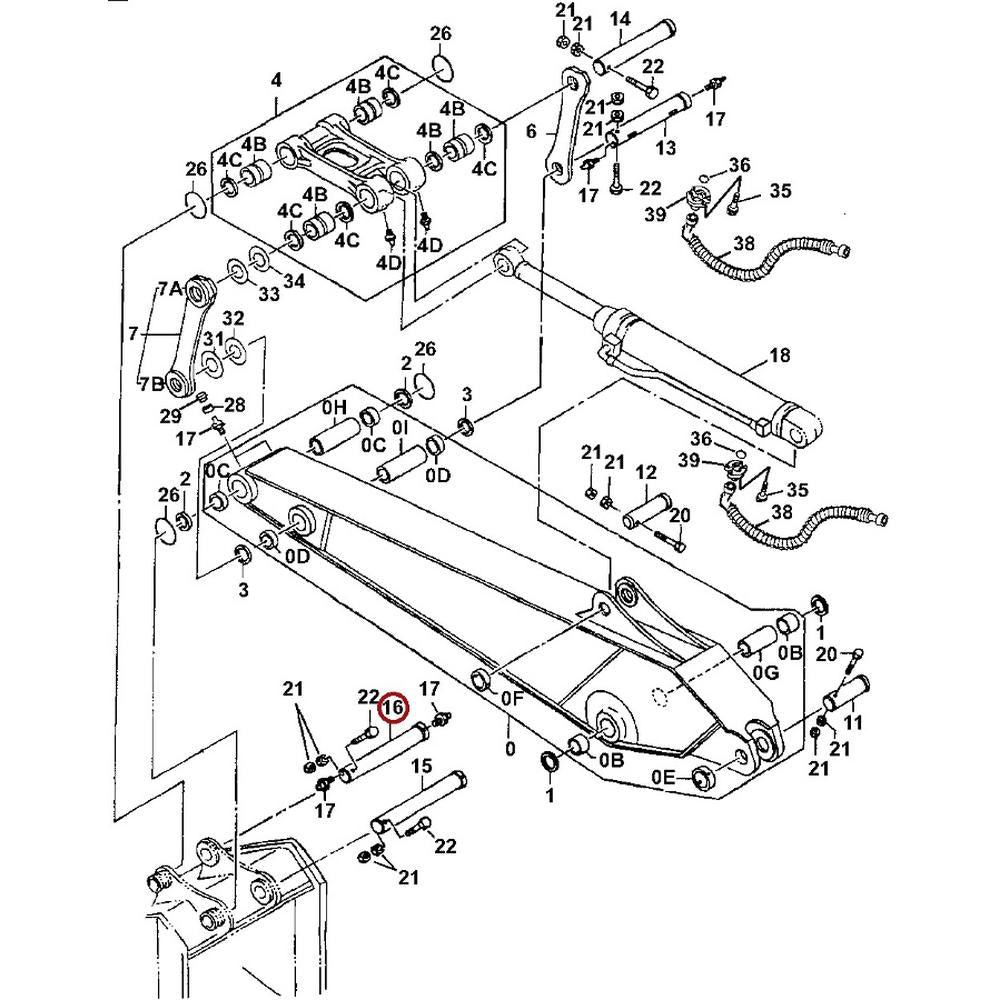

This bucket-to-H-link pin connects the excavator bucket to the H-link assembly, securing the attachment linkage and enabling full bucket articulation during digging and lifting operations. The pin is induction hardened carbon steel, manufactured to OEM specifications for precise fit and extended service life.
Specifications
- Length: 701 mm
- Flange Diameter: 115 mm
- Flange Thickness: 20 mm
- 2 Bolt Holes, 2 Grease Holes
- Induction Hardened 3+ mm to HRC 52-56
- Carbon Steel, equivalent to S45C
Compatible Models
Fits John Deere Excavators: 400 LC, 450 CLC, 450 LC, 992 ELC, 992E LC
Hitachi Excavators: EX400H, EX450H, EX 400H, EX 450H, EX400LC-3, EX400LC-3C, EX450LC-5, EX550LC-3, ZAXIS450LC, ZAXIS450LC-3, ZAXIS470-5A, ZAXIS470LC-5B
Replaces Part Number(s):
AT201693
Aftermarket Interchange Numbers
3060446, FF550922
New aftermarket replacement part - not remanufactured, not used.
