AT16844 Winch clutch disk, fiber Model 3315, 3325, 3305 Fits John Deere
AT16844 Winch clutch disk, fiber Model 3315, 3325, 3305 Fits John Deere
Couldn't load pickup availability

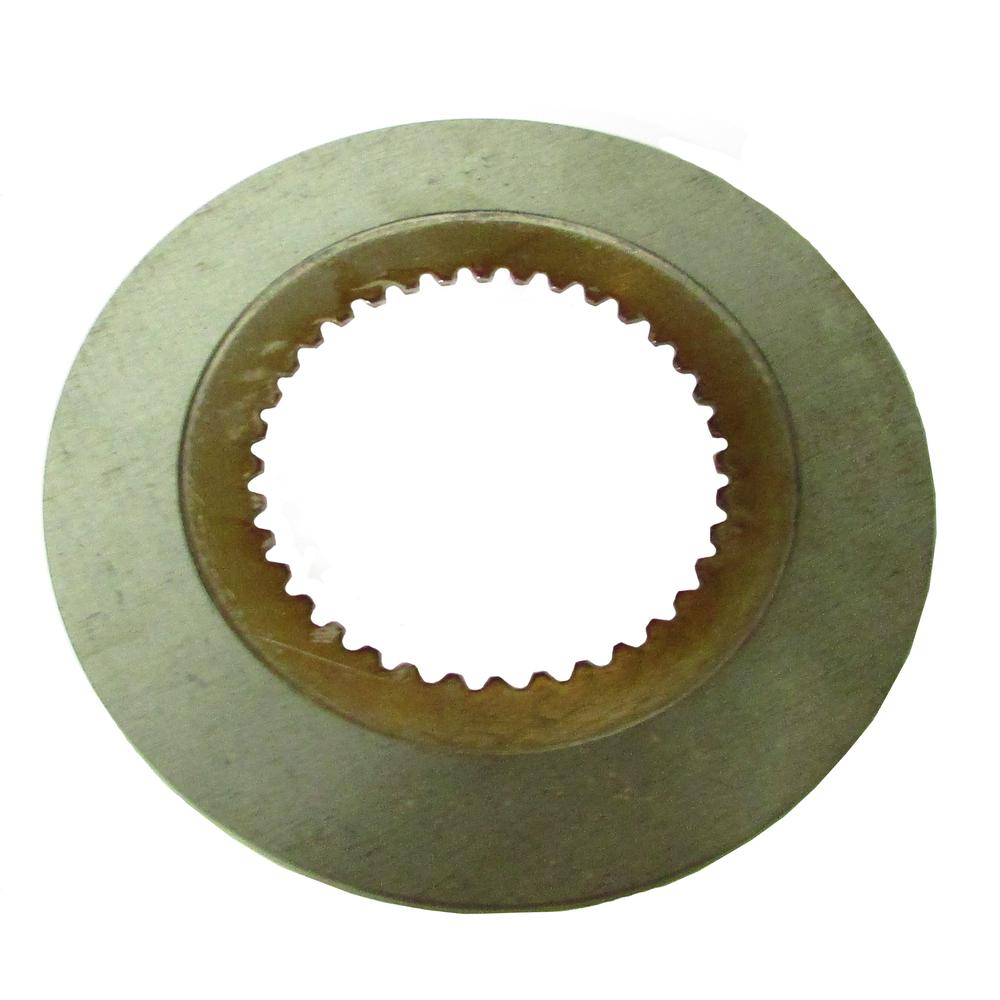

One New Aftermarket Replacement Winch Fiber Clutch Disk for John Deere Dozers, Log Skidders, and Winches
This fiber clutch disk is a key component of the auxiliary winch brake and clutch assembly on John Deere (JD) construction equipment. The disk engages and releases the winch drum, providing the friction interface needed for smooth clutch operation and controlled braking during cable payout and retrieval.
Specifications
- Outside Diameter: 8-1/2 in.
- Internal Teeth: 36
- Material: Fiber (friction disc)
- Weight: Approx. 2 lbs.
Compatible Models
John Deere Winch Models: 3305, 3315, 3320, 3325
John Deere Dozer Models: 350, 350B, 350C, 350D, 400G, 450B, 450C, 450D, 450E, 455D, 455E, 550, 550A, 550B, 555, 555A, 555B
John Deere Log Skidder Models: 340D, 440, 440A, 440B, 440C, 440D, 448D, 540A, 540B, 540D, 640, 640D, 648D, 740
Replaces Part Number(s):
AT16844, AT142063
Aftermarket Interchange Numbers
AT114483, AT114483-A, AT142063-A, AT16844-A, AT-142063
New aftermarket replacement part - not remanufactured, not used.
