AT147404 Link L/H (with bolt holes) Fits John Deere 690DLC, 690ELC, 200LC
AT147404 Link L/H (with bolt holes) Fits John Deere 690DLC, 690ELC, 200LC
Couldn't load pickup availability

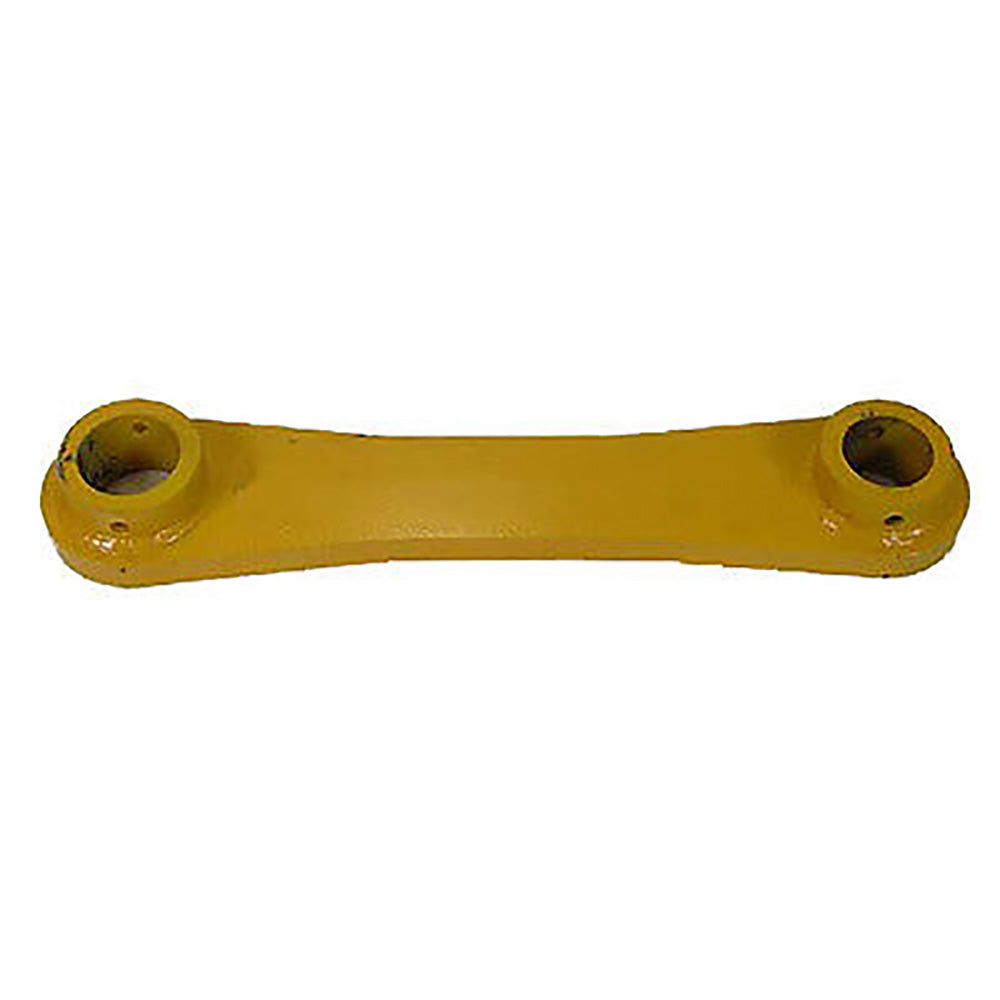

One New Aftermarket Replacement Left Hand Dipper Link Fits John Deere (Fits JD) / Hitachi Excavators
This left-hand (L/H) dipper link with bolt holes is a boom and stick component that connects the dipper arm to the bucket linkage assembly on Fits John Deere and Hitachi crawler excavators. It is a structural wear part in the bucket linkage system and is subject to significant stress during digging and lifting cycles. This link works in conjunction with the H-Link (AT147405) and right-hand counterpart as part of the complete bucket attachment system. This is the LEFT-HAND link only -- verify side before ordering.
Specifications
- Side: Left Hand (L/H)
- Style: With Bolt Holes
- Length Center to Center: 23.75 in (603 mm)
- Weight: approx. 52 lbs
- Location: Dipper arm to bucket linkage
Compatible Models
Fits John Deere (Fits JD) Excavators: 200LC, 200 LC, 690DLC, 690ELC, 690E LC, 690D, 690D LC, 690DLT, 690DDLT, 690DB
Hitachi Excavators: EX200, EX200-2, EX200-3, EX200-5, EX200LC, EX200LC-2, EX200LC-3, EX200LC-5, EX210H-5, EX210LCH-5
Replaces Part Number(s):
AT147404
New aftermarket replacement part - not remanufactured, not used.
