AT120388 Fastener Pin Fits John Deere Crawler Dozer 450G 550G 650G
AT120388 Fastener Pin Fits John Deere Crawler Dozer 450G 550G 650G
Regular price
$228.00 CAD
Regular price
Sale price
$228.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

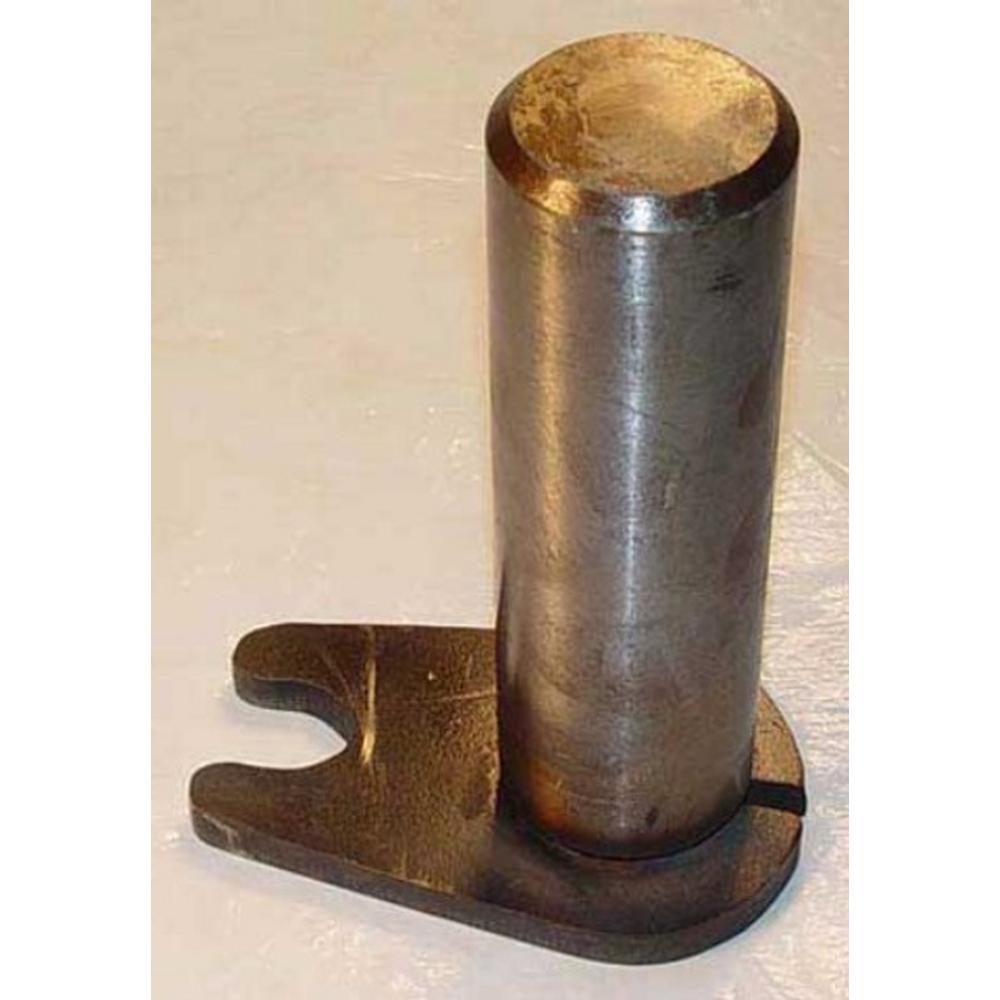

One New Aftermarket Replacement Blade Pitch Pin Fits John Deere G-Series Crawler Dozers
This aftermarket replacement blade pitch pin (AT120388) is a critical component of the dozer blade pitch system on Fits John Deere (Fits JD) G-Series crawler dozers. Located at the pitch cylinder connection point, this pin secures and articulates the blade angle, allowing the operator to adjust blade pitch during grading and dozing operations. The pin is manufactured from hardened steel to withstand the heavy cyclical loads common in dozer blade assemblies.
Specifications
- Weight: 7.00 lbs (3.18 kg)
- Material: Hardened steel
- Application: Blade pitch cylinder pin (Drawing Ref #7)
- Quantity needed per machine: 1
Compatible Models
Fits John Deere G-Series Crawler Dozers: 450G, 550G, 650G
Replaces Part Number(s):
AT120388, AT120388-A
New aftermarket replacement part - not remanufactured, not used.
