Fits John Deere Parts PISTON AR77762 450D (SN 275484> 4.219 ENG SOME POSSIBLY TU

One New Aftermarket Replacement 102mm Piston Fits John Deere 4.219 and 3.164 Engines

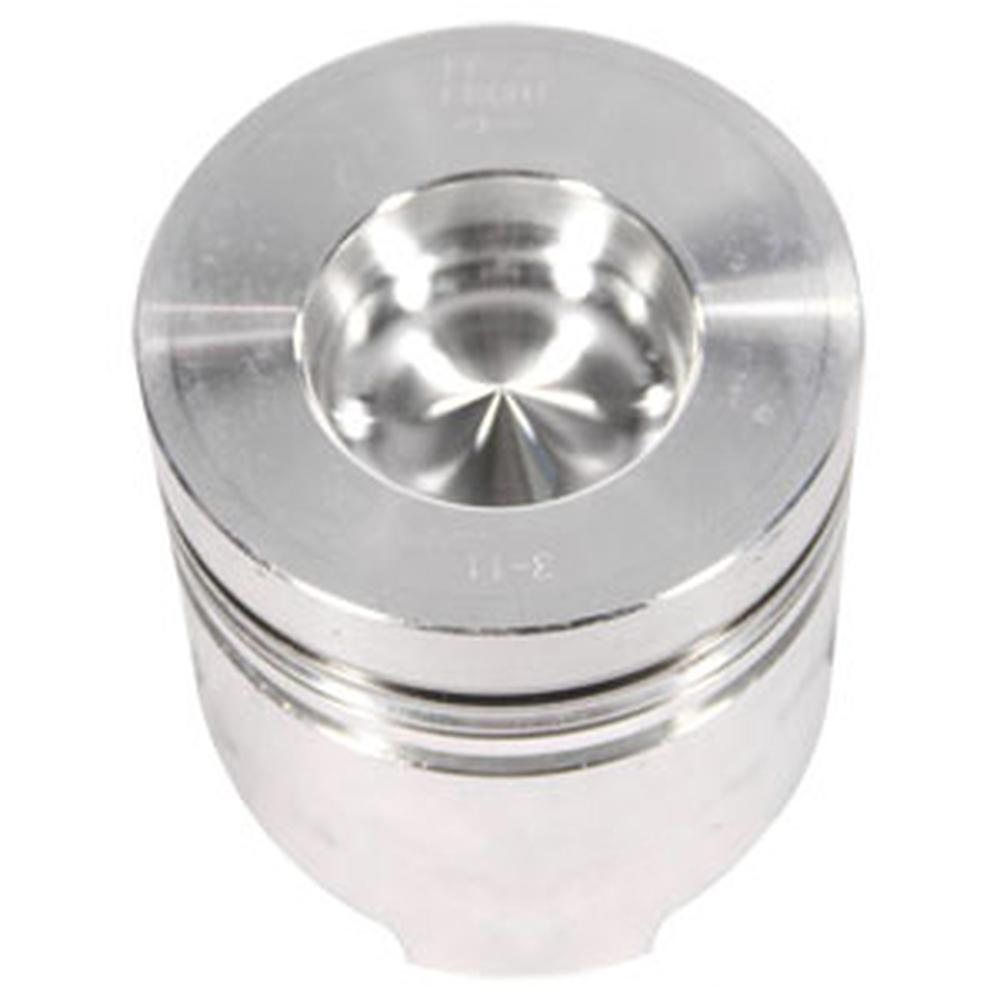

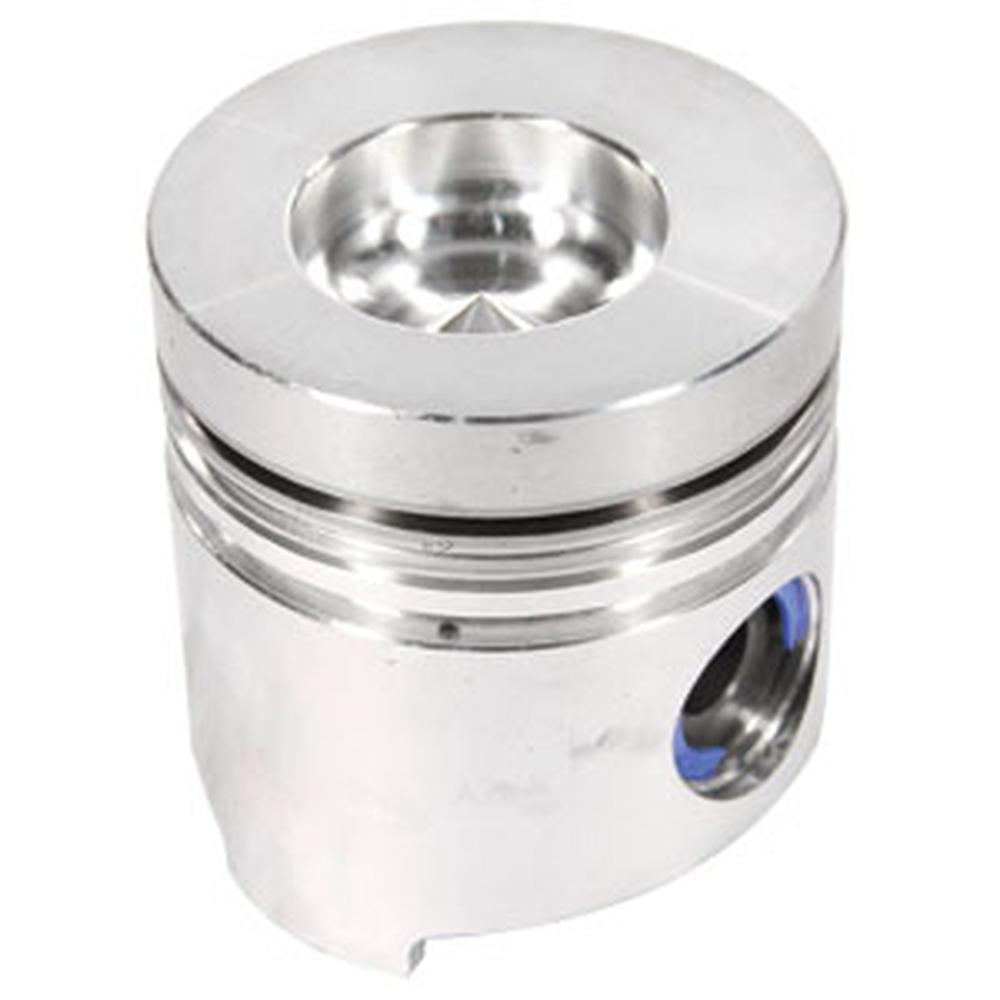

This standard-bore piston is Fits John Deere 4-219 and 3-164 diesel engines used across a wide range of Fits John Deere tractors, crawler dozers, backhoe loaders, and combines. The piston includes the wrist pin and features a dish-top crown with three ring grooves and an aluminum-fin ring groove design. Important: Fits John Deere 450, 450C, 450D, and 455D crawler dozers, this piston applies to units with serial number 275,484 and later only. For the 350C crawler dozer, this piston applies to units with serial number 179,602 and later.

Specifications

• Bore: 102.00 mm (standard)
• Pin Diameter: 34.94 mm (1.37 in)
• Compression Height: 66.30 mm
• Bowl Depth: 20.62 mm
• Chamber: 53.93 mm, Type B3
• Crown Type: Dish Top
• Number of Rings: 3
• Al Fin Ring Groove: Yes
• Engines: Fits John Deere 3-164, 4-219, 4-219T Diesel

Compatible Models

Fits John Deere Crawler/Dozer: 350B (3-164 Diesel), 350C (3-164 Diesel, S/N 179,602 and later), 450 (4-219 Diesel, S/N 275,484 and later), 450C (4-219T Diesel, S/N 275,484 and later), 450D (4-219T Diesel, S/N 275,484 and later), 455D (4-219 and 4-219T Diesel, S/N 275,484 and later)

Fits John Deere Construction and Industrial: 300B, 301A, 302, 302A, 310, 310A, 310B, 350B, 350C, 401B, 401C, 401D, 410, 410B, 440, 440A, 440B, 444, 444C, 444CH, 444D, 480A, 480B, 480C, 540, 540A, 544, 544A, 570, 570A, 710B, 710C

Fits John Deere Tractor: 830, 1020 (S/N 199,743 and later), 1030, 1120 (S/N 199,743 and later), 1130, 1520, 1530, 1830, 2020, 2030, 2040 (S/N 349,999 and earlier), 2120, 2440, 2510, 2520, 2840, 3030, 3120, 3130, 4030, 930

Fits John Deere Combine: 925, 935, 945, 955, 3300, 4400, 4420, 6600

Replaces Part Number(s):

AR77762, AR55984, AR87736

New aftermarket replacement part - not remanufactured, not used.
