AR58606 Steering Spindle LH/LR Fits John Deere (AR103472)

AR58606 Steering Spindle LH/LR Fits John Deere (AR103472)

$301.00 CAD
$301.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Spindle (RH/LH)

Fits John Deere Model(s):
1020, 1030, 1030VU, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1550, 1630, 1630VU, 1640, 1640F, 1750, 1750V, 1840, 1840F, 1850, 1850F, 1850N, 1950, 1950F, 1950N, 2020, 2030, 2030OU, 2120, 2250, 2250CS, 820, 830, 840, 930, 930VU, 940, 940V

Specifications:

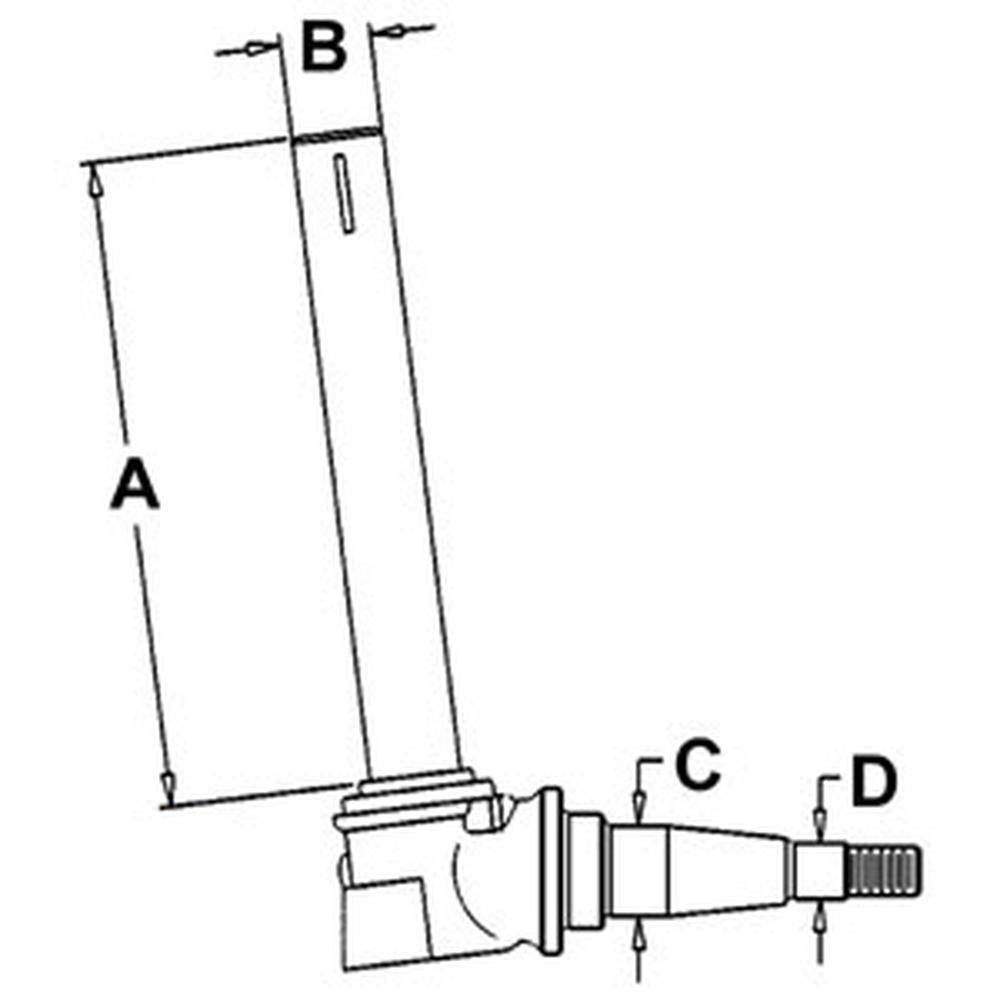

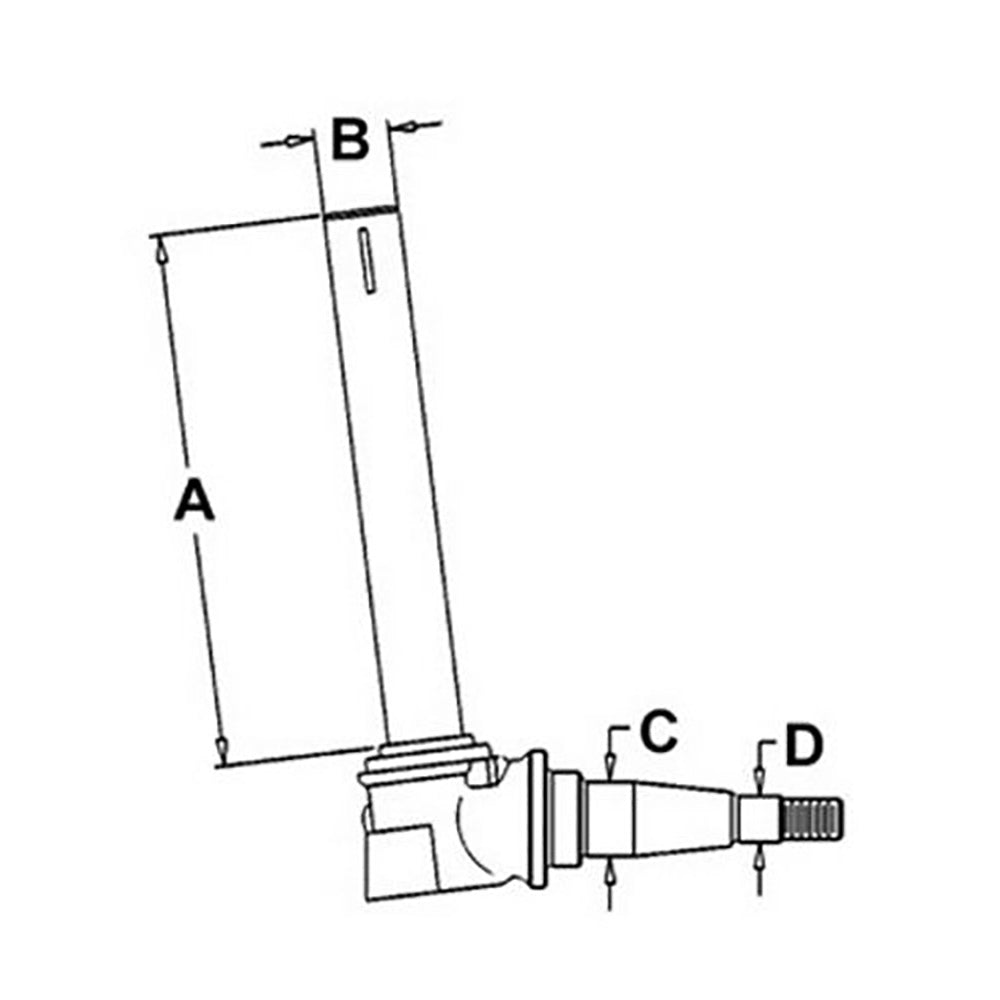

Dim A (1) 11.875"
Dim B (2) 1.375"
Dim C (3) 1.375"
Dim D (4) .842"
Includes: Fender bracket on angled part of spindle

Also has two bolt holes on back of Spindle Head

Replaces Part Number(s):
AR58606,AR103472

Models This Part Fits:

840, 1840, 1030, 2035EF, 2155, 2355N, 2150, 1641F, 1850, 2550, 1950N, 2650F, 830, 2555, 2355, 2255, 1140, 1950F, 1840F, 1750, 1120, 2040, 2350, 1035EF, 2140, 1140F, 1640, 2040F, 2040S, 2855, 1950, 1130, 1040, 2250F, 1350, 1020, 2855N, 820, 930, 2755, 2020, 2030OU, 1630OU, 2240, 2250, 1850N, 1630, 1635EF, 2120, 920, 1550, 2450F, 1030OU, 1640F, 2450, 830 3-Cyl, 940, 820 3-Cyl

Additional Information:

Front Spindle Left or Right Side Dim A (1): 11.875" Dim B (2): 1.375" Dim C (3): 1.375" Dim D (4): .842"

Reference Numbers:

AR58606, AR49589, AT23636
