MUFFLER Fits John Deere 3020, 4010, 4020

MUFFLER Fits John Deere 3020, 4010, 4020

$144.00 CAD
$144.00 CAD
Sale Sold out
Shipping calculated at checkout.

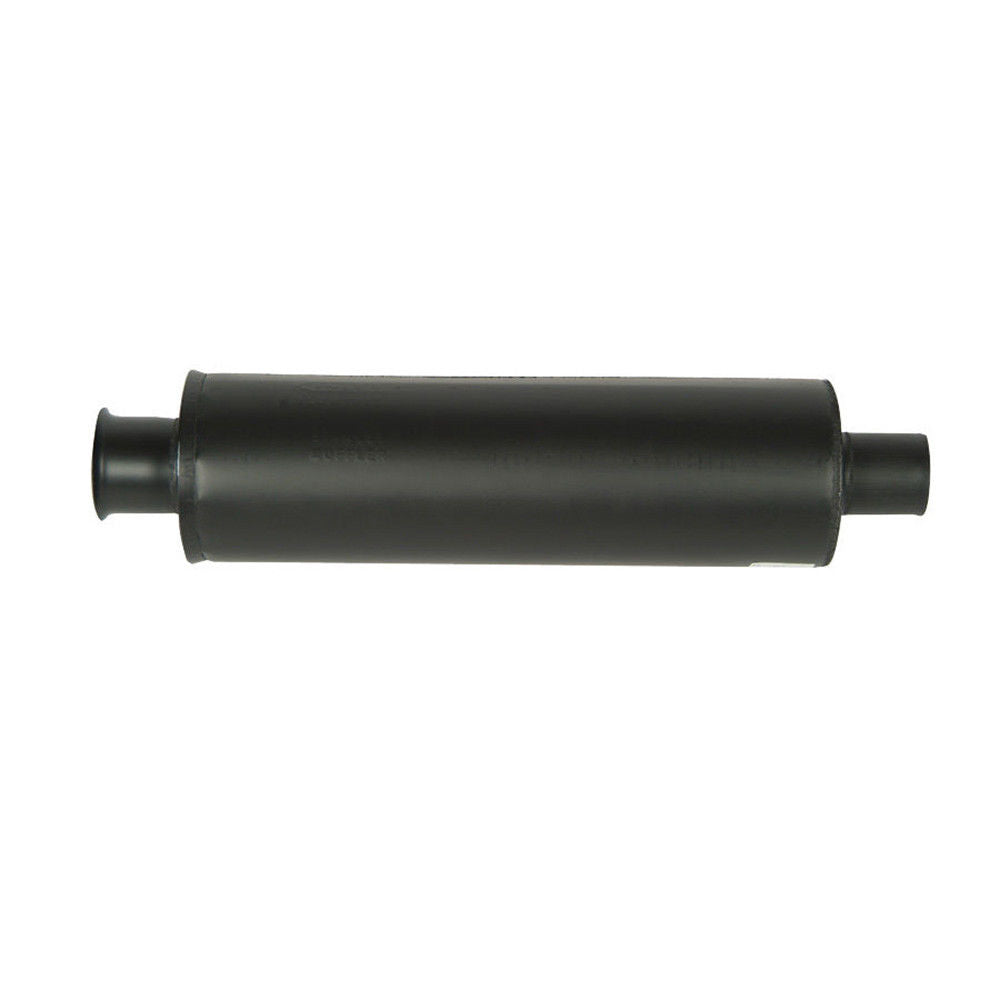

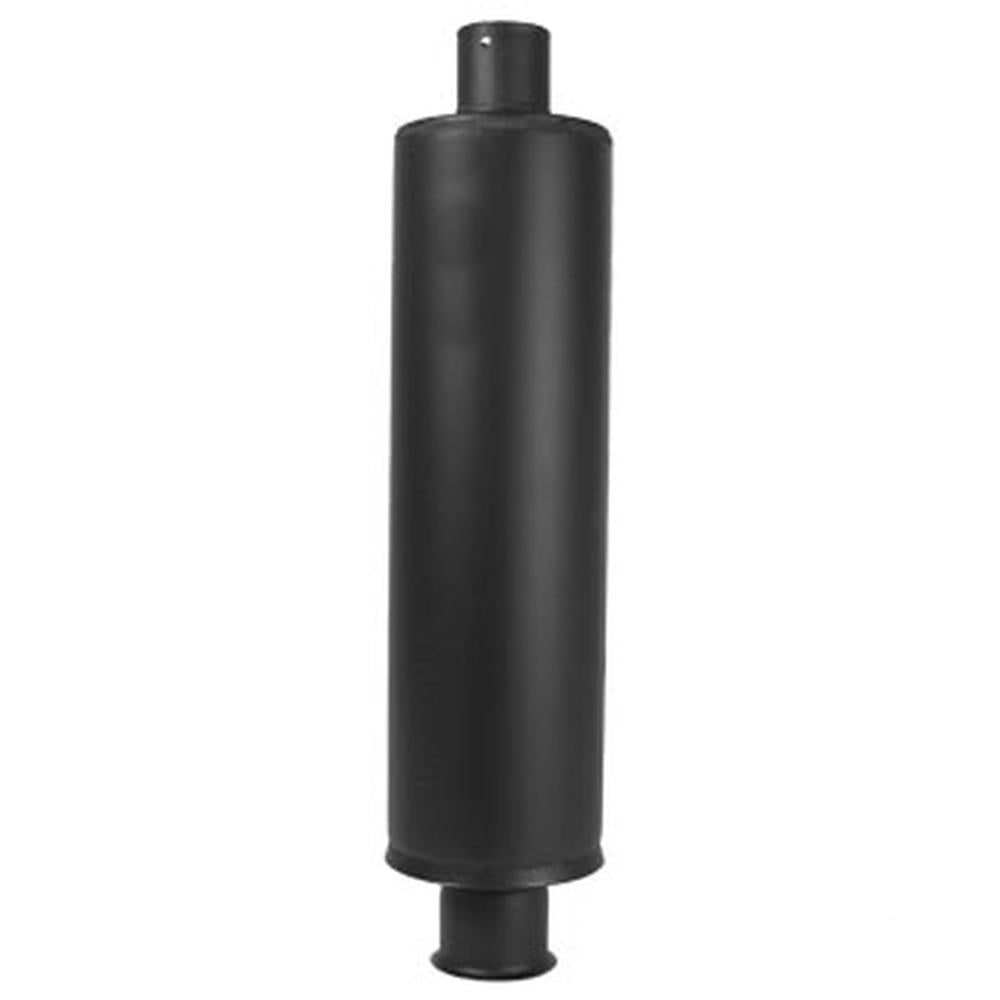

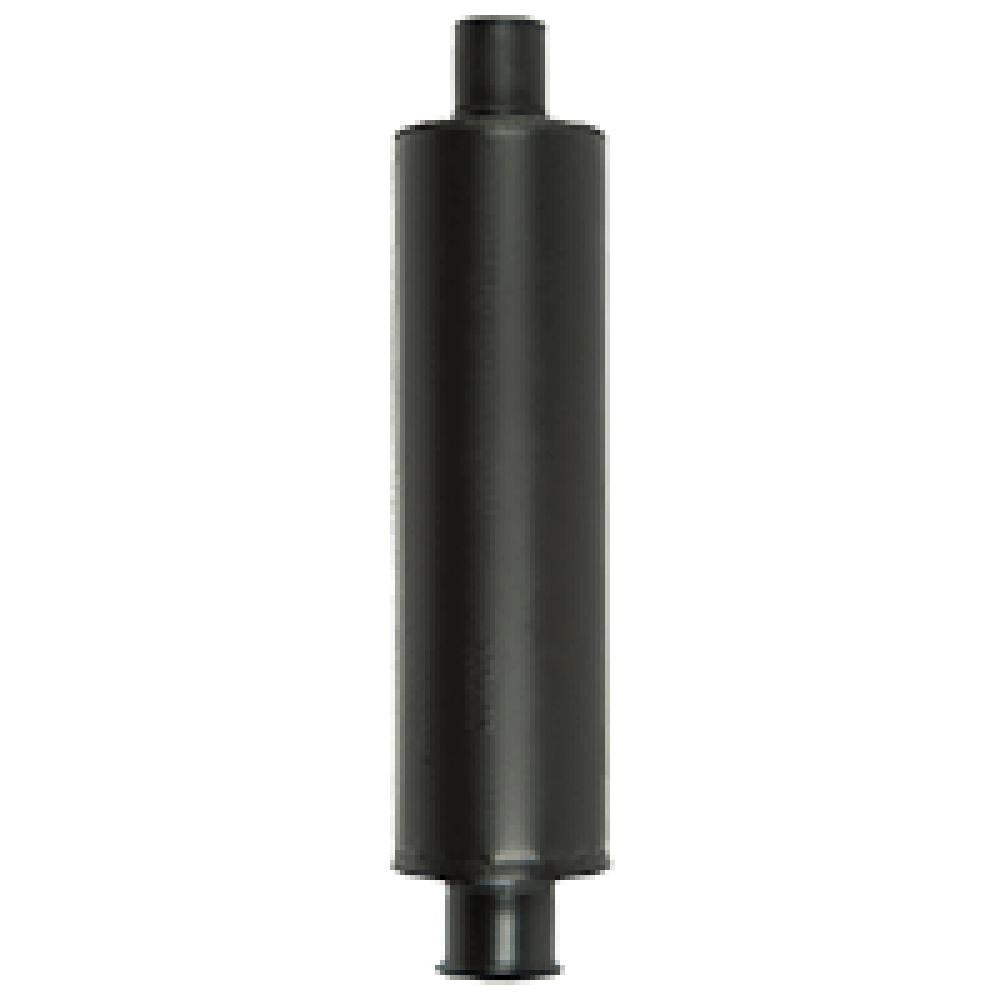

One Fits John Deere Replacement Vertical Muffler that fits Diesel Tractor models: 3010 (after Serial # 6644), 3020 (up to Serial # 122999), 4010 (after Serial # 7027), and 4020 (up to Serial # 200999)

Notes Vertical / Round Body - 6" Shell Diameter. Inlet Is Flared, Uses DR300 Clamp

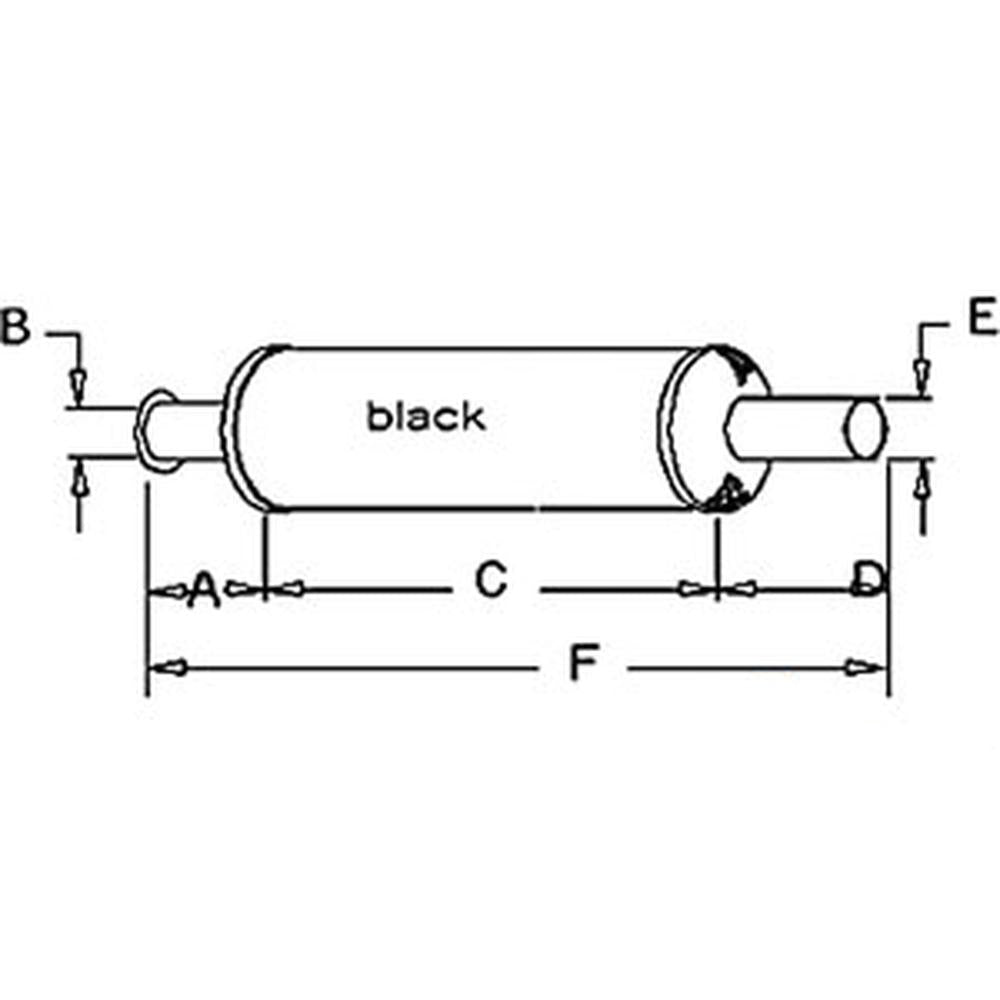

Dim A (1) A: 3" INLET LENGTH
Dim B (2) B: 2 15/16" INLET I.D.
Dim C (3) C: 20" SHELL LENGTH
Dim D (4) D: 3"

Models This Part Fits:

500A, 600, 570A, 4010, 4020, 570B, 500B, 3010, 570, 3020, 3020 (diesel s/n 122999-earlier) 4010 (diesel s/n 2T7027-later) 4020 (diesel s/n 200999-earlier) Muffler mount: Vertical Overall Length: 26" Shell Diameter: 6" Shell Length: 20" Inlet I.D.: 2-15/16" Flared Inlet Length: 3" Outlet O.D.: 2-5/8" Outlet Length: 3" Color: Black, 500

Additional Information:

Muffler Mount: Vertical Overall Length: 26" Shell Diameter: 6" Shell Length: 20" Inlet I.D.: 2-15/16" Flared Inlet Length: 3" Outlet O.D.: 2-5/8" Outlet Length: 3"

Reference Numbers:

AR30189 AR30190, AR30190, AR30190, AR30189
