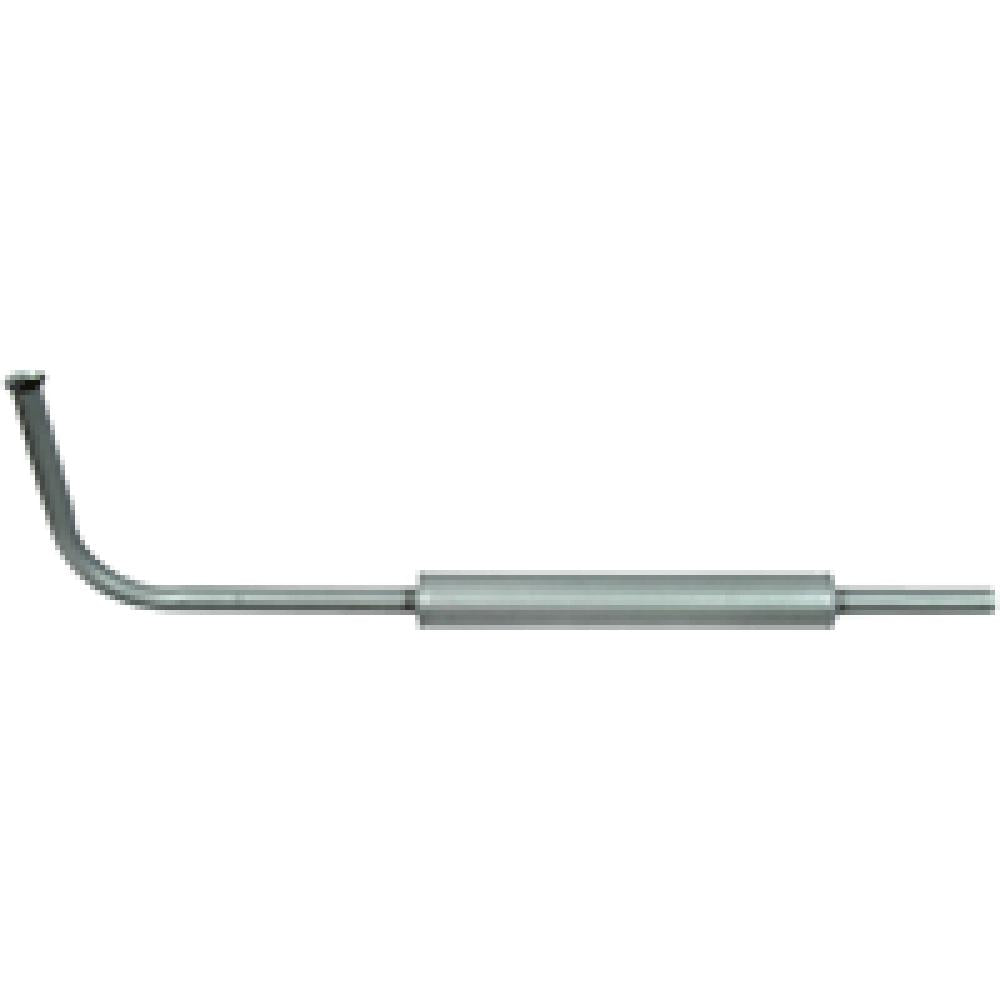

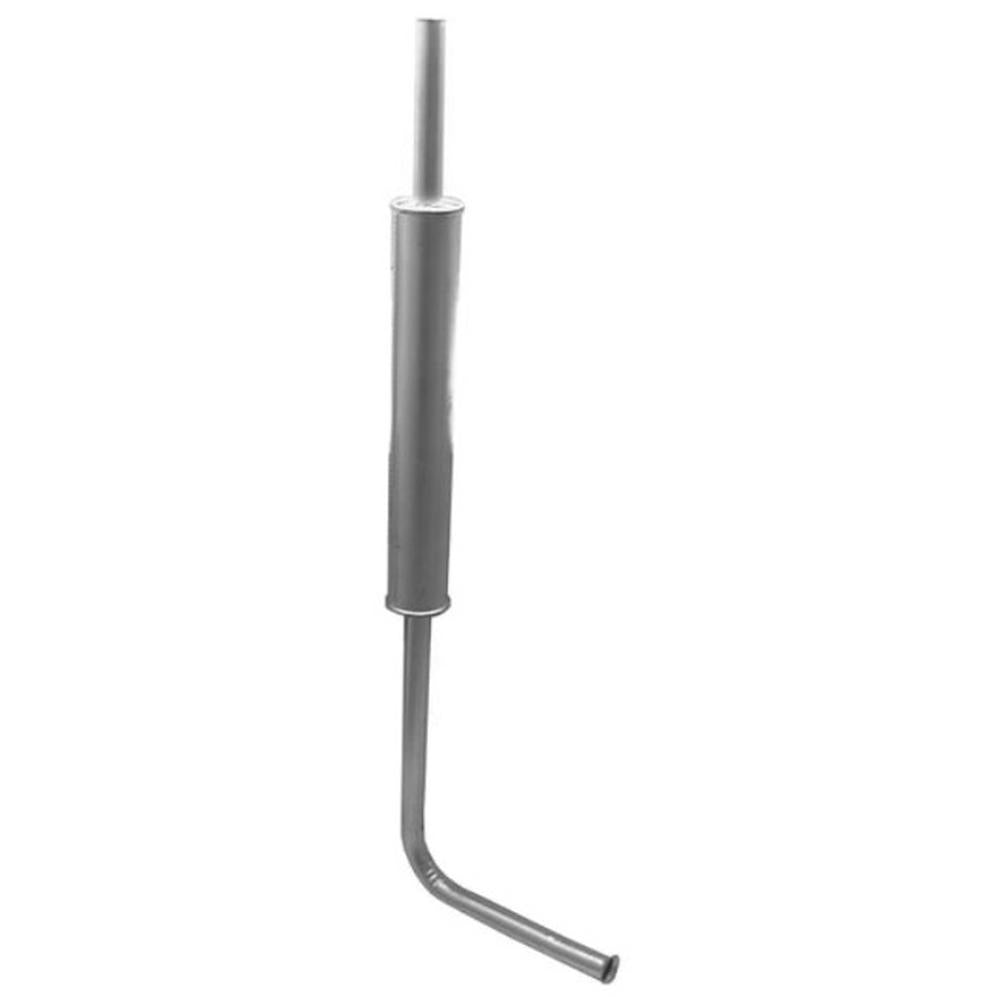

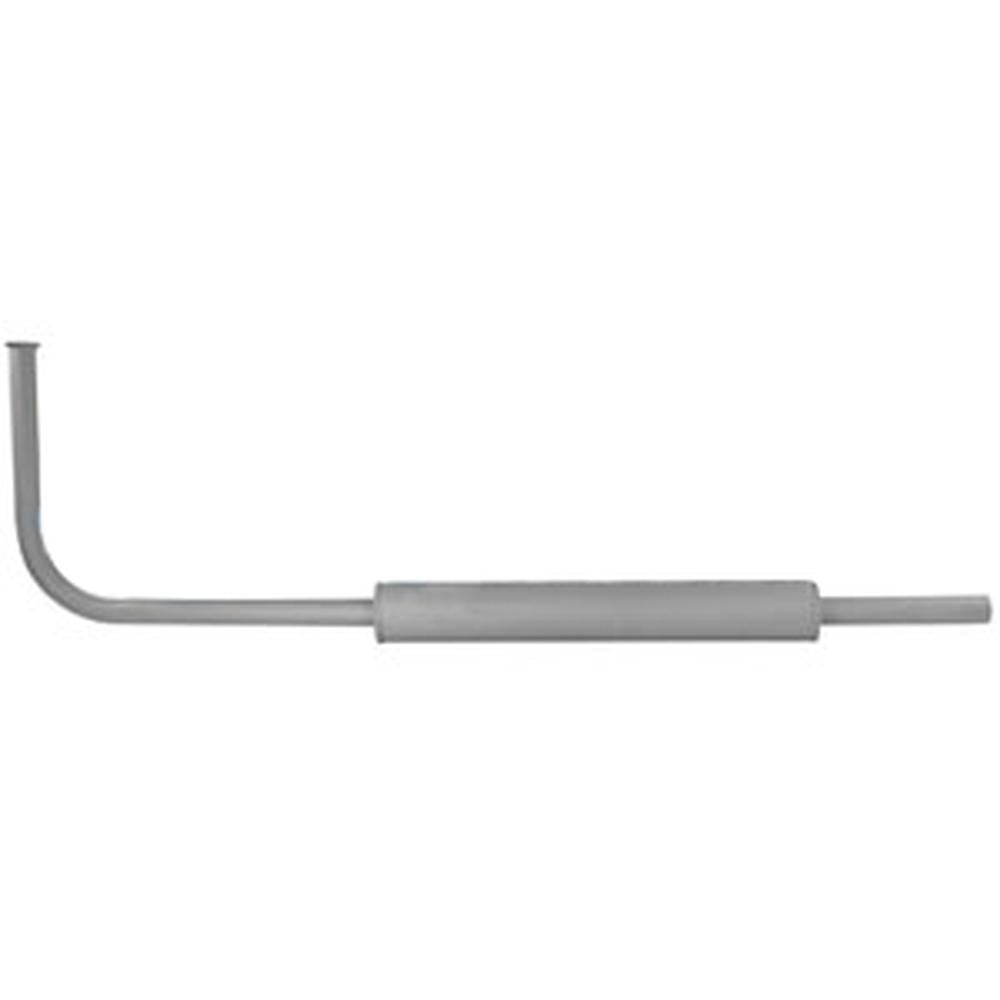

AM8N5230 Exhaust System, Horizontal

Name: AM8N5230 Exhaust System, Horizontal
SKU: AM8N5230-ABL
Price: 153.0 USD
Availability: InStock

AM8N5230 Exhaust System, Horizontal

$153.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Exhaust System, Horizontal

Fits Ford/New Holland Tractors - 2N, 8N, 9N

Tech Info:
-Welded 1-Piece Assembly with Flared Pipe Inlet
-Silver
-Uses Clamp for Flared Inlet
-Muffler Dimensions: System Overall Length - 53.00" Shell Length - 23.00" Inlet Inside Diameter - 1.50" Inlet Length - 2.50" Outlet Outside Diameter - 1.50" Outlet Length - 8.50" Pipe Dimensions: Horizontal Length - 22.00" Vertical Length - 15.50" Inlet Inside Diameter - Flared Inlet Outlet Outside Diameter - 1.50"

Replaces Part Number(s): 8N5230

Models This Part Fits:

8N, 2N 8N 9N Welded 1-piece assembly with flared pipe inlet Muffler Mount: Horizontal Overall Length: 53" Shell Diameter: 3-1/4" Shell Length: 23" Inlet I.D.: Flared Outlet O.D.: 1-1/2" Outlet Length: 8-1/2" 1 Piece Assembly, 9N, 2N

Additional Information:

Body Style One piece welded assembly Clamp Not Included Inlet 1 3/8" Length 53" Material Aluminum Outlet 2" Type Horizontal Welded One Piece Muffler & Pipe Assembly with Flared Pipe Inlet.
