Heavy duty 16 teeth 2 Cylinder Starter Fits Briggs and Stratton
Heavy duty 16 teeth 2 Cylinder Starter Fits Briggs and Stratton
Couldn't load pickup availability

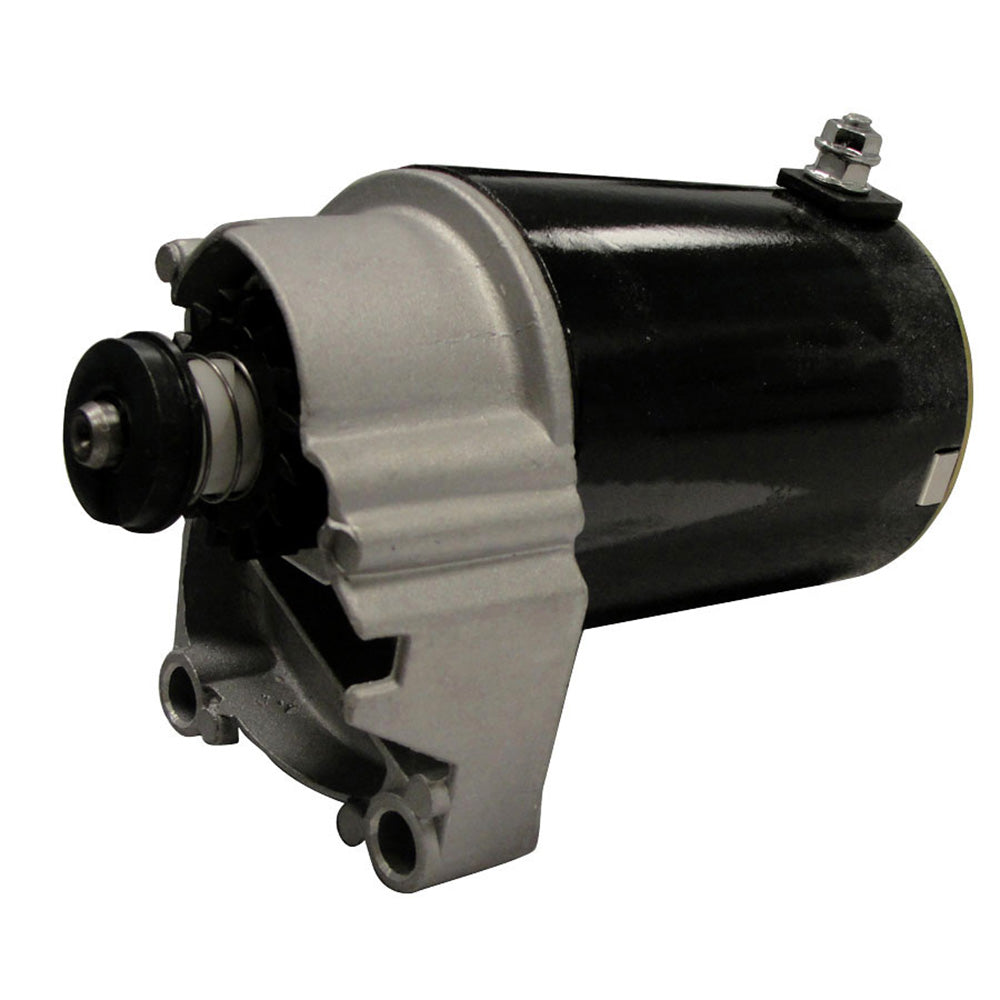

One New Aftermarket Replacement Heavy Duty 16-Tooth Starter Fits Briggs and Stratton Twin Cylinder Engines
This heavy duty aftermarket replacement electric starter motor is designed Fits Briggs and Stratton (B&S) opposed twin cylinder engines ranging from 14 HP to 18 HP. The starter mounts to the engine block using three unthreaded mounting ears and drives a 16-tooth pinion gear counterclockwise to engage the flywheel ring gear. It also serves as a direct replacement for the Fits John Deere AM38984 starter used on 116 and 116H lawn tractors.
Specifications
- Voltage: 12V
- Rotation: Counterclockwise
- Teeth: 16
- Gear OD: 1.598 in / 40.6 mm
- Field Fits Case Length: 3.8 in / 96.5 mm
- Mounting Ear 1: 9.5 mm ID unthreaded
- Mounting Ear 2: 8.5 mm ID unthreaded
- Mounting Ear 3: 8.5 mm ID unthreaded
- Weight: approx. 5.18 lbs / 2.35 kg
- Engine Type: Opposed (horizontally opposed) twin cylinder, air-cooled
Compatible Models
Fits John Deere Lawn Tractors: 116, 116H
Fits Briggs and Stratton Engines (air-cooled twin cylinder): 14 HP Horizontal, 14 HP Vertical, 16 HP Horizontal, 18 HP Horizontal
Replaces Part Number(s):
497596, 394808, 498148, ELS60-0462, LG497596, AM38984, AM39287, 393017, 394674, AM38999, AM122238
Aftermarket Interchange Numbers
5743, 5743N, 28-5743
New aftermarket replacement part - not remanufactured, not used.
