48" Deck Rebuild Kit w/ Wheels & Hardware Fits John Deere Replaces AM137757

Models This Part Fits:

48" Mower Decks

Additional Information:

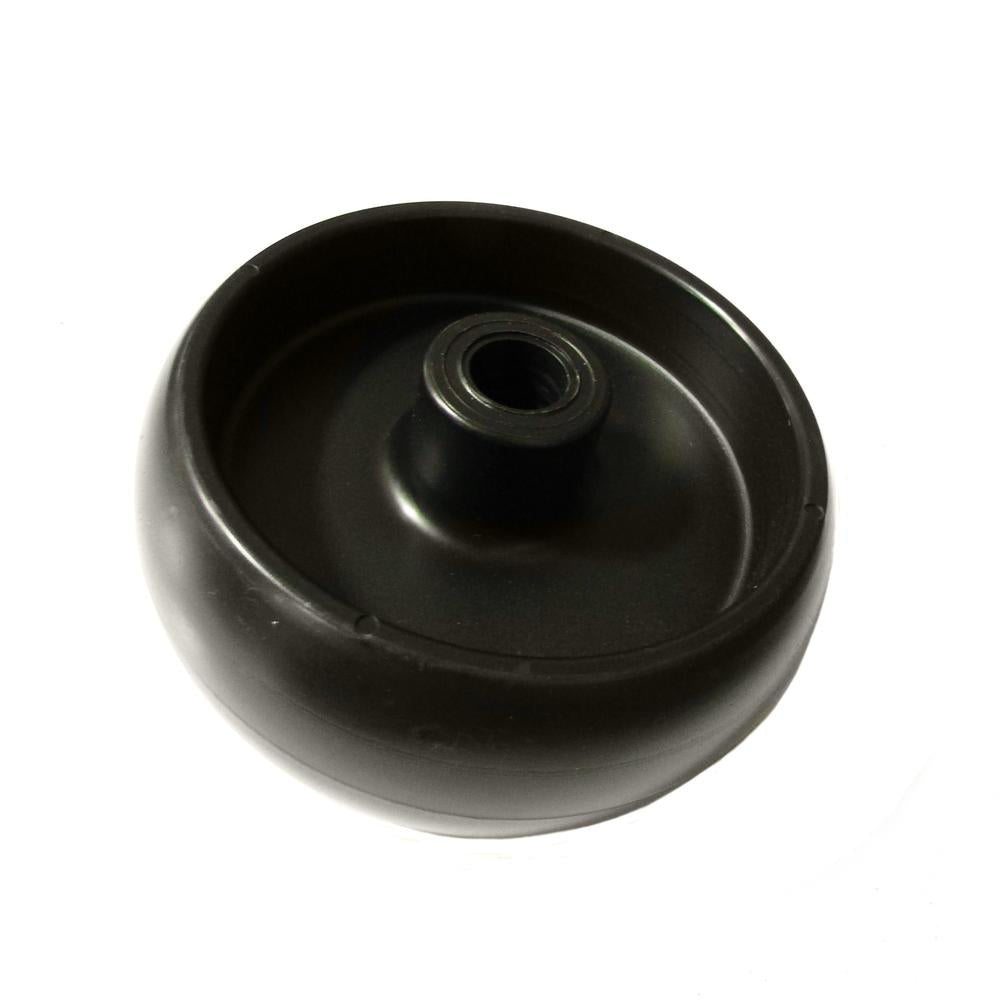

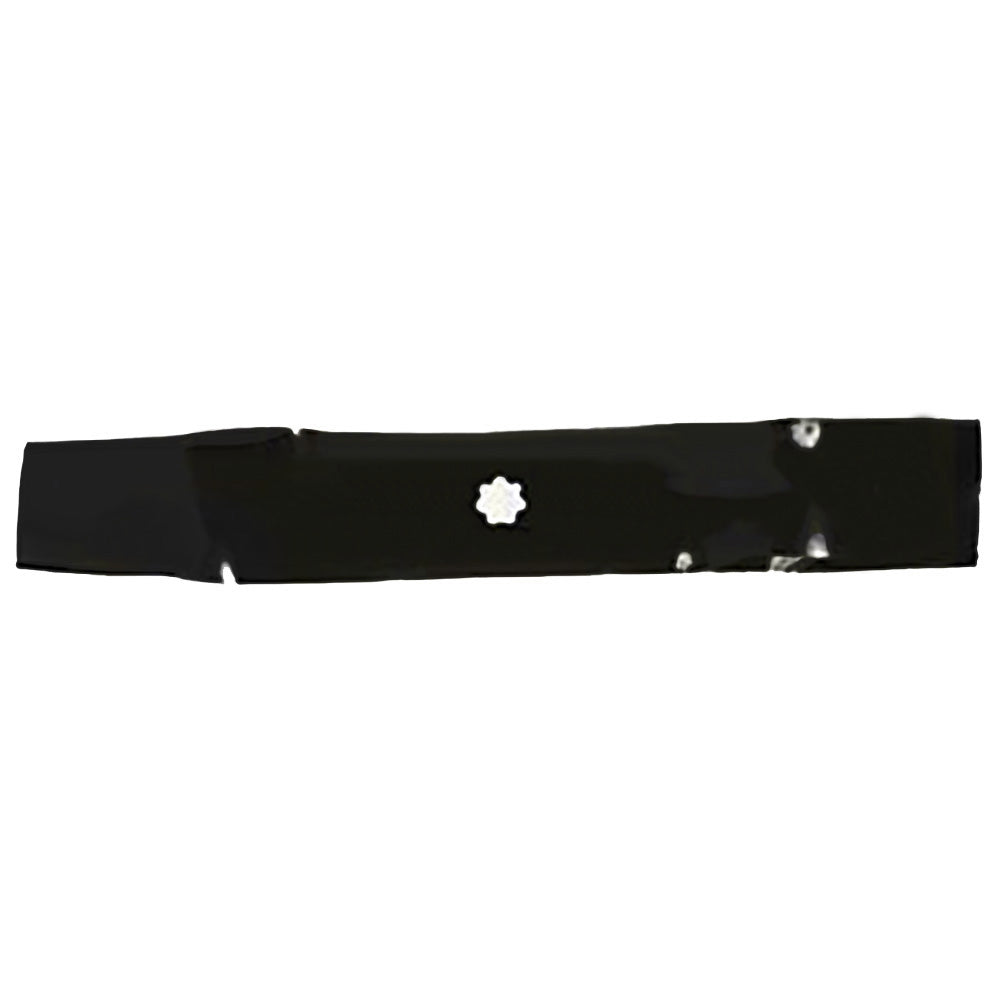

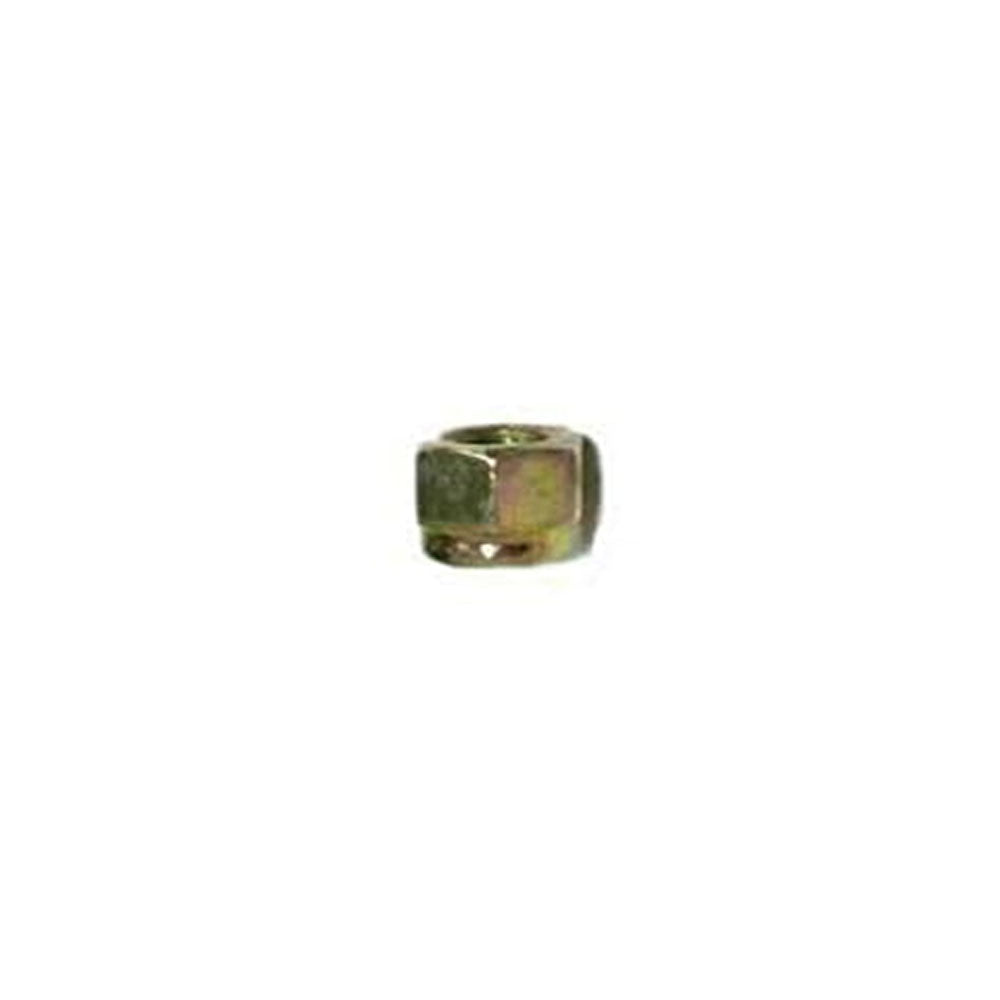

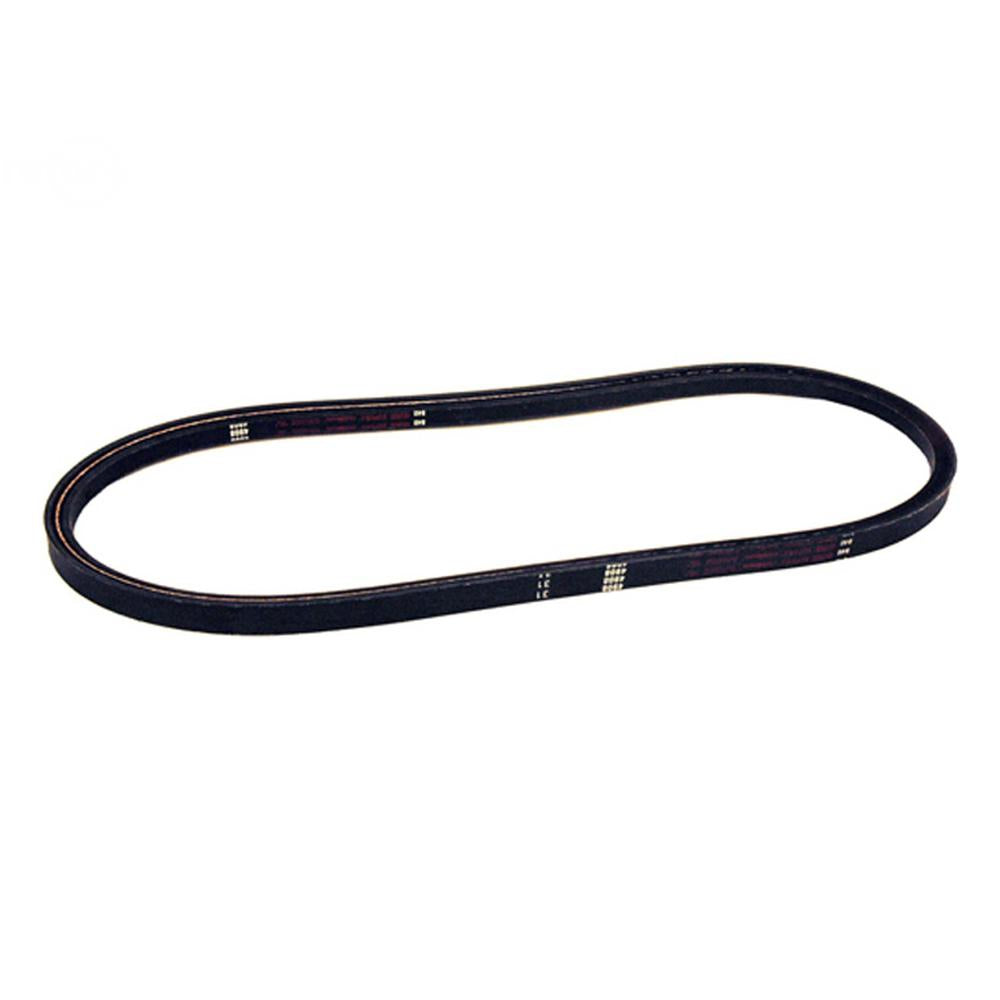

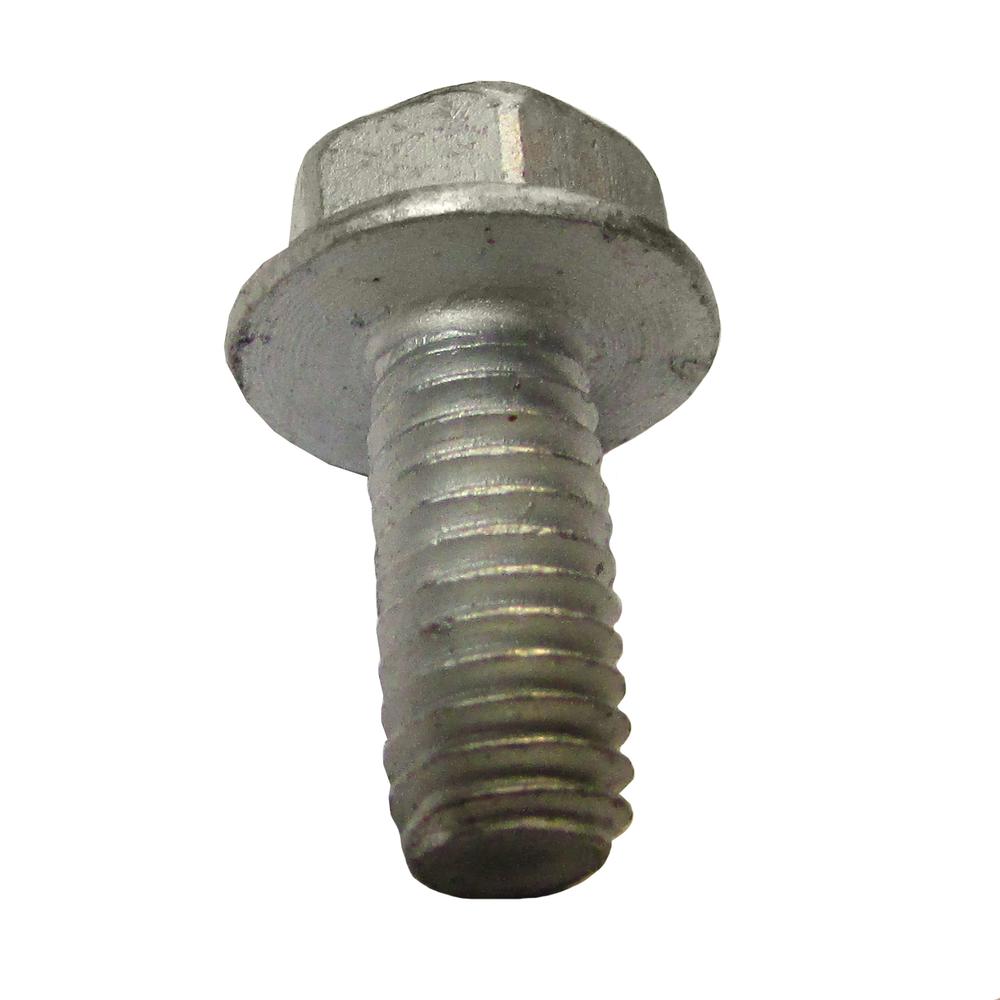

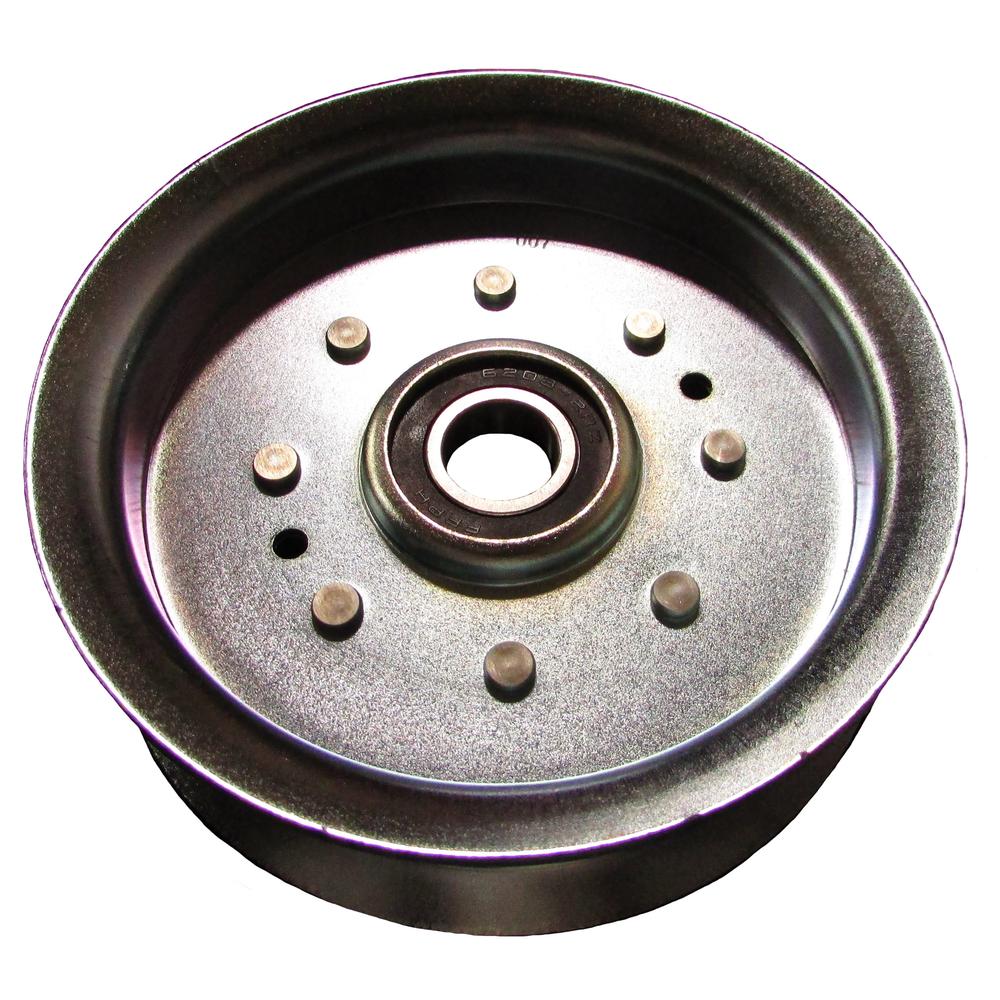

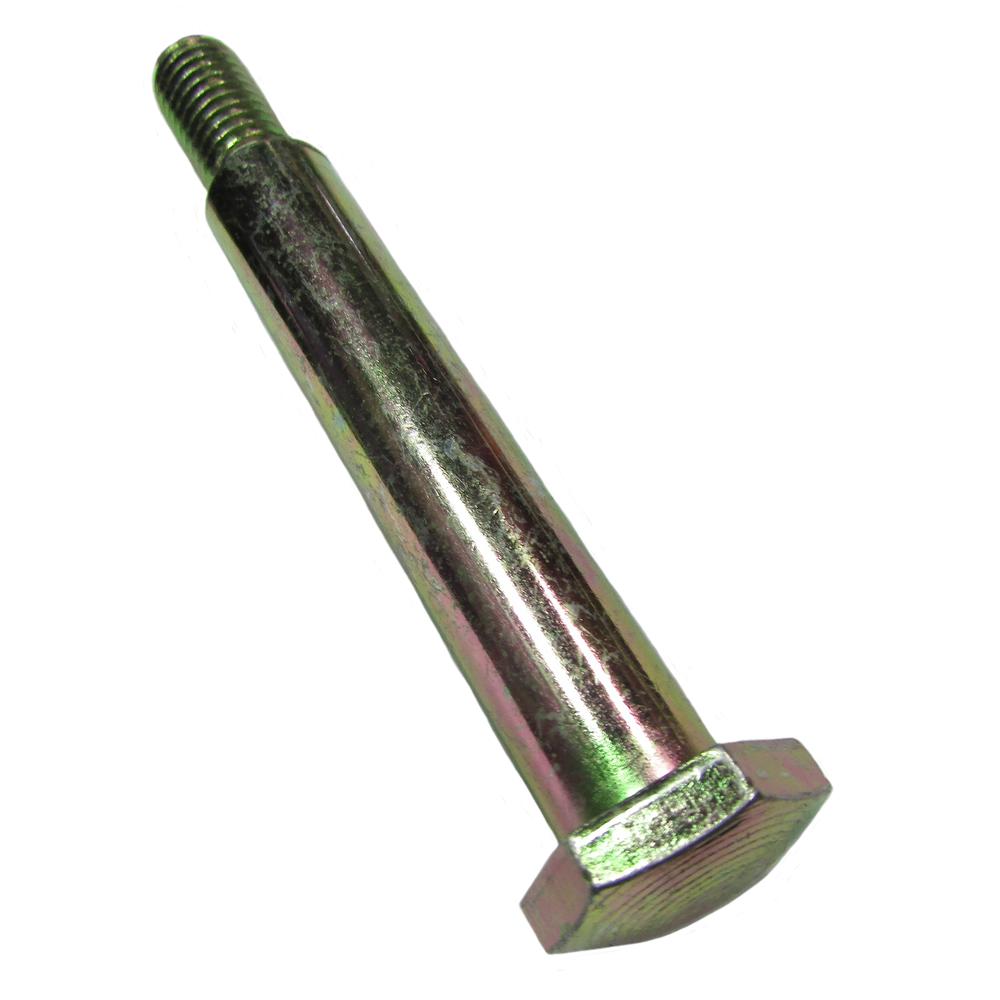

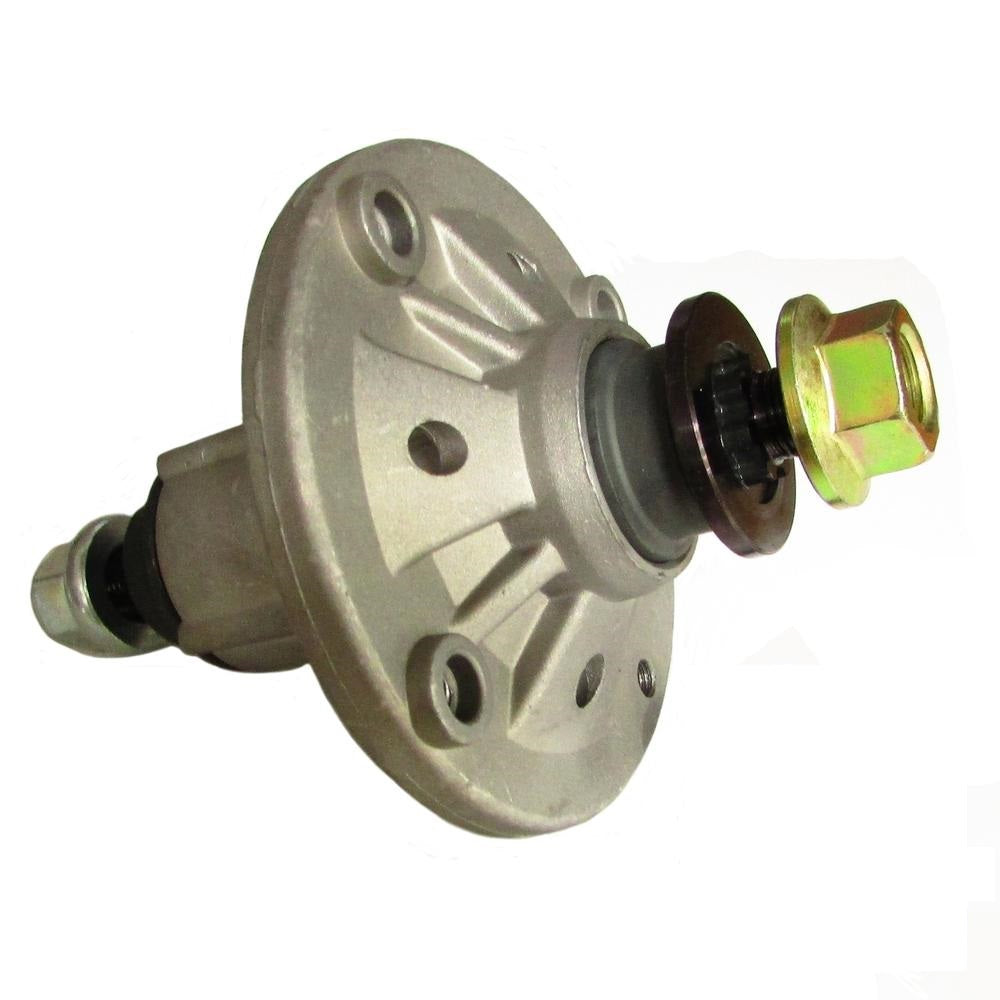

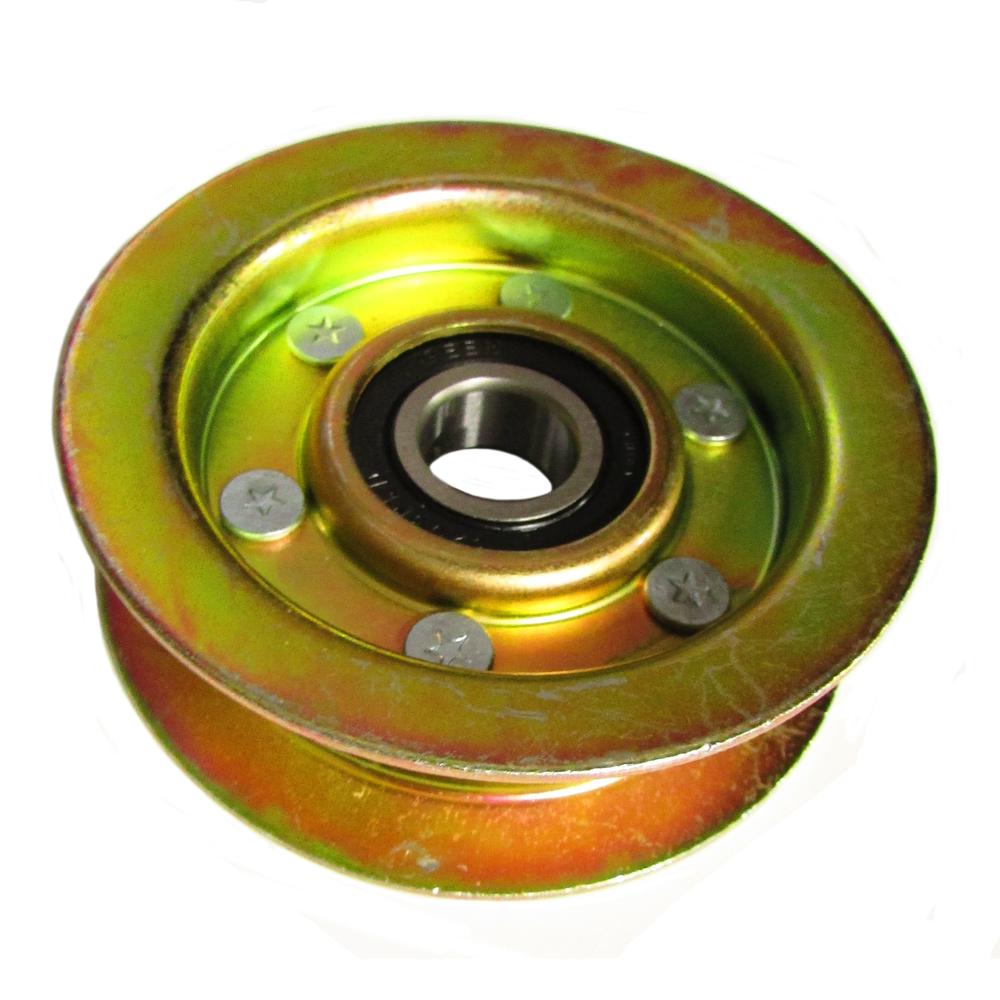

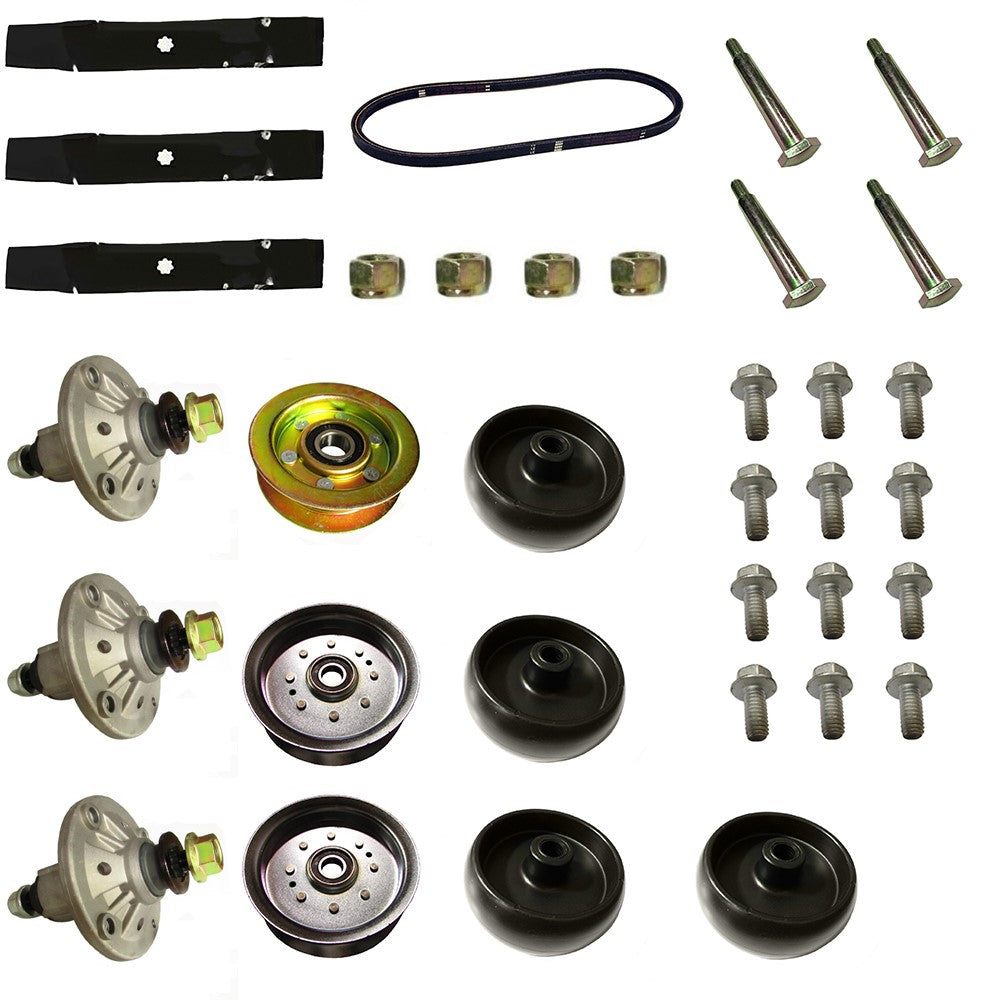

Kit Contains: (3) Spindle Assembly w/ Nut Includes Grease Zerk Specially Designed to Fit 7 Pt. Star Spindle Shaft Height 7 3/16" Replaces Part Number(s): AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625 (3) 48" Mower Blade Center Hole: 7 lobe Length: 17" Width: 2-3/4" Thickness: 0.1600" Replaces Part Number(s): AM137757, AM141035, GX21784, GY20852 (2) Steel Flat Idler Pulley w/ Flanges 5-1/4" OD Including Flanges 11/16" ID 1-3/4" Height. Measurements taken from in stock part Replaces Part Number(s): AUC17621, GY20110, GY20629, GY22082 (1) Flat Idler Pulley OD: 3-5/8", ID: 11/16", Height: 1-3/16" Replaces Part Number(s): GY20067, GY22172 (1) Belt 1/2" x 141-1/8" Made With Aramid Cord Replaces Part Number(s): GX20571, GX21833 (4) Deck Wheel Center Hole (Bore): 5/8" Hub: 1-3/4" Offset Tread: Smooth Bearing Type: None Wheel Size: 5" x 2" (1.785" Wide) Material: Plastic Wheel Color: Black Replaces Part Number(s): GX10168 (4) Wheel Bolt Over Length: 3 1/8" Shoulder Length: 1 7/8" Shoulder Dia: 5/8" Thread Length: 13/16" Thread: 10mm Replaces Part Number(s): GX21012 (12) Thread Cutting Bolt 5/16"-18 3/4" Long Replaces Part Number(s): GX20234, GX22456

Reference Numbers:

GX20234, GX22456, AM137757, AM141035, GX21784, GY20852, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625, GX10168, GX20571, GX21833, GY20067, GY22172, AUC17621, GY20110, GY20629, GY22082, AM137757, AM141035, GX21784, GY20852, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625

Product Sub Group:

Deck Components
