NEW STARTER Fits John Deere SKID STEER LOADER 125 24A Fits JD24A AM108722 GV1156
NEW STARTER Fits John Deere SKID STEER LOADER 125 24A Fits JD24A AM108722 GV1156
Couldn't load pickup availability

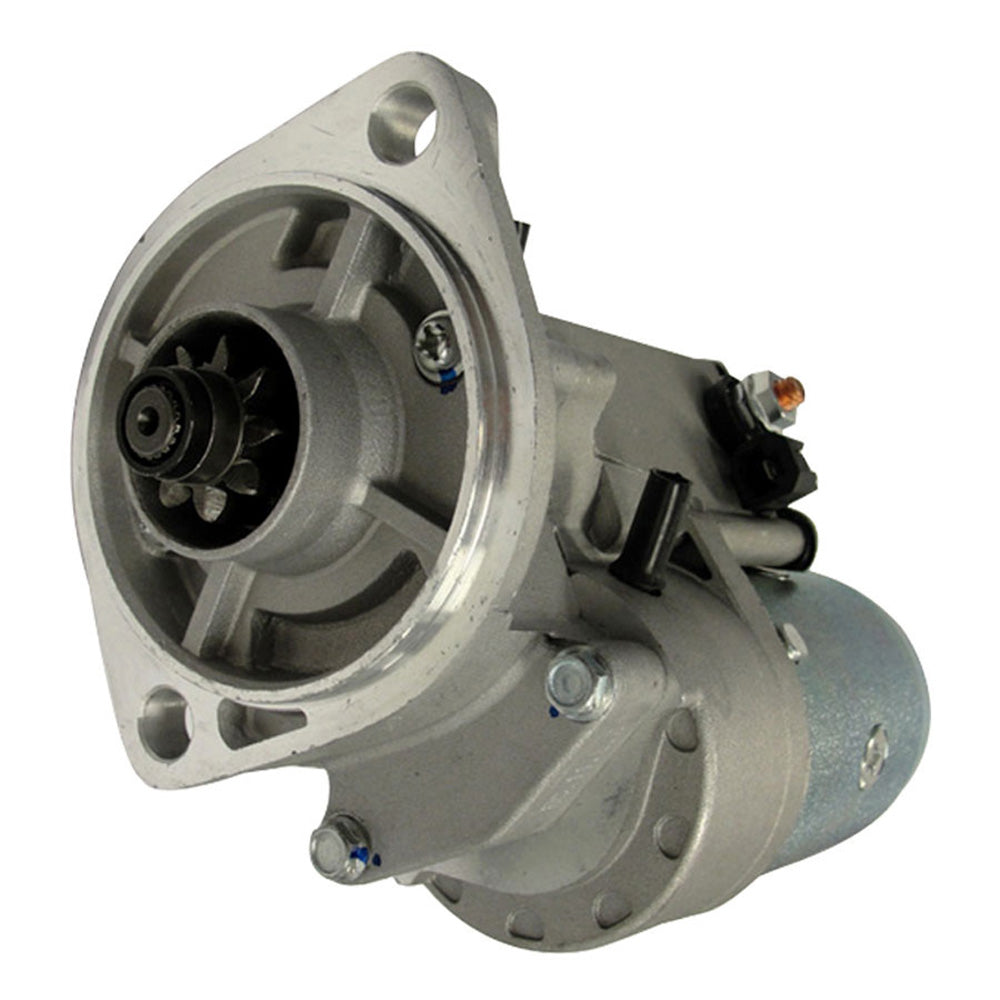

One New Aftermarket Replacement 12-Volt Starter Fits John Deere (Fits JD) Skid Steer Loaders
This aftermarket replacement OSGR starter Fits John Deere 125 and 24A/JD24A skid steer loaders powered by Isuzu diesel engines. It mounts directly in place of the original Nippondenso unit and delivers reliable cold-weather cranking for the Isuzu 2AB1, C190, and C240 diesel engines used in these compact loaders.
Specifications
- Voltage: 12 Volt
- Power: 2.0 kW
- Rotation: Clockwise (CW)
- Drive Teeth: 9
- Starter Type: OSGR (Off-Set Gear Reduction)
- Pinion OD: 31.75 mm / 1.250 in
- Approximate Weight: 12.3 lbs / 5.59 kg
- Terminal: Screw Type S Terminal
Compatible Models
Fits John Deere Skid Steer Loaders: 125 (1983-1984), 24A (1979-1983), JD24A (1977-1979)
Compatible Isuzu Engines: 2AB1, C190, C240, 3AB1, 4FA1
Replaces Part Number(s):
AM108722, GV11567, TY6615
Aftermarket Interchange Numbers
Nippondenso: 028000-6440, 028000-6441, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7004, 028000-7790, 028000-7791, 128000-0020, 128000-0021, 128000-0022, 128000-0960, 128000-2880, 128000-2881 | Isuzu: 2912559140, 5811000870, 5811001550, 5811001660, 5811001661, 5811001662, 5811001663, 5811001664, 5811001830, 5811001831, 8941233870, 8941492490 | Hyster: 1374083, 323812 | Cummins: 3675152RX | Fits Delco Remy / GM: 94123387 | DB Electrical: SND0137 | Arrowhead: 410-52194
New aftermarket replacement part - not remanufactured, not used.
