Alternator Fits Toyota Replaces 27020-12011

Alternator Fits Toyota Replaces 27020-12011

$238.00 CAD
$238.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Alternator

Tech Info:
 -Volt 12
 -Amps 35
 -Regulator Clock 10:00

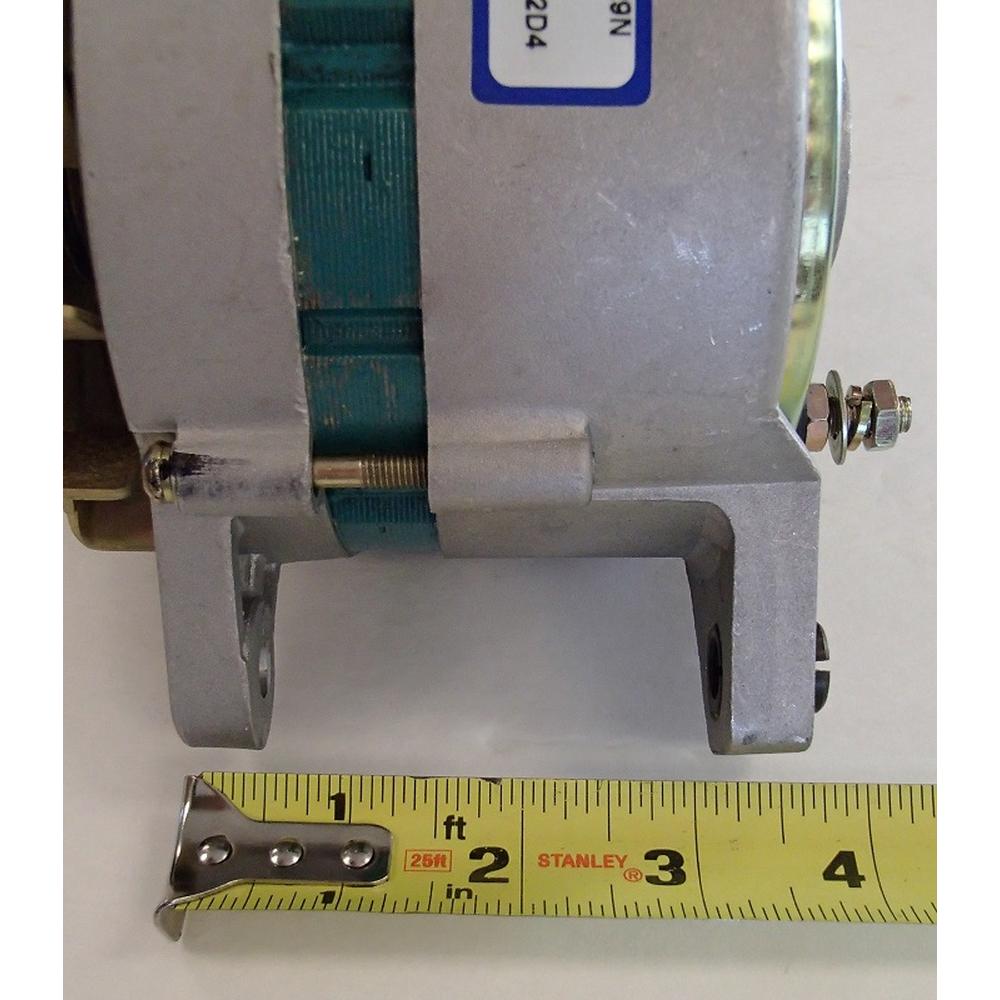

 -Mount Hole ID 1 8.200mm
 -Mount Hole 1 Type Unthreaded
 -Mount Hole 2 Type Unthreaded
 -Mount Hole ID 3 8.500mm
 -Mount Hole 3 Type Unthreaded
 -Fan Location External
 -Regulator Location External

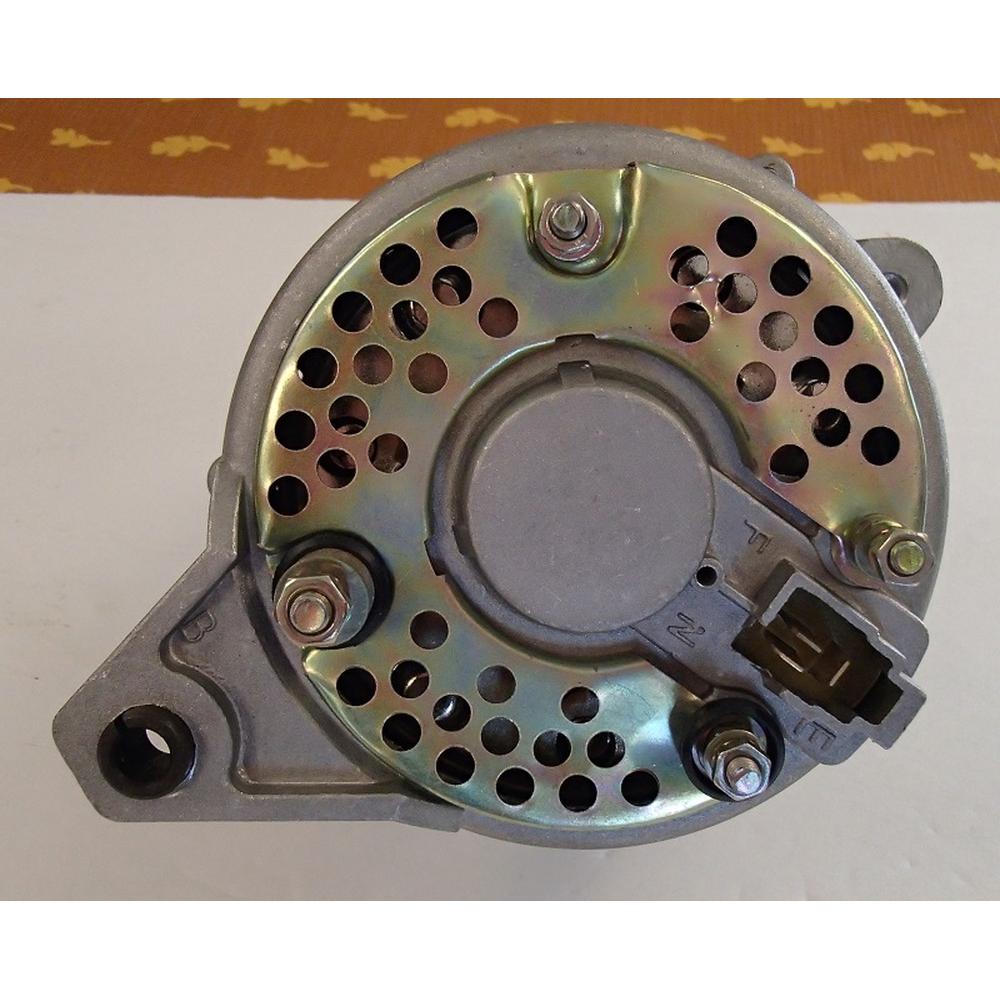

 -Terminal ID 2 B+
 -Terminal 2 Size M6x1.00
 -Terminal ID 3 F
 -Terminal 3 Size Spade
 -Terminal ID 4 E
 -Terminal 4 Size Spade
 -Terminal ID 5 N Type
 -Terminal 5 Size Spade
 -Polarity Negative
 -Number of Grooves 1

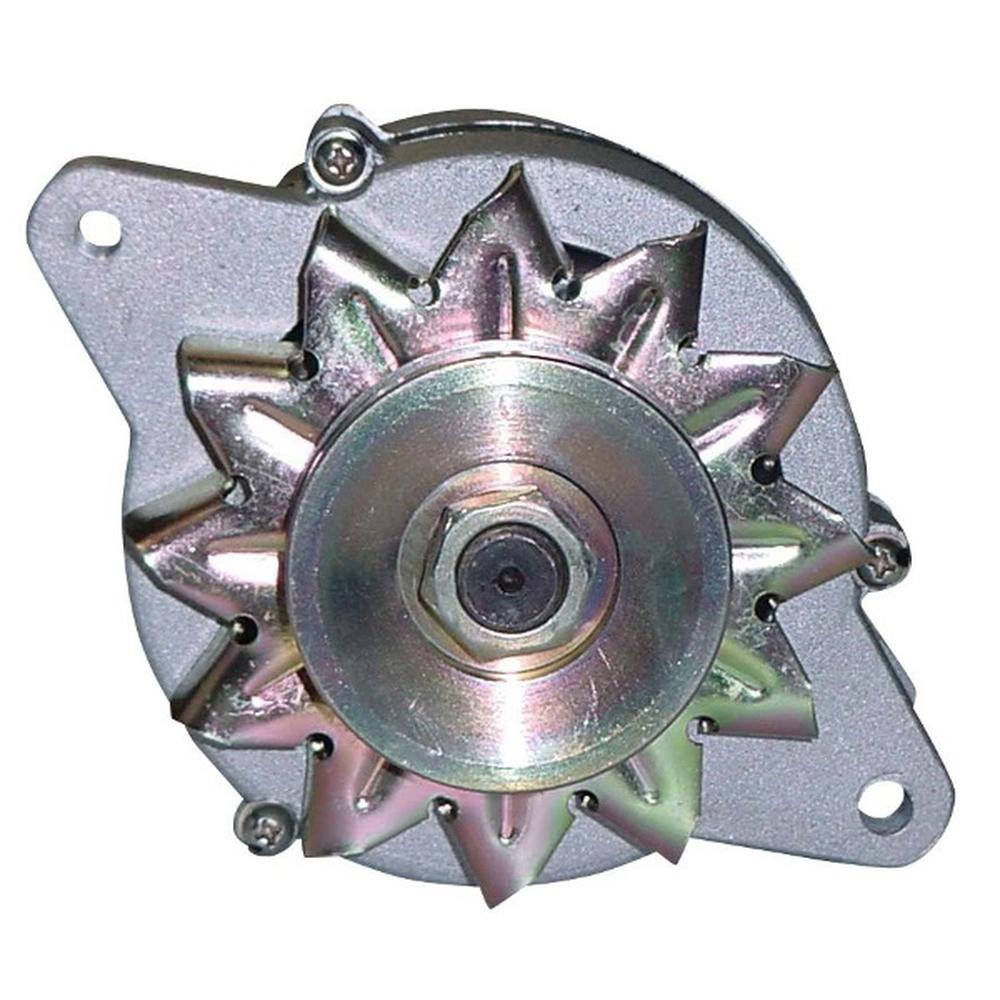

 -Pulley Type Solid
 -Pulley Outer Diameter 2.953"
 -Pulley Outer Diameter 75mm

Made to Fits Toyota:
 Forklift Models: 2FG-7, 2FG-9, 2FGL-7, 2FGL-9, 3FD-10, 3FD-14, 3FD-15, 3FD-18, 3FDL-10, 3FDL-14, 3FDL-15, 3FDL-18, 3FDL-20, 3FDL-25, 3FG-20, 3FG-23, 3FG-25, 3FGC-10, 3FGC-13, 3FGC-15, 3FGL-20, 3FGL-23, 3FGL-25, 4FDL-20, 4FDL-23, 4FDL-25, 4FG-10, 4FG-14, 4FG-15, 4FG-18, 4FG-20, 4FG-23, 4FG-25, 4FGC-20, 4FGC-25, 4FGL-10, 4FGL-14, 4FGL-15, 4FGL-18, 4FGL-20, 4FGL-23, FD-18, FDL-18, FDL-23, FG-18, FG-23, FGC-18, FGC-23, FGL-18, FGL-20, FGL-23, FGL-25
 Replaces Part Number(s): 27020-12011, 27020-12012, 27020-22010, 27020-22011, 27020-22012, 27020-22020, 27020-22021, 27020-22022, 27020-23011, 27020-23021, 27020-23022, 27020-24010, 27020-24020, 27020-24021, 27020-31030, 27020-31031, 27020-31032, 27020-31033, 27020-31050, 27020-31051, 27020-31090, 27020-87201, 28020-12011

Models This Part Fits:

2FGL-9, 2FG-7, 4FG-14, FGL-23, 3FDL-25, 3FGC-10, 3FGL-25, FGL-20, 3FD-15, 3FG-23, 3FD-18, 3FD-10, 4FG-20, FG-18, 2FG-9, 4FG-25, FGL-18, 4FGC-25, 4FDL-23, 3FGL-20, 4FGC-20, 4FG-23, 4FGL-18, 4FGL-14, 3FDL-20, 3FDL-15, 3FGC-15, 3FDL-14, 4FG-18, 3FDL-10, FGC-18, FD-18, 4FG-15, FG-23, 3FG-25, 2FGL-7, 4FGL-20, 4FGL-10, FDL-23, 4FGL-15, 3FG-20, 3FDL-18, 4FGL-23, FGC-23, FGL-25, 3FD-14, 3FGC-13, 4FDL-25, 4FDL-20, 4FG-10, FDL-18, 3FGL-23

Additional Information:

Volt 12 Amps 35 Regulator Clock 10:00 Mount Hole ID 1 8.200mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded Mount Hole ID 3 8.500mm Mount Hole 3 Type Unthreaded Fan Location External Regulator Location External Terminal ID 2 B+ Terminal 2 Size M6x1.00 Terminal ID 3 F Terminal 3 Size Spade Terminal ID 4 E Terminal 4 Size Spade Terminal ID 5 N Type Terminal 5 Size Spade Polarity Negative Number of Grooves 1 Pulley Type Solid Pulley Outer Diameter 2.953" Pulley Outer Diameter 75mm

Reference Numbers:

27020-12011, 27020-12012, 27020-22010, 27020-22011, 27020-22012, 27020-22020, 27020-22021, 27020-22022, 27020-23011, 27020-23021, 27020-23022, 27020-24010, 27020-24020, 27020-24021, 27020-31030, 27020-31031, 27020-31032, 27020-31033, 27020-31050, 27020-31051, 27020-31090, 27020-87201, 28020-12011
