Metallic Clutch Kit w/ Seal Fits John Deere Replaces AL2116

Metallic Clutch Kit w/ Seal Fits John Deere Replaces AL2116

$1,288.00 CAD
$1,288.00 CAD
Sale Sold out
Shipping calculated at checkout.

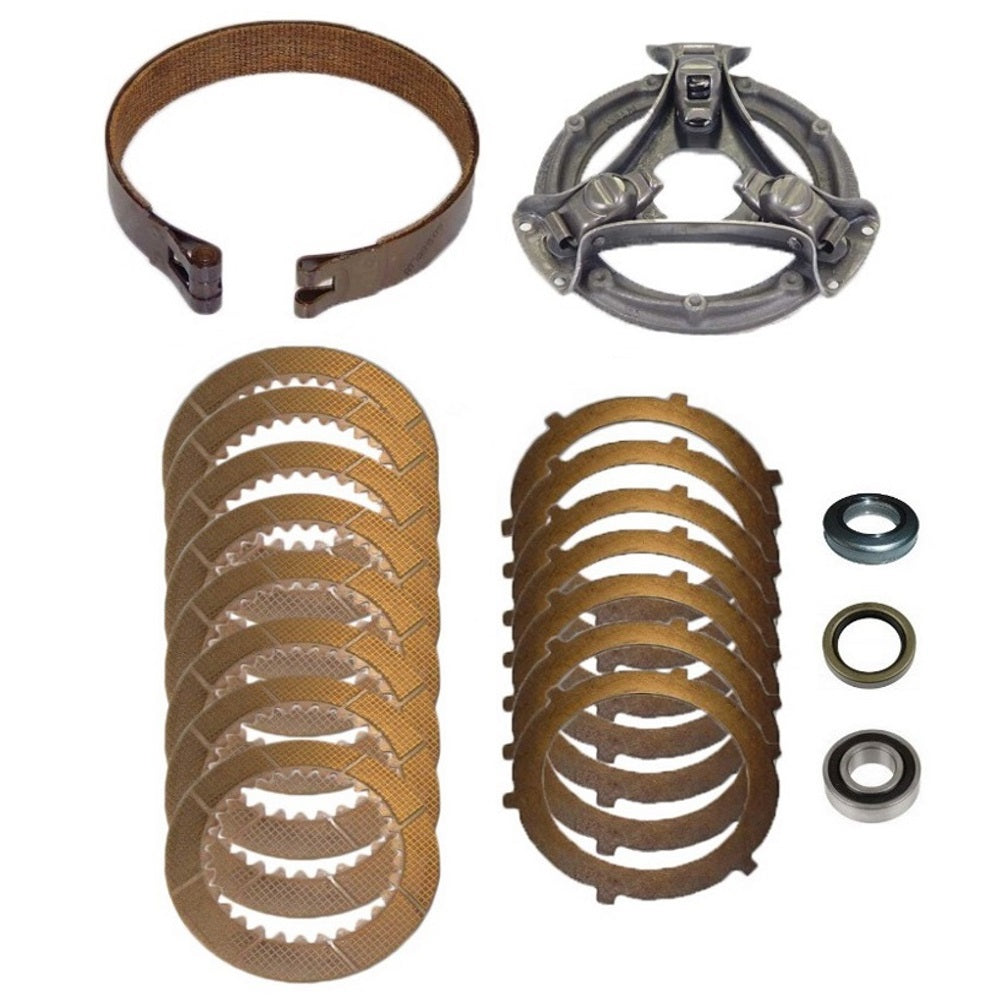

One New Aftermarket Metallic Clutch Kit w/ Seal

Tech Info:
 -(8) Metallic Clutch Discs
 -O.D.: 8.936"
 -I.D.: 5.831"
 -Thickness: .178"
 -Number of teeth: 30
 -Replaces Part Number: AT117553
 -
 -(1) Release Bearing
 -Bearing Type Sealed Roller
 -Grease Non-greaseable
 -I.D.: 2.060"
 -I.D.: Type Round
 -O.D.: 3.560"
 -Width Overall: 0.795"
 -Replaces Part Number: AM3983T
 -
 -(1) Brake Band
 -Width: 2"
 -Replaces Part Number: AT129805
 -
 -(1) 9" Pressure Plate
 -3 Lever
 -Replaces Part Number: AT18886
 -
 -(7) Steel Steering Discs
 -O.D: 9.682"
 -I.D.: 6.882"
 -6 external ears
 -Replaces part Number: T21315
 -
 -(1) Pilot Bearing
 -I.D.: 15mm
 -O.D.: 35mm
 -Width: 0.5”
 -Replaces part Number: 87502
 -
 -(1) Rear Axle Inner Seal
 -I.D.: 2.000”
 -O.D.: 2.876”
 -Width: .468”
 -Replaces Part Number: AM1717T

Made to Fits John Deere:
 Crawler Models: 350, 350B
 Replaces Part Number(s): Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983T

 Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
 Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942

Models This Part Fits:

4320, 4230, 4040, 350B, 2520, 4020, 350, 4010, 4000, 330, M, L, 500, 40, 4430, 435, 2510, 420, 4240, MT, A, MC, 320, 430, 3020, 1010

Additional Information:

(8) Metallic Clutch Discs Outer Diameter: 8.936" Inner Diameter: 5.831" Thickness: .178" Number of teeth: 30 Replaces Part Number: AT117553 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces Part Number: AM3983T (1) Brake Band Width: 2" Replaces Part Number: AT129805 (1) 9" Pressure Plate 3 Lever Replaces Part Number: AT18886 (7) Steel Steering Discs Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces part Number: T21315 (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces part Number: 87502 (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces Part Number: AM1717T

Reference Numbers:

Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983T, AL2116, AL2116T, AM3983T, AR41942
