One New Aftermarket Replacement Blade Angle Cylinder with Bushings for John Deere (JD) 700 Series Crawler Dozers

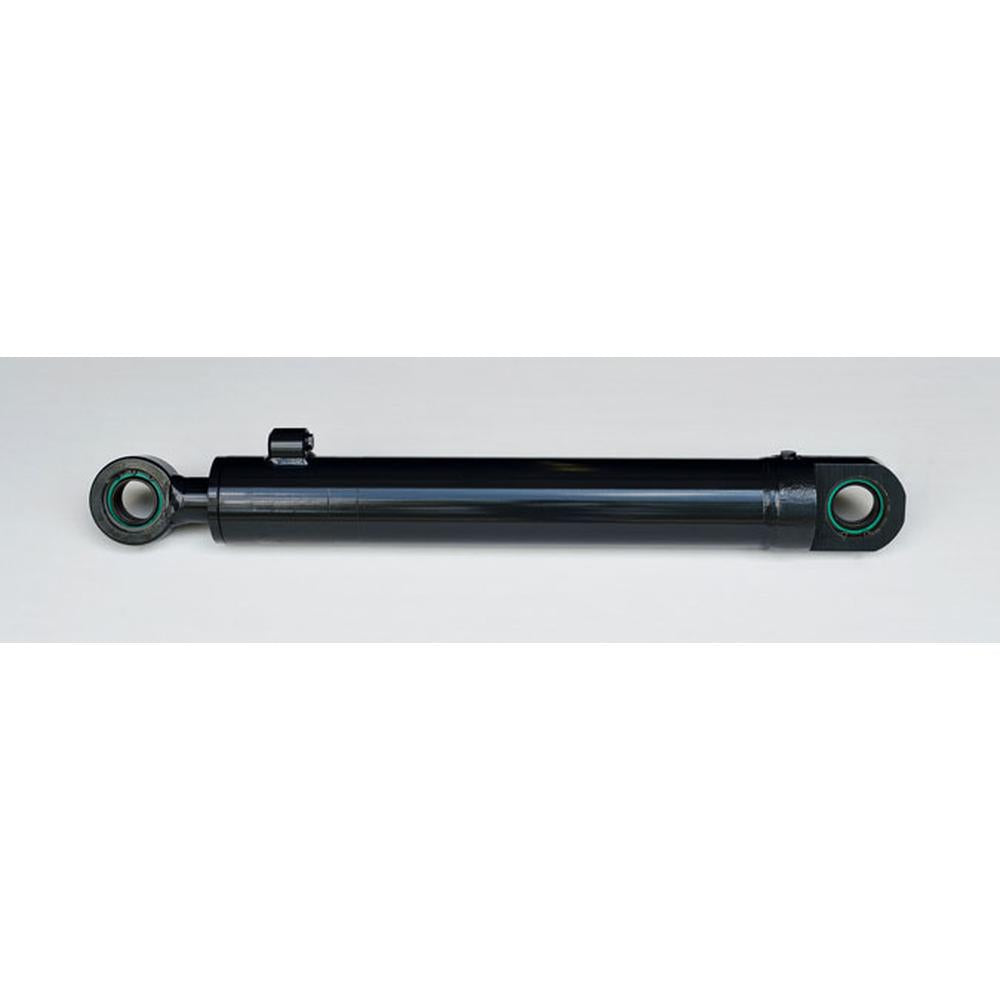

This hydraulic blade angle cylinder with spherical bushings controls left/right dozer blade angle adjustment on John Deere (JD) 700-series crawler dozers. Mounted between the C-frame and blade, it provides the hydraulic force needed for precision grading and material distribution. This is a complete assembly with bushings included for straightforward installation.
Serial Number Restriction -- 700J and 700K: This cylinder fits the 700J and 700K up to serial number 291536 only. The 700H fits all serial numbers. Verify your serial number before ordering.
Specifications
- Bore: 90mm
- Rod: 56mm
- Includes factory-installed spherical bushings
- Application: Dozer blade angle cylinder (C-frame to blade)
Compatible Models
John Deere 700 Series Crawler Dozers:
- 700H -- All serial numbers
- 700J -- Up to serial number 291536
- 700K -- Up to serial number 291536
Replaces Part Number(s):
AH211335, AHC15750
New aftermarket replacement part - not remanufactured, not used.
