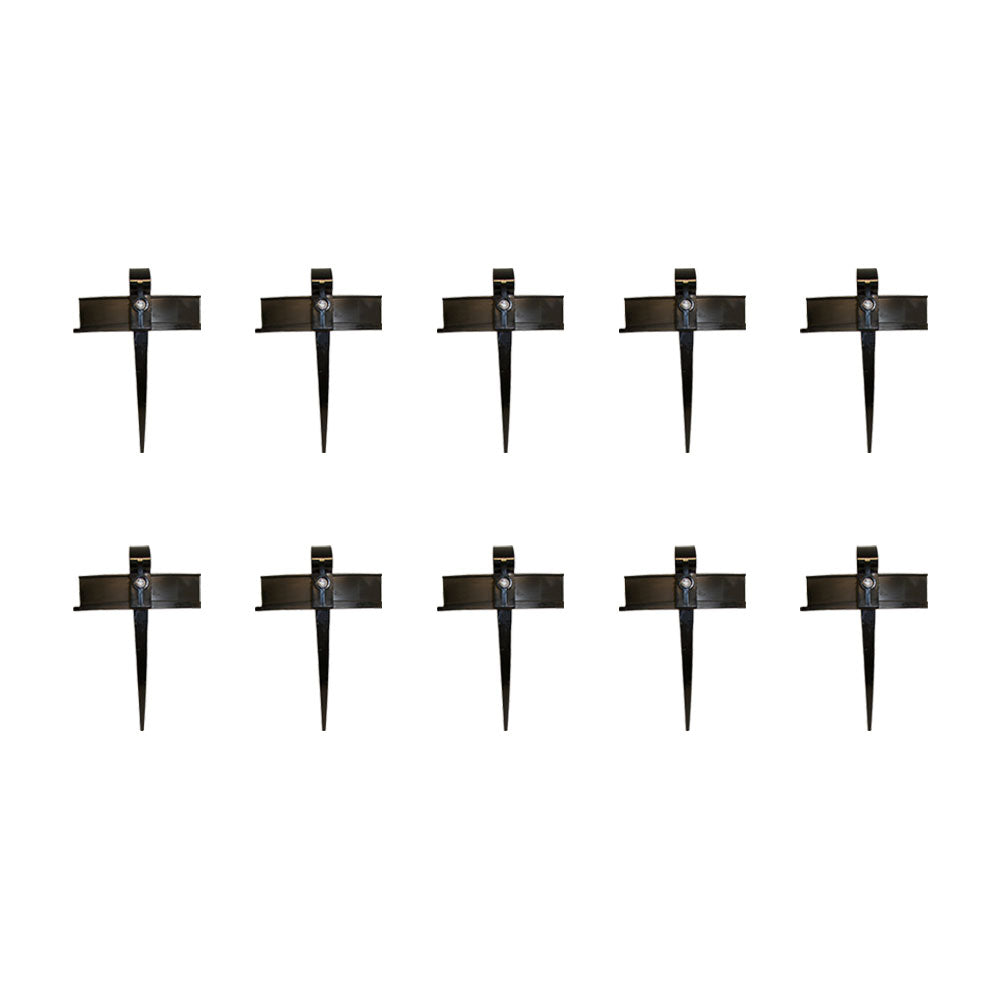

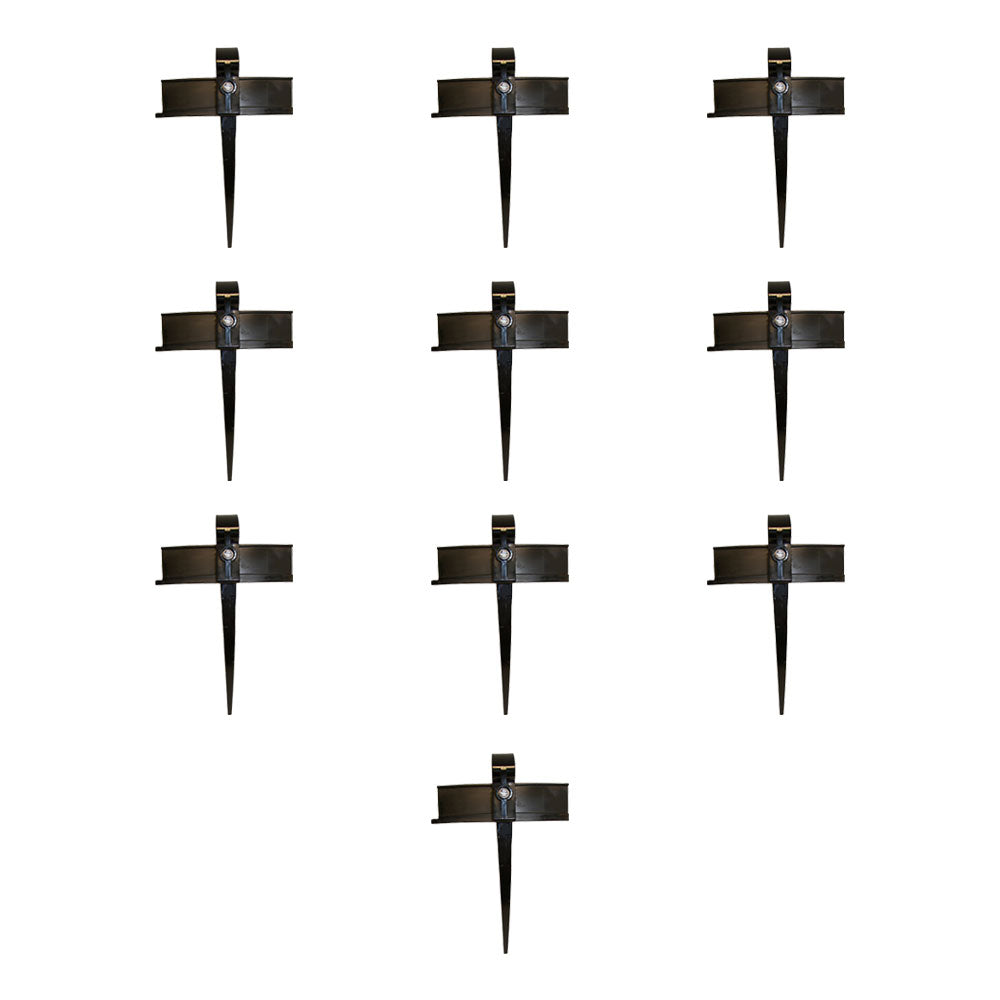

AH166489 (10) Ten Full Bat Plastic Tine 900 Series Headers

Models This Part Fits:

7000, 2010, 900D, 9800, 700, 9850, 73C, 900F, 74C, 72C, 2020, 71C, F SERIES, LEXION F SERIES, CHALLENGER FLEX, 8200, 800, 900R, 8000, 1020

Additional Information:

Overall Length: Approximately 11 inches. Overall Width (Double Wing): 6 inches. Reel Tube Diameter: Fits on a 1.375-inch (35 mm) reel tube. Hex Hole Size: Fits into a 0.500-inch (12.5 mm) hex hole in the tube. Tine Spacing: Designed for reels with 6.00-inch (152 mm) spacing between the hex holes. Weight: Approximately 2.0 lbs. Center, Nylon Long Double Wing Unit, Tines have a hex nub that fits into a hex hole in the tube. Standard since 1999/2000. Includes Hardware.

Reference Numbers:

AH166489, 01186, 291310A1, 783597, 410856A1, 783707, AH166493, T16-0740, T160740, 783597, AH166489

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Group:

Combine/Forage Harvester Parts
View More: Combine/Forage Harvester Parts Replacement Parts
