3086335 Motor AS-Condenser Motor Fits Caterpillar 1741495 816F 816F II 826C 826G
3086335 Motor AS-Condenser Motor Fits Caterpillar 1741495 816F 816F II 826C 826G
Couldn't load pickup availability

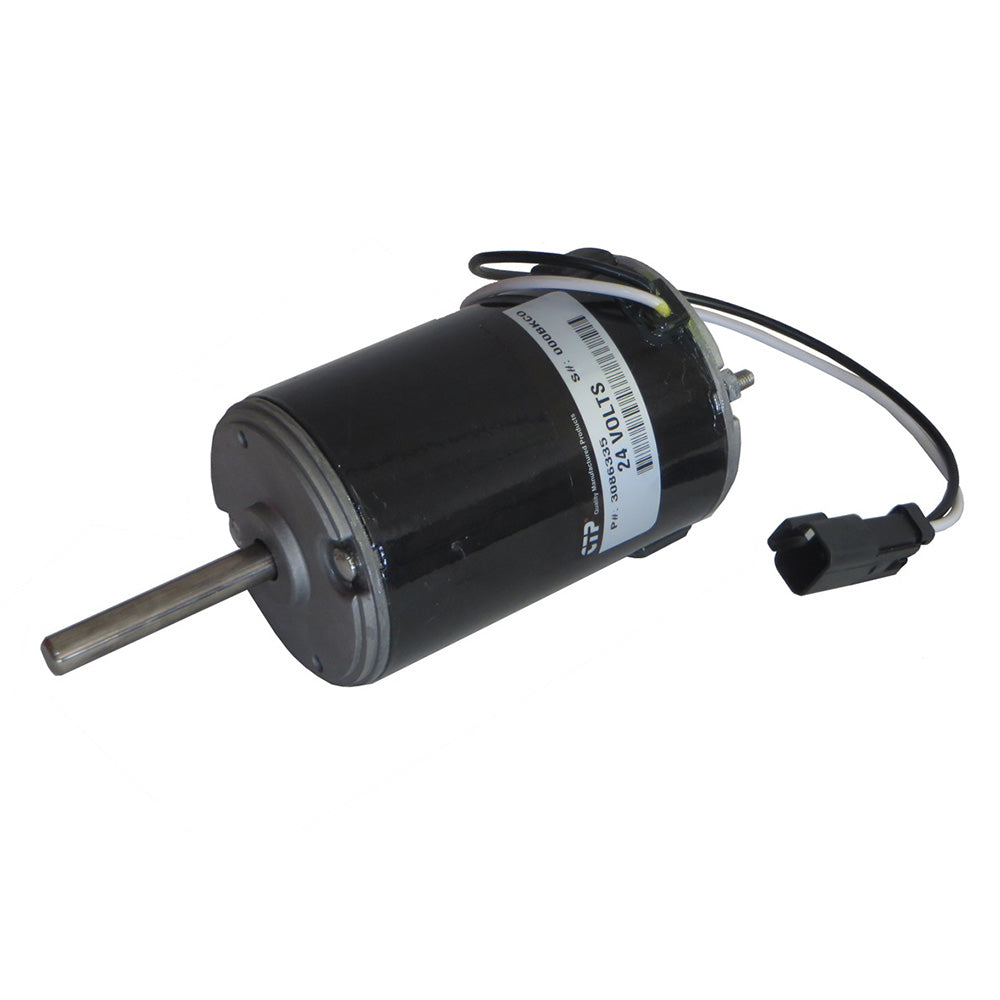

One New Aftermarket Replacement A/C Condenser Motor Assembly Fits Caterpillar (Fits CAT) Construction and Industrial Equipment
This aftermarket replacement condenser motor assembly drives the condenser fan in the cab air conditioning system on a wide range of Fits Caterpillar (Fits CAT) construction, landfill compactor, motor grader, dozer, and wheel loader equipment. The motor runs at 27 volts DC, clockwise rotation, with a 3/8-inch shaft diameter and sealed (non-vented) housing for reliable operation in heavy-duty outdoor environments.
Specifications
- Voltage: 27V DC
- Rotation: Clockwise (CW)
- Shaft Diameter: 3/8 in.
- Shaft Length: 1.75 in.
- Motor Diameter: 3 in.
- Motor Body Length: 4.5 in.
- Speeds: Single speed
- Vent: Sealed / Non-vented
- Mount Type: Stud mount
- Lead Wire: 2-wire harness
Compatible Models
Fits Caterpillar Landfill Compactors: 816F, 816F II, 826C, 826G, 826G II, 826H, 836, 836G, 836H
Fits Caterpillar Wheel Tractor-Scrapers / Compactors: 824H, 825H, 834G
Fits Caterpillar Motor Graders: 135H, 143H, 14H, 160H ES, 160H NA, 163H NA
Fits Caterpillar Crawler Dozers: D4H, D4H XL, D4H III, D4HTSK III, D5M, D6M, D6R, D6R II, D6R III, D6T, D7R, D7R II, D8R, D8R II, D8T, D9R, D9T, D10N, D10R, D10T, D11R, D11T
Fits Caterpillar Crawler Loaders / Track-Type Loaders: 953C, 963C, 973C, IT12B
Fits Caterpillar Wheel Loaders: 950H, 962H, 966H, 972H, 988G, 988H
Fits Caterpillar Track-Type Skidders / Feller Bunchers: 517, 527, 539, 572R
Fits Caterpillar Scrapers / Other: 54H, 57H, 58L, 59L, 59N, 4S, 6, 7A, 7S, 7SU, 7U, 8, 8SU
Replaces Part Number(s):
3086335, 308-6335, 1741495, 174-1495
Aftermarket Interchange Numbers
ACK90-0043, 1062721, 106-2721, 7X1017, 6T6111, 9P2218, 7X6279, BM12416, 407768
New aftermarket replacement part - not remanufactured, not used.
